8-10 — WIRING HARNESS AND FUSE (#65946) — 86 parça

558 267 266 181 262 265 276 277 264 450 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	0504-1411	●
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	1412-	●	●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	0504-1411	●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	1412-	●	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0504-1411	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	1412-	●	●
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0504-1411	●
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	1412-	●	●
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0504-1411	●
266	BRACKET; CONN BOX	1-82699-580-0	01	1	1412-	●	●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0504-1411	●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	1412-	●	●
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	0504-1411	●
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	1412-	●	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0504-0512	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-1411	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	1412-	●	●
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	01	1	1412-		●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0504-1201	●
419	BOLT; CAB EARTH M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	9-09164-608-0	01	1	0504-0605	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	0-91614-608-0	01	1	0606-1411	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	0-91614-608-0	01	1	1412-	●	●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	0504-1411	●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	1412-	●	●

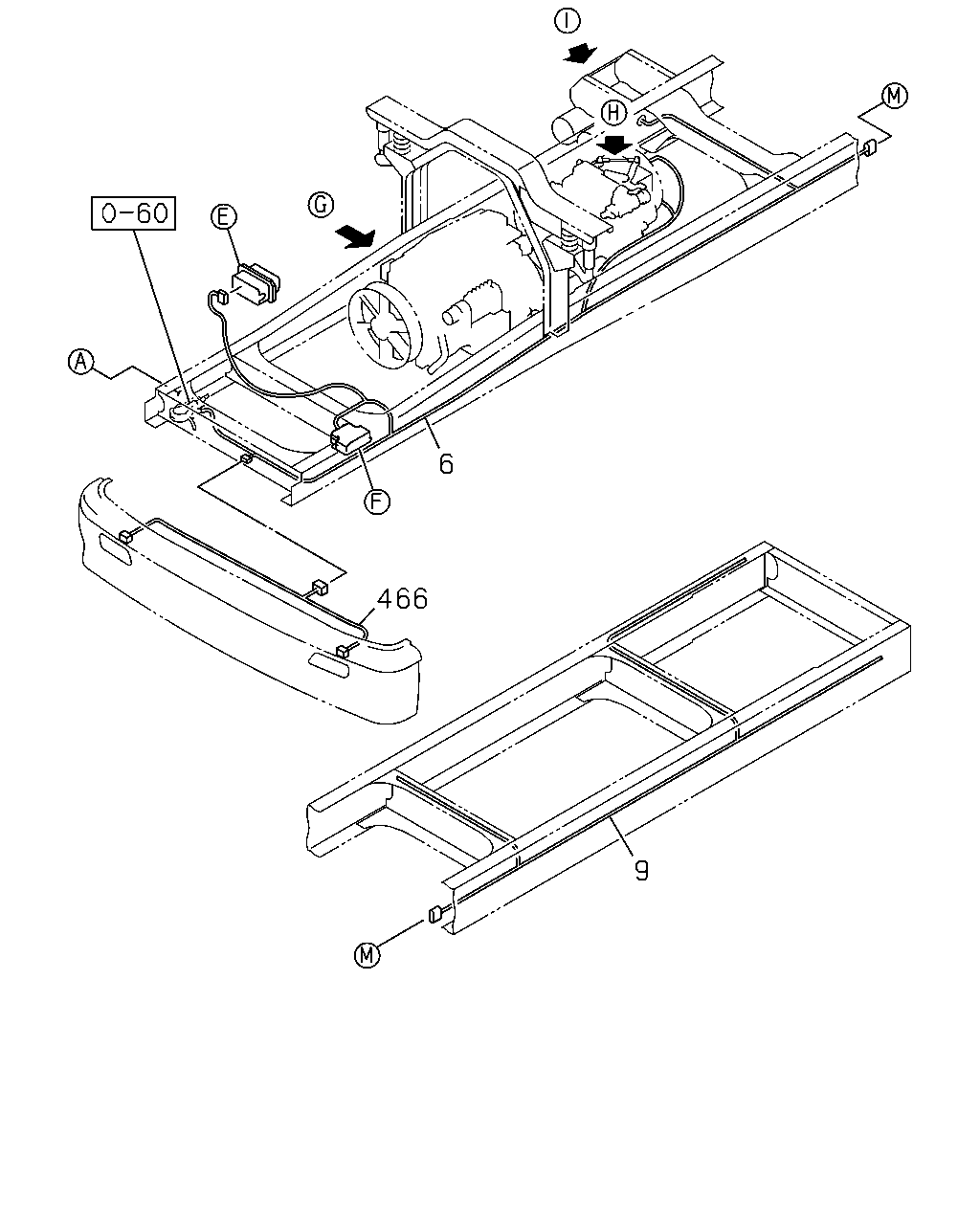

6 466 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
6	HARNESS; FRAME	1-82677-461-0	01	1	1412-	●
9	HARNESS; FRAME,RR	1-82675-063-0	01	1	1412-	●
466	HARNESS; BUMPER	1-82638-758-1	01	1	1412-1507	●

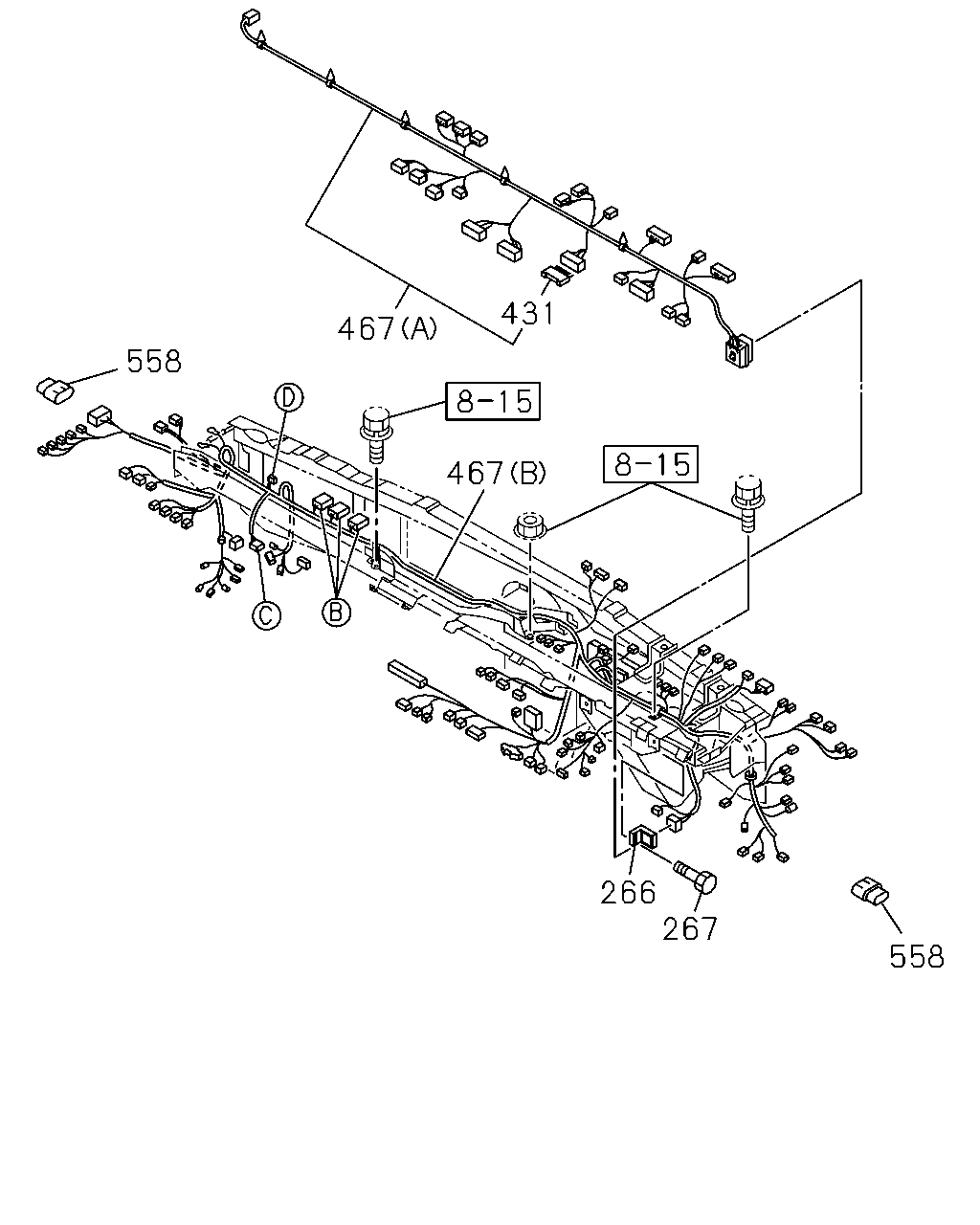

558 267 266 558 467 467 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0504-1411	●
266	BRACKET; CONN BOX	1-82699-580-0	01	1	1412-	●	●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0504-1411	●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	1412-	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	05	1	1412-		●
467	HARNESS; FACIA (B)	1-82629-241-5	01	1	1412-		●
467	HARNESS; FACIA (A)	1-82629-294-2	01	1	1412-		●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	0504-1411	●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	1412-	●	●

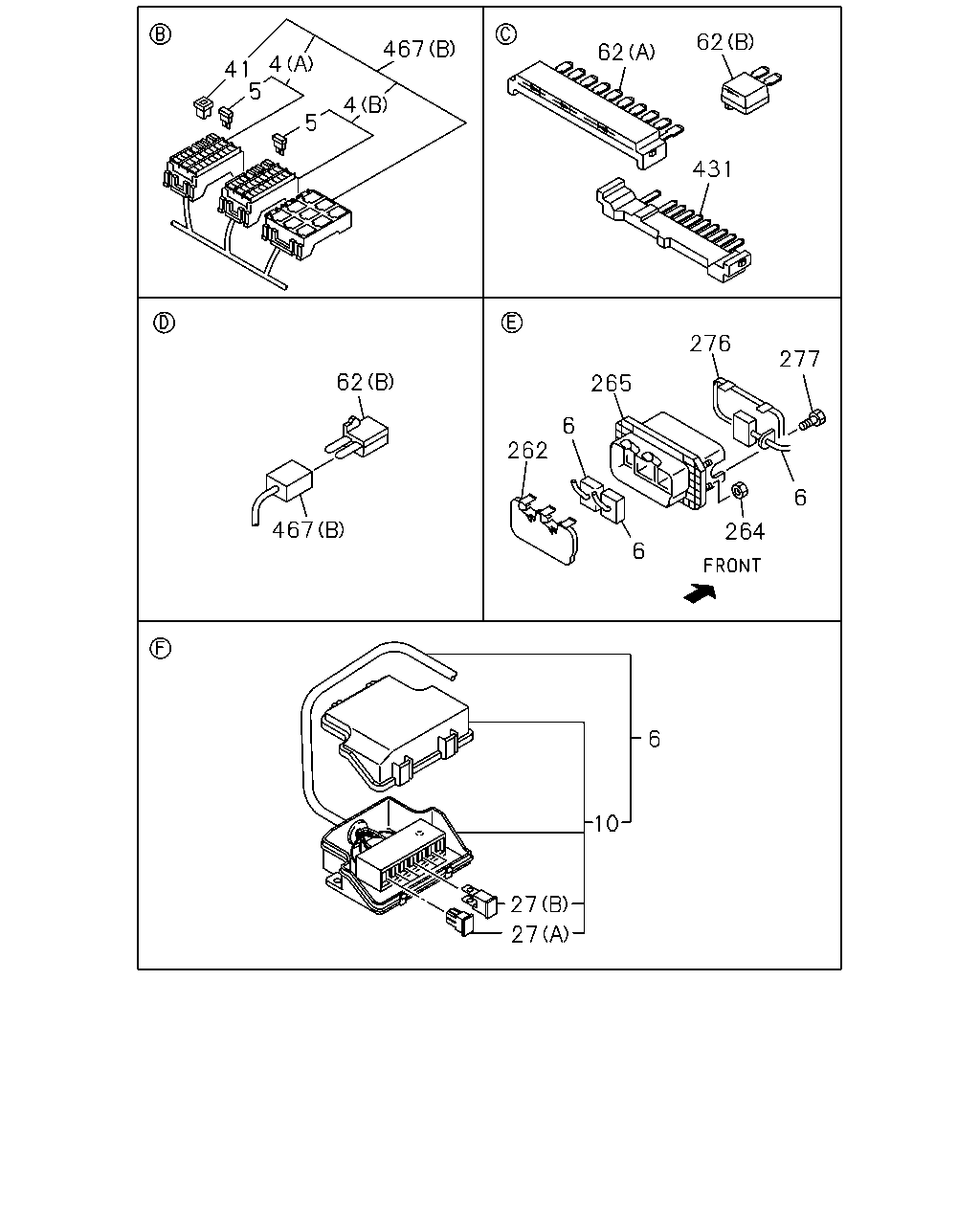

27 27 10 6 6 264 6 277 276 265 6 262 467 62 431 62 62 467 4 5 4 5 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS (B) 15AX16	1-82510-397-0	01	1	1412-		●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX18	1-82510-422-0	01	1	1412-		●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	16	1	1412-		●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	18	1	1412-		●
6	HARNESS; FRAME	1-82677-461-0	01	1	1412-		●
10	BOX; FUSE,HARNESS	1-82510-409-0	01	1	1412-		●
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	03	1	1412-		●
27	FUSE UNIT (B) 60A YELLOW	8-94468-669-0	01	1	1412-		●
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	1412-		●
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	1412-		●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	10	1	1412-		●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	0504-1411	●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	1412-	●	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0504-1411	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	1412-	●	●
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0504-1411	●
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	1412-	●	●
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	0504-1411	●
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	1412-	●	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0504-0512	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-1411	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	1412-	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	05	1	1412-		●
467	HARNESS; FACIA (B)	1-82629-241-5	01	1	1412-		●
467	HARNESS; FACIA (A)	1-82629-294-2	01	1	1412-		●

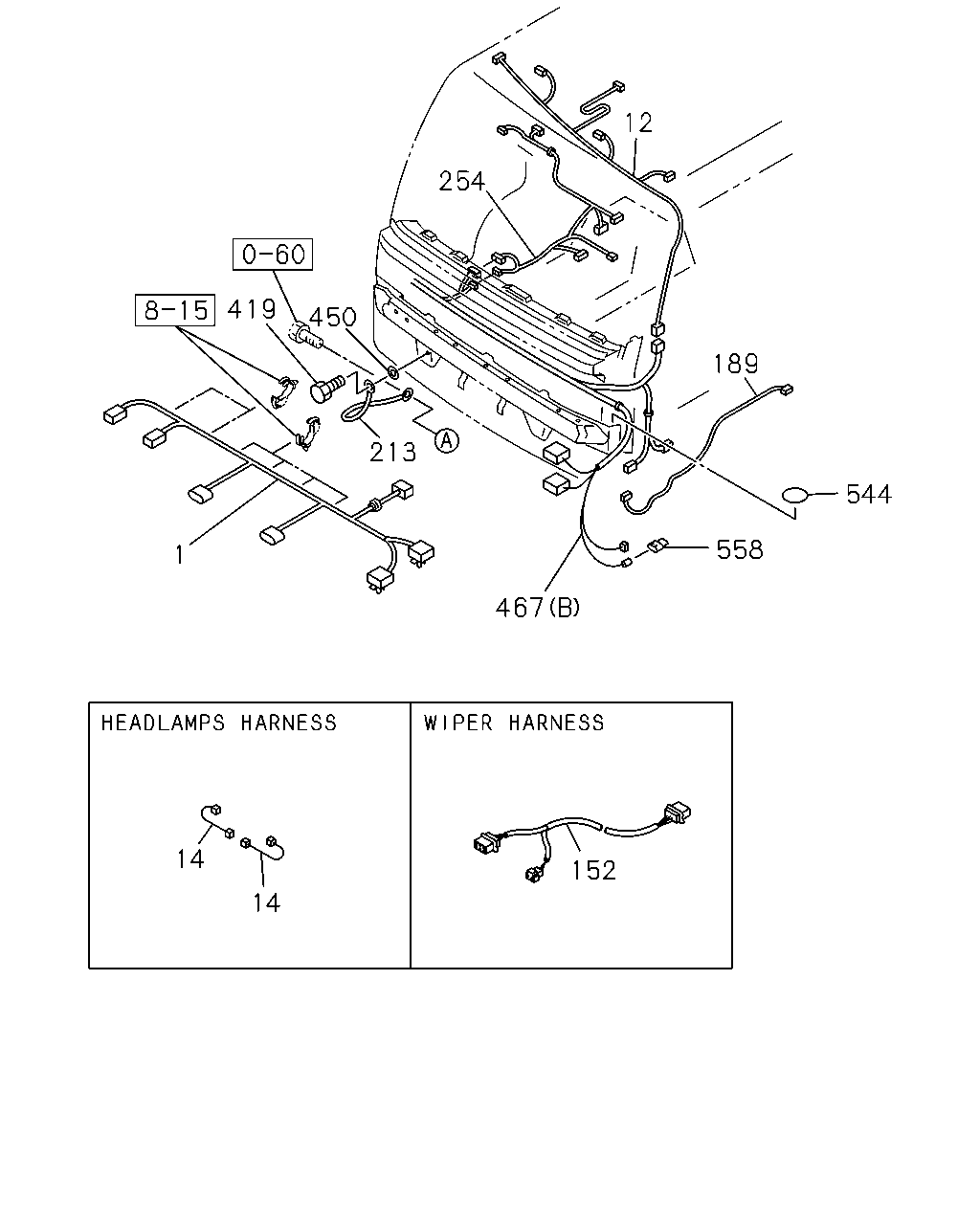

419 213 467 558 544 189 12 254 450 1 14 14 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB	1-82625-717-1	01	1	1412-		●
12	HARNESS; ROOF	1-82625-713-4	01	1	1412-		●
14	HARNESS; HEADLAMP	1-82639-072-2	02	1	1508-		●
152	HARNESS; WIPER	1-82625-630-0	01	1	1509-		●
189	HARNESS; EXT	1-82625-673-2	02	1	1412-		●
213	CABLE; EARTH,CAB TO FRAME	1-82657-055-1	01	1	1412-		●
254	HARNESS; CAB FLOOR	1-82629-307-3	01	1	1412-		●
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	01	1	1412-		●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0504-1201	●
419	BOLT; CAB EARTH M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	9-09164-608-0	01	1	0504-0605	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	0-91614-608-0	01	1	0606-1411	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	0-91614-608-0	01	1	1412-	●	●
467	HARNESS; FACIA (B)	1-82629-241-5	01	1	1412-		●
467	HARNESS; FACIA (A)	1-82629-294-2	01	1	1412-		●
544	SEAL; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	01	1	1412-		●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	0504-1411	●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	1412-	●	●

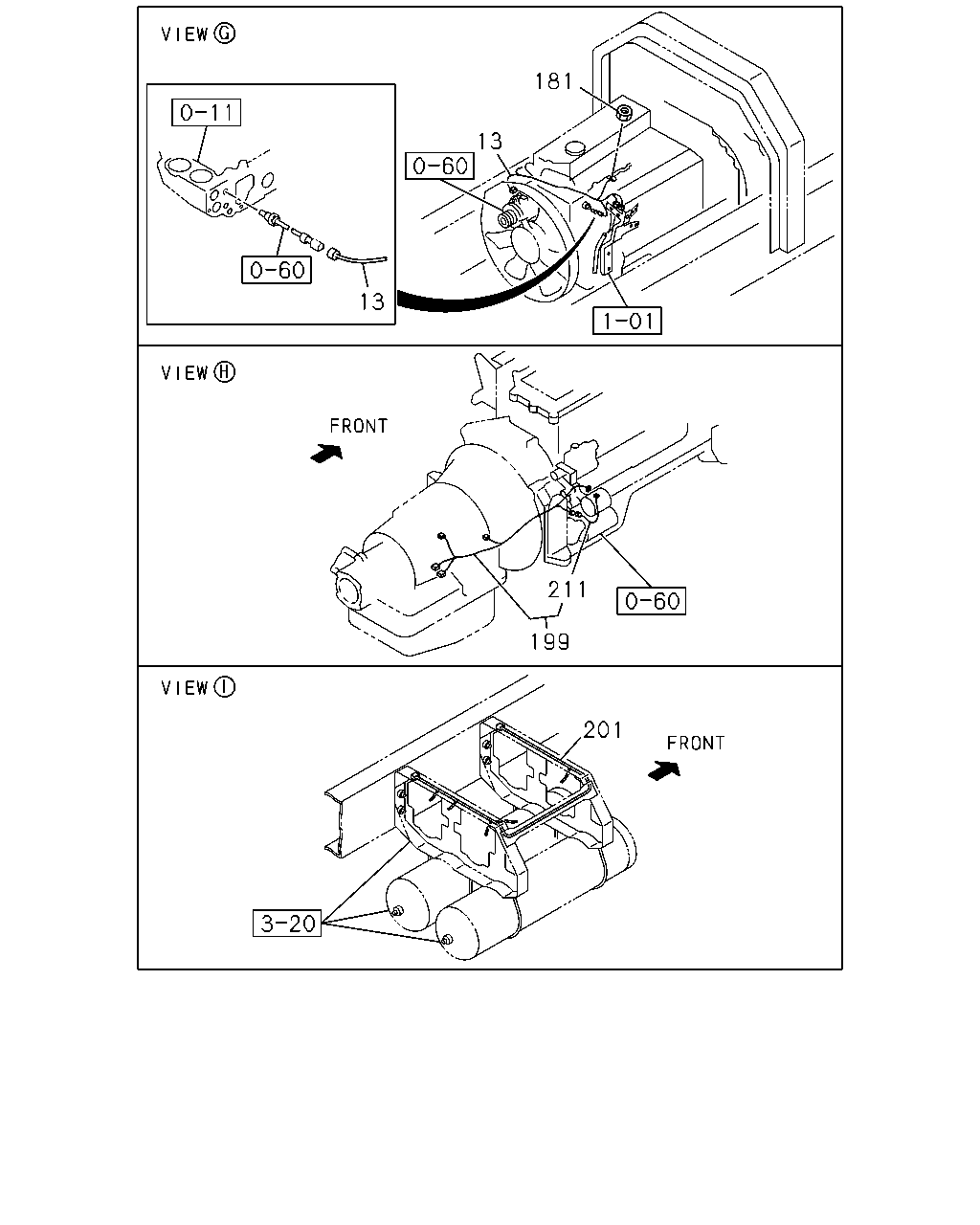

201 199 211 13 13 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG	1-82640-714-0	01	1	1412-		●
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	0504-1411	●
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	1412-	●	●
199	HARNESS; STARTER	1-82640-718-5	01	1	1412-		●
201	HARNESS; AIR TANK	1-82670-503-2	01	1	1412-		●
211	WIRE; FUSIBLE LINK,STARTER WHITE	1-82659-124-1	01	1	1412-		●
