8-01 — LAMP; FRONT AND FRONT SIDE (#65944) — 132 parça

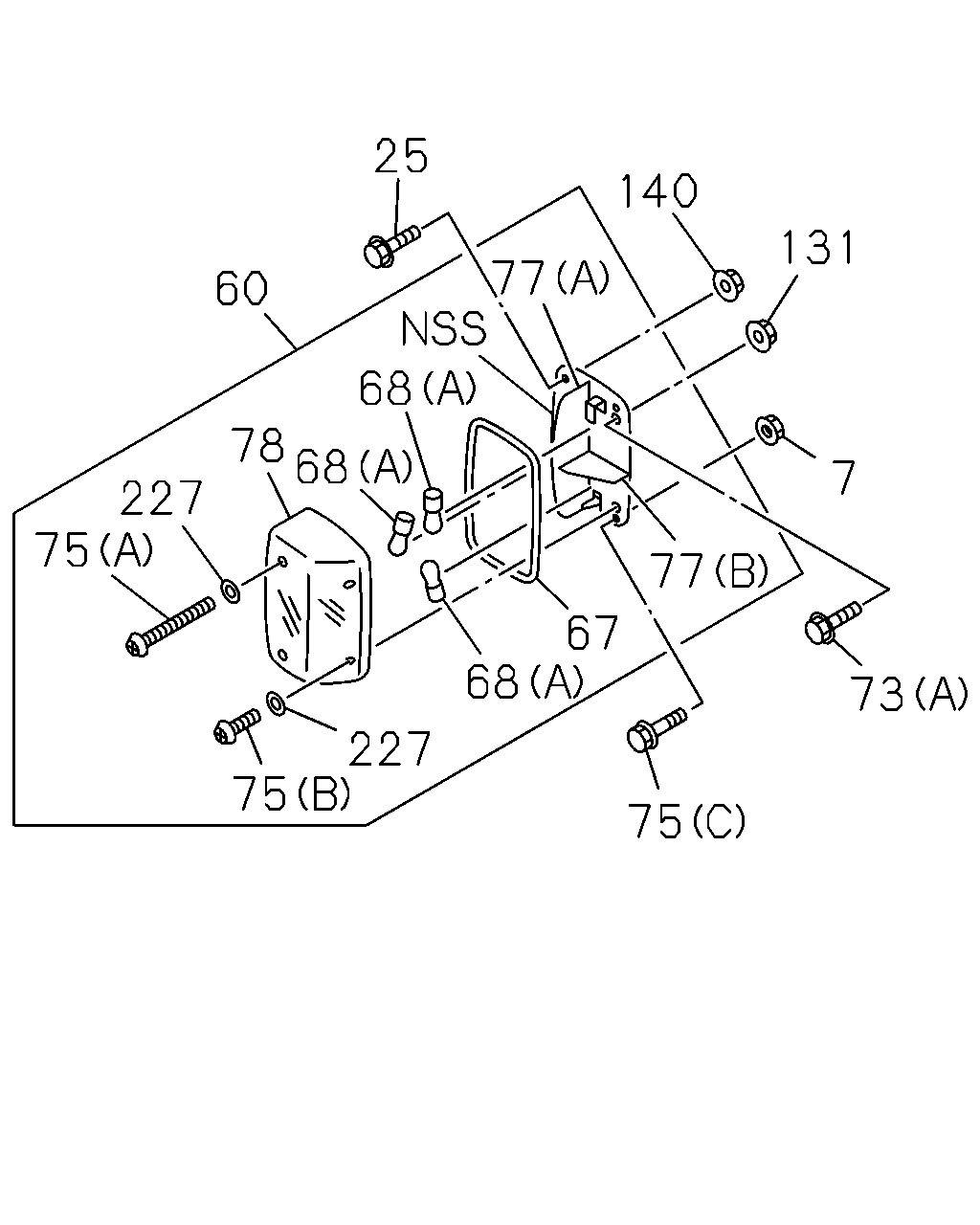

çizim 135797
25 60 77 140 7 131 68 78 227 75 68 68 227 75 75 73 77 67
BalonParca AdiParca NoAdetTipApplied Date A B
7 NUT; FRT COMB LAMP
M5 		9-99110-405-0 08 1 0504-0512 ●
7 NUT; FRT COMB LAMP
M5 		0-91110-505-0 08 1 0601-1507 ●
7 NUT; FRT COMB LAMP
M5 		0-91110-505-0 08 1 1508- ● ●
25 SCREW; LAMP
M5X20 W/LK&PL WASHER 		0-36230-520-0 16 1 1508- ●
25 SCREW; LAMP
M5X16 W/LK WASHER 		9-03910-516-0 16 1 0602-0604 ●
25 SCREW; LAMP
M5X16 W/LK WASHER 		0-36220-516-0 16 1 0605- ●
60 LAMP ASM; FRT COMB 8-98020-167-1 01 1 1508- ●
60 LAMP ASM; FRT COMB 8-98020-168-1 01 1 1508- ●
60 LAMP ASM; FRT COMB 1-82210-108-1 01 1 0504- ●
60 LAMP ASM; FRT COMB 1-82210-109-1 01 1 0504- ●
67 GASKET; FRT COMB LAMP 8-98056-334-0 01 1 1508- ●
67 GASKET; FRT COMB LAMP 8-98056-335-0 01 1 1508- ●
67 GASKET; FRT COMB LAMP 1-82216-003-0 01 1 0504- ●
67 GASKET; FRT COMB LAMP 1-82216-004-0 01 1 0504- ●
68 BULB; FRT COMB LAMP
(B) 24V 10W 		1-82194-037-0 02 1 1508- ●
68 BULB; FRT COMB LAMP
(C) 24V 21W 		1-82194-104-0 04 1 1508- ●
68 BULB; FRT COMB LAMP
(A) 24V 25W 		9-82691-347-0 04 1 0504- ●
68 BULB; FRT COMB LAMP
(A) 24V 10/4W 		9-82691-607-0 02 1 0504- ●
73 BOLT; BRKT,HEADLAMP
(B) M6X20 FLANGE 		0-28650-620-0 16 1 1508- ●
73 BOLT; BRKT,HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 08 1 1508- ●
73 BOLT; BRKT,HEADLAMP
(A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 0602- ●
75 SCREW; FRT COMB LAMP
(C) M5X20 W/LK&PL WASHER 		0-36230-520-0 08 1 1508- ●
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-09106-004-0 04 1 1508- ●
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-09106-005-0 04 1 1508- ●
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-82219-015-0 04 1 0504- ●
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-82219-016-0 04 1 0504- ●
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		9-03910-516-0 08 1 0504-0604 ●
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		0-36220-516-0 08 1 0605- ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 01 1 1508- ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 01 1 1508- ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-027-0 01 1 1508- ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-028-0 01 1 1508- ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 02 1 0504- ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 02 1 0504- ●
78 LENS ASM; FRT COMB 8-98252-895-0 01 1 1508- ●
78 LENS ASM; FRT COMB 8-98252-896-0 01 1 1508- ●
78 LENS ASM; FRT COMB 1-82215-008-0 01 1 0504- ●
78 LENS ASM; FRT COMB 1-82215-009-0 01 1 0504- ●
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91180-210-0 08 1 1508- ●
131 NUT; BRKT,HEADLAMP
M10 		0-91110-510-0 08 1 0602- ●
140 NUT
M5 		0-91110-505-0 12 1 1508- ●
140 NUT
M5 		0-91110-505-0 16 1 0602- ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-09503-132-0 08 1 1508- ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-82219-017-0 08 1 0504- ●
çizim 467338
110 28 6 327 91 321 344 104 324 125 127 326 129 185 248 399 124
BalonParca AdiParca NoAdetTipApplied Date A B
6 RIM; HEADLAMP
(C) 24V 70W 		1-82114-018-0 02 1 1508- ●
6 RIM; HEADLAMP
(B) 24V 75/70W 		1-82114-019-0 02 1 1508- ●
6 RIM; HEADLAMP
(A) 		1-86830-005-5 01 1 1412- ●
6 RIM; HEADLAMP
(A) 		1-86830-006-5 01 1 1412- ●
28 BOLT; HEADLAMP
M6X16 FLANGE 		0-28650-616-0 04 1 1412- ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 1412- ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 1412- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 1412- ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 1412- ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 1412-1507 ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 1412-1507 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 1412-1507 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 1412-1507 ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 1412-1507 ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1412-1507 ●
248 CLIP; HARNESS
ID=11.5 		1-09709-083-0 01 1 1412- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 1412- ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 1412-1507 ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 1412-1507 ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 1412-1507 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 1412- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 1412- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 1412- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 1412- ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 1412-1507 ●

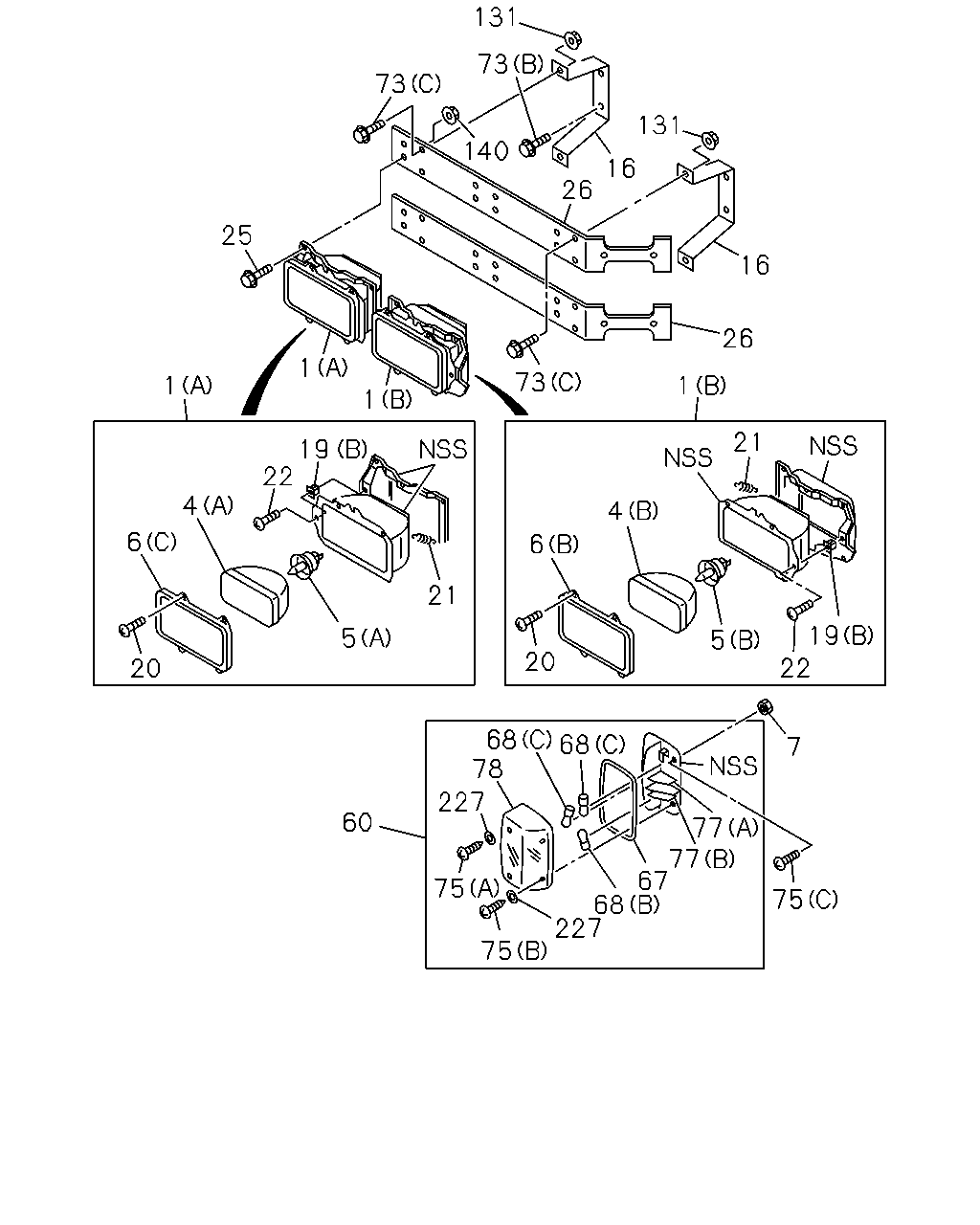

çizim 501707
131 73 73 140 131 16 26 16 26 1 73 1 1 1 25 19 22 4 6 20 5 21 6 21 4 20 5 22 19 60 68 78 227 75 75 68 68 77 77 67 7 75 227
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-258-2 01 1 1508- ●
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-260-2 01 1 1508- ●
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 1508- ●
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 1508- ●
4 HEADLAMP UNIT
(B) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 1508- ●
4 HEADLAMP UNIT
(A) TYPE 1 24V 70W 		1-82191-032-0 02 1 1508- ●
5 BULB; HEADLAMP
(B) 24V 75/70W 		1-82193-006-0 02 1 1508- ●
5 BULB; HEADLAMP
(A) 24V 70W 		1-82193-007-0 02 1 1508- ●
6 RIM; HEADLAMP
(C) 24V 70W 		1-82114-018-0 02 1 1508- ●
6 RIM; HEADLAMP
(B) 24V 75/70W 		1-82114-019-0 02 1 1508- ●
6 RIM; HEADLAMP
(A) 		1-86830-005-5 01 1 1412- ●
6 RIM; HEADLAMP
(A) 		1-86830-006-5 01 1 1412- ●
7 NUT; FRT COMB LAMP
M5 		9-99110-405-0 08 1 0504-0512 ●
7 NUT; FRT COMB LAMP
M5 		0-91110-505-0 08 1 0601-1507 ●
7 NUT; FRT COMB LAMP
M5 		0-91110-505-0 08 1 1508- ● ●
16 BRACKET; HEADLAMP 9-82615-154-2 04 1 1508- ●
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91180-106-0 16 1 1508- ●
19 NUT; HEADLAMP
(B) 		1-82119-056-0 08 1 1508- ●
20 SCREW; HEADLAMP 1-82119-023-0 16 1 1508- ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 04 1 1508- ●
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 08 1 1508- ●
25 SCREW; LAMP
M5X20 W/LK&PL WASHER 		0-36230-520-0 16 1 1508- ●
25 SCREW; LAMP
M5X16 W/LK WASHER 		9-03910-516-0 16 1 0602-0604 ●
25 SCREW; LAMP
M5X16 W/LK WASHER 		0-36220-516-0 16 1 0605- ●
26 BRACKET ASM; HEADLAMP 1-82117-188-0 04 1 1508- ●
60 LAMP ASM; FRT COMB 8-98020-167-1 01 1 1508- ●
60 LAMP ASM; FRT COMB 8-98020-168-1 01 1 1508- ●
60 LAMP ASM; FRT COMB 1-82210-108-1 01 1 0504- ●
60 LAMP ASM; FRT COMB 1-82210-109-1 01 1 0504- ●
67 GASKET; FRT COMB LAMP 8-98056-334-0 01 1 1508- ●
67 GASKET; FRT COMB LAMP 8-98056-335-0 01 1 1508- ●
67 GASKET; FRT COMB LAMP 1-82216-003-0 01 1 0504- ●
67 GASKET; FRT COMB LAMP 1-82216-004-0 01 1 0504- ●
68 BULB; FRT COMB LAMP
(B) 24V 10W 		1-82194-037-0 02 1 1508- ●
68 BULB; FRT COMB LAMP
(C) 24V 21W 		1-82194-104-0 04 1 1508- ●
68 BULB; FRT COMB LAMP
(A) 24V 25W 		9-82691-347-0 04 1 0504- ●
68 BULB; FRT COMB LAMP
(A) 24V 10/4W 		9-82691-607-0 02 1 0504- ●
73 BOLT; BRKT,HEADLAMP
(B) M6X20 FLANGE 		0-28650-620-0 16 1 1508- ●
73 BOLT; BRKT,HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 08 1 1508- ●
73 BOLT; BRKT,HEADLAMP
(A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 0602- ●
75 SCREW; FRT COMB LAMP
(C) M5X20 W/LK&PL WASHER 		0-36230-520-0 08 1 1508- ●
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-09106-004-0 04 1 1508- ●
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-09106-005-0 04 1 1508- ●
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-82219-015-0 04 1 0504- ●
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-82219-016-0 04 1 0504- ●
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		9-03910-516-0 08 1 0504-0604 ●
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		0-36220-516-0 08 1 0605- ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 01 1 1508- ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 01 1 1508- ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-027-0 01 1 1508- ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-028-0 01 1 1508- ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 02 1 0504- ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 02 1 0504- ●
78 LENS ASM; FRT COMB 8-98252-895-0 01 1 1508- ●
78 LENS ASM; FRT COMB 8-98252-896-0 01 1 1508- ●
78 LENS ASM; FRT COMB 1-82215-008-0 01 1 0504- ●
78 LENS ASM; FRT COMB 1-82215-009-0 01 1 0504- ●
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91180-210-0 08 1 1508- ●
131 NUT; BRKT,HEADLAMP
M10 		0-91110-510-0 08 1 0602- ●
140 NUT
M5 		0-91110-505-0 12 1 1508- ●
140 NUT
M5 		0-91110-505-0 16 1 0602- ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-09503-132-0 08 1 1508- ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-82219-017-0 08 1 0504- ●
