10969 - MT133/FTR(FRAME BUS) RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

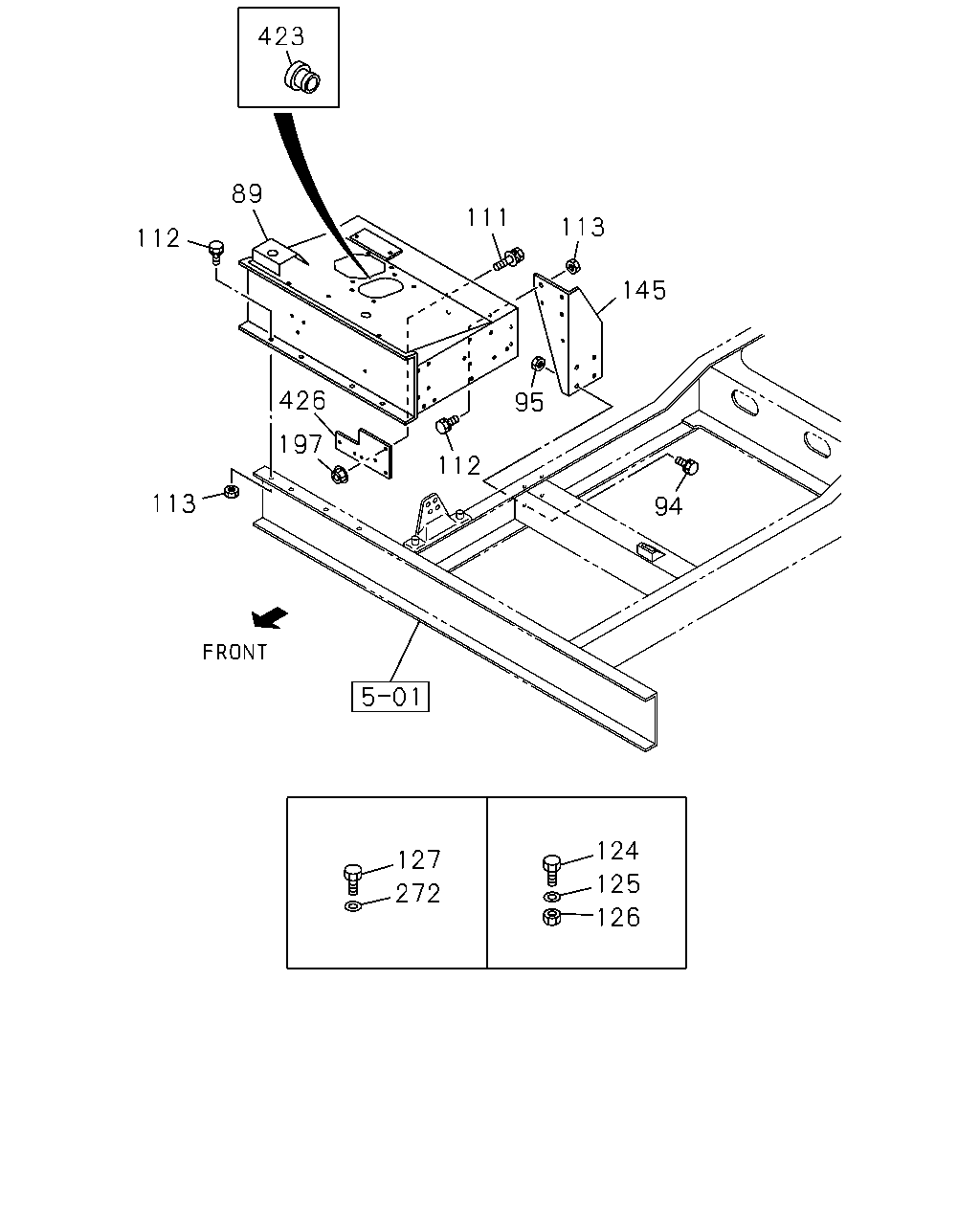

6-70 — FLOOR PANEL
(#65937) — 20 parça
Tümü
A - FTR5VF
B - MTR5FB
272
126
127
125
124
113
197
112
95
94
145
113
111
89
112
423
426
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
89
BOARD ASM; PEDAL
1-65600-482-5
01
1
1412-
●
94
BOLT; BRKT,PEDAL BOARD
M12X35 FLANGE
0-28651-235-0
04
1
1412-
●
95
NUT; BRKT,PEDAL BOARD
M12 FLANGE
0-91180-212-0
04
1
1412-
●
111
BOLT; PANEL
M8X30 FLANGE
0-28650-830-0
03
1
1412-
●
112
BOLT; PEDAL BOARD
M12X35 FLANGE
0-28651-235-0
07
1
0602-1411
●
112
BOLT; PEDAL BOARD
M12X35 FLANGE
0-28651-235-0
07
1
1412-
●
●
113
NUT; PEDAL BOARD
M12 FLANGE
0-91180-212-0
07
1
0602-1411
●
113
NUT; PEDAL BOARD
M12 FLANGE
0-91180-212-0
07
1
1412-
●
●
124
BOLT; STAY TO FRAME
M12X30 FLANGE
0-28091-230-0
04
1
0602-0602
●
124
BOLT; STAY TO FRAME
M12X30 FLANGE
0-28061-230-0
04
1
0603-
●
125
WASHER; LK,STAY
ID=12.2
9-09150-612-0
07
1
0602-0603
●
125
WASHER; LK,STAY
ID=12.2
0-91510-612-0
07
1
0604-
●
126
NUT; STAY TO FRAME
M12
0-91110-512-0
04
1
0602-
●
127
BOLT; STAY,FLOOR BOARD
M10X35 FLANGE
0-28651-035-0
04
1
0602-
●
127
BOLT; STAY,FLOOR BOARD
M12X30 W/LK WASHER
0-50541-230-0
02
1
0602-
●
145
BRACKET; PEDAL BOARD
1-47477-492-2
01
1
1412-
●
197
NUT; EXT PANEL
M8 FLANGE
0-91180-108-0
03
1
1412-
●
272
WASHER; PL,STAY,FLOOR BOARD
ID=12.5 OD=26
9-09164-612-0
02
1
0602-
●
423
BUSHING
1-09330-072-0
01
1
1412-
●
426
PANEL; PEDAL
1-65600-481-0
01
1
1412-
●
