Isuzu WW
▶
BUSES
▶
MT
▶
10969 - MT133/FTR(FRAME BUS) RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶

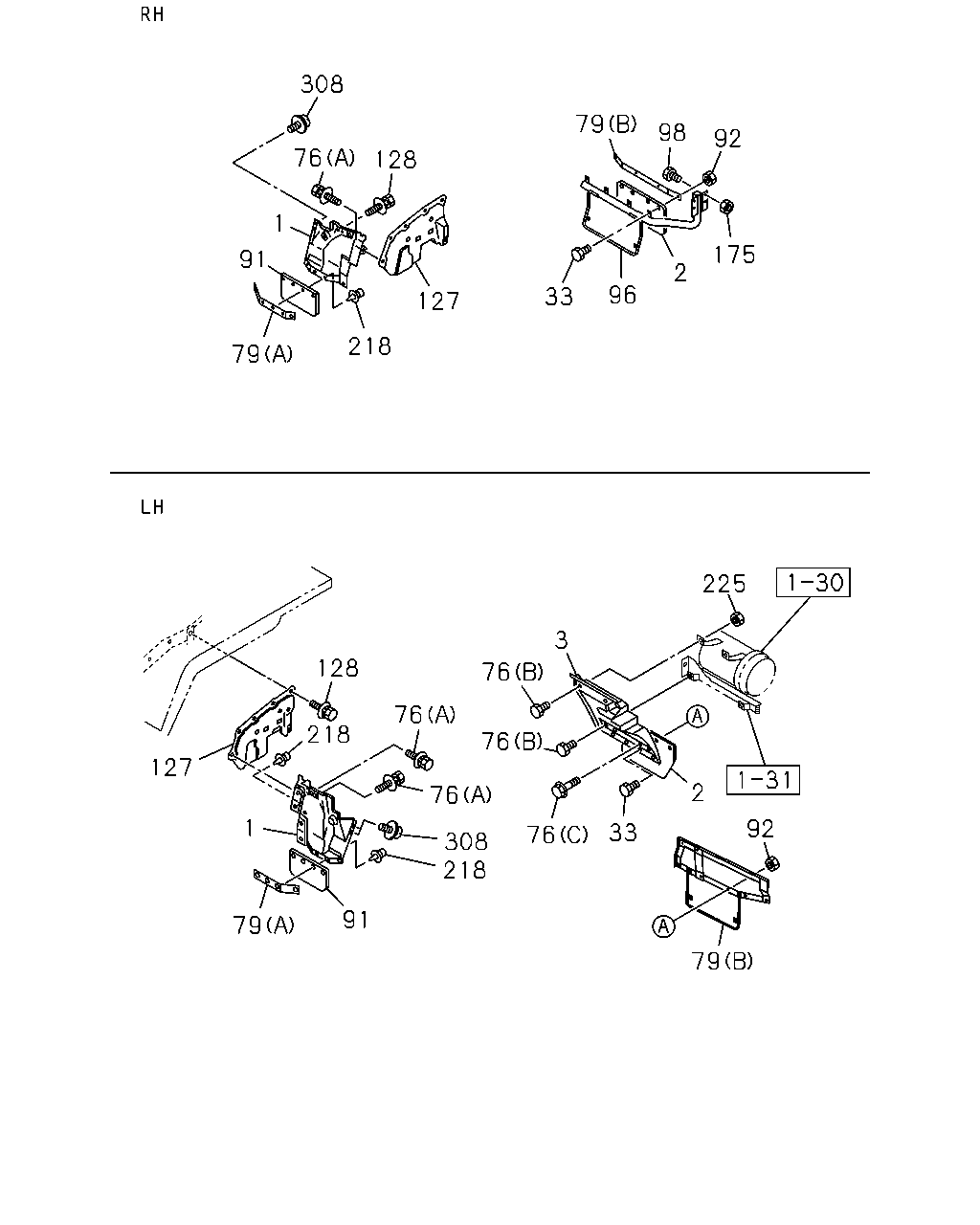

6-47 — MUD GUARD AND INSULATOR
(#65936) — 29 parça
Tümü
A - MTR5FB
B - FTR5VF
◀
[647A] NO.1 (6 parça)
[647A] NO.2 (23 parça)
▶
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
140
BOLT; SIDE PANEL
M8X16 FLANGE
0-28080-816-0
04
1
0504-0512
●
140
BOLT; SIDE PANEL
M8X16 FLANGE
0-28050-816-0
04
1
0601-1411
●
140
BOLT; SIDE PANEL
M8X16 FLANGE
0-28050-816-0
04
1
1412-
●
140
BOLT; SIDE PANEL
M8X25 FLANGE
0-28680-825-0
02
1
0504-0512
●
140
BOLT; SIDE PANEL
M8X25 FLANGE
0-28650-825-0
02
1
0601-1411
●
140
BOLT; SIDE PANEL
M8X25 FLANGE
0-28650-825-0
02
1
1412-
●
●
79
92
33
225
2
3
76
76
76
218
76
308
91
79
1
218
128
76
127
79
218
127
33
96
2
175
92
98
79
128
76
308
1
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GUARD; MUD,FRT
1-79938-810-8
01
1
1412-1507
●
1
GUARD; MUD,FRT
1-79938-812-8
01
1
1412-1507
●
2
COVER; MUD,TIRE RR
1-79931-255-2
01
1
1412-1507
●
2
COVER; MUD,TIRE RR
1-79931-271-0
01
1
1412-1507
●
3
GUARD; MUD,RR
1-79938-998-0
01
1
1412-1507
●
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
13
1
1412-1507
●
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
1412-1507
●
76
BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER
1-09980-495-0
01
1
1412-1507
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1412-1507
●
79
RETAINER; MUD COVER
(A)
1-79931-044-0
02
1
1412-1507
●
79
RETAINER; MUD COVER
(B)
1-79931-269-0
01
1
1412-1507
●
79
RETAINER; MUD COVER
(B)
1-79931-304-0
01
1
1412-1507
●
91
COVER; MUD,FRT
1-79931-214-1
02
1
1412-1507
●
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
09
1
1412-1507
●
96
STAY; MUD GUARD
1-53497-577-2
01
1
1412-1507
●
98
BOLT; STAY TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
1412-1507
●
127
APRON; FRT
1-53192-301-3
01
1
1412-1507
●
127
APRON; FRT
1-53193-222-1
01
1
1412-1507
●
128
BOLT; APRON,FRT
M8X25 W/LK&PL WASHER
8-94331-747-1
10
1
1412-1507
●
175
NUT; STAY FIX
M8 FLANGE
0-91180-108-0
04
1
1412-1507
●
218
FASTENER; RUBBER
1-09470-001-0
08
1
1412-1507
●
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
02
1
1412-1507
●
308
FASTENER; MUD GUARD
M6X22
1-65481-386-0
04
1
1412-1507
●
