◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#65932) — 267 parça
çizim 125316
13 18 23 23 25 25 25 25 26 26 46 25 25 25 25 26 26 69 69 106 255 255 82 117 282 118 131 132 133 155 267 151 181 270
BalonParca AdiParca NoAdetTipApplied Date A B
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0504-0512 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601-0603 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0604-0604 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0605-1411 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1412- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0504-0601 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0602-1411 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1412- ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 1412- ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0504-0601 ●
23 BOLT; BRKT,SPR
(A) M14X50 		9-91066-450-0 08 1 0602-0604 ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-10956-450-0 08 1 0605- ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0504-0512 ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601-0603 ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0604-0604 ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0605-1411 ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 1412- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 1412- ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1412- ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0504-0802 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0803- ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0504-0601 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 32 1 0602-0602 ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 32 1 0603-0703 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 32 1 0704- ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1412- ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0504-0512 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601-0601 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 16 1 0602-0603 ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 16 1 0604-0604 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 16 1 0605- ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0504-0512 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601-0603 ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0604-0604 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0605-1411 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1412- ● ●
46 BOLT; BRKT FIX
(B) M14X40 		0-20951-440-0 04 1 1412- ●
46 BOLT; BRKT FIX
(B) M14X45 		9-92061-445-0 04 1 1412- ●
46 BOLT; BRKT FIX
(A) M14X40 		9-92061-440-0 04 1 0504-0512 ●
46 BOLT; BRKT FIX
(A) M14X40 		0-20951-440-0 04 1 0601-0601 ●
46 BOLT; BRKT FIX
(A) M14X45 		9-92061-445-0 04 1 0504-0601 ●
46 BOLT; BRKT FIX
(A) M14X50 		9-91066-450-0 08 1 0602-0604 ●
46 BOLT; BRKT FIX
(A) M14X50 		0-10956-450-0 08 1 0605- ●
69 GUSSET; RR SUSP,UPR
(E) 21-HOLE 		1-53167-095-5 01 1 1412- ●
69 GUSSET; RR SUSP,UPR
(E) 21-HOLE 		1-53167-096-4 01 1 1412- ●
69 GUSSET; RR SUSP,UPR
(B) 17-HOLE 		1-53167-097-5 01 1 1412- ●
69 GUSSET; RR SUSP,UPR
(B) 17-HOLE 		1-53167-098-5 01 1 1412- ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-099-4 02 1 1412- ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-100-3 02 1 1412- ●
69 GUSSET; RR SUSP,UPR
(A) REAR 		1-53167-099-4 02 1 0504-0601 ●
69 GUSSET; RR SUSP,UPR
(A) FRONT 		1-53167-100-3 02 1 0504-0601 ●
82 NUT; BRKT
(B) M14 		0-91111-514-0 24 1 1412- ●
82 NUT; BRKT
(A) M14 		9-99110-514-0 24 1 0504-0512 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 0601-0603 ●
82 NUT; BRKT
(A) M14 		9-99110-514-0 24 1 0604-0604 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 0605-1411 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 1412- ● ●
106 BOLT; BRKT
(C) M14X70 FLANGE 		0-28861-470-0 24 1 1412- ●
106 BOLT; BRKT
(B) M14X45 		9-92061-445-0 24 1 1412- ●
106 BOLT; BRKT
(A) M14X50 		9-92061-450-0 24 1 0504-0512 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 24 1 0601-0603 ●
106 BOLT; BRKT
(A) M14X50 		9-92061-450-0 24 1 0604-0604 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 24 1 0605- ●
117 BOLT; STOPPER
(B) M14X45 		9-92061-445-0 16 1 1412- ●
117 BOLT; STOPPER
(A) M14X50 		9-92061-450-0 16 1 0504-0512 ●
117 BOLT; STOPPER
(A) M14X50 		0-20951-450-0 16 1 0601-0603 ●
117 BOLT; STOPPER
(A) M14X50 		9-92061-450-0 16 1 0604-0604 ●
117 BOLT; STOPPER
(A) M14X50 		0-20951-450-0 16 1 0605- ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0504-0512 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601-0603 ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0604-0604 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0605-1411 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1412- ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0504-0512 ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601-0603 ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0604-0604 ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0605-1411 ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 1412- ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0504-0601 ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0602-1411 ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 1412- ● ●
133 RIVET; BRKT
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0504-0607 ●
133 RIVET; BRKT
D13X36 PLATED TAPER END 		0-67901-336-0 08 1 0608-0802 ●
133 RIVET; BRKT
D13X38 PLATED TAPER END 		0-67901-338-0 08 1 0803- ●
151 NUT; OUTRIGGER
(B) M12 FLANGE 		0-91180-212-0 02 1 1412- ●
151 NUT; OUTRIGGER
(A) M12 		0-91110-512-0 16 1 0602-0802 ●
151 NUT; OUTRIGGER
(A) M12 		0-91110-512-0 47 1 0803- ●
151 NUT; OUTRIGGER
(A) M14 		0-91110-514-0 03 1 0602-0802 ●
151 NUT; OUTRIGGER
(A) M14 		0-91110-514-0 10 1 0803- ●
155 BOLT; OUTRIGGER
(B) M12X35 FLANGE 		0-28651-235-0 02 1 1412- ●
155 BOLT; OUTRIGGER
(A) M12X35 		0-20951-235-0 06 1 0602- ●
155 BOLT; OUTRIGGER
(A) M14X35 		0-20951-435-0 03 1 0602- ●
155 BOLT; OUTRIGGER
(A) M12X30 FLANGE 		0-28091-230-0 08 1 0602-0602 ●
155 BOLT; OUTRIGGER
(A) M12X30 FLANGE 		0-28061-230-0 08 1 0603- ●
181 BOLT; S/ABS BRKT TO FRAME
M12X35 W/LK WASHER 		0-50541-235-0 12 1 0602-0603 ●
181 BOLT; S/ABS BRKT TO FRAME
M12X35 W/LK WASHER 		0-50041-235-0 12 1 0604-0604 ●
181 BOLT; S/ABS BRKT TO FRAME
M12X35 W/LK WASHER 		0-50541-235-0 12 1 0605- ●
255 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 64 1 1412- ●
255 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 48 1 0504-0601 ●
255 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 48 1 0602-0602 ●
255 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 48 1 0603-0703 ●
255 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 48 1 0704- ●
267 WASHER; LK,OUTRIGGER
ID=12.2 		9-09150-612-0 14 1 0602-0603 ●
267 WASHER; LK,OUTRIGGER
ID=12.2 		0-91510-612-0 14 1 0604- ●
267 WASHER; LK,OUTRIGGER
ID=14.2 		9-09150-614-0 03 1 0602-0603 ●
267 WASHER; LK,OUTRIGGER
ID=14.2 		0-91510-614-0 03 1 0604-0802 ●
267 WASHER; LK,OUTRIGGER
ID=14.2 		0-91510-614-0 10 1 0803- ●
270 BOLT; STAY,OUTRIGGER
M12X32 		0-50141-232-0 06 1 0602-0906 ●
270 BOLT; STAY,OUTRIGGER
M12X32 		0-50641-232-0 06 1 0907- ●
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 16 1 0504-0601 ●
282 WASHER; PL,STOPPER
ID=15 		8-98010-627-0 16 1 0602-0602 ●
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 16 1 0603-0802 ●
282 WASHER; PL,STOPPER
ID=15 		8-98010-627-1 16 1 0803- ●
çizim 467239
69 57 69 69 69 82 255 255 106 105 69 86 69 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 1412- ●
69 GUSSET; RR SUSP,UPR
(E) 21-HOLE 		1-53167-095-5 01 1 1412- ●
69 GUSSET; RR SUSP,UPR
(E) 21-HOLE 		1-53167-096-4 01 1 1412- ●
69 GUSSET; RR SUSP,UPR
(B) 17-HOLE 		1-53167-097-5 01 1 1412- ●
69 GUSSET; RR SUSP,UPR
(B) 17-HOLE 		1-53167-098-5 01 1 1412- ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-099-4 02 1 1412- ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-100-3 02 1 1412- ●
69 GUSSET; RR SUSP,UPR
(A) REAR 		1-53167-099-4 02 1 0504-0601 ●
69 GUSSET; RR SUSP,UPR
(A) FRONT 		1-53167-100-3 02 1 0504-0601 ●
82 NUT; BRKT
(B) M14 		0-91111-514-0 24 1 1412- ●
82 NUT; BRKT
(A) M14 		9-99110-514-0 24 1 0504-0512 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 0601-0603 ●
82 NUT; BRKT
(A) M14 		9-99110-514-0 24 1 0604-0604 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 0605-1411 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 1412- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 1412- ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1412- ●
106 BOLT; BRKT
(C) M14X70 FLANGE 		0-28861-470-0 24 1 1412- ●
106 BOLT; BRKT
(B) M14X45 		9-92061-445-0 24 1 1412- ●
106 BOLT; BRKT
(A) M14X50 		9-92061-450-0 24 1 0504-0512 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 24 1 0601-0603 ●
106 BOLT; BRKT
(A) M14X50 		9-92061-450-0 24 1 0604-0604 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 24 1 0605- ●
255 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 64 1 1412- ●
255 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 48 1 0504-0601 ●
255 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 48 1 0602-0602 ●
255 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 48 1 0603-0703 ●
255 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 48 1 0704- ●

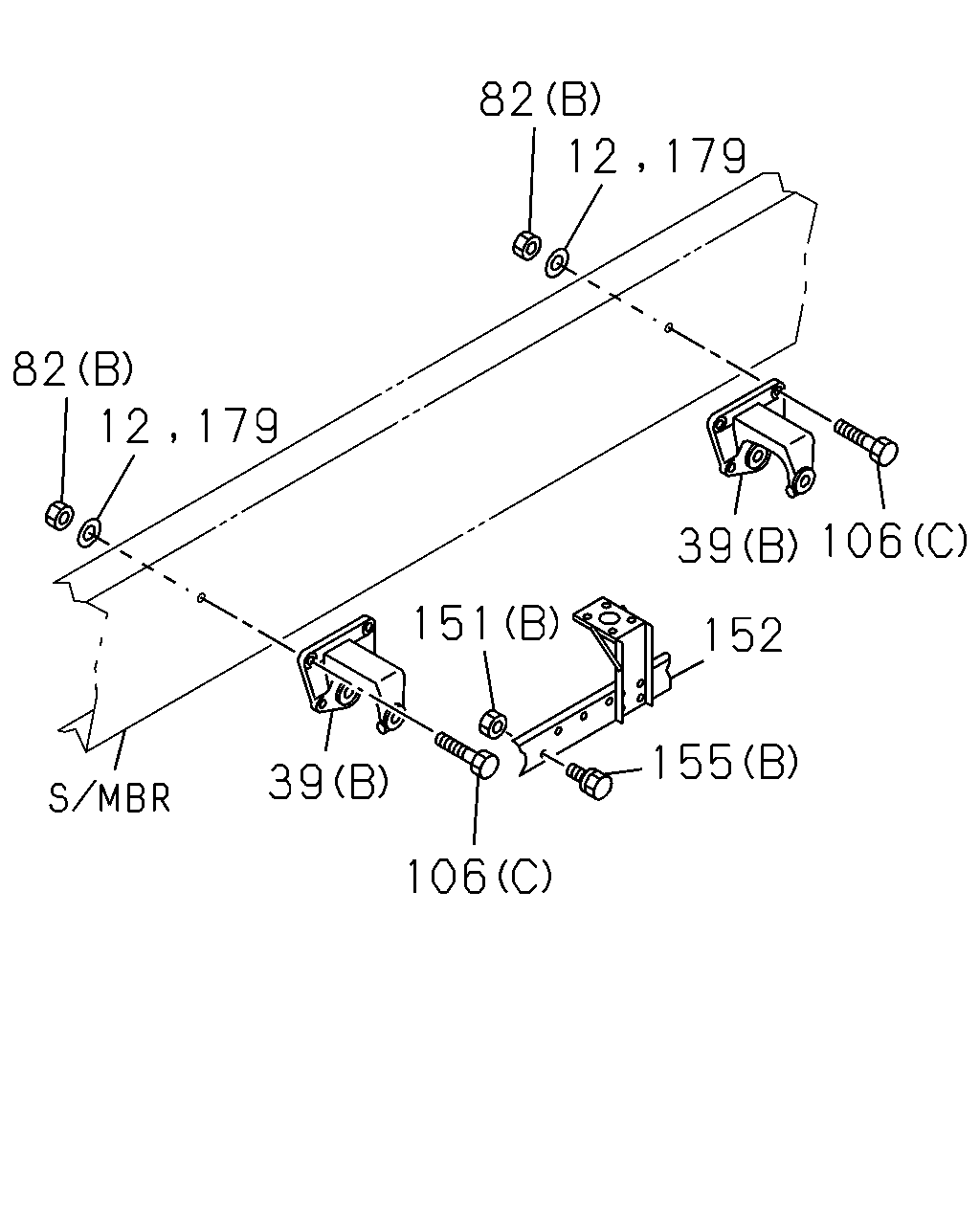

çizim 467241
82 179 12 179 12 82 39 106 152 155 151 39 106
BalonParca AdiParca NoAdetTipApplied Date A B
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 60 1 1412- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53352-124-2 01 1 1412- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53352-125-2 01 1 1412- ●
39 BRACKET; FRT SPR,RR
(B) 		1-53354-067-0 02 1 1412- ●
39 BRACKET; FRT SPR,RR
(B) 		1-53354-068-0 02 1 1412- ●
82 NUT; BRKT
(B) M14 		0-91111-514-0 24 1 1412- ●
82 NUT; BRKT
(A) M14 		9-99110-514-0 24 1 0504-0512 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 0601-0603 ●
82 NUT; BRKT
(A) M14 		9-99110-514-0 24 1 0604-0604 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 0605-1411 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 1412- ● ●
106 BOLT; BRKT
(C) M14X70 FLANGE 		0-28861-470-0 24 1 1412- ●
106 BOLT; BRKT
(B) M14X45 		9-92061-445-0 24 1 1412- ●
106 BOLT; BRKT
(A) M14X50 		9-92061-450-0 24 1 0504-0512 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 24 1 0601-0603 ●
106 BOLT; BRKT
(A) M14X50 		9-92061-450-0 24 1 0604-0604 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 24 1 0605- ●
151 NUT; OUTRIGGER
(B) M12 FLANGE 		0-91180-212-0 02 1 1412- ●
151 NUT; OUTRIGGER
(A) M12 		0-91110-512-0 16 1 0602-0802 ●
151 NUT; OUTRIGGER
(A) M12 		0-91110-512-0 47 1 0803- ●
151 NUT; OUTRIGGER
(A) M14 		0-91110-514-0 03 1 0602-0802 ●
151 NUT; OUTRIGGER
(A) M14 		0-91110-514-0 10 1 0803- ●
152 OUTRIGGER 1-53456-261-2 01 1 1412- ●
155 BOLT; OUTRIGGER
(B) M12X35 FLANGE 		0-28651-235-0 02 1 1412- ●
155 BOLT; OUTRIGGER
(A) M12X35 		0-20951-235-0 06 1 0602- ●
155 BOLT; OUTRIGGER
(A) M14X35 		0-20951-435-0 03 1 0602- ●
155 BOLT; OUTRIGGER
(A) M12X30 FLANGE 		0-28091-230-0 08 1 0602-0602 ●
155 BOLT; OUTRIGGER
(A) M12X30 FLANGE 		0-28061-230-0 08 1 0603- ●
179 WASHER; LK
ID=14.2 		0-91510-614-0 24 1 1412- ●

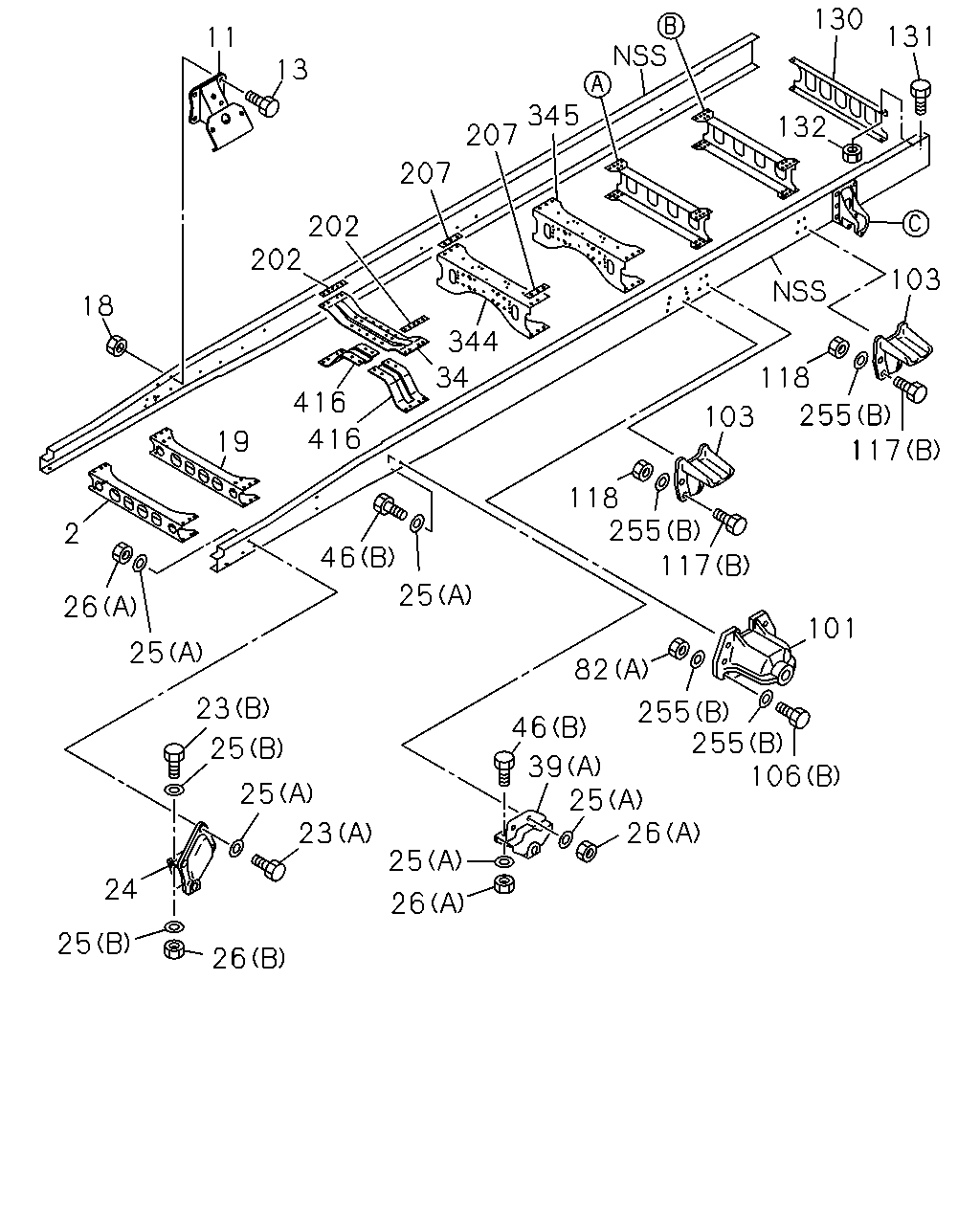

çizim 467582
11 13 202 202 18 19 2 207 207 345 130 131 132 344 34 416 416 26 25 23 25 25 23 25 26 26 24 25 26 25 39 46 25 46 82 118 117 255 101 255 255 106 103 118 117 255 103
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 1412- ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 1412- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0504-0512 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601-0603 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0604-0604 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0605-1411 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1412- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0504-0601 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0602-1411 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1412- ● ●
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 1412- ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 1412- ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0504-0601 ●
23 BOLT; BRKT,SPR
(A) M14X50 		9-91066-450-0 08 1 0602-0604 ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-10956-450-0 08 1 0605- ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0504-0512 ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601-0603 ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0604-0604 ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0605-1411 ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 1412- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 1412- ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 1412- ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 1412- ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1412- ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0504-0802 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0803- ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0504-0601 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 32 1 0602-0602 ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 32 1 0603-0703 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 32 1 0704- ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1412- ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0504-0512 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601-0601 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 16 1 0602-0603 ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 16 1 0604-0604 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 16 1 0605- ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0504-0512 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601-0603 ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0604-0604 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0605-1411 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1412- ● ●
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 1412- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53352-124-2 01 1 1412- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53352-125-2 01 1 1412- ●
39 BRACKET; FRT SPR,RR
(B) 		1-53354-067-0 02 1 1412- ●
39 BRACKET; FRT SPR,RR
(B) 		1-53354-068-0 02 1 1412- ●
46 BOLT; BRKT FIX
(B) M14X40 		0-20951-440-0 04 1 1412- ●
46 BOLT; BRKT FIX
(B) M14X45 		9-92061-445-0 04 1 1412- ●
46 BOLT; BRKT FIX
(A) M14X40 		9-92061-440-0 04 1 0504-0512 ●
46 BOLT; BRKT FIX
(A) M14X40 		0-20951-440-0 04 1 0601-0601 ●
46 BOLT; BRKT FIX
(A) M14X45 		9-92061-445-0 04 1 0504-0601 ●
46 BOLT; BRKT FIX
(A) M14X50 		9-91066-450-0 08 1 0602-0604 ●
46 BOLT; BRKT FIX
(A) M14X50 		0-10956-450-0 08 1 0605- ●
82 NUT; BRKT
(B) M14 		0-91111-514-0 24 1 1412- ●
82 NUT; BRKT
(A) M14 		9-99110-514-0 24 1 0504-0512 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 0601-0603 ●
82 NUT; BRKT
(A) M14 		9-99110-514-0 24 1 0604-0604 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 0605-1411 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 24 1 1412- ● ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1412- ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 1412- ●
106 BOLT; BRKT
(C) M14X70 FLANGE 		0-28861-470-0 24 1 1412- ●
106 BOLT; BRKT
(B) M14X45 		9-92061-445-0 24 1 1412- ●
106 BOLT; BRKT
(A) M14X50 		9-92061-450-0 24 1 0504-0512 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 24 1 0601-0603 ●
106 BOLT; BRKT
(A) M14X50 		9-92061-450-0 24 1 0604-0604 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 24 1 0605- ●
117 BOLT; STOPPER
(B) M14X45 		9-92061-445-0 16 1 1412- ●
117 BOLT; STOPPER
(A) M14X50 		9-92061-450-0 16 1 0504-0512 ●
117 BOLT; STOPPER
(A) M14X50 		0-20951-450-0 16 1 0601-0603 ●
117 BOLT; STOPPER
(A) M14X50 		9-92061-450-0 16 1 0604-0604 ●
117 BOLT; STOPPER
(A) M14X50 		0-20951-450-0 16 1 0605- ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0504-0512 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601-0603 ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0604-0604 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0605-1411 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1412- ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 1412- ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0504-0512 ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601-0603 ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0604-0604 ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0605-1411 ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 1412- ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0504-0601 ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0602-1411 ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 1412- ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 1412- ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 1412- ●
255 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 64 1 1412- ●
255 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 48 1 0504-0601 ●
255 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 48 1 0602-0602 ●
255 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 48 1 0603-0703 ●
255 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 48 1 0704- ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 1412- ●
345 MEMBER; CROSS,5TH 1-53171-953-2 01 1 1412- ●
416 GUSSET; 3RD C/MBR 1-53164-213-1 01 1 1412- ●
416 GUSSET; 3RD C/MBR 1-53164-214-1 01 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
