◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#65930) — 18 parça

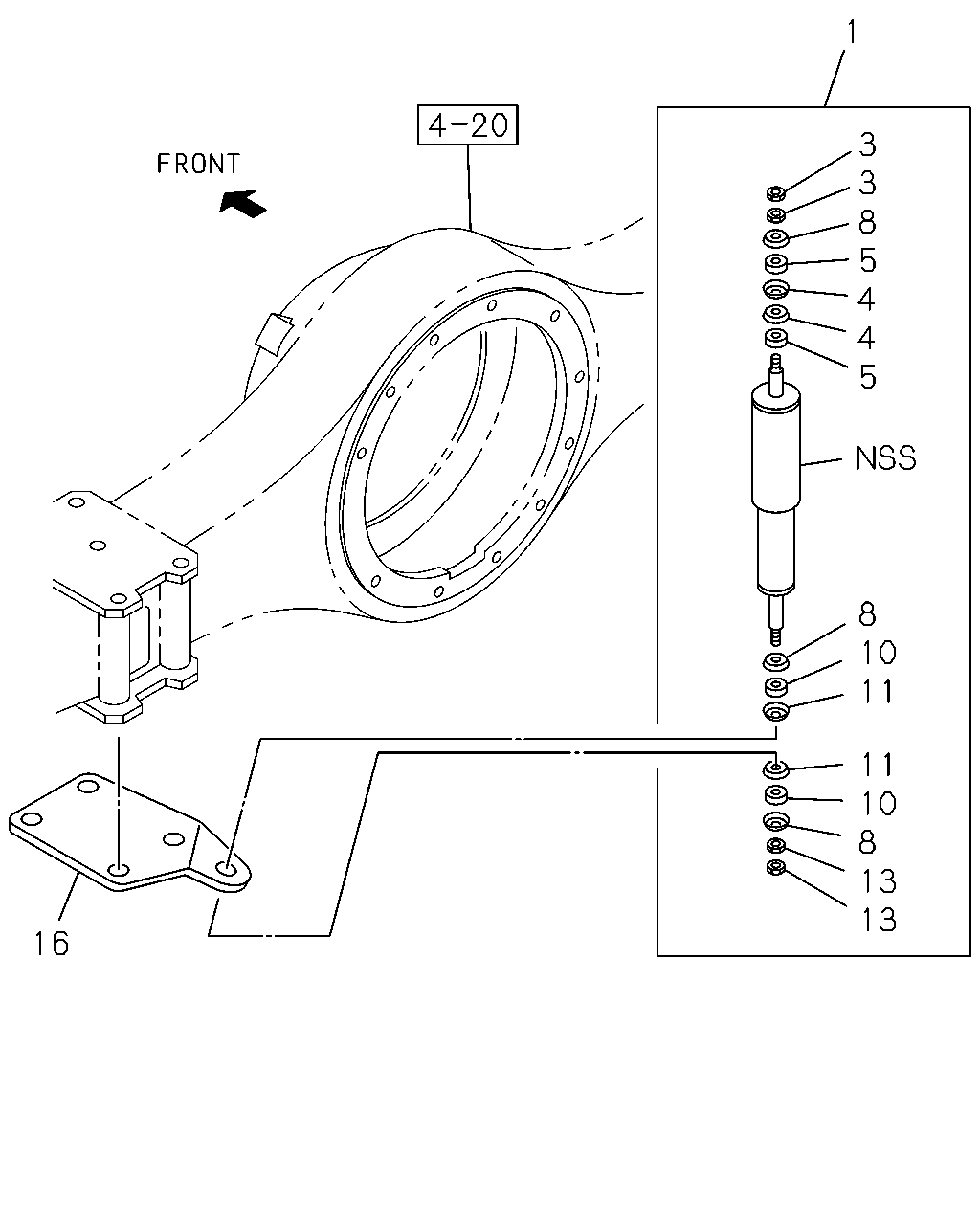

çizim 124932
1 16 13 13 8 10 11 11 10 8 5 4 4 5 8 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR 1-51630-195-2 02 1 0504-1411 ●
1 ABSORBER ASM; SHOCK,RR 1-51630-195-2 02 1 1412- ● ●
3 NUT; S/ABS
M14 		9-99111-414-0 04 1 0504-1411 ●
3 NUT; S/ABS
M14 		9-99111-414-0 04 1 1412- ● ●
4 WASHER; CENTER,S/ABS
ID=20.8 		9-51631-041-0 04 1 0504-1411 ●
4 WASHER; CENTER,S/ABS
ID=20.8 		9-51631-041-0 04 1 1412- ● ●
5 BUSHING; RUBBER,S/ABS,UPR 9-51631-039-0 04 1 0504-1411 ●
5 BUSHING; RUBBER,S/ABS,UPR 9-51631-039-0 04 1 1412- ● ●
8 WASHER; S/ABS
ID=16.5 		9-51631-040-0 06 1 0504-1411 ●
8 WASHER; S/ABS
ID=16.5 		9-51631-040-0 06 1 1412- ● ●
10 BUSHING; RUBBER,S/ABS 9-51631-039-0 04 1 0504-1411 ●
10 BUSHING; RUBBER,S/ABS 9-51631-039-0 04 1 1412- ● ●
11 WASHER; CENTER,LWR,RR S/ABS
ID=20.8 		9-51631-041-0 04 1 0504-1411 ●
11 WASHER; CENTER,LWR,RR S/ABS
ID=20.8 		9-51631-041-0 04 1 1412- ● ●
13 NUT; LWR,RR S/ABS
M14 		9-99111-414-0 04 1 0504-1411 ●
13 NUT; LWR,RR S/ABS
M14 		9-99111-414-0 04 1 1412- ● ●
16 BRACKET; S/ABS,RR 8-94300-564-0 01 1 1412- ●
16 BRACKET; S/ABS,RR 8-94300-565-0 01 1 1412- ●
