◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#65929) — 209 parça

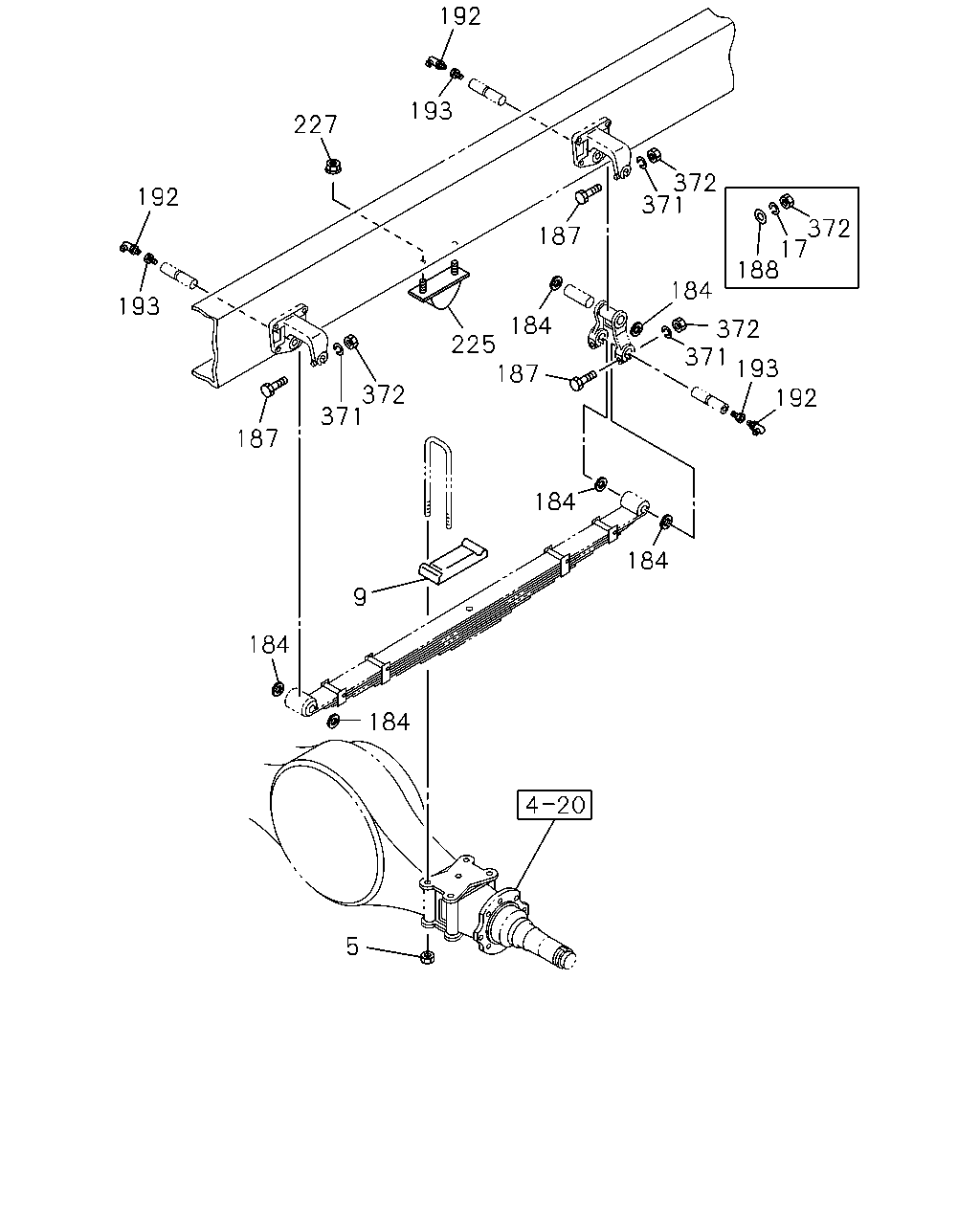

çizim 125048
5 184 184 9 187 371 372 193 192 227 192 193 372 371 187 184 225 372 17 188 184 372 371 193 192 187 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0504-0512 ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601-1411 ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1412- ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 0504-1411 ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 1412- ● ●
17 WASHER; LK,SHACKLE PIN
ID=24.5 OD=52 		9-51369-012-0 02 1 0803- ●
184 WASHER; SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0504-1411 ●
184 WASHER; SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1412- ● ●
187 BOLT; SPR & SHACKLE
M12X80 		0-10856-280-0 08 1 1412- ●
187 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 08 1 0504-0512 ●
187 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 08 1 0601-0601 ●
187 BOLT; SPR & SHACKLE
M12X80 		0-10806-280-0 04 1 0602-0602 ●
187 BOLT; SPR & SHACKLE
M12X80 		0-10856-280-0 04 1 0603-0802 ●
188 WASHER; PL,SHACKLE PIN
ID=24 		9-09164-624-0 02 1 0803- ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		9-09031-210-0 06 1 0504-0512 ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		0-90301-610-0 06 1 0601-1411 ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		0-90301-610-0 06 1 1412- ● ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0504-1411 ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1412- ● ●
225 RUBBER; CUSHION,RR SPR 9-53366-088-3 02 1 0504-1411 ●
225 RUBBER; CUSHION,RR SPR 9-53366-088-3 02 1 1412- ● ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 04 1 0504-0602 ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 0603-1411 ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 1412- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0504-0602 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 08 1 1412- ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 08 1 0504-0601 ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 0602-0603 ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0604-0802 ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-614-0 08 1 0504-0601 ●
372 NUT; SHACKLE
M12 		0-91110-512-0 08 1 1412- ●
372 NUT; SHACKLE
M14 		9-99110-514-0 08 1 0504-0512 ●
372 NUT; SHACKLE
M14 		0-91110-514-0 08 1 0601-0601 ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 0602-0602 ●
372 NUT; SHACKLE
M12 		0-91110-512-0 04 1 0603-0802 ●
372 NUT; SHACKLE
M24 		0-91110-524-0 02 1 0803- ●

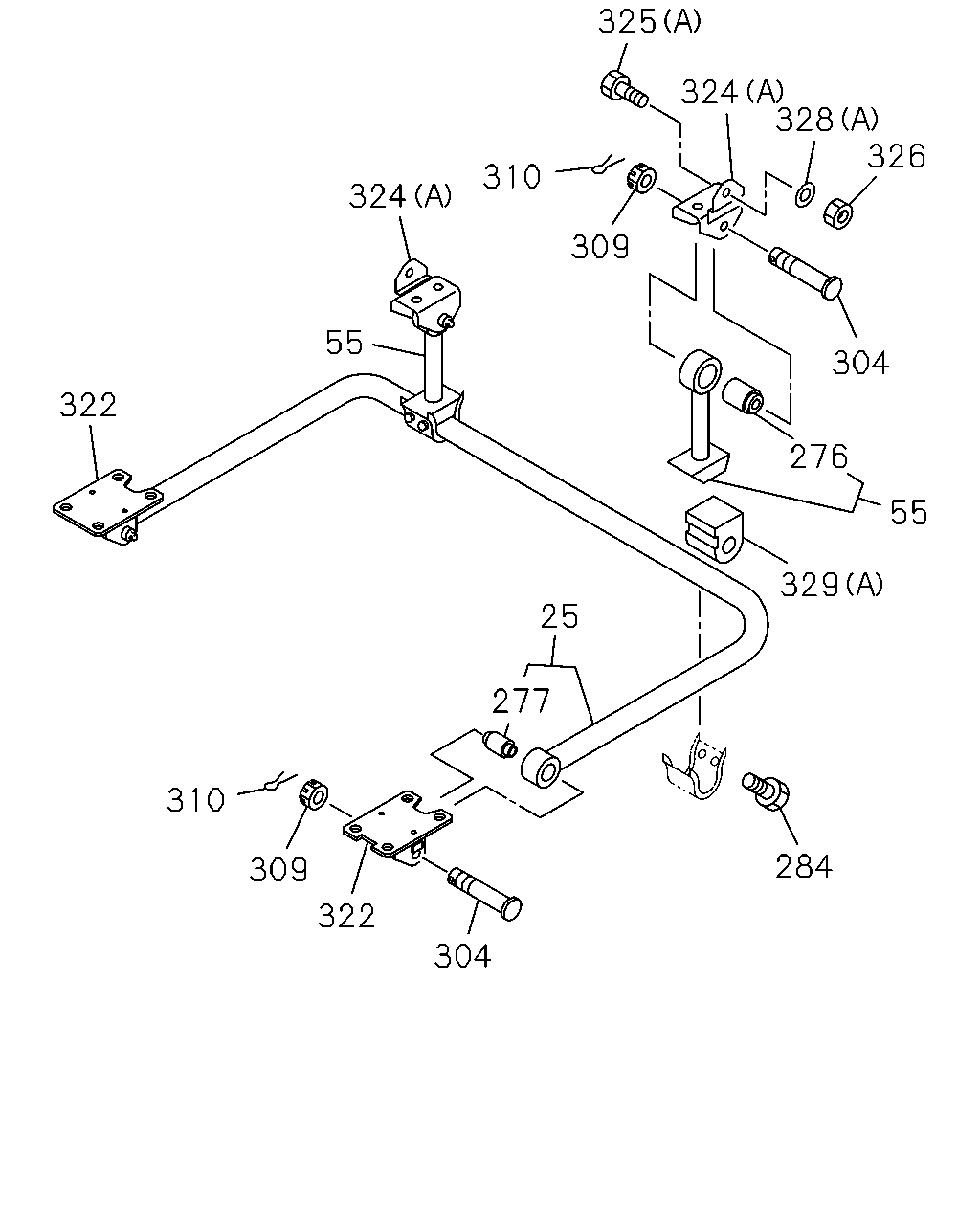

çizim 125116
284 304 322 309 310 277 25 329 55 276 304 326 328 324 325 310 309 324 55 322
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP 1-51770-188-0 01 1 1412- ●
25 BAR ASM; STAB,RR SUSP 1-51770-188-0 01 1 0504-0802 ●
55 ROD; STAB 1-51770-024-1 02 1 0504-1411 ●
55 ROD; STAB 1-51770-024-1 02 1 1412- ● ●
276 BUSHING; STAB ROD 1-51779-019-0 02 1 0504-1411 ●
276 BUSHING; STAB ROD 1-51779-019-0 02 1 1412- ● ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 1412- ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 0504-0802 ●
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 0504-1411 ●
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 1412- ● ●
304 PIN; STAB ROD 1-51789-020-2 04 1 1412- ●
304 PIN; STAB ROD 1-51789-020-2 04 1 0504-0802 ●
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 0504-1411 ●
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 1412- ● ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		9-08115-045-0 04 1 0504-0606 ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 0607-1411 ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 1412- ● ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-038-1 01 1 1412- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-128-0 01 1 1412- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-147-0 02 1 0504-0802 ●
324 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-059-0 02 1 1412- ●
324 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-059-0 02 1 0504-0802 ●
324 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-112-0 01 1 0504-0802 ●
324 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-134-0 01 1 0504-0802 ●
325 BOLT; BRKT TO FRAME
(B) M14X45 		0-20801-445-0 08 1 0504- ●
325 BOLT; BRKT TO FRAME
(A) M14X40 		9-92061-440-0 06 1 0504-0512 ●
325 BOLT; BRKT TO FRAME
(A) M14X40 		0-20951-440-0 06 1 0601-1411 ●
325 BOLT; BRKT TO FRAME
(A) M14X40 		0-20951-440-0 06 1 1412- ● ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 06 1 1412- ●
326 NUT; BRKT TO FRAME
M14 		9-99110-514-0 14 1 0504-0512 ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 14 1 0601- ●
328 WASHER; PL,BRKT
(B) ID=14.2 		9-09150-514-0 08 1 0504-0603 ●
328 WASHER; PL,BRKT
(B) ID=14.2 		0-91510-514-0 08 1 0604- ●
328 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 06 1 0504-0910 ●
328 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 06 1 0911-1411 ●
328 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 12 1 1412- ● ●
329 BUSHING; STAB ROD
(A) 		1-51789-017-0 02 1 1412- ●
329 BUSHING; STAB ROD
(A) 		1-51789-017-0 02 1 0504-0802 ●
329 BUSHING; STAB ROD
(B) 		9-51631-039-0 04 1 0504- ●

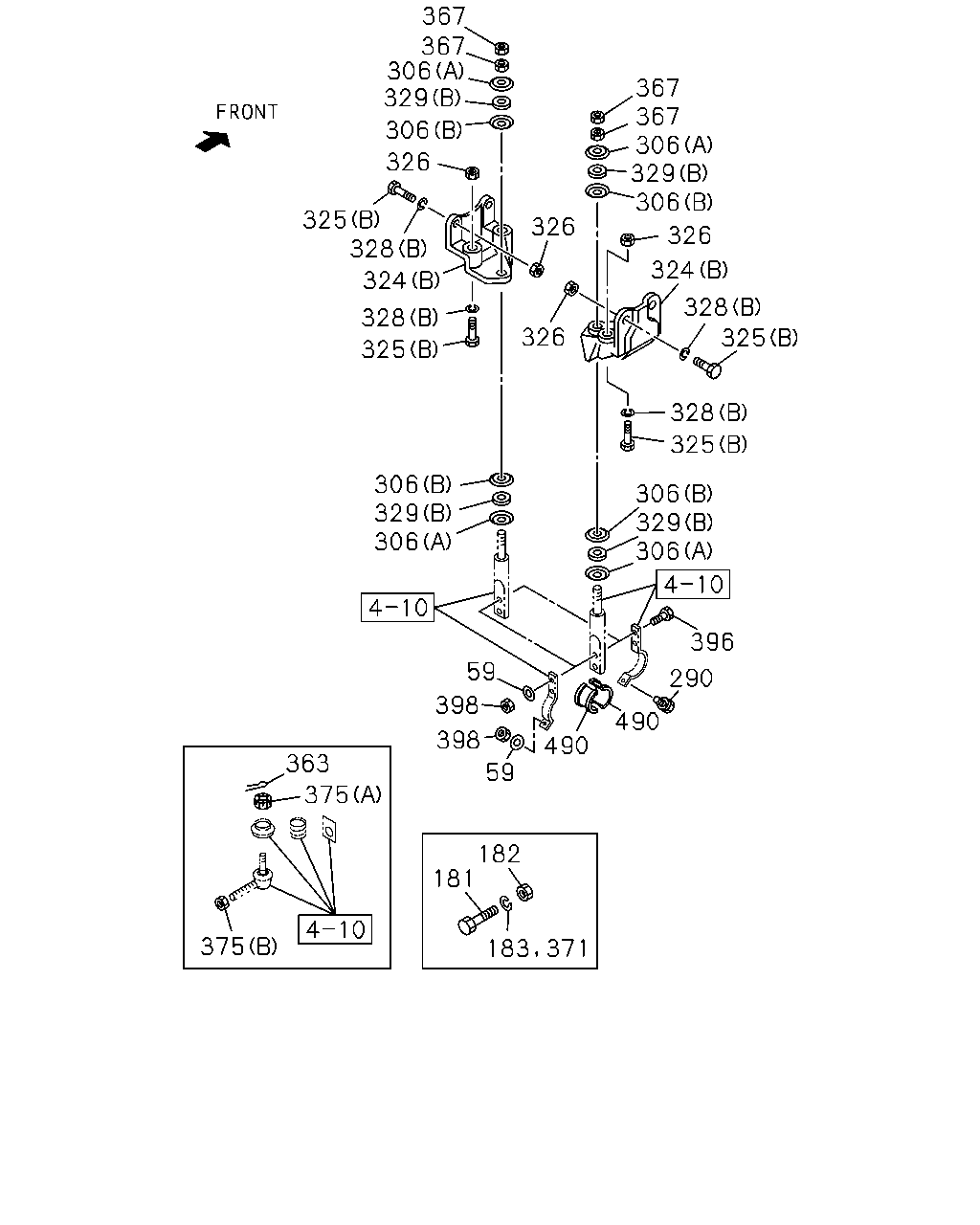

çizim 191785
375 375 363 182 181 183 371 59 398 398 59 490 290 490 396 306 329 306 325 328 325 328 324 326 306 329 306 367 367 326 326 306 329 306 325 328 324 328 325 326 306 329 306 367 367
BalonParca AdiParca NoAdetTipApplied Date A B
59 WASHER; LK,CLAMP
ID=12.2 		9-09150-512-0 06 1 0504-0603 ●
59 WASHER; LK,CLAMP
ID=12.2 		0-91510-512-0 06 1 0604- ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 0504-0512 ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 0601-0601 ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 04 1 0602- ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 0504-0512 ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601-0601 ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 04 1 0602- ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 0504-0601 ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-614-0 04 1 0602-0603 ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-614-0 04 1 0604- ●
290 BOLT; STAB SUPPORTER
M12X30 		0-20801-230-0 02 1 0504-0910 ●
290 BOLT; STAB SUPPORTER
M12X30 		0-20851-230-0 02 1 0911- ●
306 WASHER; ROD
(A) OUTER ID=16.5 		9-51631-040-0 04 1 0504- ●
306 WASHER; ROD
(B) INNER ID=20.8 		9-51631-041-0 04 1 0504- ●
324 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-059-0 02 1 1412- ●
324 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-059-0 02 1 0504-0802 ●
324 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-112-0 01 1 0504-0802 ●
324 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-134-0 01 1 0504-0802 ●
325 BOLT; BRKT TO FRAME
(B) M14X45 		0-20801-445-0 08 1 0504- ●
325 BOLT; BRKT TO FRAME
(A) M14X40 		9-92061-440-0 06 1 0504-0512 ●
325 BOLT; BRKT TO FRAME
(A) M14X40 		0-20951-440-0 06 1 0601-1411 ●
325 BOLT; BRKT TO FRAME
(A) M14X40 		0-20951-440-0 06 1 1412- ● ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 06 1 1412- ●
326 NUT; BRKT TO FRAME
M14 		9-99110-514-0 14 1 0504-0512 ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 14 1 0601- ●
328 WASHER; PL,BRKT
(B) ID=14.2 		9-09150-514-0 08 1 0504-0603 ●
328 WASHER; PL,BRKT
(B) ID=14.2 		0-91510-514-0 08 1 0604- ●
328 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 06 1 0504-0910 ●
328 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 06 1 0911-1411 ●
328 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 12 1 1412- ● ●
329 BUSHING; STAB ROD
(A) 		1-51789-017-0 02 1 1412- ●
329 BUSHING; STAB ROD
(A) 		1-51789-017-0 02 1 0504-0802 ●
329 BUSHING; STAB ROD
(B) 		9-51631-039-0 04 1 0504- ●
363 PIN; SPLIT
OD=3.7 L=22 		9-08114-022-0 02 1 0504-0606 ●
363 PIN; SPLIT
OD=3.7 L=22 		0-81124-022-0 02 1 0607- ●
367 NUT
M14 		9-99111-414-0 04 1 0504-0512 ●
367 NUT
M14 		0-91111-514-0 04 1 0601- ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 08 1 1412- ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 08 1 0504-0601 ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 0602-0603 ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0604-0802 ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-614-0 08 1 0504-0601 ●
375 NUT; ROD END
(A) M16 SLOTTED 		1-09442-021-1 02 1 0504-0805 ●
375 NUT; ROD END
(A) M16 SLOTTED 		1-09442-031-0 02 1 0806- ●
375 NUT; ROD END
(B) M20 		9-99110-520-0 04 1 0504-0512 ●
375 NUT; ROD END
(B) M20 		0-91110-520-0 04 1 0601- ●
396 BOLT; CLAMP
M12X50 		0-20801-250-0 04 1 0504-0910 ●
396 BOLT; CLAMP
M12X50 		0-20851-250-0 04 1 0911- ●
398 NUT; CLAMP
M12 		9-99110-412-0 06 1 0504-0512 ●
398 NUT; CLAMP
M12 		0-91110-512-0 06 1 0601- ●
490 BUSHING; CLAMP 1-51779-087-1 04 1 0504- ●

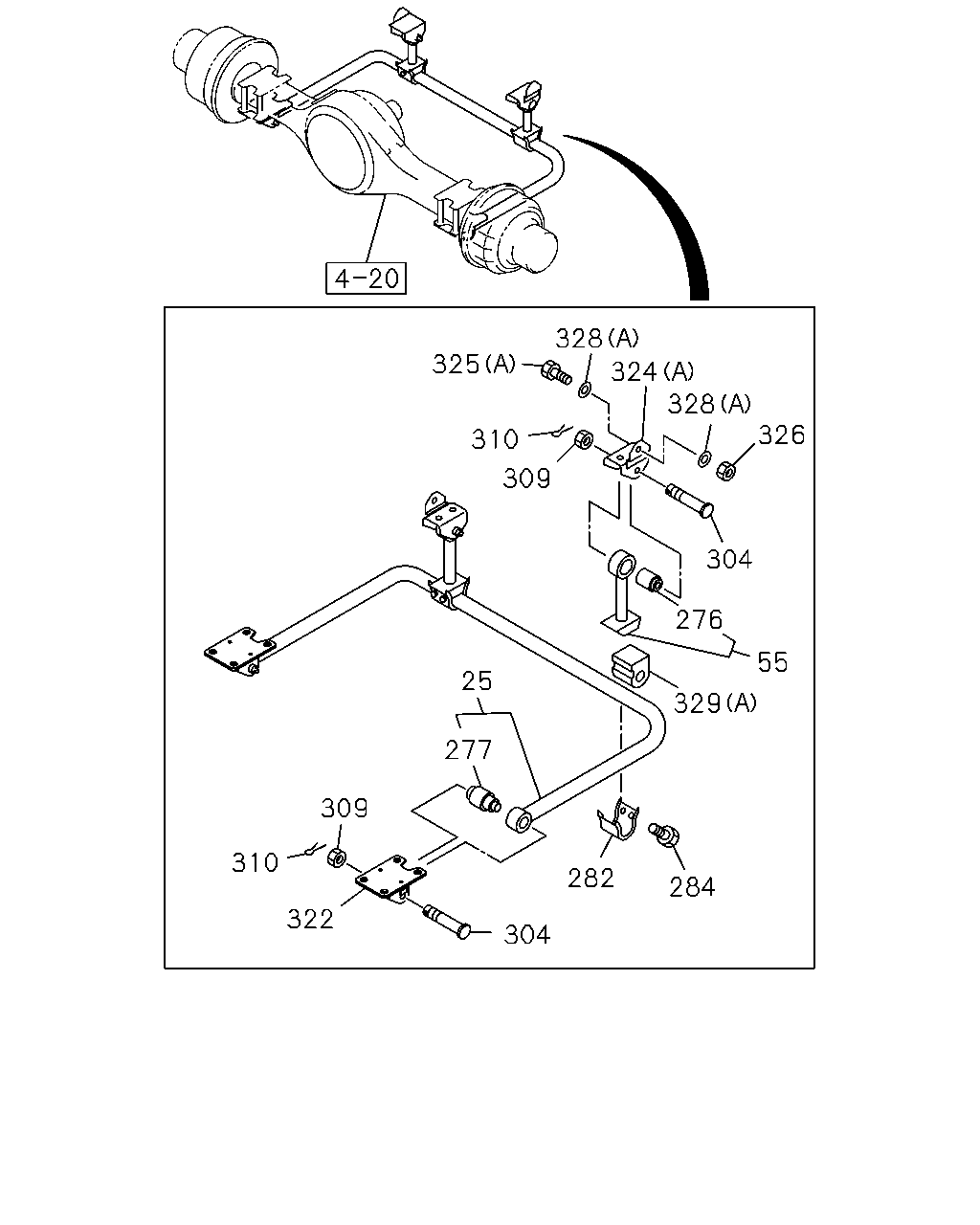

çizim 467207
284 282 304 322 310 309 277 25 329 55 276 304 326 328 324 328 325 310 309
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP 1-51770-188-0 01 1 1412- ●
25 BAR ASM; STAB,RR SUSP 1-51770-188-0 01 1 0504-0802 ●
55 ROD; STAB 1-51770-024-1 02 1 0504-1411 ●
55 ROD; STAB 1-51770-024-1 02 1 1412- ● ●
276 BUSHING; STAB ROD 1-51779-019-0 02 1 0504-1411 ●
276 BUSHING; STAB ROD 1-51779-019-0 02 1 1412- ● ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 1412- ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 0504-0802 ●
282 RETAINER; STAB BAR 1-51789-015-2 02 1 1412- ●
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 0504-1411 ●
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 1412- ● ●
304 PIN; STAB ROD 1-51789-020-2 04 1 1412- ●
304 PIN; STAB ROD 1-51789-020-2 04 1 0504-0802 ●
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 0504-1411 ●
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 1412- ● ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		9-08115-045-0 04 1 0504-0606 ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 0607-1411 ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 1412- ● ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-038-1 01 1 1412- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-128-0 01 1 1412- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-147-0 02 1 0504-0802 ●
324 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-059-0 02 1 1412- ●
324 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-059-0 02 1 0504-0802 ●
324 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-112-0 01 1 0504-0802 ●
324 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-134-0 01 1 0504-0802 ●
325 BOLT; BRKT TO FRAME
(B) M14X45 		0-20801-445-0 08 1 0504- ●
325 BOLT; BRKT TO FRAME
(A) M14X40 		9-92061-440-0 06 1 0504-0512 ●
325 BOLT; BRKT TO FRAME
(A) M14X40 		0-20951-440-0 06 1 0601-1411 ●
325 BOLT; BRKT TO FRAME
(A) M14X40 		0-20951-440-0 06 1 1412- ● ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 06 1 1412- ●
326 NUT; BRKT TO FRAME
M14 		9-99110-514-0 14 1 0504-0512 ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 14 1 0601- ●
328 WASHER; PL,BRKT
(B) ID=14.2 		9-09150-514-0 08 1 0504-0603 ●
328 WASHER; PL,BRKT
(B) ID=14.2 		0-91510-514-0 08 1 0604- ●
328 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 06 1 0504-0910 ●
328 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 06 1 0911-1411 ●
328 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 12 1 1412- ● ●
329 BUSHING; STAB ROD
(A) 		1-51789-017-0 02 1 1412- ●
329 BUSHING; STAB ROD
(A) 		1-51789-017-0 02 1 0504-0802 ●
329 BUSHING; STAB ROD
(B) 		9-51631-039-0 04 1 0504- ●

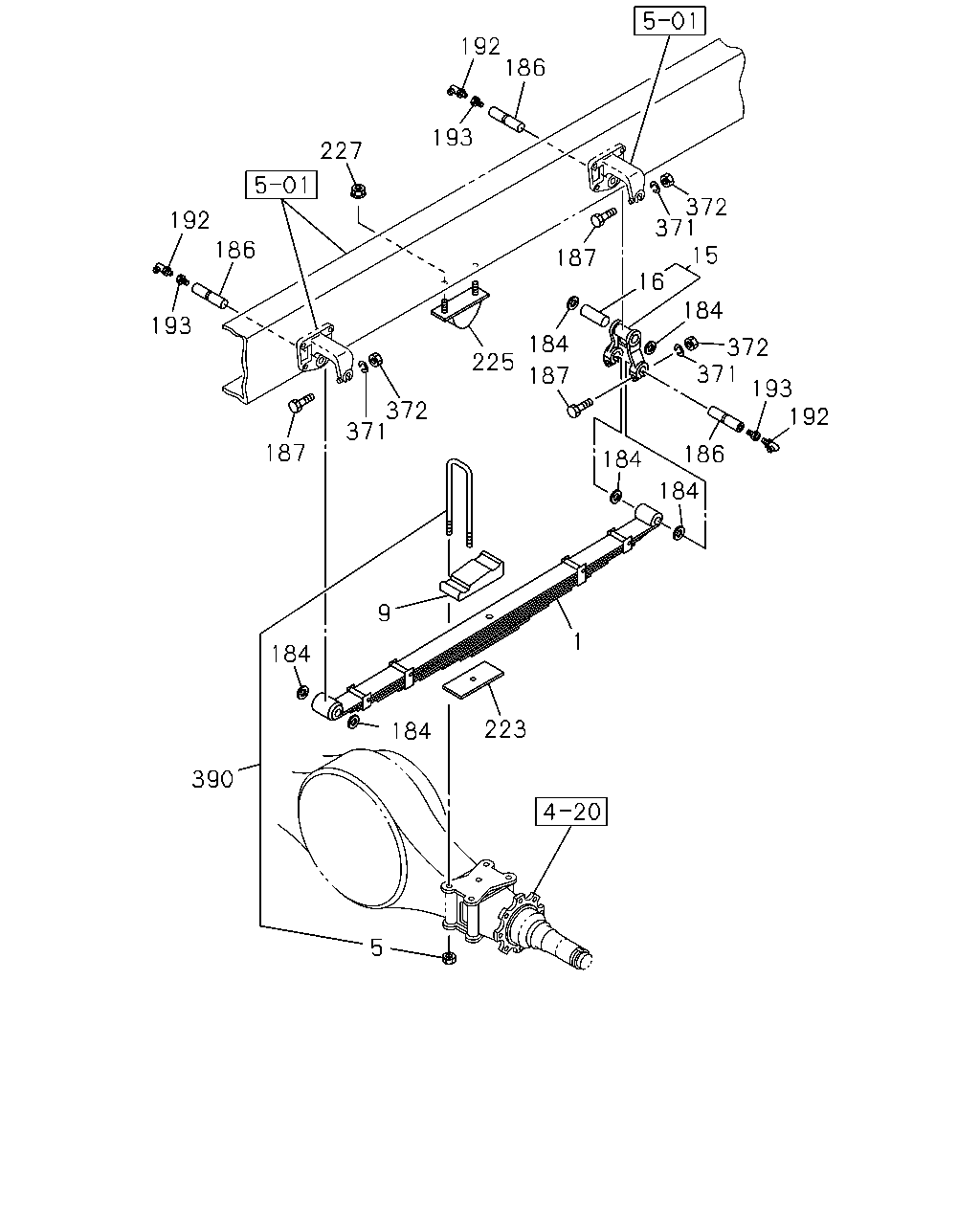

çizim 467421
5 390 184 223 184 9 1 184 184 186 192 193 371 372 184 16 15 371 372 187 184 187 225 372 371 187 193 186 192 227 193 192 186
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51310-726-0 02 1 1412- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0504-0512 ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601-1411 ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1412- ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 0504-1411 ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 1412- ● ●
15 SHACKLE; RR SPR 1-51162-029-5 02 1 1412- ●
16 BUSHING; SHACKLE,RR SPR
OD=38 		8-98081-829-0 02 1 1412- ●
184 WASHER; SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0504-1411 ●
184 WASHER; SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1412- ● ●
186 PIN; SHACKLE,RR SPR 1-51161-031-0 06 1 1412- ●
187 BOLT; SPR & SHACKLE
M12X80 		0-10856-280-0 08 1 1412- ●
187 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 08 1 0504-0512 ●
187 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 08 1 0601-0601 ●
187 BOLT; SPR & SHACKLE
M12X80 		0-10806-280-0 04 1 0602-0602 ●
187 BOLT; SPR & SHACKLE
M12X80 		0-10856-280-0 04 1 0603-0802 ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		9-09031-210-0 06 1 0504-0512 ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		0-90301-610-0 06 1 0601-1411 ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		0-90301-610-0 06 1 1412- ● ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0504-1411 ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1412- ● ●
223 SPACER; U BOLT,RR SPR 8-98220-147-0 02 1 1412- ●
225 RUBBER; CUSHION,RR SPR 9-53366-088-3 02 1 0504-1411 ●
225 RUBBER; CUSHION,RR SPR 9-53366-088-3 02 1 1412- ● ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 04 1 0504-0602 ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 0603-1411 ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 1412- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0504-0602 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 08 1 1412- ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 08 1 0504-0601 ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 0602-0603 ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0604-0802 ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-614-0 08 1 0504-0601 ●
372 NUT; SHACKLE
M12 		0-91110-512-0 08 1 1412- ●
372 NUT; SHACKLE
M14 		9-99110-514-0 08 1 0504-0512 ●
372 NUT; SHACKLE
M14 		0-91110-514-0 08 1 0601-0601 ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 0602-0602 ●
372 NUT; SHACKLE
M12 		0-91110-512-0 04 1 0603-0802 ●
372 NUT; SHACKLE
M24 		0-91110-524-0 02 1 0803- ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
