◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#65928) — 170 parça

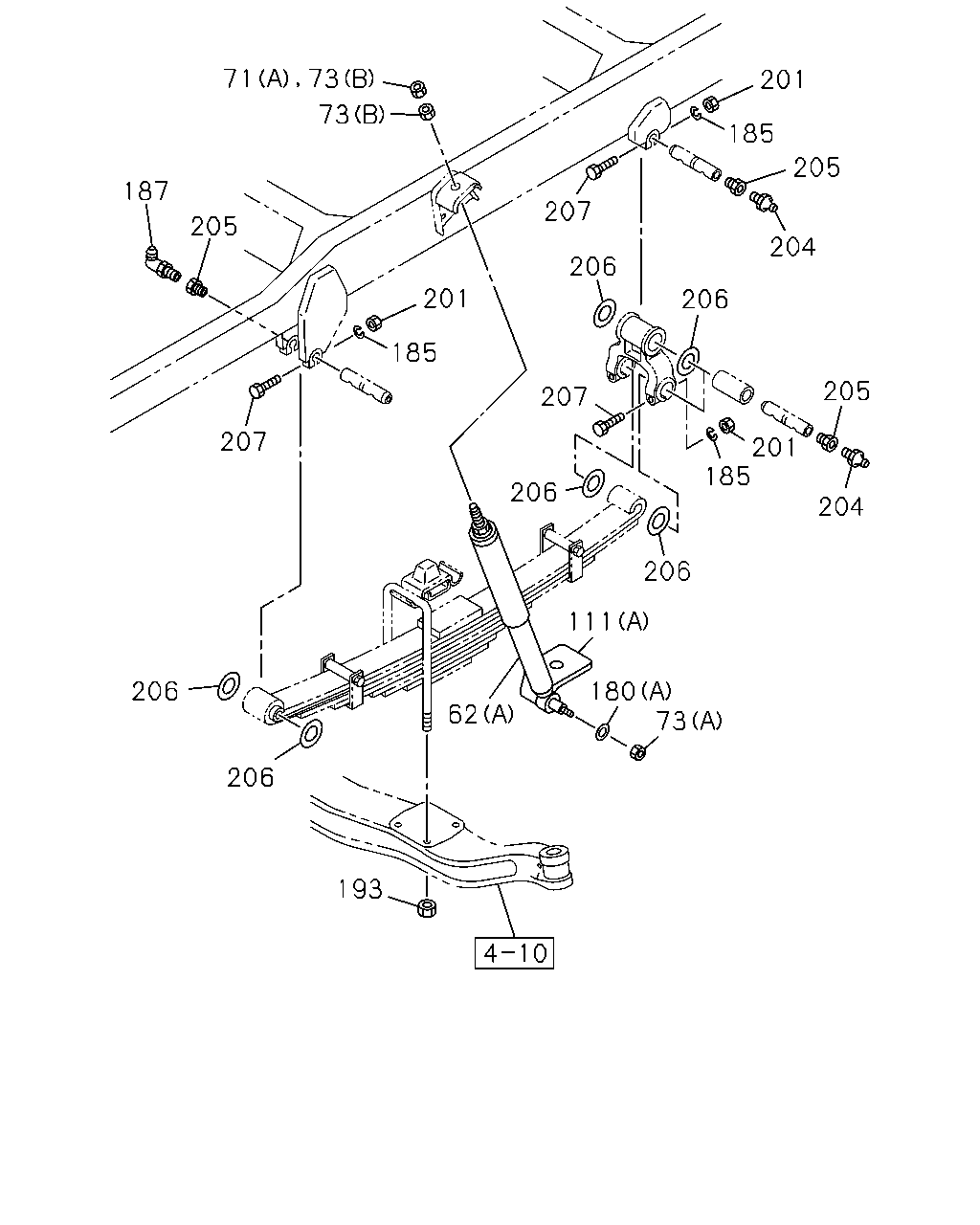

çizim 124346
71 73 187 73 207 206 204 205 185 201 205 204 201 185 206 206 207 185 201 193 206 206 207 62 111 180 73 205 206
BalonParca AdiParca NoAdetTipApplied Date A B
62 ABSORBER ASM; SHOCK,FRT
(B) 		1-51630-180-4 02 1 1412-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(A) 		1-51630-417-0 02 1 0504-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(A) 		1-51630-417-0 02 1 1508- ● ●
62 ABSORBER ASM; SHOCK,FRT
(A) BEST VALUE PARTS 		1-87610-154-0 02 1 1110-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(A) BEST VALUE PARTS 		1-87610-154-0 02 1 1508- ● ●
62 ABSORBER ASM; SHOCK,FRT
(B) BEST VALUE PARTS 		1-87610-153-0 02 1 1412-1412 ●
71 NUT; LK,S/ABS,UPR
(B) M12 		8-98010-412-0 02 1 1412-1507 ●
71 NUT; LK,S/ABS,UPR
(A) M14 		9-99111-414-0 01 1 0504-0512 ●
71 NUT; LK,S/ABS,UPR
(A) M14 		0-91111-514-0 01 1 0601- ●
73 NUT; BRKT,SHOCK
(C) M16 		0-91110-516-0 02 1 1412-1507 ●
73 NUT; BRKT,SHOCK
(B) M20 		9-99110-520-0 04 1 0504-0512 ●
73 NUT; BRKT,SHOCK
(B) M20 		0-91110-520-0 04 1 0601-1507 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 04 1 1508- ● ●
73 NUT; BRKT,SHOCK
(A) M14 		9-99111-414-0 02 1 0504-0512 ●
73 NUT; BRKT,SHOCK
(A) M14 		0-91111-514-0 02 1 0601-1507 ●
73 NUT; BRKT,SHOCK
M14 		0-91111-514-0 02 1 1508- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
(B) 		8-98153-481-0 01 1 1412-1507 ●
111 SUPPORTER; S/ABS,FRT SUSP
(B) 		8-98153-482-0 01 1 1412-1507 ●
111 SUPPORTER; S/ABS,FRT SUSP
(A) 		1-51681-722-1 01 1 0504-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
(A) 		8-98153-483-0 01 1 1005- ●
111 SUPPORTER; S/ABS,FRT SUSP
(A) 		1-51681-723-1 01 1 0504-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
(A) 		8-98153-484-0 01 1 1005- ●
180 WASHER; PL,PIN
(B) ID=17 OD=30 		0-91610-516-0 02 1 1412-1507 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1508- ●
180 WASHER; PL,PIN
(A) ID=21 		9-09160-520-0 04 1 0504-0605 ●
180 WASHER; PL,PIN
(A) ID=21 		0-91610-520-0 04 1 0606- ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0504-0603 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604-1411 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1412- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0504-0512 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-1411 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1412- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0504-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-1411 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1412- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0504-0512 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601-1411 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1412- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0504-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-1411 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1412- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0504-1411 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1412- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0504-1411 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1412- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0504-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601-1411 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1412- ● ●
393 WASHER; PL
ID=21 		0-91614-520-0 02 1 1508- ●
çizim 124816
320 321 126 140 377 137 138 138 137 377 140
BalonParca AdiParca NoAdetTipApplied Date A B
126 PIN; SPLIT,STAB
OD=3.7 L=22 		9-08114-022-0 02 1 0504-0606 ●
126 PIN; SPLIT,STAB
OD=3.7 L=22 		0-81124-022-0 02 1 0607- ●
137 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-046-3 02 1 1412-1507 ●
137 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-112-0 01 1 0504-0601 ●
137 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-134-0 01 1 0504-0601 ●
138 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 1412- ●
138 NUT; BRKT
(A) M14 		9-99110-514-0 08 1 0504-0512 ●
138 NUT; BRKT
(A) M14 		0-91110-514-0 08 1 0601- ●
140 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 08 1 1412- ●
140 BOLT; BRKT
(A) M14X45 		0-20801-445-0 08 1 0504- ●
320 NUT; ROD,LWR
M20 		9-99110-520-0 04 1 0504-0512 ●
320 NUT; ROD,LWR
M20 		0-91110-520-0 04 1 0601- ●
321 NUT; ROD END,SUPPORT
M16 SLOTTED 		1-09442-021-1 02 1 0504-0805 ●
321 NUT; ROD END,SUPPORT
M16 SLOTTED 		1-09442-031-0 02 1 0806- ●
377 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 08 1 0504-0601 ●
377 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 12 1 0602-0603 ●
377 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 12 1 0604- ●
393 WASHER; PL
ID=21 		0-91614-520-0 02 1 1508- ●
çizim 191777
62 14 65 65 68 18 18 68 65 211 68 68 211
BalonParca AdiParca NoAdetTipApplied Date A B
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0504-1507 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1508- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0504-1507 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1508- ● ●
62 ABSORBER ASM; SHOCK,FRT
(B) 		1-51630-180-4 02 1 1412-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(A) 		1-51630-417-0 02 1 0504-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(A) 		1-51630-417-0 02 1 1508- ● ●
62 ABSORBER ASM; SHOCK,FRT
(A) BEST VALUE PARTS 		1-87610-154-0 02 1 1110-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(A) BEST VALUE PARTS 		1-87610-154-0 02 1 1508- ● ●
62 ABSORBER ASM; SHOCK,FRT
(B) BEST VALUE PARTS 		1-87610-153-0 02 1 1412-1412 ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 1412-1507 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0504-1507 ●
65 WASHER; S/ABS
ID=16.5 		1-09503-266-0 02 1 1508- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0504-1507 ●
65 WASHER; S/ABS
ID=16.5 		1-51631-068-0 04 1 1508- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0504-1507 ●
68 BUSHING; S/ABS
ID=16 T=25 		1-51631-069-0 04 1 1508- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0504-1507 ●
68 BUSHING; S/ABS 9-51631-026-0 04 1 1508- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0504-1507 ●
211 WASHER; BRKT,SHOCK
ID=27 		9-51631-027-0 02 1 1508- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0504-1507 ●
211 WASHER; BRKT,SHOCK
ID=21 		9-51631-028-0 02 1 1508- ● ●
393 WASHER; PL
ID=21 		0-91614-520-0 02 1 1508- ●

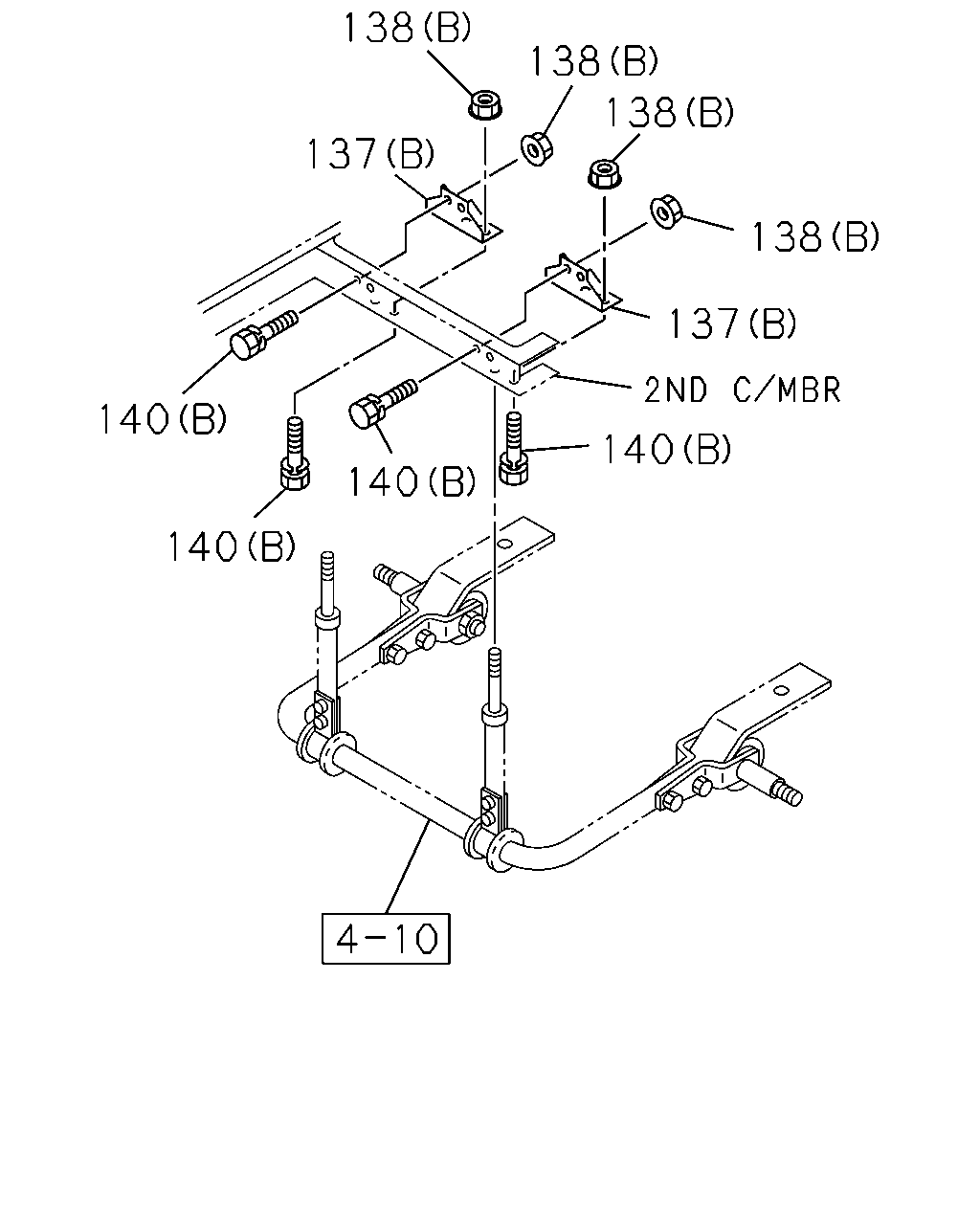

çizim 467465
140 140 140 140 137 138 138 138 138 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-046-3 02 1 1412-1507 ●
137 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-112-0 01 1 0504-0601 ●
137 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-134-0 01 1 0504-0601 ●
138 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 1412- ●
138 NUT; BRKT
(A) M14 		9-99110-514-0 08 1 0504-0512 ●
138 NUT; BRKT
(A) M14 		0-91110-514-0 08 1 0601- ●
140 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 08 1 1412- ●
140 BOLT; BRKT
(A) M14X45 		0-20801-445-0 08 1 0504- ●
393 WASHER; PL
ID=21 		0-91614-520-0 02 1 1508- ●

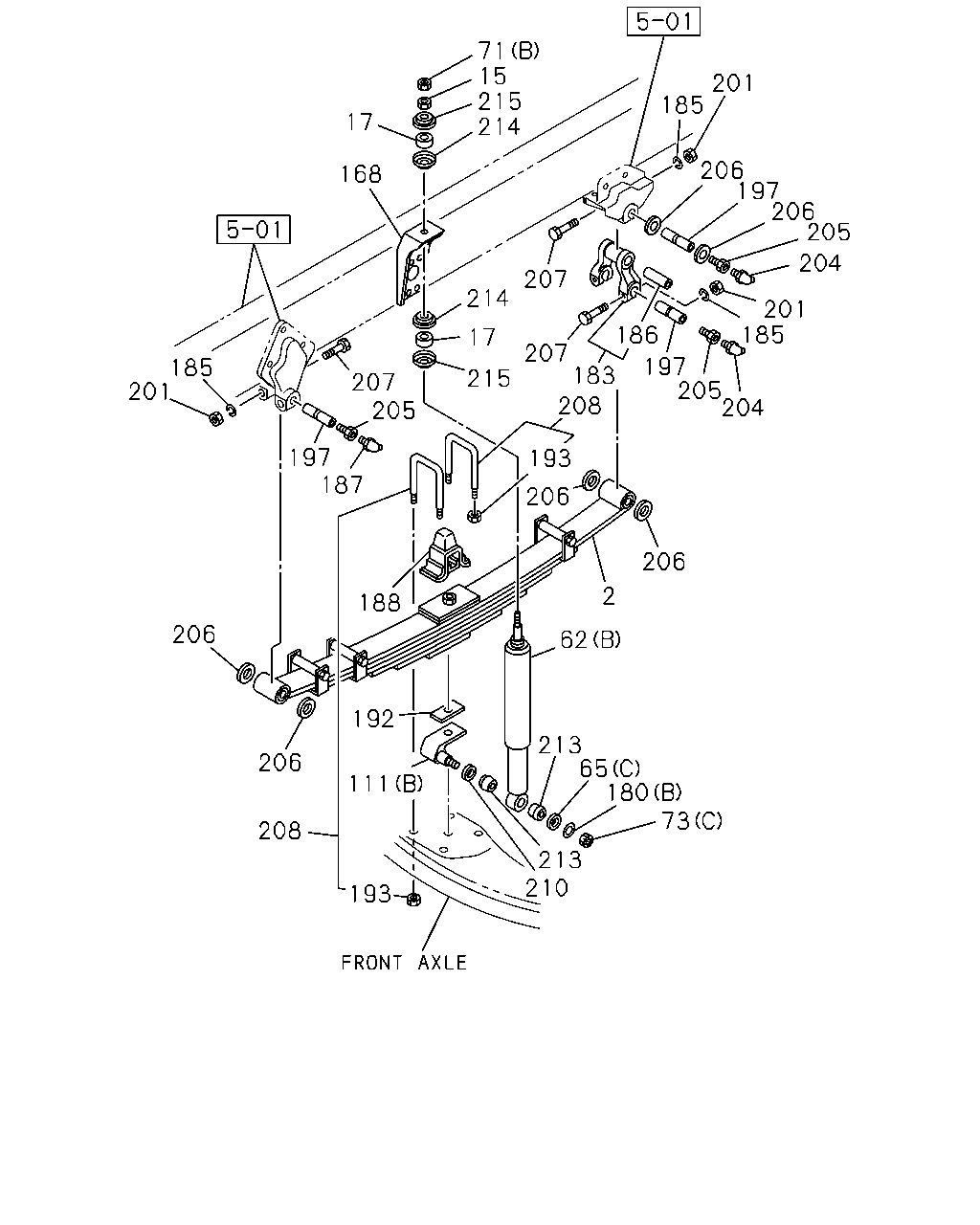

çizim 467585
210 213 73 180 65 213 193 111 192 208 206 206 188 62 206 2 206 193 187 197 201 185 207 205 168 17 71 15 215 214 214 17 215 207 207 208 183 186 197 205 204 185 201 204 205 206 197 206 185 201
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-343-0 02 1 1412- ●
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 02 1 1412-1507 ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 1412-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(B) 		1-51630-180-4 02 1 1412-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(A) 		1-51630-417-0 02 1 0504-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(A) 		1-51630-417-0 02 1 1508- ● ●
62 ABSORBER ASM; SHOCK,FRT
(A) BEST VALUE PARTS 		1-87610-154-0 02 1 1110-1507 ●
62 ABSORBER ASM; SHOCK,FRT
(A) BEST VALUE PARTS 		1-87610-154-0 02 1 1508- ● ●
62 ABSORBER ASM; SHOCK,FRT
(B) BEST VALUE PARTS 		1-87610-153-0 02 1 1412-1412 ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 1412-1507 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0504-1507 ●
65 WASHER; S/ABS
ID=16.5 		1-09503-266-0 02 1 1508- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0504-1507 ●
65 WASHER; S/ABS
ID=16.5 		1-51631-068-0 04 1 1508- ● ●
71 NUT; LK,S/ABS,UPR
(B) M12 		8-98010-412-0 02 1 1412-1507 ●
71 NUT; LK,S/ABS,UPR
(A) M14 		9-99111-414-0 01 1 0504-0512 ●
71 NUT; LK,S/ABS,UPR
(A) M14 		0-91111-514-0 01 1 0601- ●
73 NUT; BRKT,SHOCK
(C) M16 		0-91110-516-0 02 1 1412-1507 ●
73 NUT; BRKT,SHOCK
(B) M20 		9-99110-520-0 04 1 0504-0512 ●
73 NUT; BRKT,SHOCK
(B) M20 		0-91110-520-0 04 1 0601-1507 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 04 1 1508- ● ●
73 NUT; BRKT,SHOCK
(A) M14 		9-99111-414-0 02 1 0504-0512 ●
73 NUT; BRKT,SHOCK
(A) M14 		0-91111-514-0 02 1 0601-1507 ●
73 NUT; BRKT,SHOCK
M14 		0-91111-514-0 02 1 1508- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
(B) 		8-98153-481-0 01 1 1412-1507 ●
111 SUPPORTER; S/ABS,FRT SUSP
(B) 		8-98153-482-0 01 1 1412-1507 ●
111 SUPPORTER; S/ABS,FRT SUSP
(A) 		1-51681-722-1 01 1 0504-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
(A) 		8-98153-483-0 01 1 1005- ●
111 SUPPORTER; S/ABS,FRT SUSP
(A) 		1-51681-723-1 01 1 0504-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
(A) 		8-98153-484-0 01 1 1005- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 1412- ●
180 WASHER; PL,PIN
(B) ID=17 OD=30 		0-91610-516-0 02 1 1412-1507 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1508- ●
180 WASHER; PL,PIN
(A) ID=21 		9-09160-520-0 04 1 0504-0605 ●
180 WASHER; PL,PIN
(A) ID=21 		0-91610-520-0 04 1 0606- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1412- ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0504-0603 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604-1411 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1412- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1412- ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0504-0512 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-1411 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1412- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 1412- ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 1412-1507 ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0504-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-1411 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1412- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 1412- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0504-0512 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601-1411 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1412- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0504-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-1411 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1412- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0504-1411 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1412- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0504-1411 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1412- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0504-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601-1411 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1412- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 1412- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 1412-1507 ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 1412-1507 ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 1412-1507 ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 1412-1507 ●
393 WASHER; PL
ID=21 		0-91614-520-0 02 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
