4-42 — POWER STEERING OIL PUMP (#65927) — 33 parça

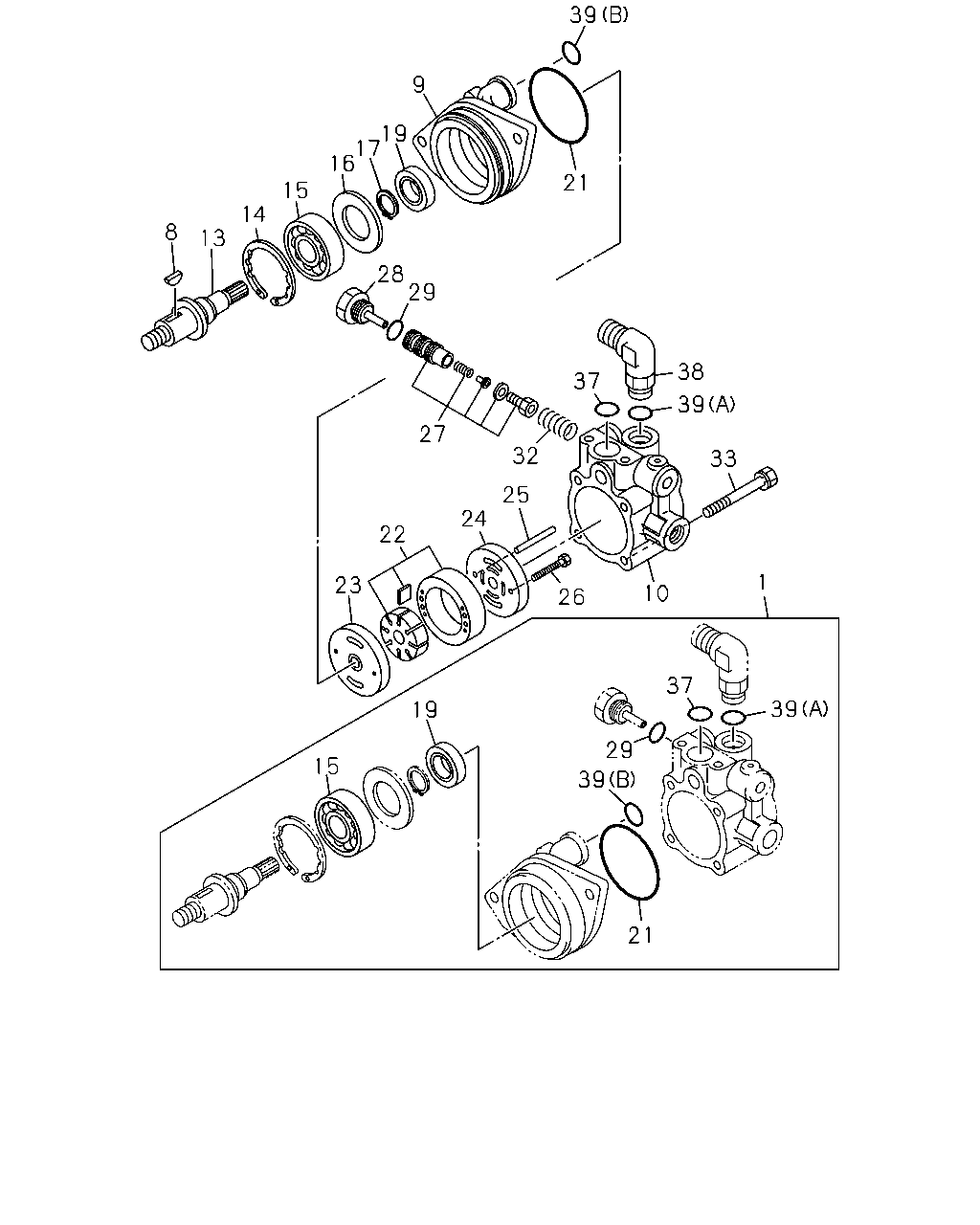

çizim 124400
9 19 16 17 15 14 13 8 28 27 29 22 32 25 24 37 21 39 38 33 39 39 1 37 29 39 21 19 15 26 10 23
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-548-1 		1-85574-060-0 01 1 -0812
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-548-1 		1-85574-064-0 01 1 0901-
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-548-1 		9-08055-413-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19511-149-0 01 1 -0812
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19511-151-0 01 1 0901-
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19511-150-0 01 1 -0812
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19511-152-0 01 1 0901-
13 SHAFT KIT; RET
ASM PART: A = 1-19500-548-1 		1-19521-034-0 01 1 -0812
13 SHAFT KIT; RET
ASM PART: A = 1-19500-548-1 		1-19521-035-0 01 1 0901-
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19519-135-0 01 1 0901-
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19519-172-0 01 1 -0812
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19515-004-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-548-1 		9-19519-078-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-548-1 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-548-1 		1-19519-314-0 01 1 0901-
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-548-1 		1-19519-321-0 01 1 -0812
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19519-336-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19519-133-1 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-548-1 		1-19519-316-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-548-1 		9-88510-408-0 02 1 -
26 SCREW; PLATE
ASM PART: A = 1-19500-548-1 		1-19519-076-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19519-183-1 01 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19519-230-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-548-1 		8-94242-528-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-548-1 		9-19529-013-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-548-1 		1-19519-244-0 04 1 0901-
33 BOLT; COVER
ASM PART: A = 1-19500-548-1 		1-19519-331-0 04 1 -0812
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19519-292-0 01 1 -
38 CONNECTOR; OIL PUMP
ASM PART: A = 1-19500-548-1 		1-19519-307-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 1-19500-548-1 		1-19519-308-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-548-1 		1-19519-313-0 01 1 0901-
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-548-1 		1-19519-320-0 01 1 -0812
