◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶

4-40 — STEERING UNIT (#65926) — 144 parça

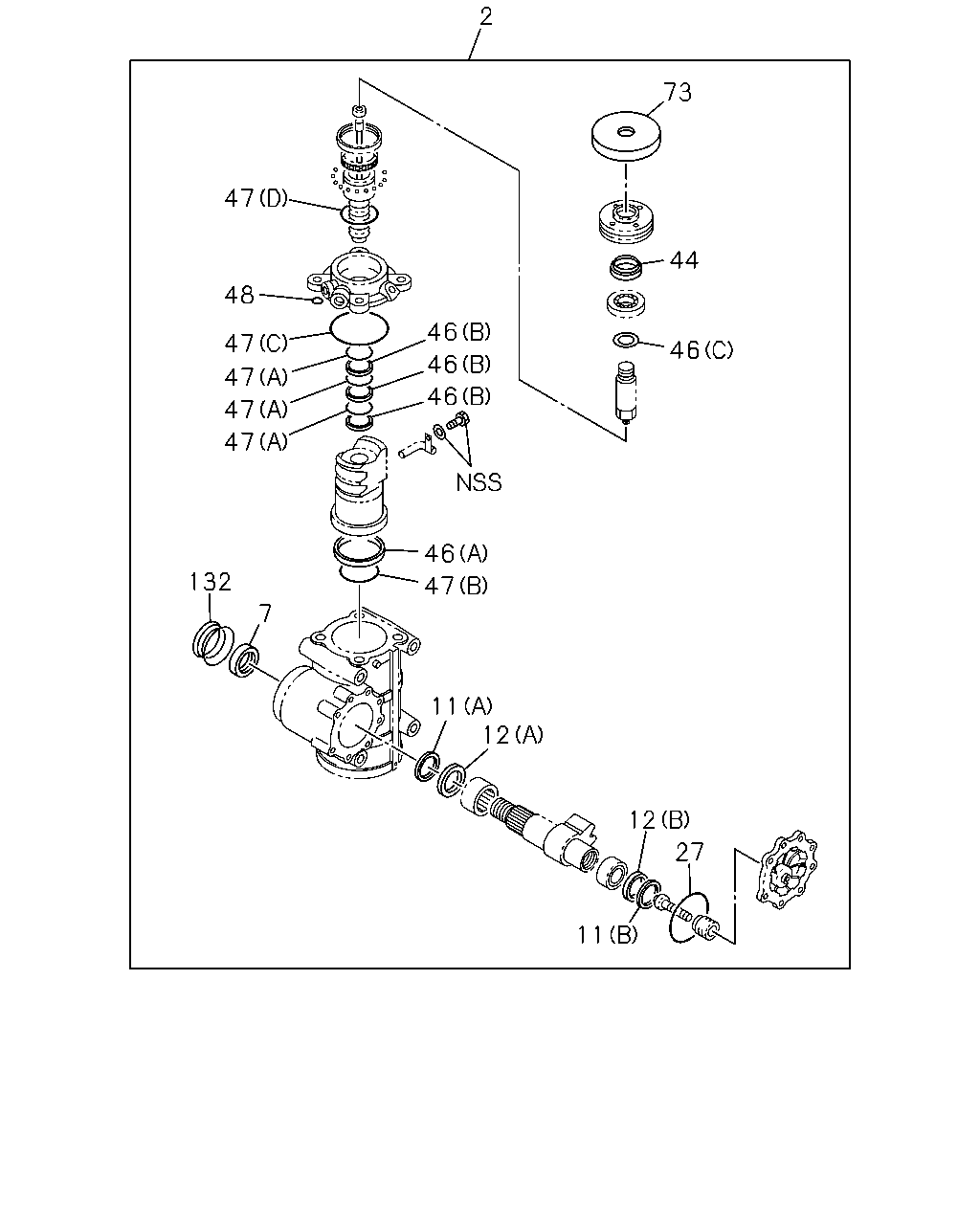

2 73 44 46 46 46 46 47 48 47 47 47 47 132 7 11 47 11 12 27 12 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: A = 1-44000-832-3	1-85574-030-0	01	1	-1003
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: B = 1-44000-834-4	8-98176-079-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: A = 1-44000-832-3	8-98176-079-0	01	1	1004-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3	1-44249-041-0	01	1	-1002
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3	8-98159-116-0	01	1	1003-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: B = 1-44000-834-4	8-98159-116-0	01	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-103-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-226-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44269-035-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44159-037-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-255-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44159-036-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-116-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-260-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-262-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3	1-44519-114-0	01	1	-1003
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3	8-98166-307-0	01	1	1004-
73	COVER; DUST,STRG UNIT ASM PART: B = 1-44000-834-4	8-98166-307-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-227-0	01	1	-

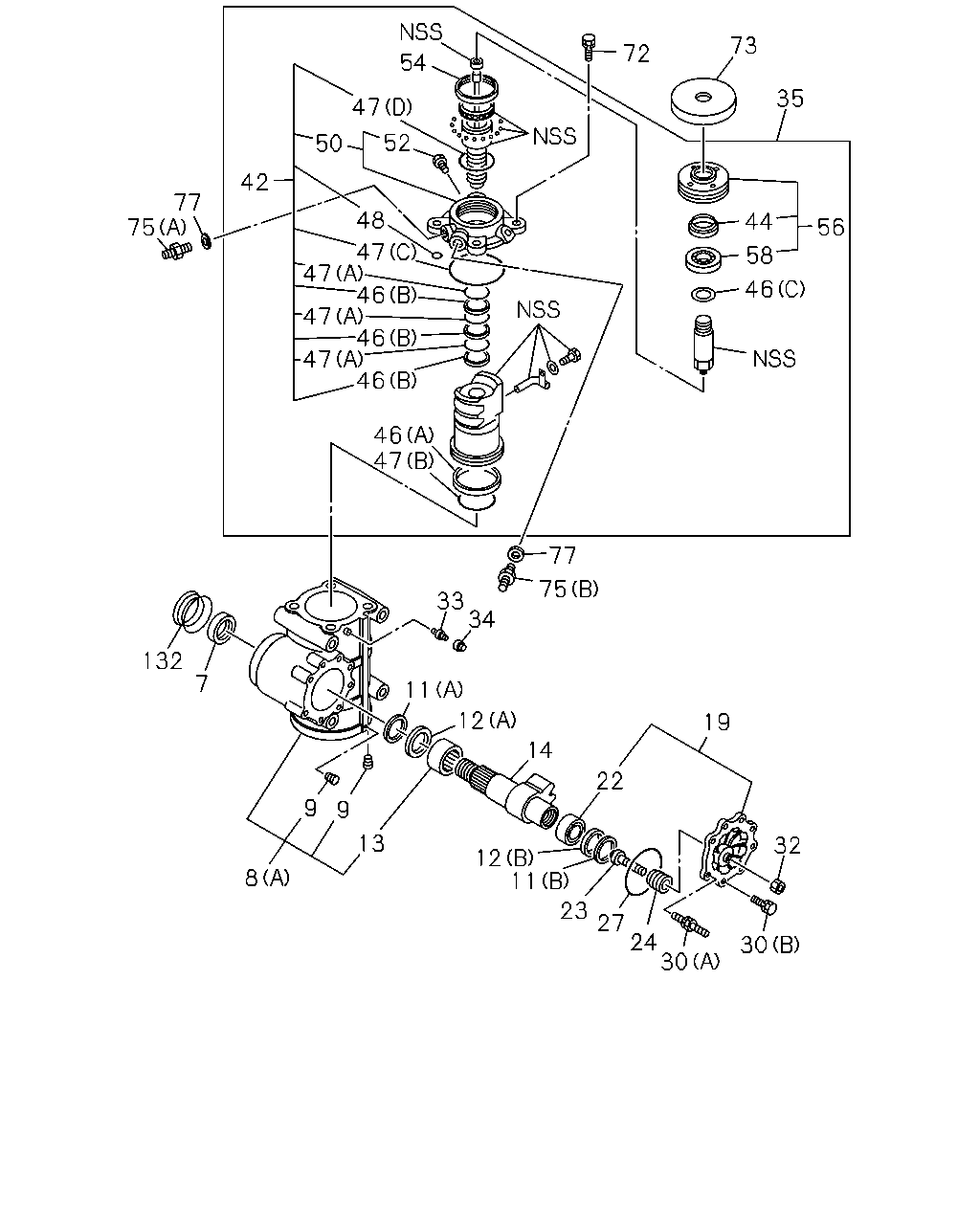

54 47 50 42 75 77 47 48 47 47 47 46 46 52 72 73 35 44 46 58 56 77 75 33 34 11 132 7 9 9 13 12 12 19 23 22 14 11 30 24 30 27 32 46 46 47 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3	1-44249-041-0	01	1	-1002
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3	8-98159-116-0	01	1	1003-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: B = 1-44000-834-4	8-98159-116-0	01	1	-
8	BOX ASM; STRG UNIT (A) ASM PART: A = 1-44000-832-3	1-44240-040-0	01	1	-1002
8	BOX ASM; STRG UNIT (A) ASM PART: A = 1-44000-832-3	8-98159-747-0	01	1	1003-
8	BOX ASM; STRG UNIT (B) ASM PART: B = 1-44000-834-4	8-98159-754-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-071-0	02	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-103-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-226-0	01	1	-
13	BEARING; SHAFT,BOX SIDE,STRG UNIT ASM PART: A = 1-44000-832-3	1-44249-038-0	01	1	-1002
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44321-022-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: A = 1-44000-832-3	1-44260-006-0	01	1	-1002
19	COVER; SIDE STRG UNIT ASM PART: A = 1-44000-832-3	8-98159-763-0	01	1	1003-
19	COVER; SIDE STRG UNIT ASM PART: B = 1-44000-834-4	8-98159-763-0	01	1	-
22	BEARING; SHAFT,COVER SIDE,STRG UNIT ASM PART: A = 1-44000-832-3	1-44519-105-0	01	1	-1002
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44269-035-0	01	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: A = 1-44000-832-3	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-832-3	1-44279-012-0	05	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: B = 1-44000-834-4	1-44279-012-0	08	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44269-007-0	01	1	-
33	PLUG; DRAIN,STRG UNIT ASM PART: A = 1-44000-832-3	9-83331-704-0	01	1	-
34	PROTECTOR; STRG UNIT ASM PART: A = 1-44000-832-3	9-83335-044-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44150-065-1	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44560-073-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44159-037-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-255-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44159-036-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-116-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-260-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-262-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44560-072-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-029-0	01	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-017-0	04	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3	1-44519-114-0	01	1	-1003
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3	8-98166-307-0	01	1	1004-
73	COVER; DUST,STRG UNIT ASM PART: B = 1-44000-834-4	8-98166-307-0	01	1	-
75	CONNECTOR; HSG STRG UNIT (A), M20X1.5 ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-034-1	01	1	-
75	CONNECTOR; HSG STRG UNIT (B), M22X1.5 ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-035-1	01	1	-
77	GASKET; CONNECTOR,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	9-89970-787-0	02	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-227-0	01	1	-

2 73 47 44 46 47 47 47 47 47 46 132 46 46 46 48 11 12 12 11 27 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: A = 1-44000-832-3	1-85574-030-0	01	1	-1003
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: B = 1-44000-834-4	8-98176-079-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: A = 1-44000-832-3	8-98176-079-0	01	1	1004-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3	1-44249-041-0	01	1	-1002
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3	8-98159-116-0	01	1	1003-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: B = 1-44000-834-4	8-98159-116-0	01	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-103-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-226-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44269-035-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44159-037-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-255-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44159-036-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-116-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-260-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-262-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3	1-44519-114-0	01	1	-1003
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3	8-98166-307-0	01	1	1004-
73	COVER; DUST,STRG UNIT ASM PART: B = 1-44000-834-4	8-98166-307-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-227-0	01	1	-

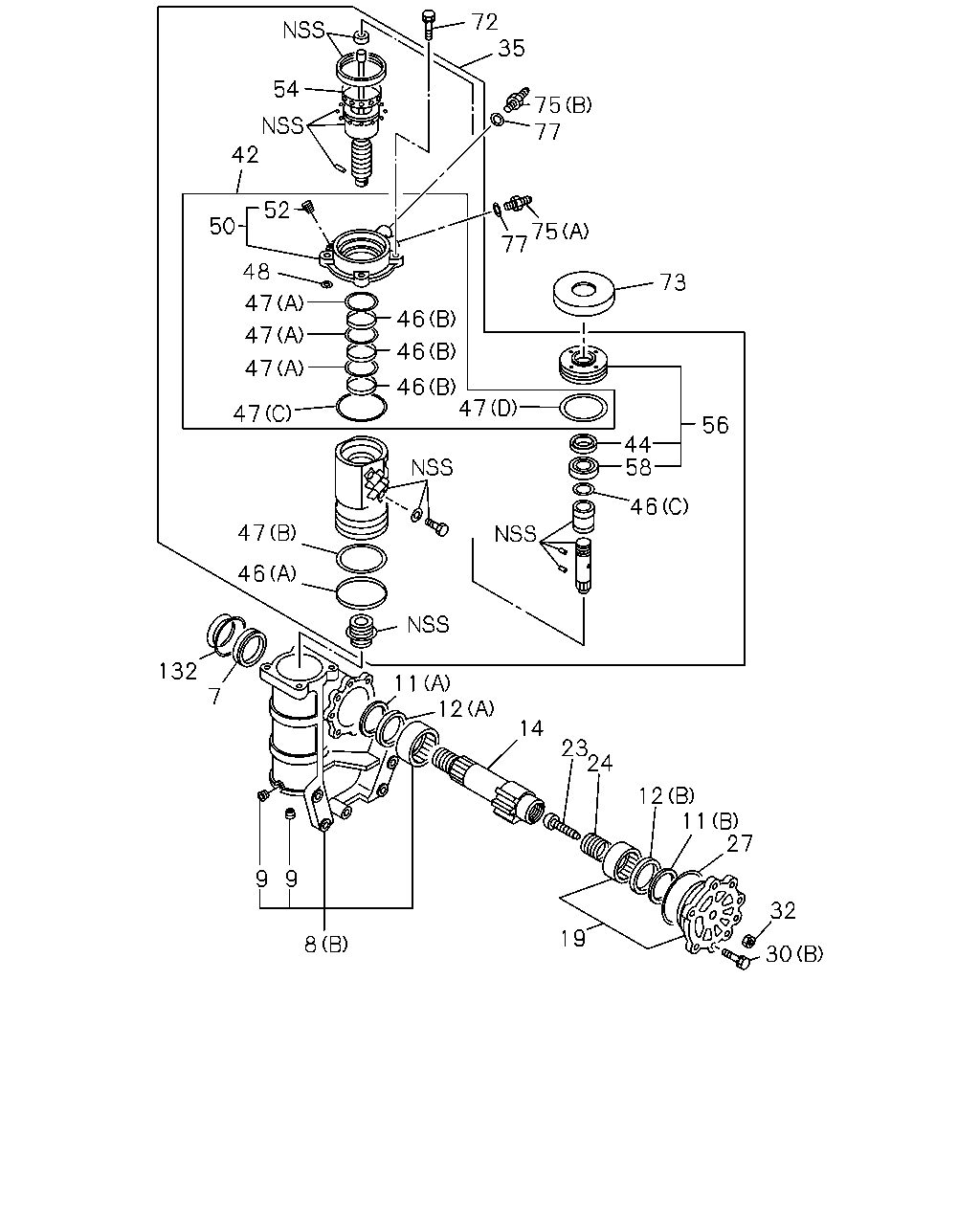

54 72 75 77 75 73 56 44 46 58 27 11 12 24 23 14 12 11 46 47 47 47 47 48 50 52 42 77 32 19 9 9 7 132 47 35 30 8 46 46 46 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3	1-44249-041-0	01	1	-1002
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3	8-98159-116-0	01	1	1003-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: B = 1-44000-834-4	8-98159-116-0	01	1	-
8	BOX ASM; STRG UNIT (A) ASM PART: A = 1-44000-832-3	1-44240-040-0	01	1	-1002
8	BOX ASM; STRG UNIT (A) ASM PART: A = 1-44000-832-3	8-98159-747-0	01	1	1003-
8	BOX ASM; STRG UNIT (B) ASM PART: B = 1-44000-834-4	8-98159-754-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-071-0	02	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-103-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-226-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44321-022-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: A = 1-44000-832-3	1-44260-006-0	01	1	-1002
19	COVER; SIDE STRG UNIT ASM PART: A = 1-44000-832-3	8-98159-763-0	01	1	1003-
19	COVER; SIDE STRG UNIT ASM PART: B = 1-44000-834-4	8-98159-763-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44269-035-0	01	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: A = 1-44000-832-3	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-832-3	1-44279-012-0	05	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: B = 1-44000-834-4	1-44279-012-0	08	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44269-007-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44150-065-1	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44560-073-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44159-037-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-255-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44159-036-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-116-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-260-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-262-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44560-072-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-029-0	01	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-017-0	04	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3	1-44519-114-0	01	1	-1003
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3	8-98166-307-0	01	1	1004-
73	COVER; DUST,STRG UNIT ASM PART: B = 1-44000-834-4	8-98166-307-0	01	1	-
75	CONNECTOR; HSG STRG UNIT (A), M20X1.5 ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-034-1	01	1	-
75	CONNECTOR; HSG STRG UNIT (B), M22X1.5 ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44259-035-1	01	1	-
77	GASKET; CONNECTOR,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	9-89970-787-0	02	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-832-3, B = 1-44000-834-4	1-44519-227-0	01	1	-
