◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#65924) — 85 parça

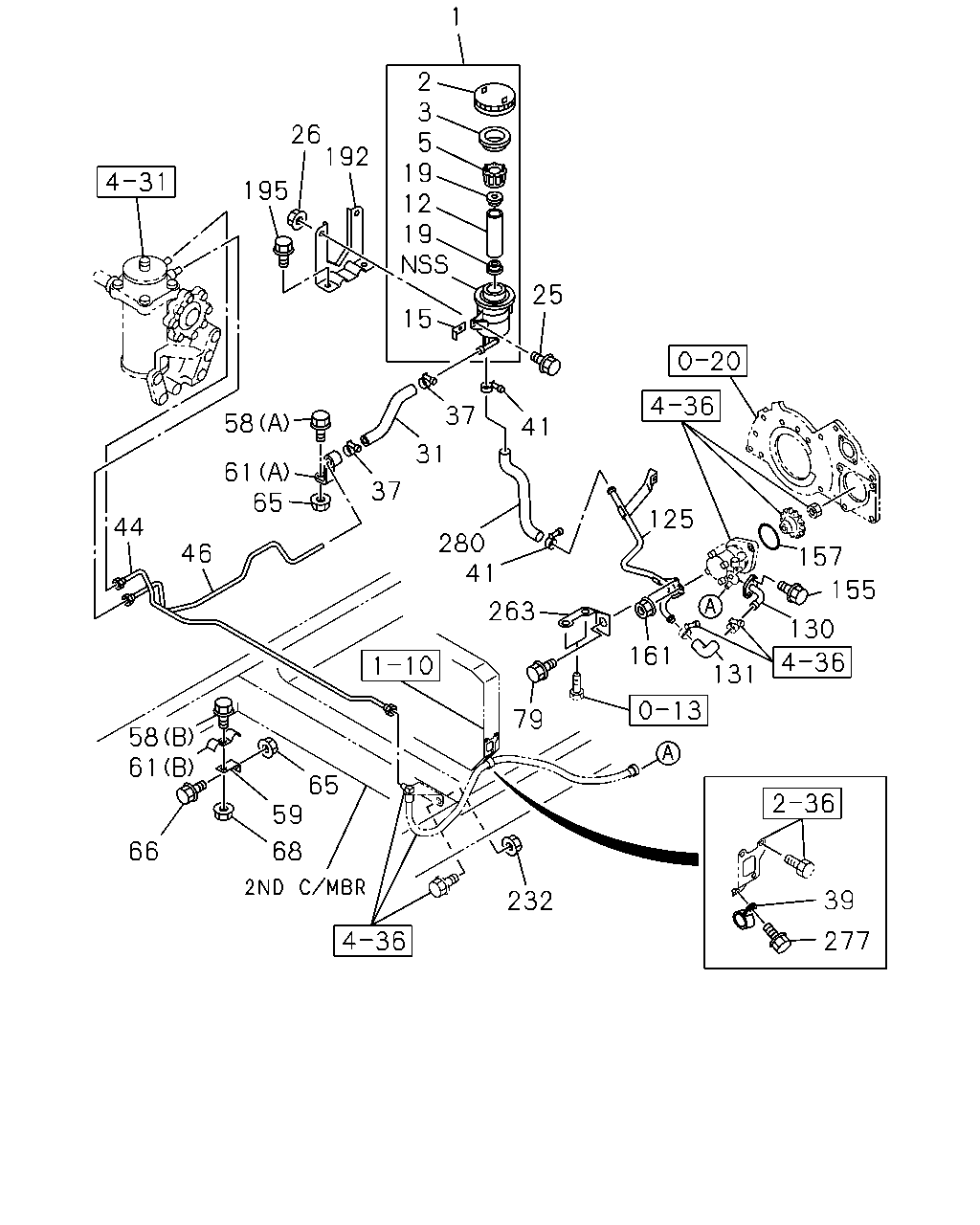

çizim 191782
1 2 26 195 15 19 12 19 5 3 25 41 37 31 37 58 61 46 44 65 280 263 41 125 157 155 130 131 161 39 277 232 68 65 59 58 61 66 192 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0504-0508 ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006 ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-1411 ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1412- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0504-1006 ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-1411 ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1412- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0504-1411 ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 1412- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0504-1411 ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 1412- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0504-1411 ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 1412- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0504-0508 ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509-1411 ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 1412- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0504-1411 ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 1412- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0504-0512 ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-1411 ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1412- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0504-0602 ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-1411 ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1412- ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0504-1411 ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 1412- ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0504-1411 ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 1412- ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0504-1411 ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 1412- ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0504-1411 ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1412- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=1035 		1-21116-108-0 01 1 1412- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=748 		1-21117-080-0 01 1 1412- ●
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0504-0512 ●
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-1411 ●
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1412- ● ●
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0504-0512 ●
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-1411 ●
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1412- ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 1412- ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0504-1411 ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1412- ● ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 0504-1411 ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 1412- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0504-0602 ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-1411 ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1412- ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0504-0512 ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601-1411 ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 1412- ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0504-0602 ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-1411 ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1412- ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0504-0512 ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601-1411 ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1412- ● ●
125 CONNECTOR; P/S PUMP 8-94390-584-1 01 1 0504-1411 ●
125 CONNECTOR; P/S PUMP 8-94390-584-1 01 1 1412- ● ●
130 ADAPTER; P/S PUMP 8-94390-583-0 01 1 0504-1411 ●
130 ADAPTER; P/S PUMP 8-94390-583-0 01 1 1412- ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0504-1411 ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 1412- ● ●
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 0504-0512 ●
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0601-1411 ●
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 1412- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0504-1411 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 1412- ● ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91150-110-0 01 1 0504-0602 ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91180-110-0 01 1 0603-1411 ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91180-110-0 01 1 1412- ● ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 1412- ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0504-0512 ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-1411 ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1412- ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0504-0602 ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-1411 ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1412- ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0504-1411 ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 1412- ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0504-0512 ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-1411 ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1412- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 0504-1411 ●
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 1412- ● ●
