4-31 — STEERING COLUMN AND SHAFT (#65922) — 143 parça

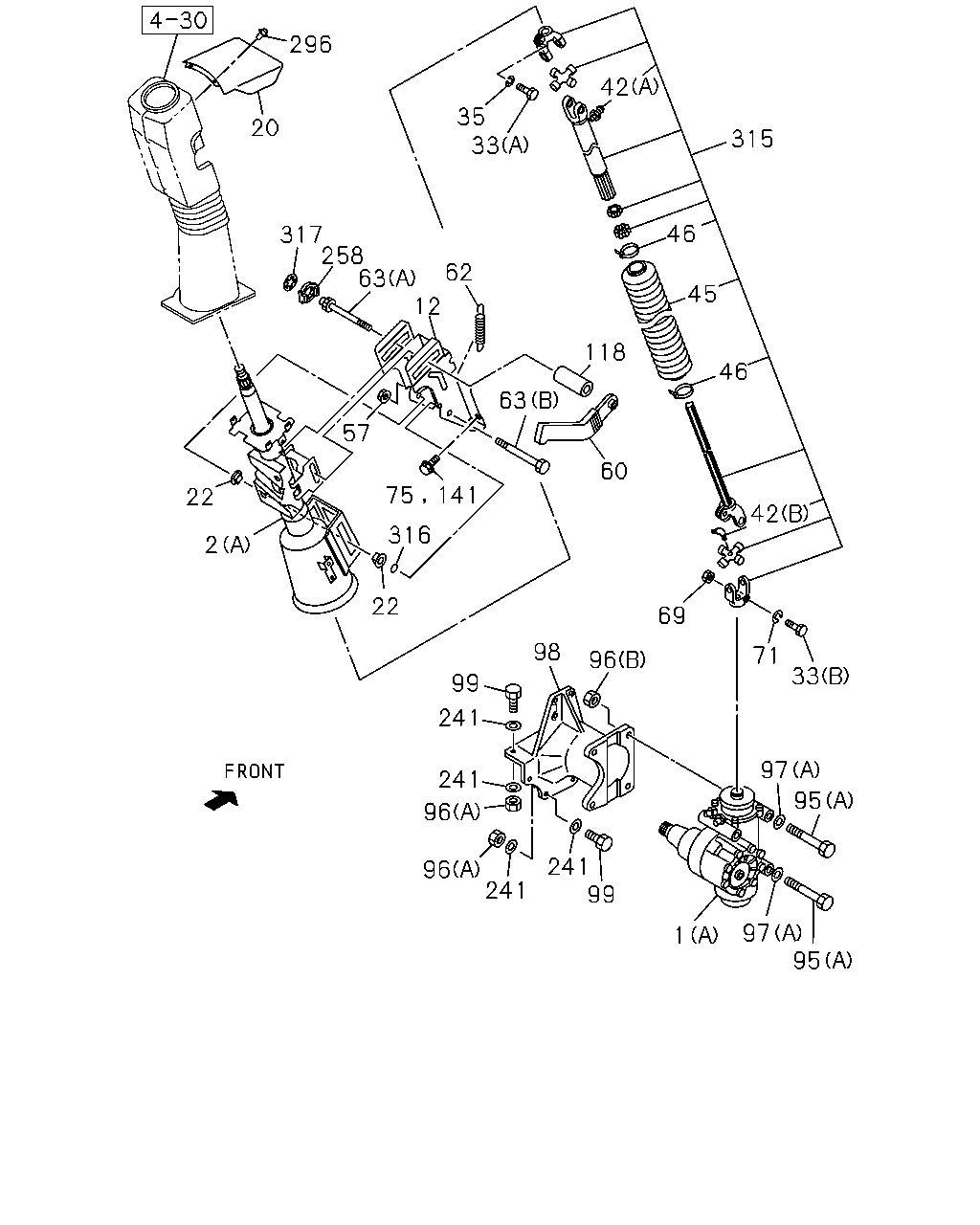

çizim 191776
296 20 317 258 63 62 12 118 63 60 75 141 316 22 99 98 96 69 35 33 42 315 46 45 46 42 71 33 97 95 97 1 99 241 241 96 96 241 2 22 57 95 241
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (B) 		1-44000-834-4 01 1 1412- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (A) 		1-44000-832-3 01 1 0504- ●
2 SHAFT ASM; STRG
(B) 		1-44130-694-1 01 1 1412- ●
2 SHAFT ASM; STRG
(A) 		1-44130-689-1 01 1 0504- ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0504-0811 ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812-1411 ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 1412- ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0504-1411 ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 1412- ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0504-1411 ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 1412- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 1412- ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 0504-1411 ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 1412- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 0504-0709 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0710- ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 0504-1411 ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 1412- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 0507-1411 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 1412- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 0507-1411 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 1412- ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0504-1411 ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 1412- ● ●
46 CLIP; BOOT 1-44139-156-0 02 1 0504-1411 ●
46 CLIP; BOOT 1-44139-156-0 02 1 1412- ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0504-1411 ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 1412- ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0504-1411 ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 1412- ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0504-1411 ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 1412- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0504-1411 ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 1412- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0504-1411 ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 1412- ● ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 1412- ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 0504-0512 ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 1412- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 0504-0603 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0504-0512 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601-1411 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 1412- ● ●
95 BOLT; STRG UNIT
(B) M14X55 		8-97301-262-0 05 1 1412- ●
95 BOLT; STRG UNIT
(A) M16X177 		1-09000-426-0 02 1 0504- ●
95 BOLT; STRG UNIT
(A) M16X163 		1-09040-078-0 02 1 0504- ●
96 NUT; STRG UNIT
(C) M14 		1-09440-097-0 06 1 1412- ●
96 NUT; STRG UNIT
(A) M14 		9-99110-514-0 06 1 0504-0512 ●
96 NUT; STRG UNIT
(A) M14 		0-91110-514-0 06 1 0601- ●
96 NUT; STRG UNIT
(B) M16 		9-99110-516-0 02 1 0504-0512 ●
96 NUT; STRG UNIT
(B) M16 		0-91110-516-0 02 1 0601- ●
97 WASHER; PL,STRG UNIT
(B) ID=15 		8-98010-627-1 11 1 1412- ●
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-223-0 06 1 0504- ●
98 BRACKET; STRG GEAR BOX 1-44226-133-2 01 1 0504- ●
99 BOLT; BRKT TO FRAME
M14X45 		9-92061-445-0 06 1 0504- ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 0504-0506 ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507-1411 ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 1412- ● ●
141 BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE 		0-28080-816-0 04 1 0504-0512 ●
141 BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
241 WASHER; PL
ID=15 		9-09651-069-0 12 1 0504-1201 ●
241 WASHER; PL
ID=15 		8-98010-627-1 12 1 1202- ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0504-1411 ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 1412- ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0504-1411 ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 1412- ● ●
315 JOINT; SPLINE 1-44135-341-1 01 1 0504-1411 ●
315 JOINT; SPLINE 1-44135-341-1 01 1 1412- ● ●
316 RING 1-44227-152-0 01 1 0504-1411 ●
316 RING 1-44227-152-0 01 1 1412- ● ●
317 NUT; PUSH 1-44227-148-0 01 1 0504-1411 ●
317 NUT; PUSH 1-44227-148-0 01 1 1412- ● ●

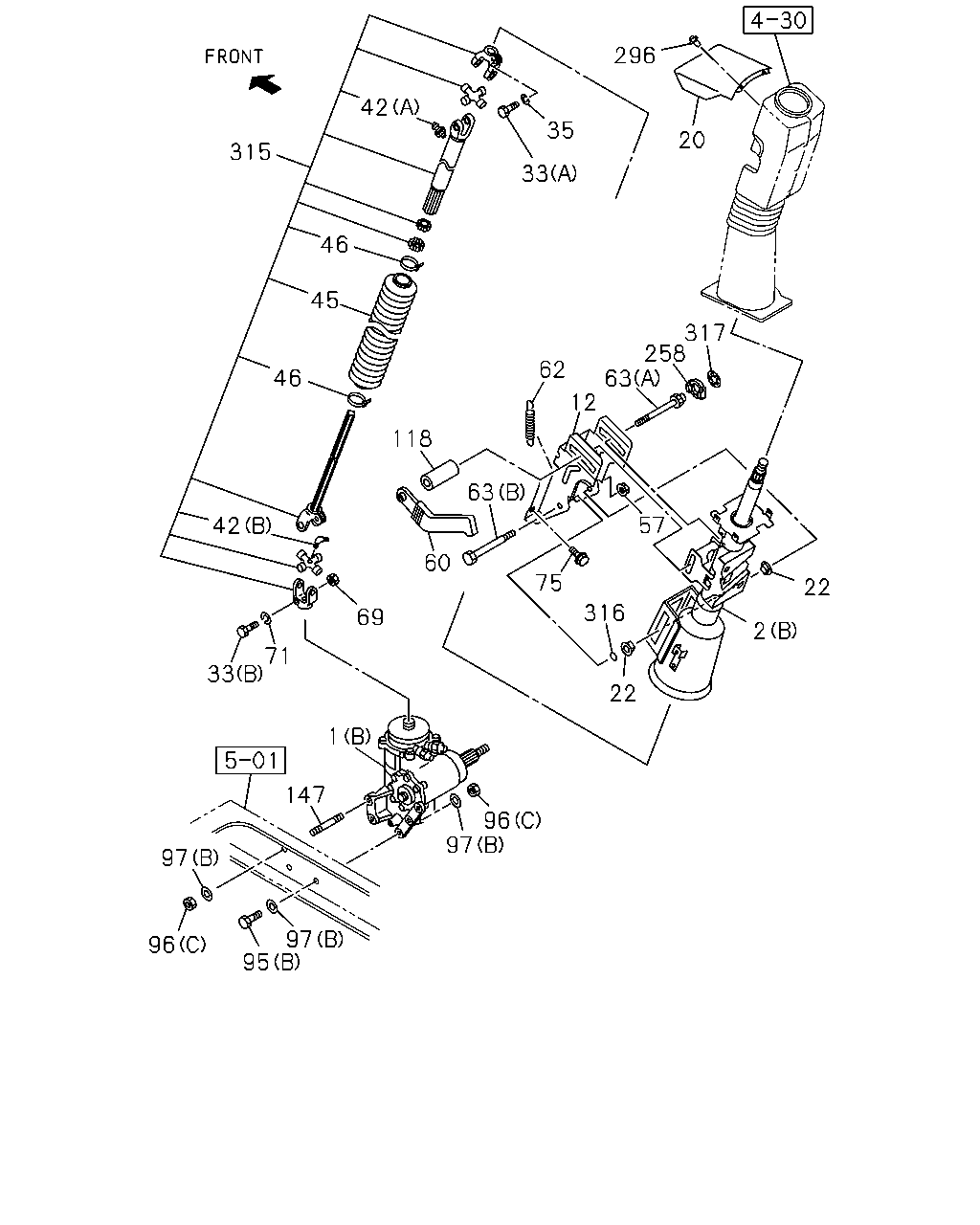

çizim 467590
315 46 45 46 42 118 62 63 12 63 258 317 35 33 20 75 60 316 22 2 22 1 69 71 33 147 97 96 97 97 296 42 96 95 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (B) 		1-44000-834-4 01 1 1412- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (A) 		1-44000-832-3 01 1 0504- ●
2 SHAFT ASM; STRG
(B) 		1-44130-694-1 01 1 1412- ●
2 SHAFT ASM; STRG
(A) 		1-44130-689-1 01 1 0504- ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0504-0811 ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812-1411 ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 1412- ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0504-1411 ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 1412- ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0504-1411 ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 1412- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 1412- ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 0504-1411 ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 1412- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 0504-0709 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0710- ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 0504-1411 ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 1412- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 0507-1411 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 1412- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 0507-1411 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 1412- ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0504-1411 ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 1412- ● ●
46 CLIP; BOOT 1-44139-156-0 02 1 0504-1411 ●
46 CLIP; BOOT 1-44139-156-0 02 1 1412- ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0504-1411 ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 1412- ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0504-1411 ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 1412- ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0504-1411 ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 1412- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0504-1411 ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 1412- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0504-1411 ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 1412- ● ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 1412- ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 0504-0512 ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 1412- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 0504-0603 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0504-0512 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601-1411 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 1412- ● ●
95 BOLT; STRG UNIT
(B) M14X55 		8-97301-262-0 05 1 1412- ●
95 BOLT; STRG UNIT
(A) M16X177 		1-09000-426-0 02 1 0504- ●
95 BOLT; STRG UNIT
(A) M16X163 		1-09040-078-0 02 1 0504- ●
96 NUT; STRG UNIT
(C) M14 		1-09440-097-0 06 1 1412- ●
96 NUT; STRG UNIT
(A) M14 		9-99110-514-0 06 1 0504-0512 ●
96 NUT; STRG UNIT
(A) M14 		0-91110-514-0 06 1 0601- ●
96 NUT; STRG UNIT
(B) M16 		9-99110-516-0 02 1 0504-0512 ●
96 NUT; STRG UNIT
(B) M16 		0-91110-516-0 02 1 0601- ●
97 WASHER; PL,STRG UNIT
(B) ID=15 		8-98010-627-1 11 1 1412- ●
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-223-0 06 1 0504- ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 0504-0506 ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507-1411 ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 1412- ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 1412- ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0504-1411 ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 1412- ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0504-1411 ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 1412- ● ●
315 JOINT; SPLINE 1-44135-341-1 01 1 0504-1411 ●
315 JOINT; SPLINE 1-44135-341-1 01 1 1412- ● ●
316 RING 1-44227-152-0 01 1 0504-1411 ●
316 RING 1-44227-152-0 01 1 1412- ● ●
317 NUT; PUSH 1-44227-148-0 01 1 0504-1411 ●
317 NUT; PUSH 1-44227-148-0 01 1 1412- ● ●
