Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#65917) — 317 parça

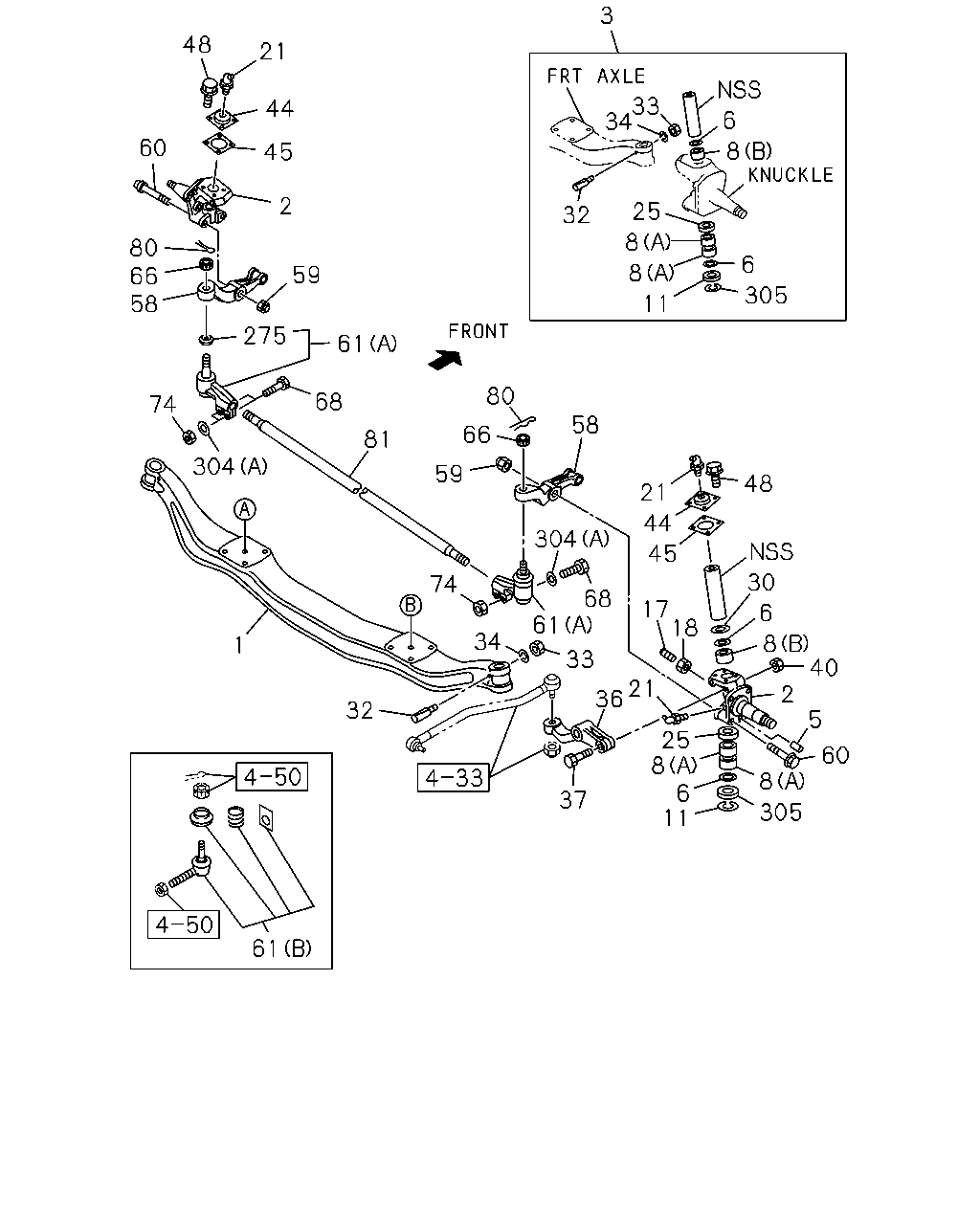

3 33 34 32 25 8 8 11 6 8 6 305 21 44 45 48 60 80 58 66 275 61 304 74 73 68 59 2 81 304 74 34 32 59 66 80 68 44 21 275 73 61 33 36 37 21 25 8 11 18 17 45 6 305 8 2 5 60 40 8 30 48 58 61 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-113-6	01	1	0504-1411	●
1	AXLE; FRT	1-43111-113-6	01	1	1412-	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0504-1411	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	1412-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0504-1411	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	1412-	●	●
3	KING PIN SET	1-87830-738-5	02	1	0504-1411	●
3	KING PIN SET	1-87830-738-6	02	1	1412-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0504-1411	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	1412-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0504-1411	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1412-	●	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0504-1411	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	1412-	●	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0504-1411	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	1412-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0504-1411	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	1412-	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0504-0705	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-1411	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	1412-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0504-0512	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-1411	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	1412-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0504-0512	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-1411	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1412-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0504-1411	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1412-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0504-1411	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1412-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0504-0512	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-1411	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1412-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0504-0603	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-1411	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1412-	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0504-1411	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	1412-	●	●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	0504-0704	●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-1411	●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	1412-	●	●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	0504-0704	●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-1411	●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	1412-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0504-0704	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-1411	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1412-	●	●
44	COVER; KING PIN	1-43175-014-1	02	1	0504-1411	●
44	COVER; KING PIN	1-43175-014-1	02	1	1412-	●	●
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	0504-1411	●
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	1412-	●	●
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	0504-0512	●
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0601-1411	●
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	1412-	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	0504-1411	●
58	ARM; TIE ROD	1-43134-042-3	01	1	1412-	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	0504-1411	●
58	ARM; TIE ROD	1-43135-042-3	01	1	1412-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0504-0704	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-1411	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1412-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0504-0704	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-1411	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	1412-	●	●
61	ROD END; TIE ROD (B)	1-43150-679-2	02	1	0504-	●
61	ROD END; TIE ROD (A)	1-43150-801-0	01	1	0504-1009	●
61	ROD END; TIE ROD (A)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98236-800-0	01	1	1307-1411	●
61	ROD END; TIE ROD (A)	8-98236-800-0	01	1	1412-	●	●
61	ROD END; TIE ROD (A)	1-43150-802-0	01	1	0504-1009	●
61	ROD END; TIE ROD (A)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98236-801-0	01	1	1307-1411	●
61	ROD END; TIE ROD (A)	8-98236-801-0	01	1	1412-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0504-0805	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-1411	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1412-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0504-0704	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-1411	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1412-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-1411	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1412-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0504-0512	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-1411	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1412-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0504-0606	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-1411	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1412-	●	●
81	ROD; TIE	1-43151-119-0	01	1	0504-1009	●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE	8-98193-965-0	01	1	1110-1411	●
81	ROD; TIE	8-98193-965-0	01	1	1412-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0504-1009	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-1411	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1412-	●	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1412-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0504-0704	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-1411	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1412-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0504-0704	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-1411	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	1412-	●	●

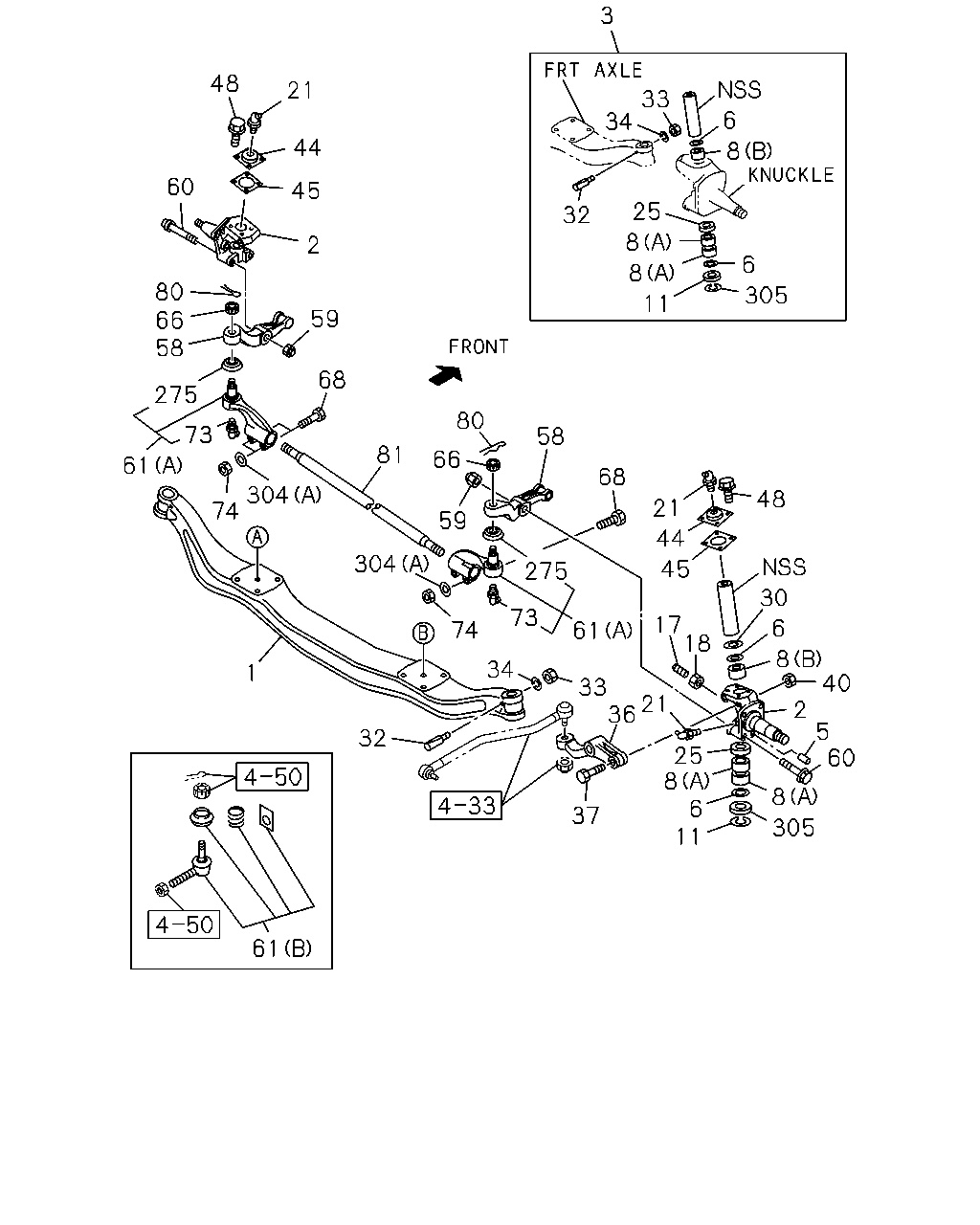

3 33 34 32 25 6 6 8 305 11 8 8 48 60 44 45 2 80 58 66 275 59 61 81 68 304 74 21 80 66 59 74 1 48 30 6 8 40 2 5 60 8 305 25 8 11 6 21 36 18 17 45 21 58 304 61 33 68 37 34 32 61 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-113-6	01	1	0504-1411	●
1	AXLE; FRT	1-43111-113-6	01	1	1412-	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0504-1411	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	1412-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0504-1411	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	1412-	●	●
3	KING PIN SET	1-87830-738-5	02	1	0504-1411	●
3	KING PIN SET	1-87830-738-6	02	1	1412-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0504-1411	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	1412-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0504-1411	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1412-	●	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0504-1411	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	1412-	●	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0504-1411	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	1412-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0504-1411	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	1412-	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0504-0705	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-1411	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	1412-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0504-0512	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-1411	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	1412-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0504-0512	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-1411	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1412-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0504-1411	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1412-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0504-1411	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1412-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0504-1411	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1412-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0504-0512	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-1411	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1412-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0504-0603	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-1411	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1412-	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0504-1411	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	1412-	●	●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	0504-0704	●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-1411	●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	1412-	●	●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	0504-0704	●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-1411	●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	1412-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0504-0704	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-1411	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1412-	●	●
44	COVER; KING PIN	1-43175-014-1	02	1	0504-1411	●
44	COVER; KING PIN	1-43175-014-1	02	1	1412-	●	●
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	0504-1411	●
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	1412-	●	●
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	0504-0512	●
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0601-1411	●
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	1412-	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	0504-1411	●
58	ARM; TIE ROD	1-43134-042-3	01	1	1412-	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	0504-1411	●
58	ARM; TIE ROD	1-43135-042-3	01	1	1412-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0504-0704	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-1411	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1412-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0504-0704	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-1411	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	1412-	●	●
61	ROD END; TIE ROD (B)	1-43150-679-2	02	1	0504-	●
61	ROD END; TIE ROD (A)	1-43150-801-0	01	1	0504-1009	●
61	ROD END; TIE ROD (A)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98236-800-0	01	1	1307-1411	●
61	ROD END; TIE ROD (A)	8-98236-800-0	01	1	1412-	●	●
61	ROD END; TIE ROD (A)	1-43150-802-0	01	1	0504-1009	●
61	ROD END; TIE ROD (A)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD (A)	8-98236-801-0	01	1	1307-1411	●
61	ROD END; TIE ROD (A)	8-98236-801-0	01	1	1412-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0504-0805	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-1411	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1412-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0504-0704	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-1411	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1412-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0504-0512	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-1411	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1412-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0504-0606	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-1411	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1412-	●	●
81	ROD; TIE	1-43151-119-0	01	1	0504-1009	●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE	8-98193-965-0	01	1	1110-1411	●
81	ROD; TIE	8-98193-965-0	01	1	1412-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0504-1009	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-1411	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1412-	●	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1412-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0504-0704	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-1411	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1412-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0504-0704	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-1411	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	1412-	●	●

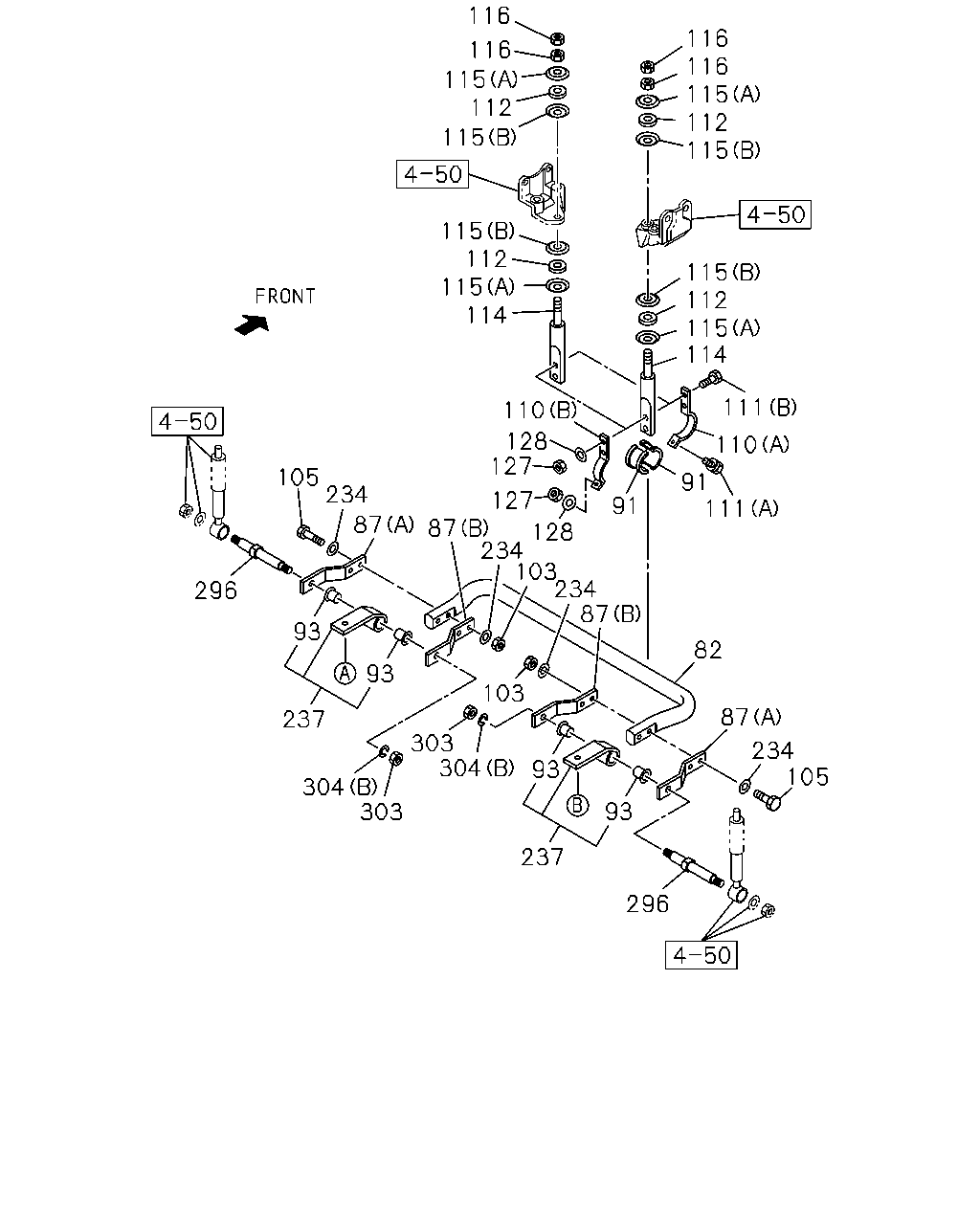

116 116 115 112 115 115 112 115 114 110 128 127 127 105 234 87 87 234 296 93 93 237 304 303 303 304 93 128 91 91 110 111 111 114 115 112 115 115 112 115 116 116 103 234 87 82 87 234 105 93 296 237 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP	1-51771-203-0	01	1	1412-		●
87	BRACKET; STABILIZER (A) OUTER	8-98012-958-0	02	1	1412-		●
87	BRACKET; STABILIZER (B) INNER	8-98012-959-0	02	1	1412-		●
87	BRACKET; STABILIZER (A) OUTER	1-51781-083-1	02	1	0504-0802	●
87	BRACKET; STABILIZER (B) INNER	1-51781-084-1	02	1	0504-0802	●
91	BUSHING; RUBBER,STAB BAR	1-51779-087-1	04	1	0504-1411	●
91	BUSHING; RUBBER,STAB BAR	1-51779-087-1	04	1	1412-	●	●
93	BUSHING; STABILIZER	1-51689-015-3	04	1	1412-		●
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0504-0512	●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0601-1411	●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	1412-	●	●
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0504-0910	●
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-1411	●
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	1412-	●	●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	1412-		●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	1412-		●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0504-0601	●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0504-0601	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0504-0910	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-1411	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	1412-	●	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0504-0910	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-1411	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	1412-	●	●
112	BUSHING; ROD	9-51631-050-0	04	1	1412-		●
112	BUSHING; ROD	9-51631-039-0	04	1	0504-	●
114	ROD; STAB BAR	1-51773-083-2	02	1	1412-		●
114	ROD; STAB BAR	1-51773-083-2	02	1	0504-0601	●
115	WASHER; CENTER,STAB TO FRAME (B) INNER ID=16.8	1-51631-022-0	04	1	1412-1507		●
115	WASHER; CENTER,STAB TO FRAME (A) OUTER ID=14.5	9-51631-051-0	04	1	1412-1507		●
115	WASHER; CENTER,STAB TO FRAME (A) OUTER ID=16.5	9-51631-040-0	04	1	0504-1507	●
115	WASHER; CENTER,STAB TO FRAME ID=16.5	9-51631-040-0	04	1	1508-	●	●
115	WASHER; CENTER,STAB TO FRAME (B) INNER ID=20.8	9-51631-041-0	04	1	0504-1507	●
115	WASHER; CENTER,STAB TO FRAME ID=20.8	9-51631-041-0	04	1	1508-	●	●
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0504-0512	●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-1411	●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	1412-	●	●
127	NUT; CLAMP M12	9-99110-412-0	06	1	0504-0512	●
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-1411	●
127	NUT; CLAMP M12	0-91110-512-0	06	1	1412-	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1412-		●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0504-0603	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-	●
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0504-0910	●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0911-1411	●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	1412-	●	●
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	1412-		●
296	PIN; STAB	8-98022-874-1	02	1	1412-		●
303	NUT; PIN M20	0-91110-520-0	02	1	1412-		●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1412-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0504-0704	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-1411	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1412-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
