Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#65916) — 324 parça

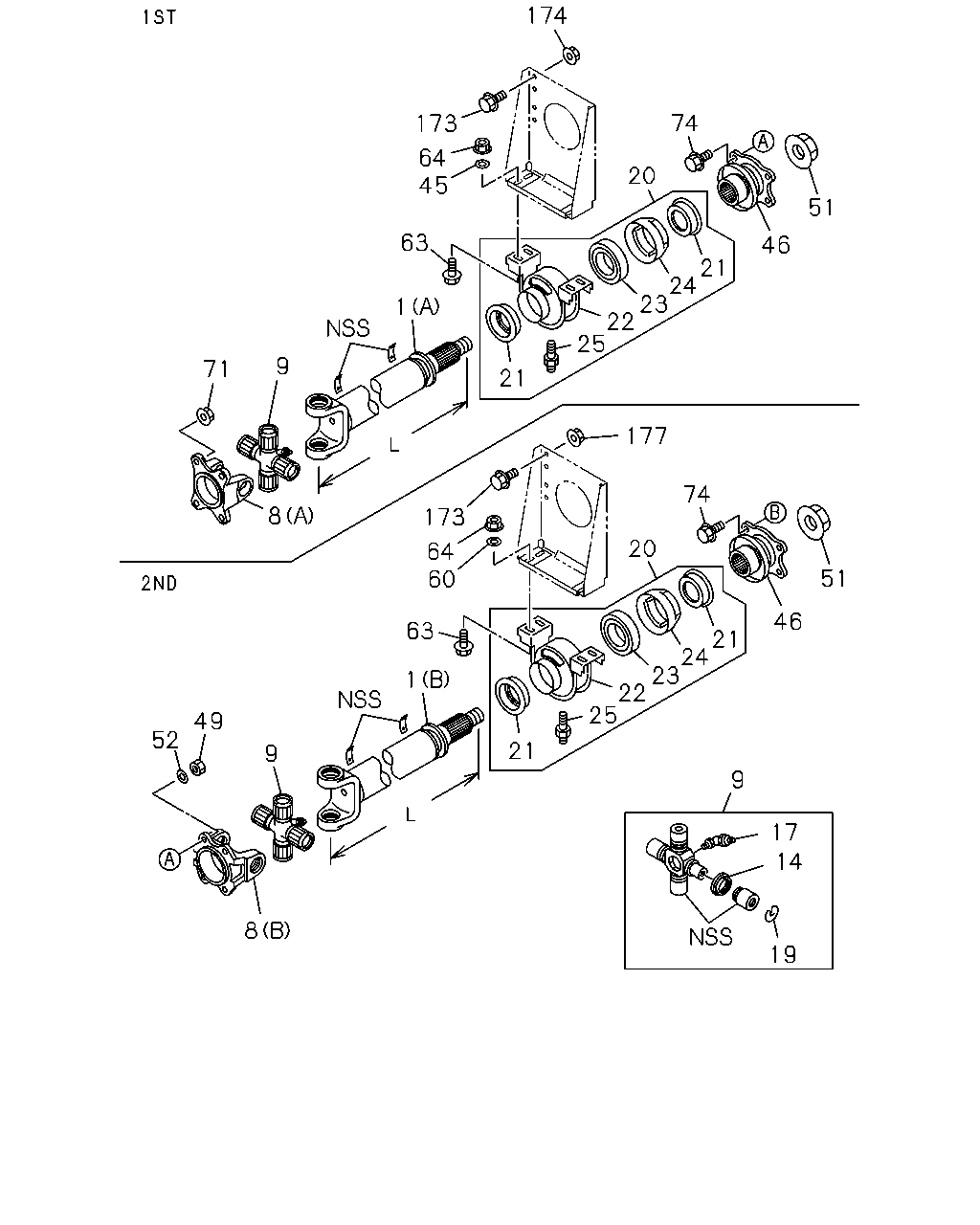

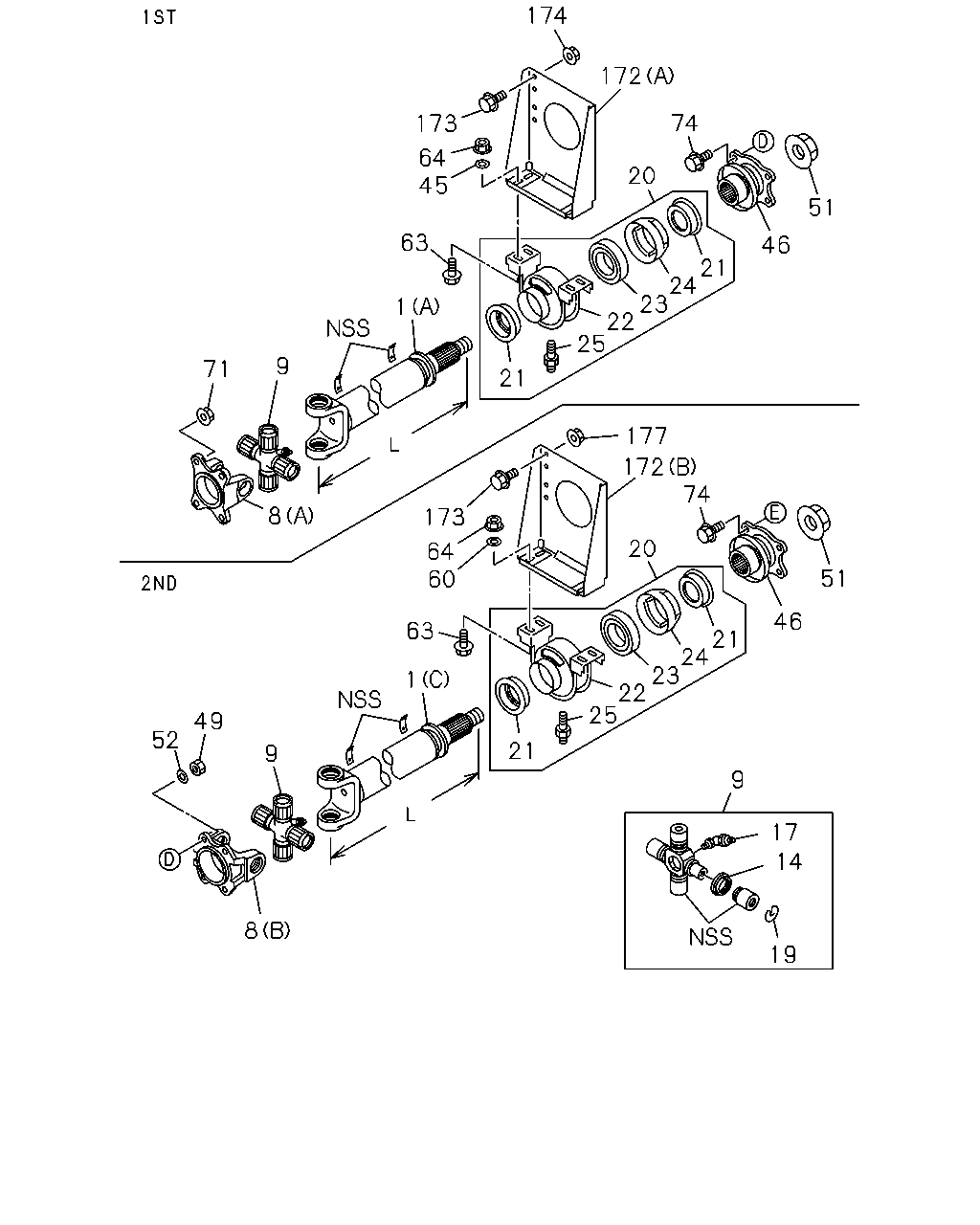

174 173 64 63 45 1 9 71 8 21 25 22 23 24 21 46 51 74 20 177 74 20 173 60 63 64 1 49 52 9 8 19 14 9 17 51 46 21 24 23 22 25 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (D) L=1266	1-37123-424-3	01	1	1412-	●
1	SHAFT; PROP (D) L=1275	1-37123-773-1	01	1	0504-		●
1	SHAFT; PROP (A) L=1096	1-37151-941-1	01	1	0504-1111		●
1	SHAFT; PROP (A) L=1089	8-98069-573-0	01	1	1112-1411		●
1	SHAFT; PROP (A) L=1089	8-98069-573-0	01	1	1412-	●	●
1	SHAFT; PROP (C) L=1346	1-37152-057-1	01	1	0504-1411		●
1	SHAFT; PROP (C) L=1346	1-37152-057-1	01	1	1412-	●	●
1	SHAFT; PROP (B) L=1181	1-37152-675-0	01	1	0504-		●
8	YOKE; FLANGE,PROP SHAFT (B) 2ND,END	1-37211-056-3	03	1	1412-	●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	1-37211-054-0	01	1	0504-1111		●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	8-98178-052-0	01	1	1112-1411		●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	8-98178-052-0	01	1	1412-	●	●
8	YOKE; FLANGE,PROP SHAFT (B) 2ND,3RD,END	1-37211-056-3	04	1	0504-		●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD,END	1-37300-102-1	AR	1	0504-1111		●
9	JOURNAL ASM; PROP SHAFT 1ST	8-98048-925-0	AR	1	1112-1411		●
9	JOURNAL ASM; PROP SHAFT 1ST	8-98048-925-1	AR	1	1412-	●	●
9	JOURNAL ASM; PROP SHAFT 2ND,3RD,END	1-37300-102-1	AR	1	1112-1505	●	●
14	COVER; DUST,SPIDER 2ND,END	1-37319-012-0	12	1	1412-1505	●
14	COVER; DUST,SPIDER	8-98020-800-0	16	1	1506-	●
14	COVER; DUST,SPIDER 1ST	8-98020-800-0	04	1	1112-1411		●
14	COVER; DUST,SPIDER 1ST	8-98020-800-0	04	1	1412-1505	●	●
14	COVER; DUST,SPIDER 2ND,3RD,END	1-37319-012-0	16	1	0504-1505		●
14	COVER; DUST,SPIDER	8-98020-800-0	20	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	04	1	1412-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	9-09031-210-0	05	1	0504-0512		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	05	1	0601-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	20	1	0504-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	20	1	0504-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	20	1	0504-		●
20	BEARING ASM; CTR,PROP SHAFT 2ND	1-37510-105-0	01	1	1412-	●
20	BEARING ASM; CTR,PROP SHAFT 1ST	8-98020-881-0	01	1	1112-1411		●
20	BEARING ASM; CTR,PROP SHAFT 1ST	8-98020-881-0	01	1	1412-	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	03	1	0504-1111		●
20	BEARING ASM; CTR,PROP SHAFT 2ND,3RD	1-37510-105-0	02	1	1112-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	04	1	1412-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	06	1	0504-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	02	1	1412-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	03	1	0504-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	02	1	1412-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	03	1	0504-		●
24	RETAINER; CENTER BRG,1ST 2ND	1-37529-068-0	01	1	1412-	●
24	RETAINER; CENTER BRG,1ST 1ST	8-98020-882-0	01	1	1112-1411		●
24	RETAINER; CENTER BRG,1ST 1ST	8-98020-882-0	01	1	1412-	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	03	1	0504-1111		●
24	RETAINER; CENTER BRG,1ST 2ND,3RD	1-37529-068-0	02	1	1112-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	1412-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	03	1	0504-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	04	1	0504-0605		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0606-1411		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1412-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 2ND	1-37245-071-0	01	1	1412-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 1ST	8-98020-815-0	01	1	1112-1411		●
46	FLANGE; SPLINED,PROP SHAFT,1ST 1ST	8-98020-815-0	01	1	1412-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	03	1	0504-1111		●
46	FLANGE; SPLINED,PROP SHAFT,1ST 2ND,3RD	1-37245-071-0	02	1	1112-		●
49	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0504-		●
49	NUT; YOKE M14	9-99110-514-0	04	1	0504-0512		●
49	NUT; YOKE M14	0-91110-514-0	04	1	0601-1411		●
49	NUT; YOKE M14	0-91110-514-0	04	1	1412-	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	02	1	1412-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	03	1	0504-		●
52	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	0504-0603		●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0604-1411		●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1412-	●	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1412-	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	08	1	0504-0605		●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	08	1	0606-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	08	1	1412-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	12	1	0504-0512		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	12	1	0601-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	08	1	1412-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	12	1	0504-0602		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	12	1	0603-		●
71	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0504-1411		●
71	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	1412-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1412-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	12	1	0504-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	08	1	1412-	●
173	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	12	1	0504-0512		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	12	1	0601-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0504-1411		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1412-	●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1412-	●
177	NUT M10 FLANGE	0-91150-210-0	08	1	0504-0602		●
177	NUT M10 FLANGE	0-91180-210-0	08	1	0603-		●

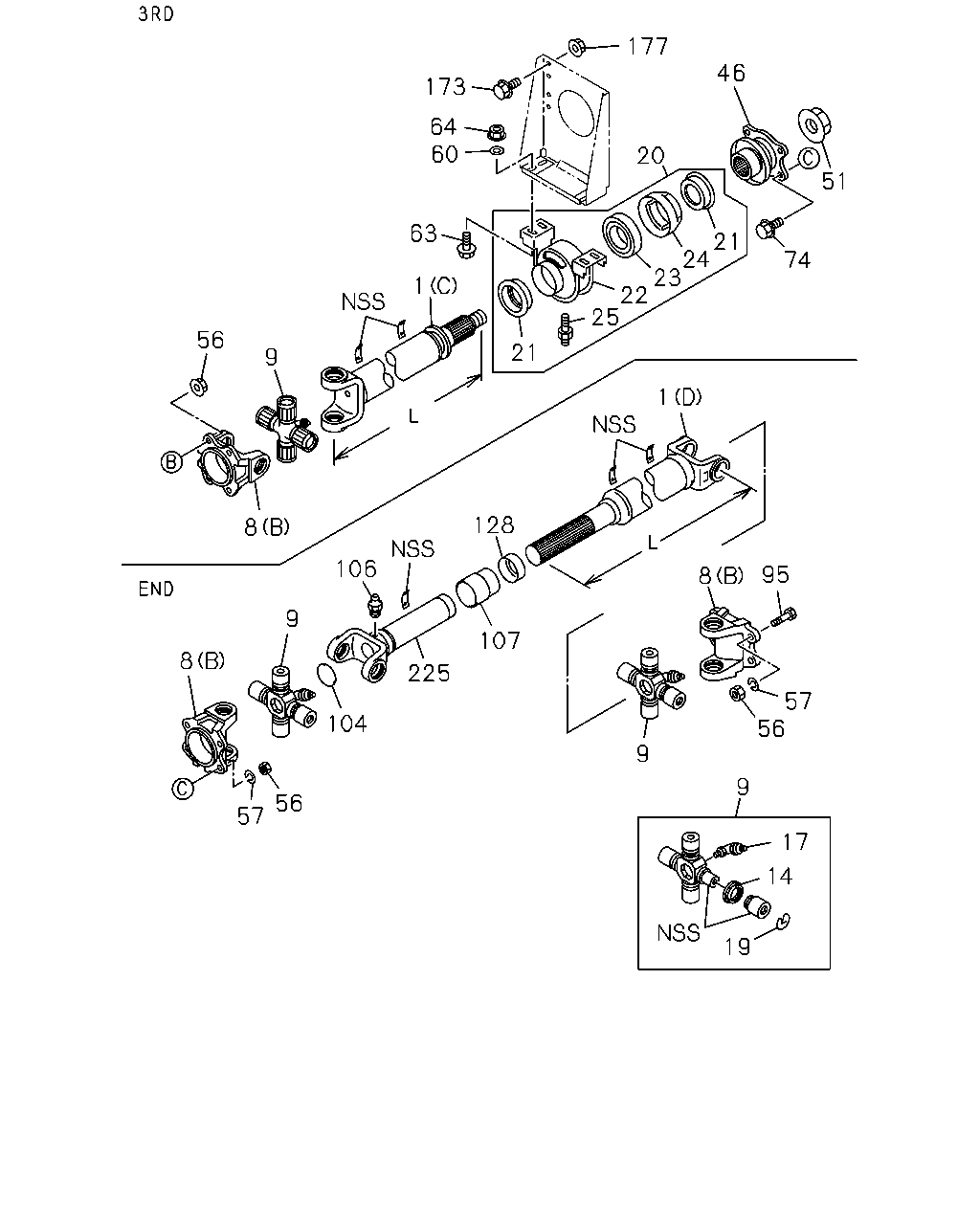

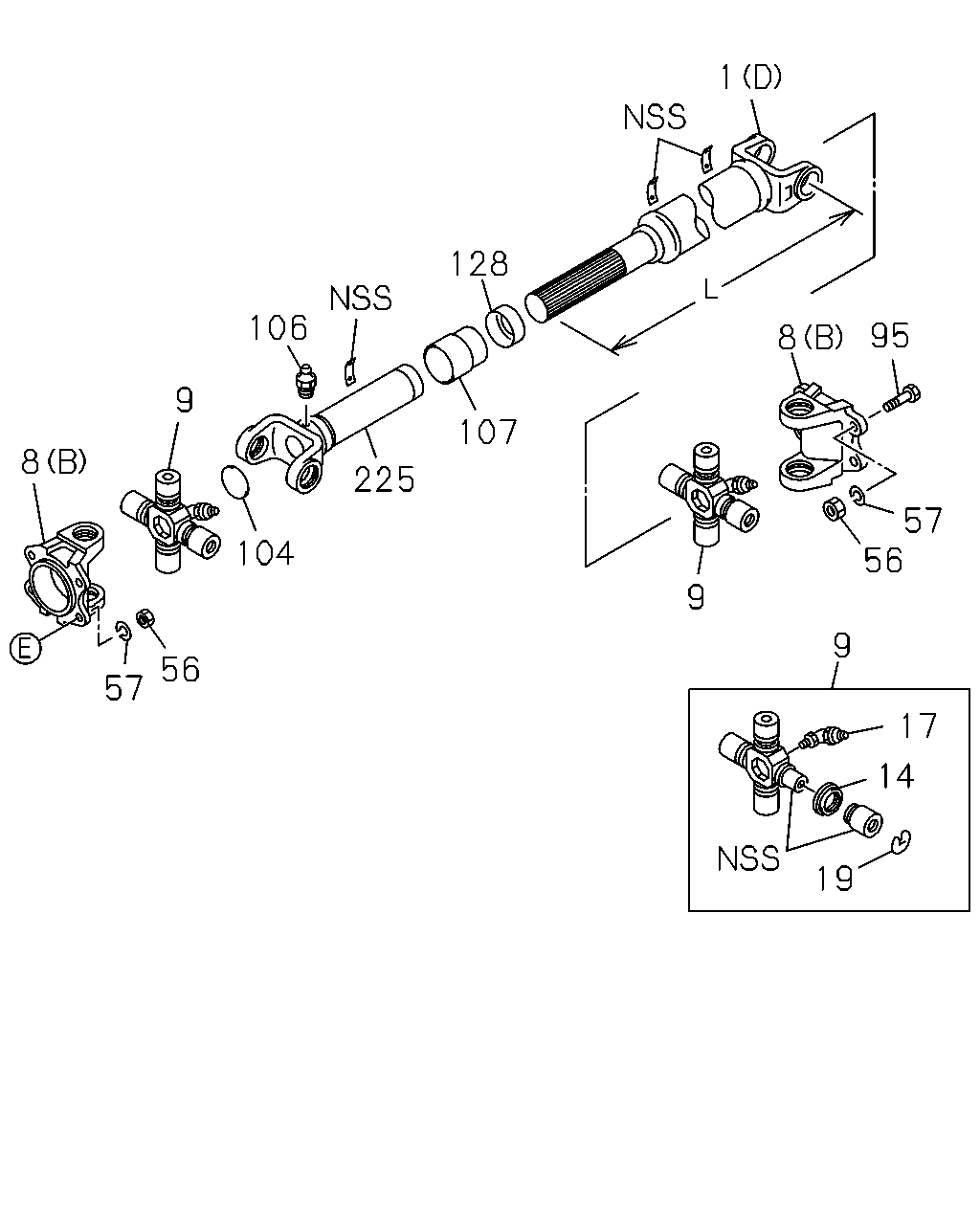

17 8 9 104 56 57 225 106 107 128 1 9 9 56 8 95 57 14 19 9 56 8 1 63 60 64 173 177 20 46 51 74 21 24 23 22 25 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (D) L=1266	1-37123-424-3	01	1	1412-	●
1	SHAFT; PROP (D) L=1275	1-37123-773-1	01	1	0504-		●
1	SHAFT; PROP (A) L=1096	1-37151-941-1	01	1	0504-1111		●
1	SHAFT; PROP (A) L=1089	8-98069-573-0	01	1	1112-1411		●
1	SHAFT; PROP (A) L=1089	8-98069-573-0	01	1	1412-	●	●
1	SHAFT; PROP (C) L=1346	1-37152-057-1	01	1	0504-1411		●
1	SHAFT; PROP (C) L=1346	1-37152-057-1	01	1	1412-	●	●
1	SHAFT; PROP (B) L=1181	1-37152-675-0	01	1	0504-		●
8	YOKE; FLANGE,PROP SHAFT (B) 2ND,END	1-37211-056-3	03	1	1412-	●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	1-37211-054-0	01	1	0504-1111		●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	8-98178-052-0	01	1	1112-1411		●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	8-98178-052-0	01	1	1412-	●	●
8	YOKE; FLANGE,PROP SHAFT (B) 2ND,3RD,END	1-37211-056-3	04	1	0504-		●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD,END	1-37300-102-1	AR	1	0504-1111		●
9	JOURNAL ASM; PROP SHAFT 1ST	8-98048-925-0	AR	1	1112-1411		●
9	JOURNAL ASM; PROP SHAFT 1ST	8-98048-925-1	AR	1	1412-	●	●
9	JOURNAL ASM; PROP SHAFT 2ND,3RD,END	1-37300-102-1	AR	1	1112-1505	●	●
14	COVER; DUST,SPIDER 2ND,END	1-37319-012-0	12	1	1412-1505	●
14	COVER; DUST,SPIDER	8-98020-800-0	16	1	1506-	●
14	COVER; DUST,SPIDER 1ST	8-98020-800-0	04	1	1112-1411		●
14	COVER; DUST,SPIDER 1ST	8-98020-800-0	04	1	1412-1505	●	●
14	COVER; DUST,SPIDER 2ND,3RD,END	1-37319-012-0	16	1	0504-1505		●
14	COVER; DUST,SPIDER	8-98020-800-0	20	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	04	1	1412-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	9-09031-210-0	05	1	0504-0512		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	05	1	0601-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	20	1	0504-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	20	1	0504-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	20	1	0504-		●
20	BEARING ASM; CTR,PROP SHAFT 2ND	1-37510-105-0	01	1	1412-	●
20	BEARING ASM; CTR,PROP SHAFT 1ST	8-98020-881-0	01	1	1112-1411		●
20	BEARING ASM; CTR,PROP SHAFT 1ST	8-98020-881-0	01	1	1412-	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	03	1	0504-1111		●
20	BEARING ASM; CTR,PROP SHAFT 2ND,3RD	1-37510-105-0	02	1	1112-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	04	1	1412-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	06	1	0504-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	02	1	1412-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	03	1	0504-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	02	1	1412-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	03	1	0504-		●
24	RETAINER; CENTER BRG,1ST 2ND	1-37529-068-0	01	1	1412-	●
24	RETAINER; CENTER BRG,1ST 1ST	8-98020-882-0	01	1	1112-1411		●
24	RETAINER; CENTER BRG,1ST 1ST	8-98020-882-0	01	1	1412-	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	03	1	0504-1111		●
24	RETAINER; CENTER BRG,1ST 2ND,3RD	1-37529-068-0	02	1	1112-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	1412-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	03	1	0504-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST 2ND	1-37245-071-0	01	1	1412-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 1ST	8-98020-815-0	01	1	1112-1411		●
46	FLANGE; SPLINED,PROP SHAFT,1ST 1ST	8-98020-815-0	01	1	1412-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	03	1	0504-1111		●
46	FLANGE; SPLINED,PROP SHAFT,1ST 2ND,3RD	1-37245-071-0	02	1	1112-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	02	1	1412-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	03	1	0504-		●
56	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0504-		●
56	NUT; YOKE M14	9-99110-514-0	08	1	0504-0512		●
56	NUT; YOKE M14	0-91110-514-0	08	1	0601-1411		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1412-	●	●
57	WASHER; LK,YOKE ID=14.2	9-09150-614-0	08	1	0504-0603		●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0604-1411		●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1412-	●	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1412-	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	08	1	0504-0605		●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	08	1	0606-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	08	1	1412-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	12	1	0504-0512		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	12	1	0601-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	08	1	1412-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	12	1	0504-0602		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	12	1	0603-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1412-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	12	1	0504-		●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	0504-1411		●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	1412-	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0504-1411		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1412-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0504-0512		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-1411		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-	●	●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	0504-1411		●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	1412-	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0504-1411		●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1412-	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	08	1	1412-	●
173	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	12	1	0504-0512		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	12	1	0601-		●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1412-	●
177	NUT M10 FLANGE	0-91150-210-0	08	1	0504-0602		●
177	NUT M10 FLANGE	0-91180-210-0	08	1	0603-		●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	0504-1411		●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	1412-	●	●

9 9 17 14 19 56 57 95 8 1 128 106 107 225 104 9 8 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (D) L=1266	1-37123-424-3	01	1	1412-	●
1	SHAFT; PROP (D) L=1275	1-37123-773-1	01	1	0504-		●
1	SHAFT; PROP (A) L=1096	1-37151-941-1	01	1	0504-1111		●
1	SHAFT; PROP (A) L=1089	8-98069-573-0	01	1	1112-1411		●
1	SHAFT; PROP (A) L=1089	8-98069-573-0	01	1	1412-	●	●
1	SHAFT; PROP (C) L=1346	1-37152-057-1	01	1	0504-1411		●
1	SHAFT; PROP (C) L=1346	1-37152-057-1	01	1	1412-	●	●
1	SHAFT; PROP (B) L=1181	1-37152-675-0	01	1	0504-		●
8	YOKE; FLANGE,PROP SHAFT (B) 2ND,END	1-37211-056-3	03	1	1412-	●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	1-37211-054-0	01	1	0504-1111		●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	8-98178-052-0	01	1	1112-1411		●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	8-98178-052-0	01	1	1412-	●	●
8	YOKE; FLANGE,PROP SHAFT (B) 2ND,3RD,END	1-37211-056-3	04	1	0504-		●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD,END	1-37300-102-1	AR	1	0504-1111		●
9	JOURNAL ASM; PROP SHAFT 1ST	8-98048-925-0	AR	1	1112-1411		●
9	JOURNAL ASM; PROP SHAFT 1ST	8-98048-925-1	AR	1	1412-	●	●
9	JOURNAL ASM; PROP SHAFT 2ND,3RD,END	1-37300-102-1	AR	1	1112-1505	●	●
14	COVER; DUST,SPIDER 2ND,END	1-37319-012-0	12	1	1412-1505	●
14	COVER; DUST,SPIDER	8-98020-800-0	16	1	1506-	●
14	COVER; DUST,SPIDER 1ST	8-98020-800-0	04	1	1112-1411		●
14	COVER; DUST,SPIDER 1ST	8-98020-800-0	04	1	1412-1505	●	●
14	COVER; DUST,SPIDER 2ND,3RD,END	1-37319-012-0	16	1	0504-1505		●
14	COVER; DUST,SPIDER	8-98020-800-0	20	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	04	1	1412-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	9-09031-210-0	05	1	0504-0512		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	05	1	0601-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	20	1	0504-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	20	1	0504-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	20	1	0504-		●
56	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0504-		●
56	NUT; YOKE M14	9-99110-514-0	08	1	0504-0512		●
56	NUT; YOKE M14	0-91110-514-0	08	1	0601-1411		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1412-	●	●
57	WASHER; LK,YOKE ID=14.2	9-09150-614-0	08	1	0504-0603		●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0604-1411		●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1412-	●	●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	0504-1411		●
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	1412-	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0504-1411		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1412-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0504-0512		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-1411		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1412-	●	●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	0504-1411		●
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	1412-	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0504-1411		●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1412-	●	●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	0504-1411		●
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	1412-	●	●

173 64 60 63 1 9 49 52 8 21 21 24 23 22 25 46 51 74 172 177 20 17 14 19 8 9 71 1 63 45 64 173 174 172 74 20 51 46 21 24 23 22 25 21 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (D) L=1266	1-37123-424-3	01	1	1412-	●
1	SHAFT; PROP (D) L=1275	1-37123-773-1	01	1	0504-		●
1	SHAFT; PROP (A) L=1096	1-37151-941-1	01	1	0504-1111		●
1	SHAFT; PROP (A) L=1089	8-98069-573-0	01	1	1112-1411		●
1	SHAFT; PROP (A) L=1089	8-98069-573-0	01	1	1412-	●	●
1	SHAFT; PROP (C) L=1346	1-37152-057-1	01	1	0504-1411		●
1	SHAFT; PROP (C) L=1346	1-37152-057-1	01	1	1412-	●	●
1	SHAFT; PROP (B) L=1181	1-37152-675-0	01	1	0504-		●
8	YOKE; FLANGE,PROP SHAFT (B) 2ND,END	1-37211-056-3	03	1	1412-	●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	1-37211-054-0	01	1	0504-1111		●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	8-98178-052-0	01	1	1112-1411		●
8	YOKE; FLANGE,PROP SHAFT (A) 1ST	8-98178-052-0	01	1	1412-	●	●
8	YOKE; FLANGE,PROP SHAFT (B) 2ND,3RD,END	1-37211-056-3	04	1	0504-		●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND,3RD,END	1-37300-102-1	AR	1	0504-1111		●
9	JOURNAL ASM; PROP SHAFT 1ST	8-98048-925-0	AR	1	1112-1411		●
9	JOURNAL ASM; PROP SHAFT 1ST	8-98048-925-1	AR	1	1412-	●	●
9	JOURNAL ASM; PROP SHAFT 2ND,3RD,END	1-37300-102-1	AR	1	1112-1505	●	●
14	COVER; DUST,SPIDER 2ND,END	1-37319-012-0	12	1	1412-1505	●
14	COVER; DUST,SPIDER	8-98020-800-0	16	1	1506-	●
14	COVER; DUST,SPIDER 1ST	8-98020-800-0	04	1	1112-1411		●
14	COVER; DUST,SPIDER 1ST	8-98020-800-0	04	1	1412-1505	●	●
14	COVER; DUST,SPIDER 2ND,3RD,END	1-37319-012-0	16	1	0504-1505		●
14	COVER; DUST,SPIDER	8-98020-800-0	20	1	1506-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	04	1	1412-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	9-09031-210-0	05	1	0504-0512		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	05	1	0601-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	16	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	20	1	0504-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	20	1	0504-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	20	1	0504-		●
20	BEARING ASM; CTR,PROP SHAFT 2ND	1-37510-105-0	01	1	1412-	●
20	BEARING ASM; CTR,PROP SHAFT 1ST	8-98020-881-0	01	1	1112-1411		●
20	BEARING ASM; CTR,PROP SHAFT 1ST	8-98020-881-0	01	1	1412-	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	03	1	0504-1111		●
20	BEARING ASM; CTR,PROP SHAFT 2ND,3RD	1-37510-105-0	02	1	1112-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	04	1	1412-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	06	1	0504-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	02	1	1412-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	03	1	0504-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	02	1	1412-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	03	1	0504-		●
24	RETAINER; CENTER BRG,1ST 2ND	1-37529-068-0	01	1	1412-	●
24	RETAINER; CENTER BRG,1ST 1ST	8-98020-882-0	01	1	1112-1411		●
24	RETAINER; CENTER BRG,1ST 1ST	8-98020-882-0	01	1	1412-	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	03	1	0504-1111		●
24	RETAINER; CENTER BRG,1ST 2ND,3RD	1-37529-068-0	02	1	1112-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	1412-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	03	1	0504-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	04	1	0504-0605		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0606-1411		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1412-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 2ND	1-37245-071-0	01	1	1412-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 1ST	8-98020-815-0	01	1	1112-1411		●
46	FLANGE; SPLINED,PROP SHAFT,1ST 1ST	8-98020-815-0	01	1	1412-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	03	1	0504-1111		●
46	FLANGE; SPLINED,PROP SHAFT,1ST 2ND,3RD	1-37245-071-0	02	1	1112-		●
49	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0504-		●
49	NUT; YOKE M14	9-99110-514-0	04	1	0504-0512		●
49	NUT; YOKE M14	0-91110-514-0	04	1	0601-1411		●
49	NUT; YOKE M14	0-91110-514-0	04	1	1412-	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	02	1	1412-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	03	1	0504-		●
52	WASHER; LK,YOKE ID=14.2	9-09150-614-0	04	1	0504-0603		●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0604-1411		●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1412-	●	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1412-	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	9-09164-610-0	08	1	0504-0605		●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	08	1	0606-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	08	1	1412-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28681-035-0	12	1	0504-0512		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	12	1	0601-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	08	1	1412-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91150-210-0	12	1	0504-0602		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	12	1	0603-		●
71	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	0504-1411		●
71	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	1412-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1412-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	12	1	0504-		●
172	BRACKET; CENTER BRG (A)	1-37515-102-0	01	1	1412-	●
172	BRACKET; CENTER BRG (B)	1-37515-135-0	01	1	1412-	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	08	1	1412-	●
173	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	12	1	0504-0512		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	12	1	0601-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0504-1411		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1412-	●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1412-	●
177	NUT M10 FLANGE	0-91150-210-0	08	1	0504-0602		●
177	NUT M10 FLANGE	0-91180-210-0	08	1	0603-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
