3-78 — FIXING PARTS; AIR PIPING (#65915) — 94 parça

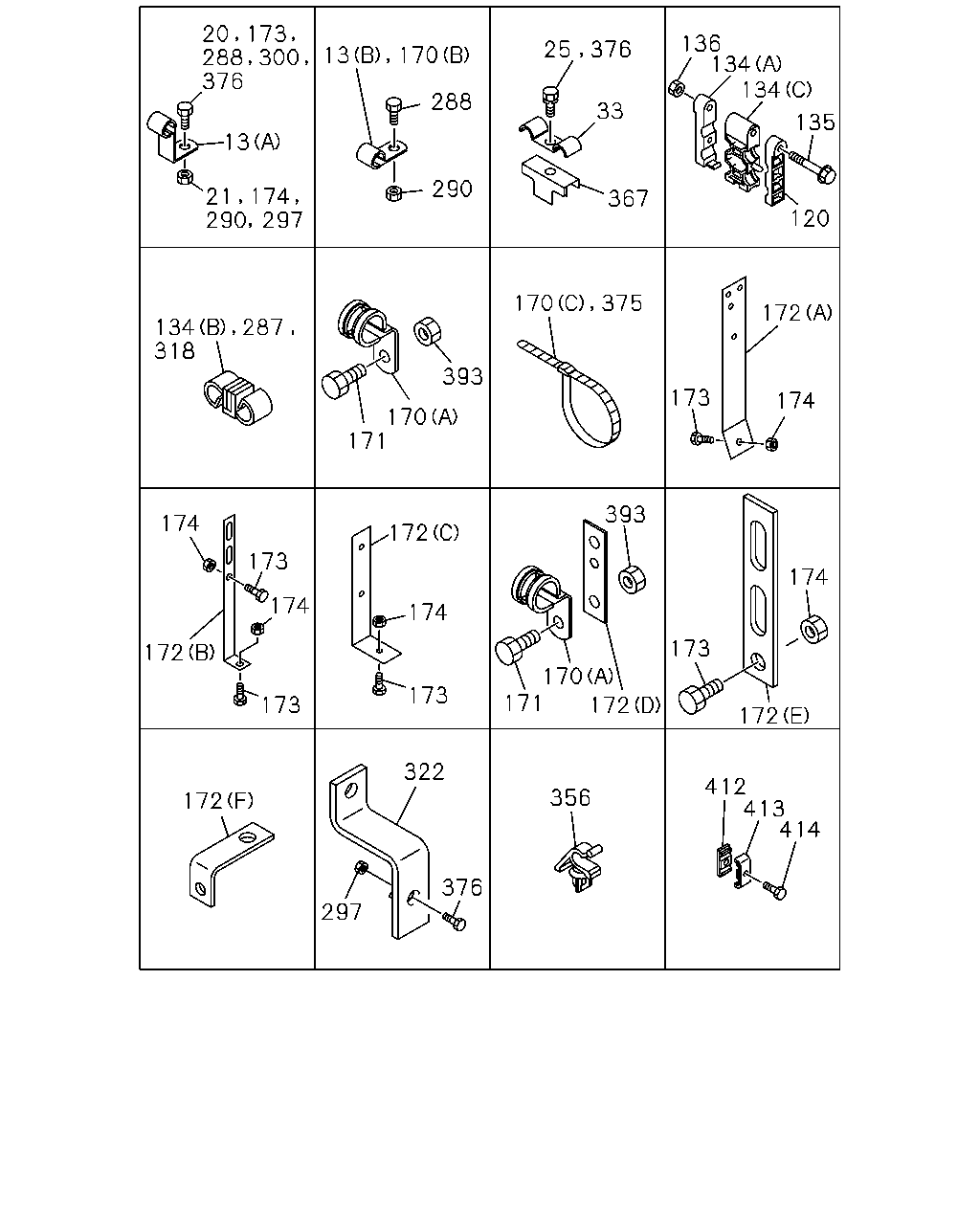

çizim 122336
414 413 412 356 376 322 297 172 173 172 174 174 173 173 174 172 171 172 170 393 173 172 174 174 172 173 375 170 393 170 171 287 134 318 297 174 290 21 13 376 288 20 173 300 13 170 288 290 25 33 376 367 136 120 135 134 134
BalonParca AdiParca NoAdetTipApplied Date A B
13 CLIP; AIR PIPE
(A) ID=7 L=38 H=21 		1-09700-916-0 01 1 0504-1411 ●
13 CLIP; AIR PIPE
(A) ID=7 L=38 H=21 		1-09700-916-0 01 1 1412- ● ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		9-09524-675-0 01 1 0504-0606 ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		0-95234-675-0 01 1 0607-1411 ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		0-95234-675-0 01 1 1412- ● ●
20 BOLT; CLIP
M8X50 FLANGE 		0-28080-850-0 05 1 0504-0512 ●
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 05 1 0601- ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0504-0602 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
25 BOLT; CLIP
M6X25 FLANGE 		0-28080-625-0 03 1 0602-0602 ●
25 BOLT; CLIP
M6X25 FLANGE 		0-28050-625-0 03 1 0603- ●
33 CLIP; BOLT
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1412- ●
33 CLIP; BOLT
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0504-0601 ●
33 CLIP; BOLT
ID=16 & 7 L=21 & 17 		1-09700-675-0 03 1 0602-0802 ●
33 CLIP; BOLT
ID=16 & 7 L=21 & 17 		1-09700-675-0 05 1 0803- ●
120 CLIP; AIR PIPE
ID=10 & 10 		1-09709-241-0 05 1 0504- ●
120 CLIP; AIR PIPE
ID=6 & 6 		1-09709-244-0 05 1 0504- ●
134 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-241-0 01 1 0504-0601 ●
134 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-241-0 05 1 0602- ●
134 CLIP; AIR PIPE
(C) ID=10 		1-09709-242-0 02 1 0504-0601 ●
134 CLIP; AIR PIPE
(C) ID=10 		1-09709-242-0 05 1 0602- ●
134 CLIP; AIR PIPE
(A) ID=6 & 6 		1-09709-244-0 01 1 0504-0601 ●
134 CLIP; AIR PIPE
(A) ID=6 & 6 		1-09709-244-0 04 1 0602- ●
134 CLIP; AIR PIPE
(B) ID=10 & 12 		1-09709-278-1 01 1 0504- ●
135 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28080-870-0 03 1 0504-0512 ●
135 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 03 1 0601- ●
136 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0504-0602 ●
136 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
170 CLIP; NYLON TUBE
(C) L=250 		1-09707-126-0 19 1 1412- ●
170 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0504-1411 ●
170 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1412- ● ●
170 CLIP; NYLON TUBE
(B) ID=11 L=50 		9-09525-085-0 01 1 0504-0606 ●
170 CLIP; NYLON TUBE
(B) ID=11 L=50 		0-95235-085-0 01 1 0607-1411 ●
170 CLIP; NYLON TUBE
(B) ID=11 L=50 		0-95235-085-0 01 1 1412- ● ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0504-0512 ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-1411 ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1412- ● ●
171 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0504-0512 ●
171 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-1411 ●
171 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1412- ● ●
172 BRACKET; TUBE CLIP
(A) 		1-47477-256-1 01 1 1412- ●
172 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 1412- ●
172 BRACKET; TUBE CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 1412- ●
172 BRACKET; TUBE CLIP
(B) L=225 		1-47477-646-3 01 1 1412- ●
172 BRACKET; TUBE CLIP
(F) L=60 H=30 		1-47477-716-1 01 1 1412- ●
172 BRACKET; TUBE CLIP
(C) L=90 		1-47477-755-1 01 1 1412- ●
172 BRACKET; TUBE CLIP
(D) L=125 		1-47477-975-1 02 1 1412- ●
172 BRACKET; TUBE CLIP
(D) L=117 		1-47478-116-0 01 1 1412- ●
172 BRACKET; TUBE CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 1412- ●
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 09 1 0504-0512 ●
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 09 1 0601-1411 ●
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 09 1 1412- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0504-0512 ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601-1411 ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1412- ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 11 1 0504-0602 ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 11 1 0603-1411 ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 11 1 1412- ● ●
287 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 01 1 0504-1411 ●
287 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 01 1 1412- ● ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 0504-0512 ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-1411 ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1412- ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0504-0602 ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-1411 ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 1412- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0504-0602 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-1411 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1412- ● ●
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1412- ●
318 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 0504-1411 ●
318 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 1412- ● ●
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 02 1 0504-1411 ●
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 02 1 1412- ● ●
322 BRACKET; CLIP 1-47479-071-0 01 1 1412- ●
356 CLIP; AIR PIPE
ID=4.8 		8-94128-483-0 01 1 0504-1411 ●
356 CLIP; AIR PIPE
ID=4.8 		8-94128-483-0 01 1 1412- ● ●
367 BRACKET ASM 1-47475-427-1 01 1 1412- ●
375 CLIP; AIR PIPE
L=250 		1-09707-126-0 01 1 1412- ●
376 BOLT; BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1412- ●
376 BOLT; BRKT
M8X45 FLANGE 		0-28080-845-0 01 1 0504-0512 ●
376 BOLT; BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 0601-0601 ●
376 BOLT; BRKT
M8X45 FLANGE 		0-28050-845-0 03 1 0602-0802 ●
376 BOLT; BRKT
M8X45 FLANGE 		0-28050-845-0 05 1 0803- ●
376 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0504-0512 ●
376 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-1411 ●
376 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1412- ● ●
393 NUT; UNION
M8 FLANGE 		0-91150-108-0 02 1 0504-0602 ●
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0603-1411 ●
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1412- ● ●
412 CLIP; "A" PIPE 8-94397-445-0 03 1 0602- ●
413 CLIP; "B" PIPE 8-94397-444-0 03 1 0602- ●
414 BOLT; CLIP PIPE 8-94365-129-0 03 1 0602- ●

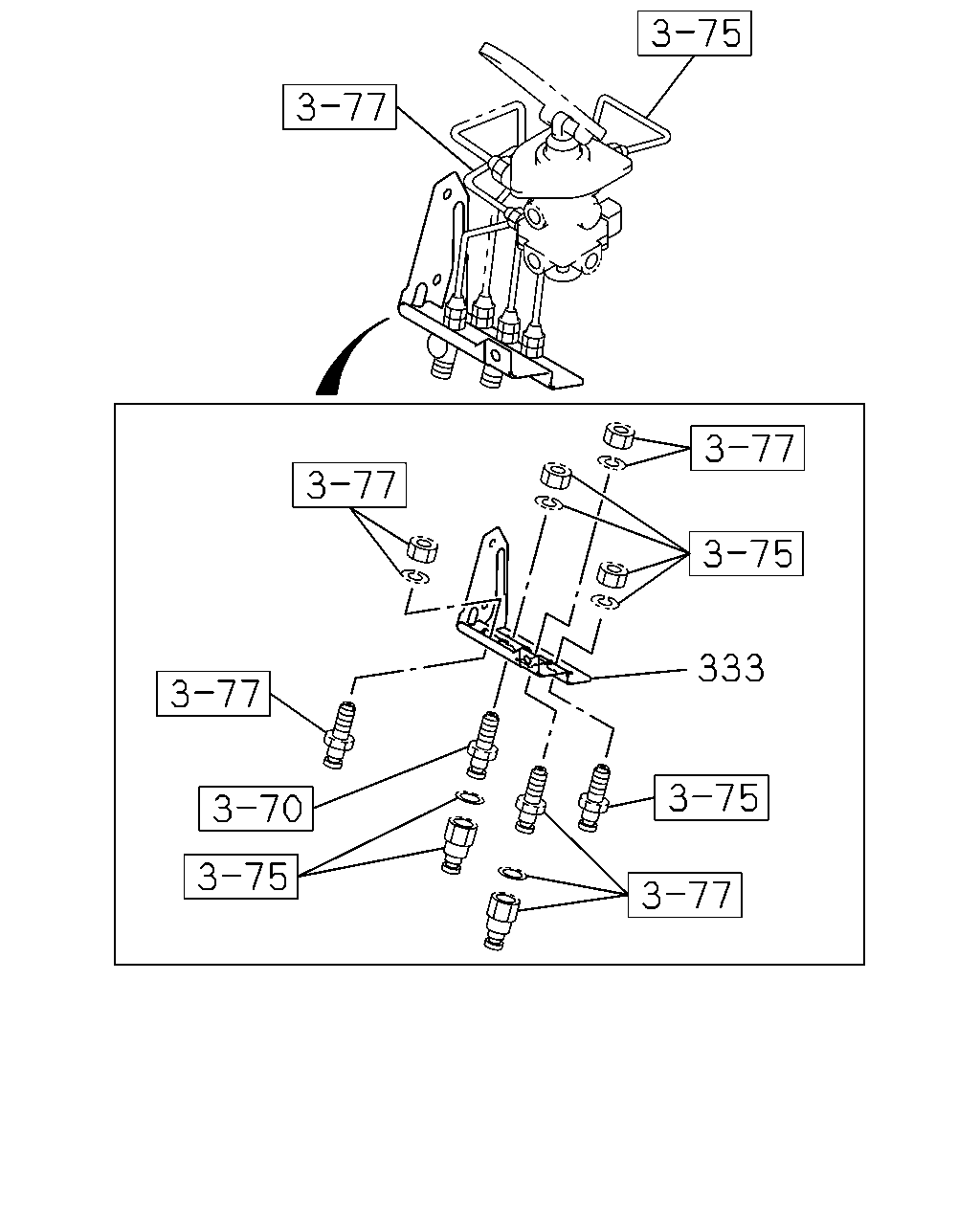

çizim 467479
333
BalonParca AdiParca NoAdetTipApplied Date A B
333 BRACKET; BRK AIR PIPE 1-79738-815-2 01 1 1412- ●
