3-70 — BRAKE PIPING; AIR,AIR MASTER (#65912) — 136 parça

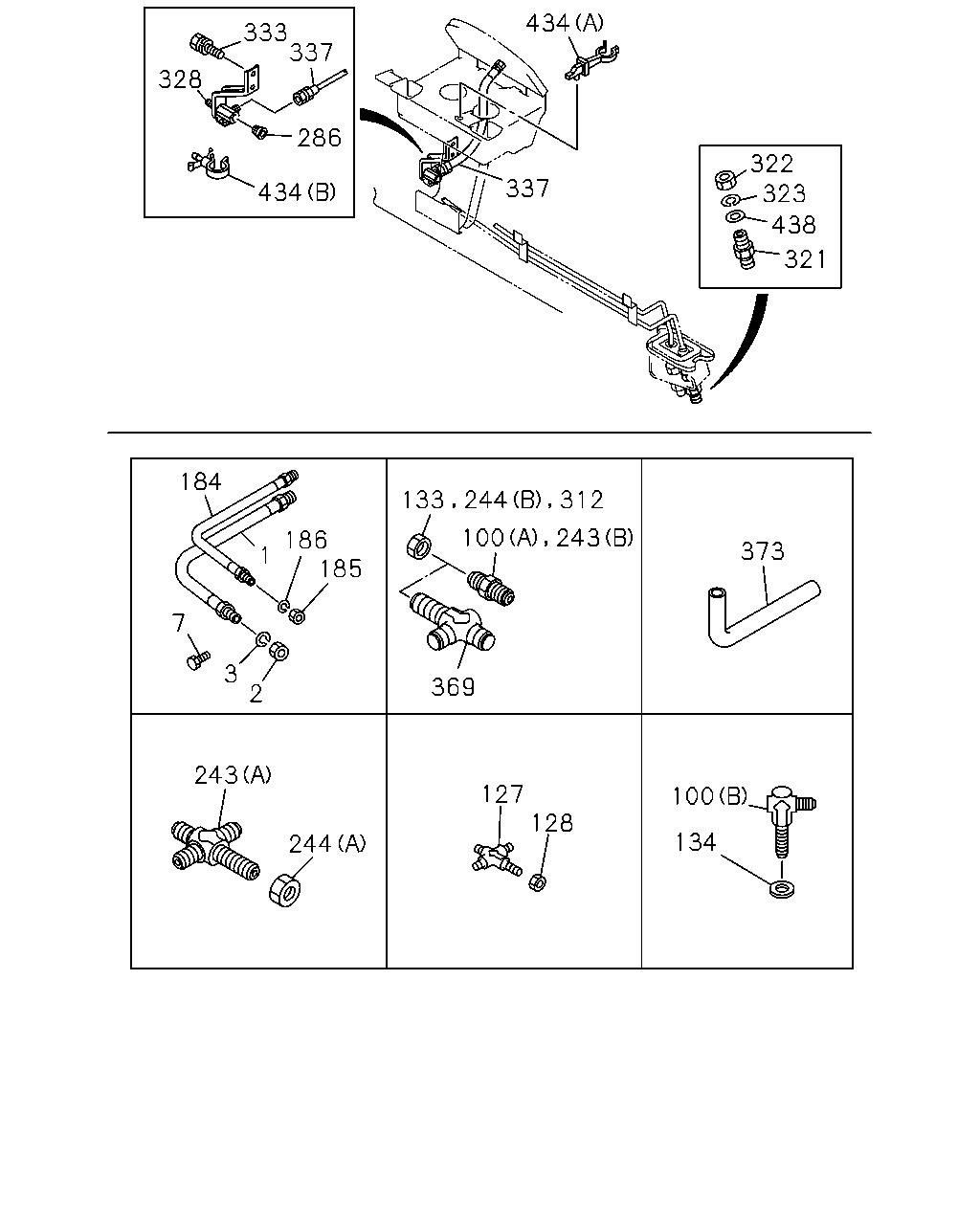

çizim 121353
243 244 127 128 134 100 373 243 100 369 133 244 312 2 3 7 1 184 186 185 321 438 323 322 337 434 434 286 337 333 328
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0504-1411 ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 1412- ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0504-0512 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-1411 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 1412- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0504-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-1411 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 1412- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0504-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-1411 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1412- ● ●
100 CONNECTOR; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 03 1 0803- ●
100 CONNECTOR; AIR PIPE
(A) M12 L=62.5 		9-09223-206-1 01 1 0602-0607 ●
100 CONNECTOR; AIR PIPE
(A) M12 L=62.5 		0-92113-206-0 01 1 0608- ●
127 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 0504-0607 ●
127 UNION; AIR PIPE
M12 		0-92138-306-0 01 1 0608- ●
128 NUT; PIPE UNION
M12 		9-99111-412-0 01 1 0504-0512 ●
128 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 0601- ●
133 NUT; UNION
M12 		9-09840-280-0 01 1 0602-0802 ●
133 NUT; UNION
M12 		9-09840-280-0 03 1 0803- ●
134 WASHER; LK,UNION
D=12 		8-94333-466-0 03 1 0803- ●
184 HOSE; FLEX,AIR GOV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 0504-1411 ●
184 HOSE; FLEX,AIR GOV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 1412- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 1412- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0504-1411 ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 1412- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0504-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-1411 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 1412- ● ●
243 UNION; AIR PIPE
(A) 		1-09656-444-1 01 1 0504- ●
243 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0504-0607 ●
243 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0608-1411 ●
243 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1412- ● ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-09840-280-0 01 1 1412- ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-09840-280-0 01 1 0504-0802 ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-09840-280-0 02 1 0803- ●
244 NUT; UNION,AIR PIPE
(A) M16 		9-99111-416-0 01 1 0504-0512 ●
244 NUT; UNION,AIR PIPE
(A) M16 		0-91111-516-0 01 1 0601- ●
286 PLUG; AIR PIPE 9-09204-510-0 01 1 0504-1411 ●
286 PLUG; AIR PIPE 9-09204-510-0 01 1 1412- ● ●
312 NUT; UNION
M12 		9-99111-412-0 01 1 0504-0512 ●
312 NUT; UNION
M12 		0-91111-512-0 01 1 0601- ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 1412- ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0504-0802 ●
321 JOINT; FLEX HOSE
M10 & M12 STRAIGHT 		1-09650-270-1 01 1 0803- ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0504-1411 ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 1412- ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0504-0603 ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604-1411 ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 1412- ● ●
328 UNION; AIR PIPE 1-47470-362-2 01 1 0504-1411 ●
328 UNION; AIR PIPE 1-47470-362-2 01 1 1412- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0504-1411 ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0504-0605 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606-1411 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 1412- ● ●
369 UNION; AIR PIPE
M12 2WAY 		1-09654-059-2 01 1 0504- ●
373 HOSE; RUBBER,AIR CMPR 8-94395-082-0 01 1 0602- ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0504-1411 ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 1412- ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 0504-1411 ●
434 CLIP
(B) 		8-94297-486-0 02 1 1412- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0504-1411 ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 1412- ● ●

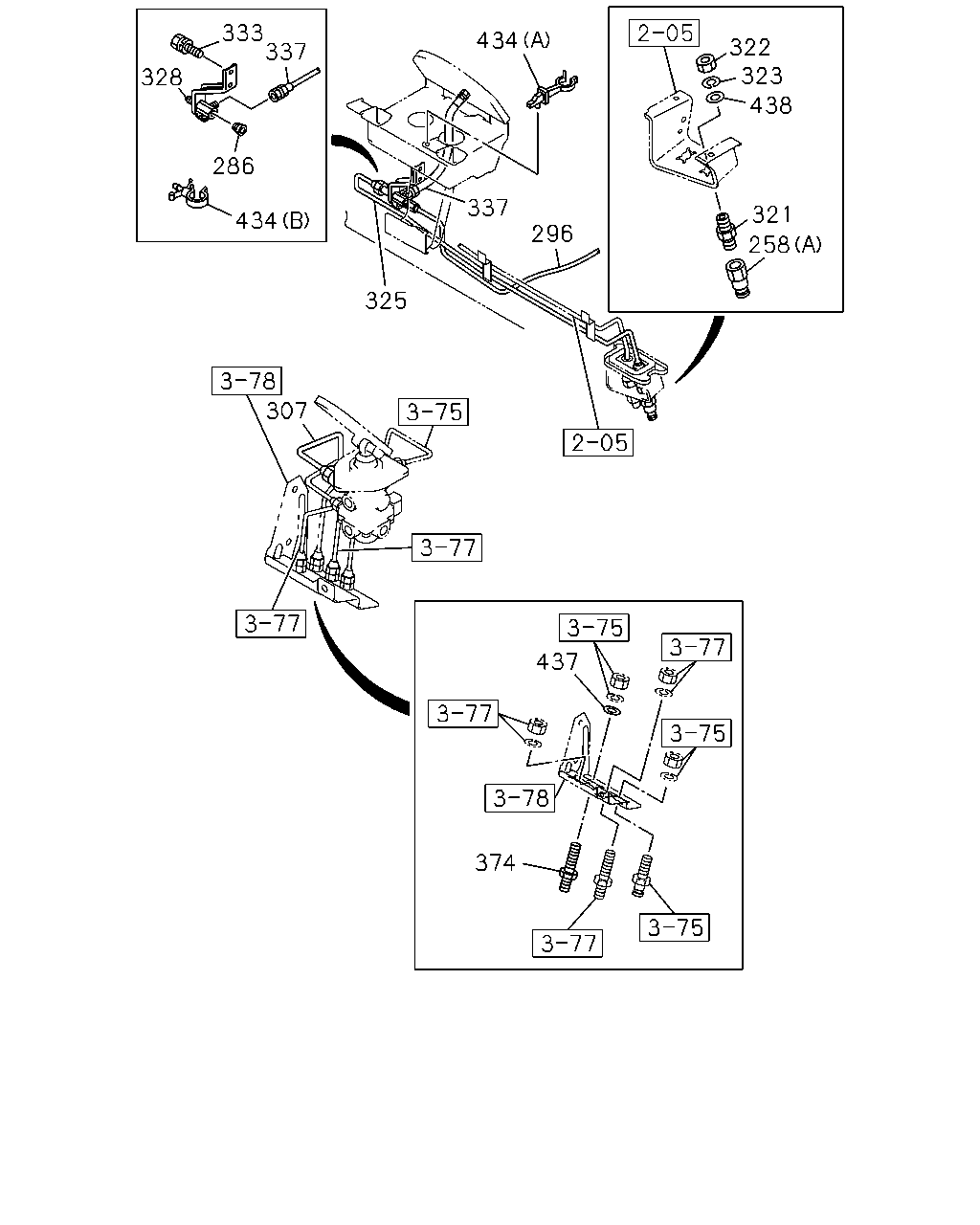

çizim 467186
437 374 307 325 337 296 434 322 438 323 321 258 337 333 328 286 434
BalonParca AdiParca NoAdetTipApplied Date A B
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1412- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1412- ●
286 PLUG; AIR PIPE 9-09204-510-0 01 1 0504-1411 ●
286 PLUG; AIR PIPE 9-09204-510-0 01 1 1412- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1412- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 1412- ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 1412- ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0504-0802 ●
321 JOINT; FLEX HOSE
M10 & M12 STRAIGHT 		1-09650-270-1 01 1 0803- ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0504-1411 ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 1412- ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0504-0603 ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604-1411 ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 1412- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 1412- ●
328 UNION; AIR PIPE 1-47470-362-2 01 1 0504-1411 ●
328 UNION; AIR PIPE 1-47470-362-2 01 1 1412- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0504-1411 ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0504-0605 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606-1411 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 1412- ● ●
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 1412- ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0504-1411 ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 1412- ● ●
434 CLIP
(B) 		8-94297-486-0 02 1 0504-1411 ●
434 CLIP
(B) 		8-94297-486-0 02 1 1412- ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 1412- ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0504-1411 ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 1412- ● ●
çizim 467187
14 154 170 184 186 185 2 3 1 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0504-1411 ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 1412- ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0504-0512 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-1411 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 1412- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0504-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-1411 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 1412- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 1412- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0504-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-1411 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1412- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 1412- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 1412- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49122-149-0 01 1 1412- ●
184 HOSE; FLEX,AIR GOV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 0504-1411 ●
184 HOSE; FLEX,AIR GOV
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 1412- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 1412- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0504-1411 ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 1412- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0504-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-1411 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 1412- ● ●

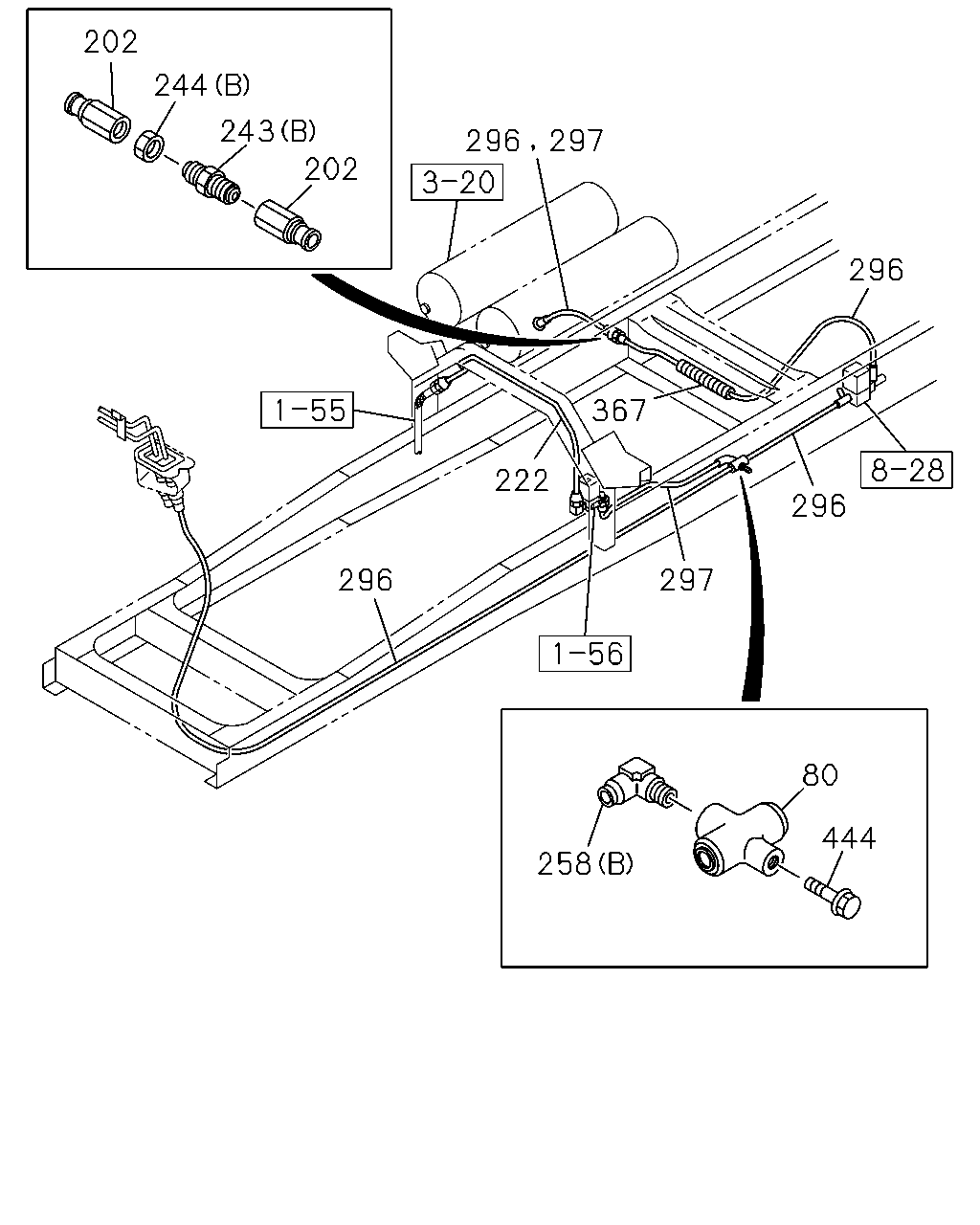

çizim 467193
444 80 258 297 296 296 367 222 296 202 243 244 202 296 297
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1412- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 1412- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 1412- ●
243 UNION; AIR PIPE
(A) 		1-09656-444-1 01 1 0504- ●
243 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0504-0607 ●
243 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0608-1411 ●
243 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1412- ● ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-09840-280-0 01 1 1412- ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-09840-280-0 01 1 0504-0802 ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-09840-280-0 02 1 0803- ●
244 NUT; UNION,AIR PIPE
(A) M16 		9-99111-416-0 01 1 0504-0512 ●
244 NUT; UNION,AIR PIPE
(A) M16 		0-91111-516-0 01 1 0601- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1412- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1412- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1412- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1412- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 1412- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 1412- ●
