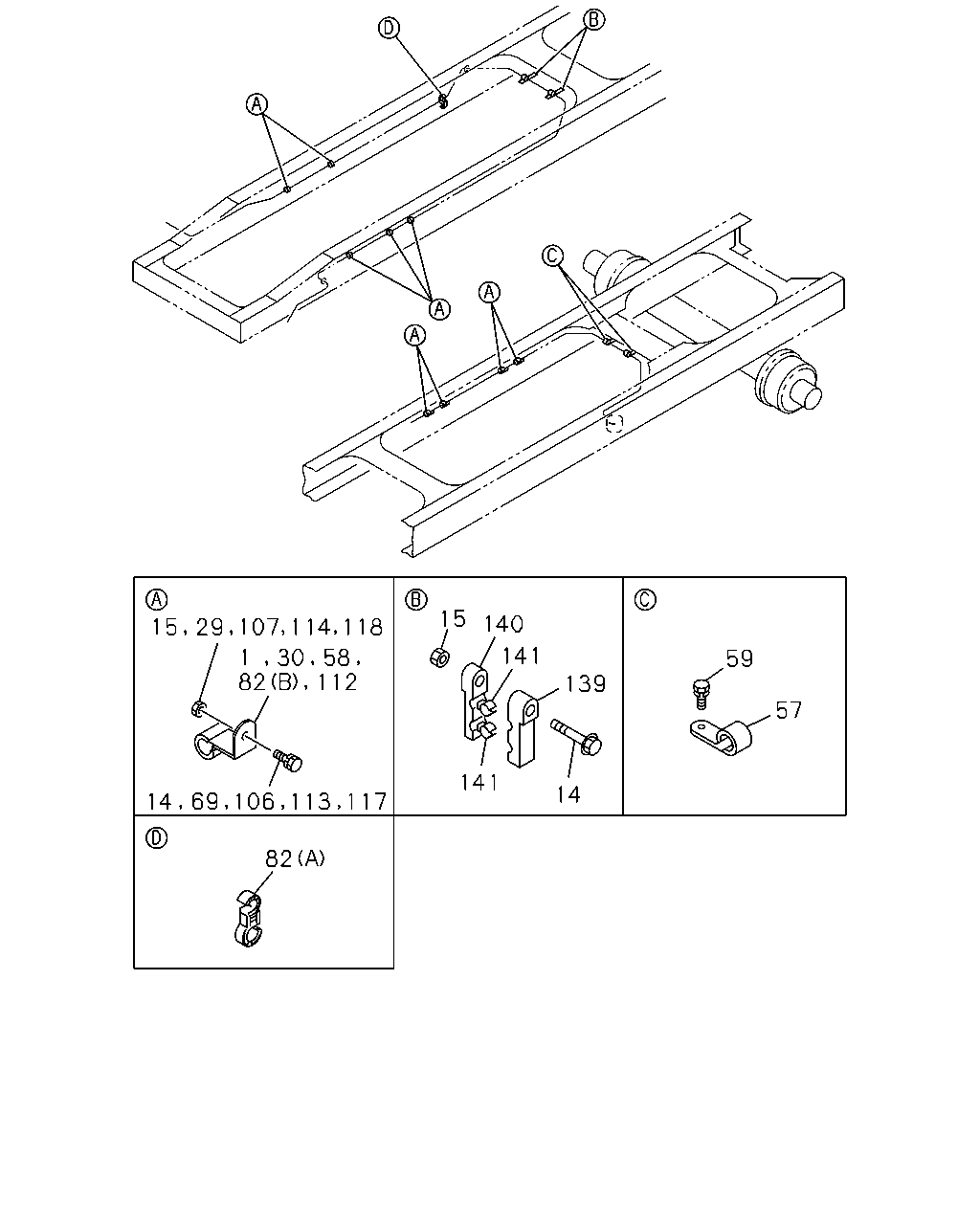

3-58 — FIXING PARTS; OIL PIPING (#65911) — 64 parça

82 14 69 106 113 117 141 14 139 59 57 141 140 15 112 82 118 58 30 1 15 107 29 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	02	1	1412-	●
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	02	1	0504-0601		●
14	BOLT; CLIP,OIL PIPE M8X60 FLANGE	0-28050-860-0	01	1	1412-	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	0504-0512		●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28050-850-0	01	1	0601-		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0504-0512		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-1411		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	1412-	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0504-0602		●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-1411		●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1412-	●	●
29	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0504-0602		●
29	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-1411		●
29	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
30	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	1412-	●
30	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	0504-0601		●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	0504-0606		●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	04	1	0607-1411		●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	04	1	1412-	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	1412-	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	0504-0512		●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	04	1	0601-1411		●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	04	1	1412-	●	●
69	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0504-0512		●
69	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-1411		●
69	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1412-	●	●
82	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0504-1411		●
82	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1412-	●	●
82	CLIP; OIL PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0504-0606		●
82	CLIP; OIL PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-1411		●
82	CLIP; OIL PIPE (B) ID=7 L=20	0-95234-635-0	01	1	1412-	●	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0504-0512		●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-1411		●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1412-	●	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0504-0512		●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-1411		●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1412-	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0504-0602		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-1411		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	1412-	●	●
112	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	06	1	1412-	●
113	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	06	1	1412-	●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0504-0512		●
113	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	1412-	●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0504-0602		●
114	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-		●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0504-0512		●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-1411		●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1412-	●	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0504-0512		●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-1411		●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1412-	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0504-0602		●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-1411		●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	1412-	●	●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0504-1411		●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	1412-	●	●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	0504-1411		●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	1412-	●	●
141	COLLAR ID=6	1-47459-010-0	02	1	0504-1411		●
141	COLLAR ID=6	1-47459-010-0	02	1	1412-	●	●
141	COLLAR ID=8	1-47459-011-0	02	1	0504-1411		●
141	COLLAR ID=8	1-47459-011-0	02	1	1412-	●	●
