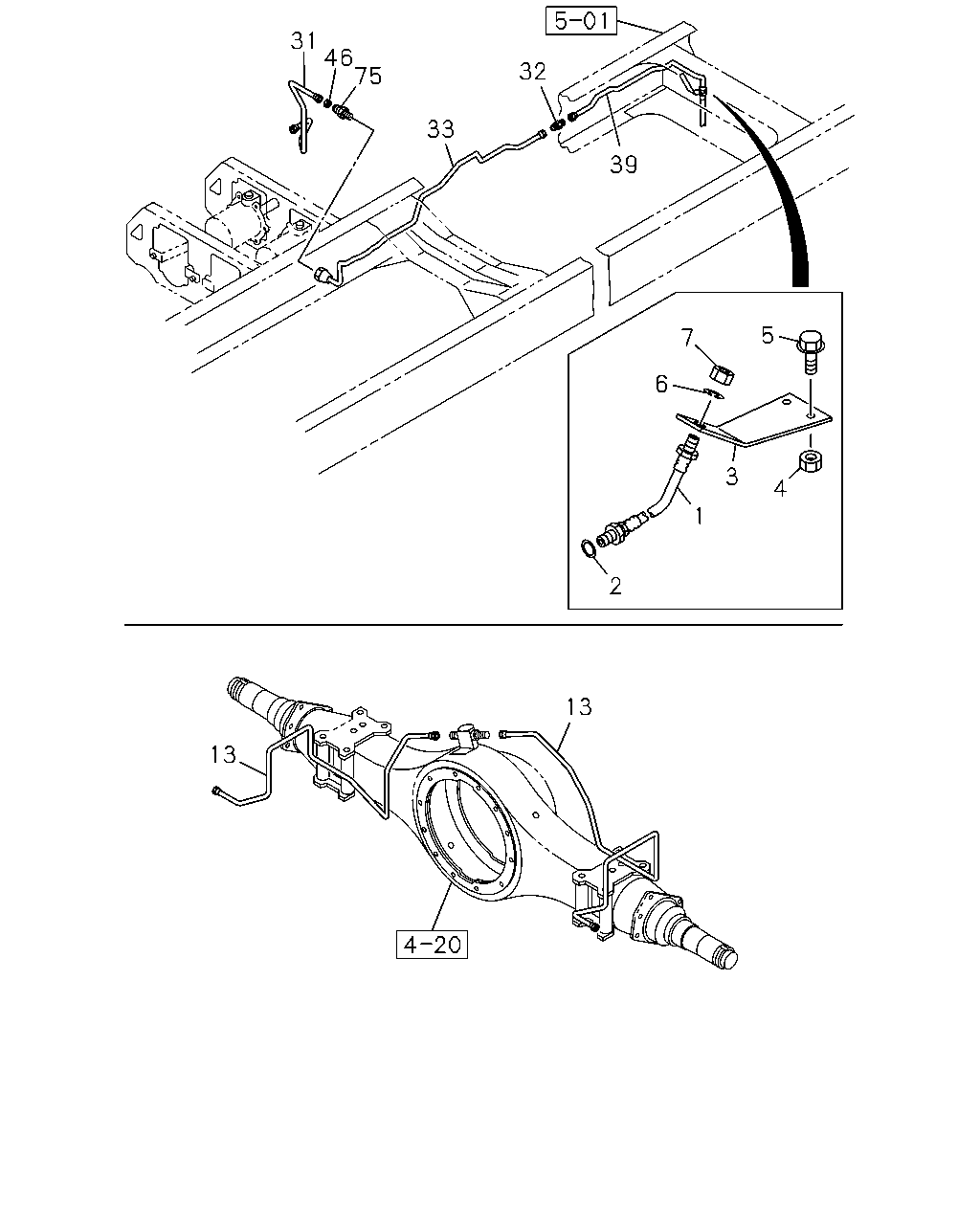

3-55 — BRAKE PIPING; OIL,REAR
(#65910) — 31 parça
Tümü
A - MTR5FB
B - FTR5VF
2
1
3
6
7
5
4
13
13
33
32
39
75
46
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
L=700
0-05312-700-0
01
1
0504-0907
●
1
HOSE; FLEX,RR BRK
L=700
0-05212-700-0
01
1
0908-1411
●
1
HOSE; FLEX,RR BRK
L=700
0-05212-700-0
01
1
1412-
●
●
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0504-1411
●
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
1412-
●
●
3
BRACKET; FLEX HOSE,RR BRK
1-47465-251-0
01
1
1412-
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91150-108-0
02
1
0504-0602
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0603-1411
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1412-
●
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28680-825-0
02
1
0504-0512
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28650-825-0
02
1
0601-1411
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28650-825-0
02
1
1412-
●
●
6
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0504-0603
●
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0604-1411
●
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
1412-
●
●
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0504-1411
●
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
1412-
●
●
13
PIPE; BRK,RR AXLE
L=938
1-47428-958-0
01
1
0504-1411
●
13
PIPE; BRK,RR AXLE
L=938
1-47428-958-0
01
1
1412-
●
●
13
PIPE; BRK,RR AXLE
L=1215
1-47428-959-0
01
1
0504-1411
●
13
PIPE; BRK,RR AXLE
L=1215
1-47428-959-0
01
1
1412-
●
●
31
PIPE; OIL,AIR MASTER TO UNION
L=405
1-49161-102-0
01
1
1412-
●
31
PIPE; OIL,AIR MASTER TO UNION
L=405
1-49161-102-0
01
1
0504-0601
●
32
UNION; OIL PIPE
M12 L=40
9-09223-006-1
01
1
0504-0607
●
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
0608-1411
●
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
1412-
●
●
33
PIPE; OIL,UNION TO UNION
L=2985 SERVICED BY L=3200
1-47426-365-0
01
1
1412-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2156 SERVICED BY L=2200
1-47426-360-0
01
1
1412-
●
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
0504-1411
●
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
1412-
●
●
75
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
01
1
1412-
●
