3-20 — AIR TANK (#65905) — 140 parça

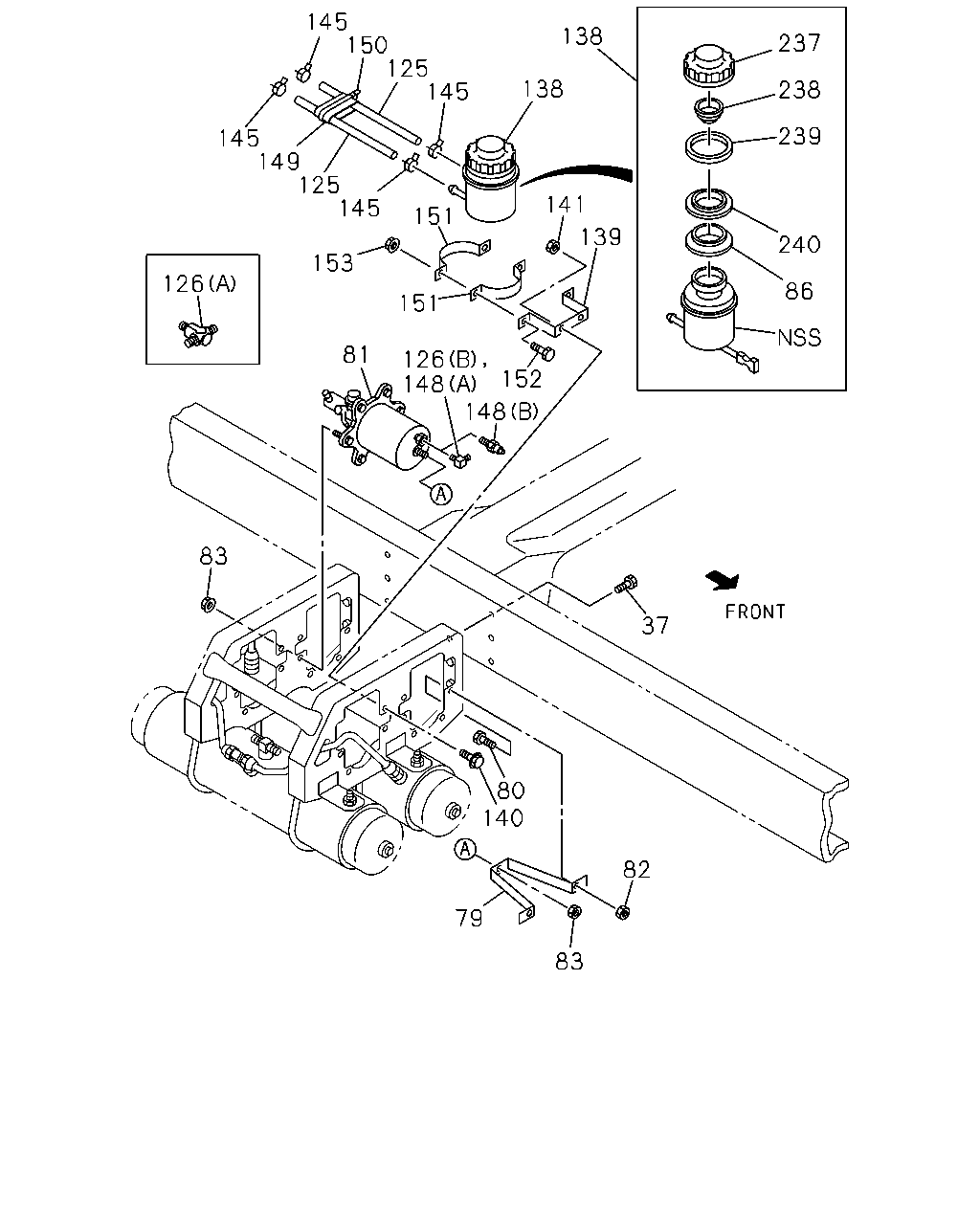

83 82 79 140 80 83 37 81 148 148 126 152 139 141 138 138 145 125 150 145 145 149 125 145 153 151 151 126 237 238 239 240 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	0504-0512	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-1411	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	1412-	●	●
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	1412-		●
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0504-0512	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-1411	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	1412-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-663-1	01	1	0504-1411	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-663-1	01	1	1412-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-664-2	01	1	0504-1411	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-664-2	01	1	1412-	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	0504-0602	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-1411	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	1412-	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	0504-0602	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-1411	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	1412-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0504-1411	●
86	SEAL; DUST	1-47529-019-0	01	1	1412-	●	●
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0504-1411	●
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	1412-	●	●
126	CONNECTOR; ELBOW (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-	●
126	CONNECTOR; ELBOW (A)	1-09656-699-0	01	1	0504-	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0504-1411	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1412-	●	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	1412-		●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0504-0512	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-1411	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	1412-	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0504-0602	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-1411	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	1412-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0504-1411	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1412-	●	●
148	CONNECTOR; AIR MASTER (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1412-		●
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0504-0802	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	0504-1411	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	1412-	●	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	1412-		●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1412-		●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0504-0512	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-1411	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1412-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0504-0602	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-1411	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0504-1411	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1412-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0504-1411	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1412-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0504-1411	●
239	FILTER; DUST	1-47529-017-0	01	1	1412-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0504-1411	●
240	HOLDER; FILTER	1-47529-018-0	01	1	1412-	●	●

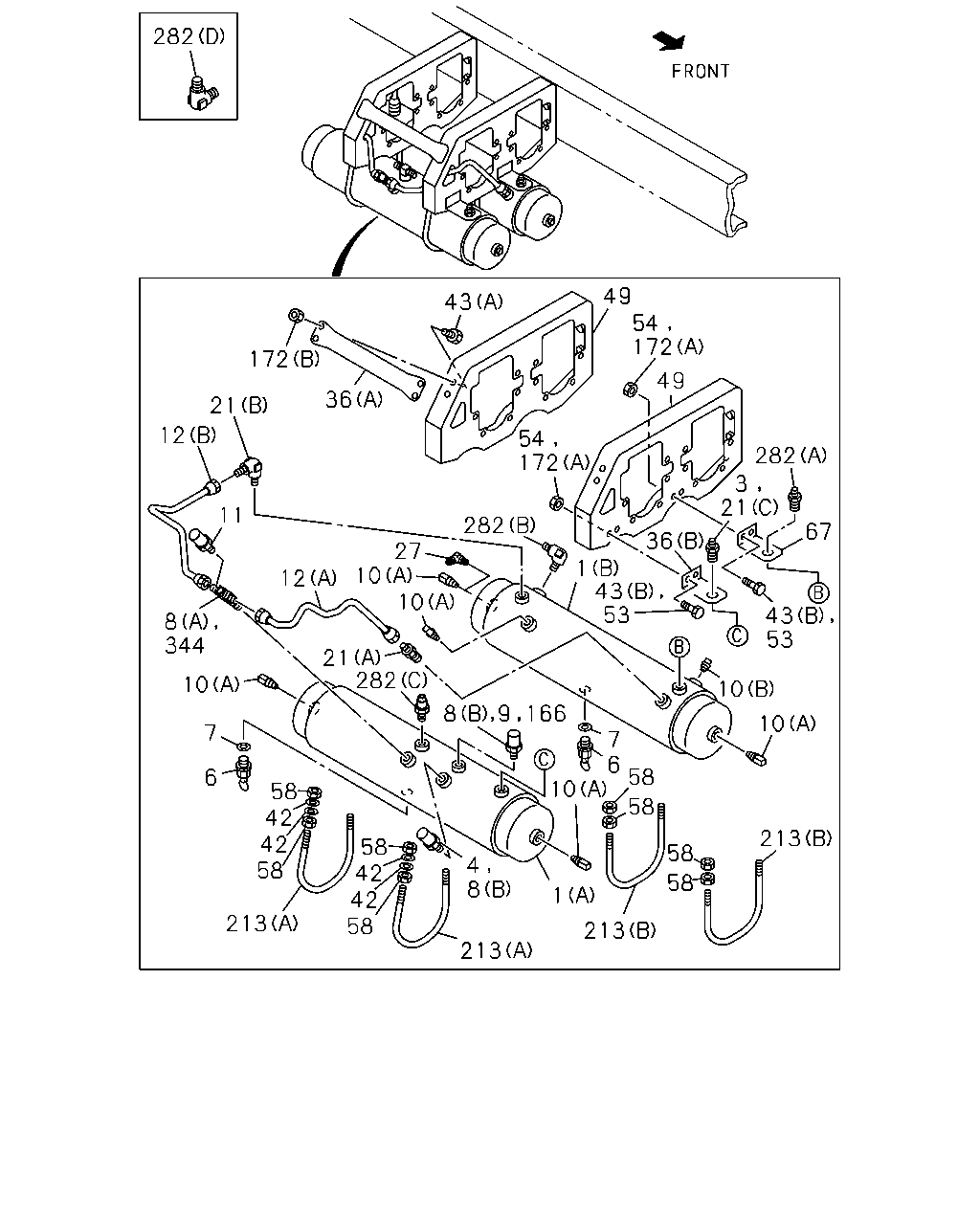

282 43 49 172 36 21 12 11 8 344 10 7 6 213 58 42 42 58 58 42 42 58 4 8 213 1 213 12 21 10 10 27 282 8 9 166 7 6 58 58 10 58 58 213 10 10 282 1 53 43 53 43 54 49 172 54 172 21 3 67 36 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	1412-		●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	1412-		●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0504-0601	●
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	0504-0601	●
3	VALVE; CHECK,AIR TANK M22 & PT3/4	1-48410-136-3	01	1	0504-0601	●
3	VALVE; CHECK,AIR TANK M22 & PT3/4	1-48410-136-3	02	1	0602-	●
4	CONNECTOR; FLARE	1-09650-283-1	01	1	1412-		●
4	CONNECTOR; FLARE	1-09650-283-1	01	1	0504-0601	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1412-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0504-0601	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1412-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0504-0601	●
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	1412-		●
8	CONNECTOR; AIR TANK (B)	1-09650-283-1	01	1	0504-0601	●
8	CONNECTOR; AIR TANK (B)	1-09650-283-1	02	1	0602-	●
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	0504-0601	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	01	1	1412-		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	01	1	0504-0601	●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	01	1	1412-		●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	1412-		●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	01	1	0504-0601	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	0504-0601	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0504-1411	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1412-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-011-0	01	1	1412-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-012-0	01	1	1412-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	0504-0601	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	0504-0601	●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	1412-		●
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	01	1	1412-		●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1412-		●
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	0504-	●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0504-	●
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	0504-0601	●
27	UNION; ELBOW,AIR TANK M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0504-	●
27	UNION; ELBOW,AIR TANK M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0504-0607	●
27	UNION; ELBOW,AIR TANK M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-	●
27	UNION; ELBOW,AIR TANK M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0504-	●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	1412-		●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	1412-		●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	0504-0601	●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	0504-0601	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1412-		●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	08	1	0504-0605	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	08	1	0606-	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	02	1	1412-		●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	1412-		●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	0504-0512	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	08	1	0504-0512	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	08	1	0601-	●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	1412-		●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	0504-0601	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	02	1	1412-		●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28680-820-0	04	1	0504-0512	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1412-		●
54	NUT; STAY M8 FLANGE	0-91150-108-0	06	1	0504-0602	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	06	1	0603-	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1412-		●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	32	1	0504-0512	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	32	1	0601-	●
67	STAY; SUB TANK	1-48317-349-0	01	1	1412-		●
67	STAY; SUB TANK	1-48317-349-0	01	1	0504-0601	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	0504-0601	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	02	1	0602-	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	1412-		●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	06	1	0504-0602	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	08	1	0504-0601	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0602-0602	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-1411	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	1412-	●	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1412-		●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1412-		●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0504-0601	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0504-0601	●
282	UNION; 2 WAY (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-		●
282	UNION; 2 WAY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1412-		●
282	UNION; 2 WAY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1412-		●
282	UNION; 2 WAY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0504-0802	●
282	UNION; 2 WAY (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0504-0802	●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-	●
282	UNION; 2 WAY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0504-0802	●
282	UNION; 2 WAY (D) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0803-	●
344	CONNECTOR; 4WAY	1-09656-699-0	01	1	0602-	●
