Isuzu WW
▶
BUSES
▶
MT
▶
10969 - MT133/FTR(FRAME BUS) RHD
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

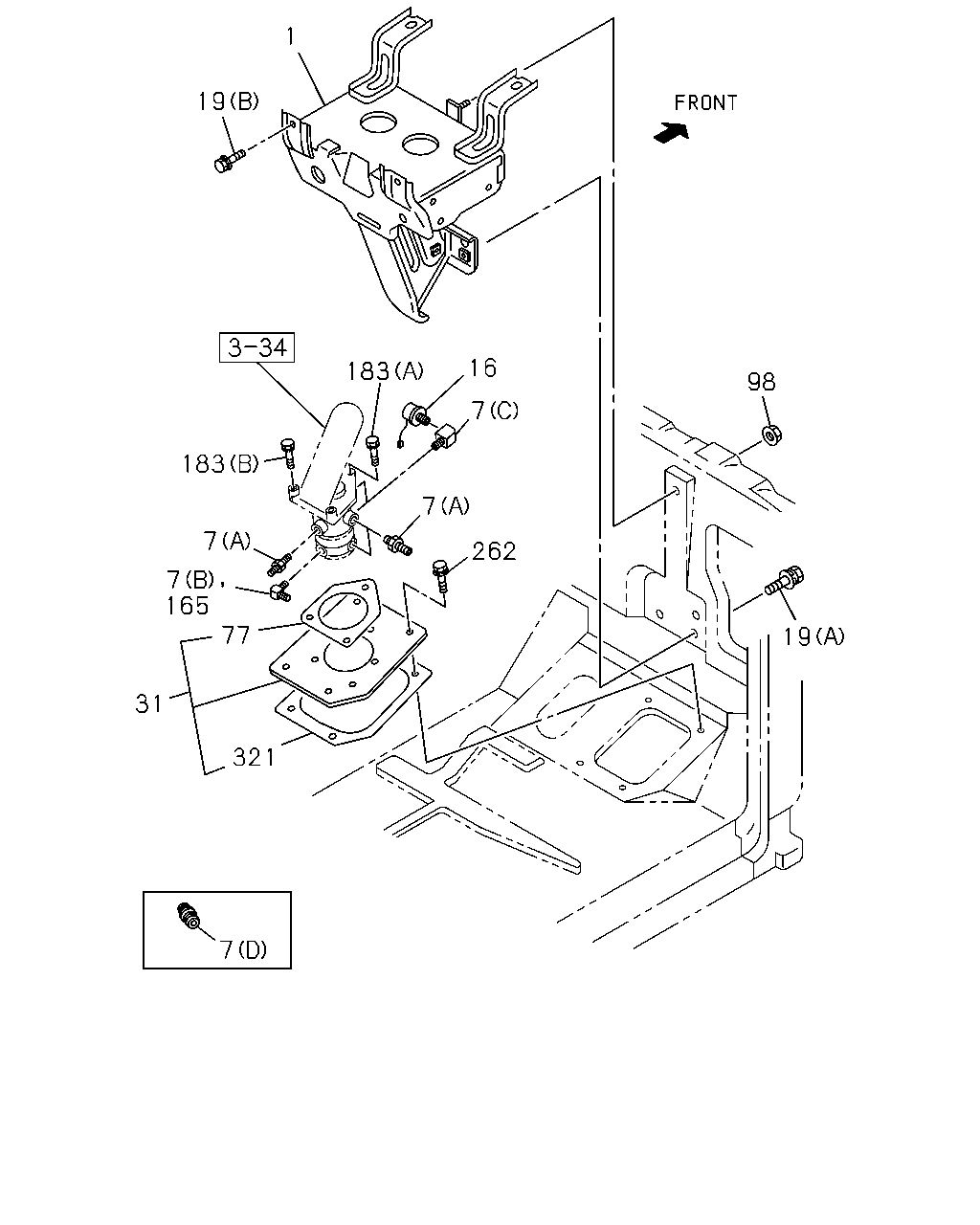

3-10 — BRAKE PEDAL AND CONTROL
(#65903) — 33 parça
Tümü
A - MTR5FB
B - FTR5VF
7
19
98
1
19
16
7
183
183
7
7
165
77
31
321
262
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
1-73908-050-8
01
1
0504-1411
●
1
BRACKET ASM; PEDAL
1-73908-050-8
01
1
1412-
●
●
7
CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT
1-09650-179-1
03
1
0504-1411
●
7
CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT
1-09650-179-1
03
1
1412-
●
●
7
CONNECTOR; BRK VALVE
(D) M16 & PT3/8 STRAIGHT
1-09650-233-1
02
1
0504-
●
7
CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
0504-1411
●
7
CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1412-
●
●
7
CONNECTOR; BRK VALVE
(C) PT1/4 & PT1/4 2WAY
1-09660-693-0
02
1
0504-1411
●
7
CONNECTOR; BRK VALVE
(C) PT1/4 & PT1/4 2WAY
1-09660-693-0
02
1
1412-1507
●
●
7
CONNECTOR; BRK VALVE
(C) PT1/4 & PT1/4 2WAY
1-09660-693-0
02
1
1508-
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
0504-1411
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
1412-
●
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0504-1411
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
1412-
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0504-0904
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-1411
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1412-
●
●
31
PLATE; MTG,BRKT VLV
1-73996-329-1
01
1
0504-1411
●
31
PLATE; MTG,BRKT VLV
1-73996-329-1
01
1
1412-
●
●
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
0504-1411
●
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
1412-
●
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0504-1411
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
1412-
●
●
165
CONNECTOR; SECONDARY DELIVERY
M16 & PT3/8 ELBOW
1-09650-438-0
02
1
0504-
●
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
0504-1411
●
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
1412-
●
●
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
0504-1411
●
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
1412-
●
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0504-0904
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-1411
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1412-
●
●
321
SEAL; VALVE
1-73996-143-0
01
1
0504-1411
●
321
SEAL; VALVE
1-73996-143-0
01
1
1412-
●
●
