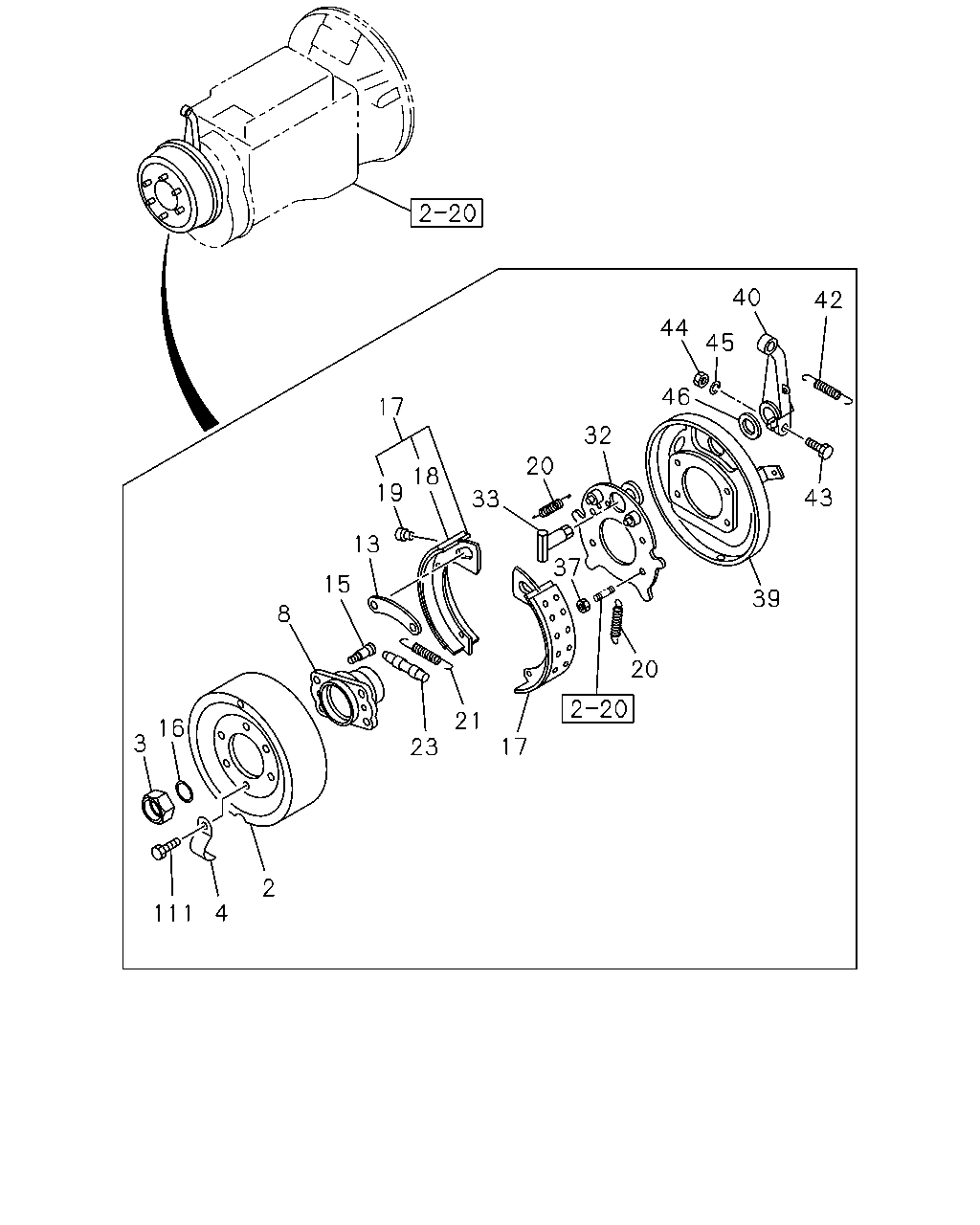

3-08 — PARKING BRAKE (#65902) — 58 parça

111 4 2 3 16 23 17 21 20 39 43 42 40 45 44 46 32 20 33 18 17 19 13 15 8 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK	1-46211-019-0	01	1	0504-1109	●
2	DRUM; PARKING BRK	1-46211-019-0	01	1	1110-	●	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	0504-0805	●
3	NUT; LK M36 FLANGE	8-98014-140-0	01	1	0806-1109	●
3	NUT; LK M36 FLANGE	8-98014-140-0	01	1	1110-	●	●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	0504-1109	●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	1110-	●	●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	0504-1002	●
8	FLANGE; PARKING BRK	8-98153-193-0	01	1	1003-1109	●
8	FLANGE; PARKING BRK	8-98153-193-0	01	1	1110-	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0504-1109	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	1110-	●	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	0504-0707	●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	0708-1109	●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	1110-	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0504-1109	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1110-	●	●
17	SHOE; PARKING BRK	1-46220-022-1	02	1	0504-1109	●
17	SHOE; PARKING BRK	1-46220-022-1	02	1	1110-	●	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0504-1109	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	1110-	●	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0504-0807	●
19	RIVET; LINING,PARKING BRK	1-09732-058-0	32	1	0808-1109	●
19	RIVET; LINING,PARKING BRK	1-09732-058-0	32	1	1110-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0504-1109	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	1110-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0504-1109	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	1110-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0504-1109	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	1110-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	0504-1109	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	1110-	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-010-0	01	1	0504-1109	●
33	SHAFT; CAM,PARKING BRK	1-46251-010-0	01	1	1110-	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	0504-0604	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0605-1109	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1110-	●	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	0504-1109	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	1110-	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-046-0	01	1	0504-1109	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-046-0	01	1	1110-	●	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	0504-1109	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	1110-	●	●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	0504-0710	●
43	BOLT; LEVER TO CM/SHF	8-98061-595-0	01	1	0711-1109	●
43	BOLT; LEVER TO CM/SHF	8-98061-595-0	01	1	1110-	●	●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	0504-0512	●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	0601-1109	●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	1110-	●	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	0504-0603	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	0-91510-510-0	01	1	0604-1109	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	0-91510-510-0	01	1	1110-	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	0504-1109	●
46	WASHER; LEVER	9-09855-362-0	01	1	1110-	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0504-0906	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-1109	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1110-	●	●
