3-05 — REAR WHEEL BRAKE (#65901) — 186 parça

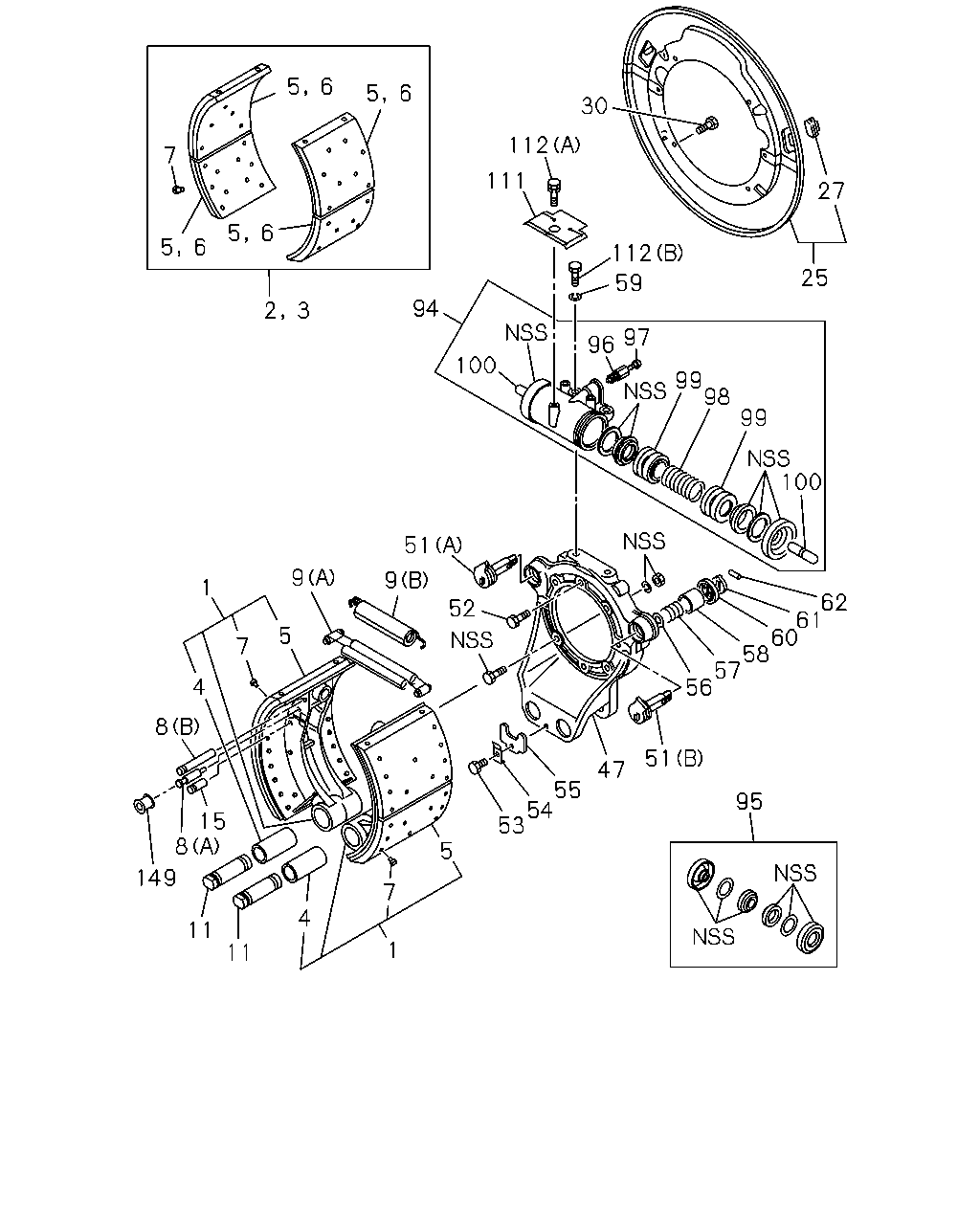

çizim 191770
95 51 47 55 54 53 5 7 1 4 11 11 149 8 15 8 4 7 5 1 9 9 51 52 56 57 58 60 61 62 100 99 98 99 97 96 100 94 2 3 5 6 5 6 5 6 5 6 7 111 112 30 27 25 112 59
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-708-0 04 1 1412- ●
1 SHOE; BRK,RR 1-47120-326-0 04 1 0504-0603 ●
1 SHOE; BRK,RR 1-47170-442-0 04 1 0604- ●
2 LINING SET; RR BRK,STANDARD
T=16 		1-88310-529-0 02 1 1412- ●
2 LINING SET; RR BRK,STANDARD
T=16 		1-88310-301-0 02 1 0504-0603 ●
2 LINING SET; RR BRK,STANDARD
T=16 		1-88311-359-1 02 1 0604- ●
2 LINING SET; RR BRK,STANDARD
BEST VALUE PARTS 		1-87610-129-0 01 1 1412- ●
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88310-530-1 02 1 1412- ●
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88310-302-0 02 1 0504-0603 ●
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88311-360-1 02 1 0604- ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0504-1411 ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 1412- ● ●
5 LINING; RR BRK SHOE,STANDARD
T=16 		1-47125-813-0 08 1 1412- ●
5 LINING; RR BRK SHOE,STANDARD
T=16 		1-47125-420-0 08 1 0504-0603 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-760-0 08 1 0604- ●
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47125-814-0 08 1 1412- ●
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47125-421-0 08 1 0504-0603 ●
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47126-761-0 08 1 0604- ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0504-1411 ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 1412- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 0504-1411 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 1412- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 0504-1411 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 1412- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0504-1411 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 1412- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-210-0 04 1 0504-1411 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-210-0 04 1 1412- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0504-1411 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 1412- ● ●
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 0504-1411 ●
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 1412- ● ●
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 0504-1411 ●
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 1412- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0504-1411 ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1412- ● ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0504-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1411 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 1412- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 0504-1411 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 1412- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 0504-1411 ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 1412- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 0504-1411 ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 1412- ● ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0504-1411 ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 1412- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0504-0512 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-1411 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1412- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0504-1411 ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1412- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0504-1411 ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 1412- ● ●
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 0504-1411 ●
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 1412- ● ●
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 0504-1411 ●
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 1412- ● ●
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 0504-1411 ●
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 1412- ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 0504-0603 ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 0604-1411 ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 1412- ● ●
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 0504-1411 ●
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 1412- ● ●
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 0504-1411 ●
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 1412- ● ●
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 0504-1411 ●
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 1412- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47600-682-0 02 1 0504-1411 ●
94 CYLINDER; WHEEL,RR BRK 1-47600-682-0 02 1 1412- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-528-0 02 1 0504-1411 ●
95 CUP SET; RR WHEEL CYL 1-87830-528-0 02 1 1412- ● ●
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 0504-1411 ●
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 1412- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0504-1411 ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1412- ● ●
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 0504-1411 ●
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 1412- ● ●
99 PISTON; RR WHEEL CYL 1-47624-303-0 04 1 0504-1411 ●
99 PISTON; RR WHEEL CYL 1-47624-303-0 04 1 1412- ● ●
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 0504-1411 ●
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 1412- ● ●
111 COVER; WHEEL CYL 1-47159-081-0 02 1 0504-1411 ●
111 COVER; WHEEL CYL 1-47159-081-0 02 1 1412- ● ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20801-435-0 04 1 0504-0512 ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20851-435-0 04 1 0601-1411 ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20851-435-0 04 1 1412- ● ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50040-816-0 06 1 0504-0512 ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50540-816-0 06 1 0601-1411 ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50540-816-0 06 1 1412- ● ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 0504-1411 ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 1412- ● ●

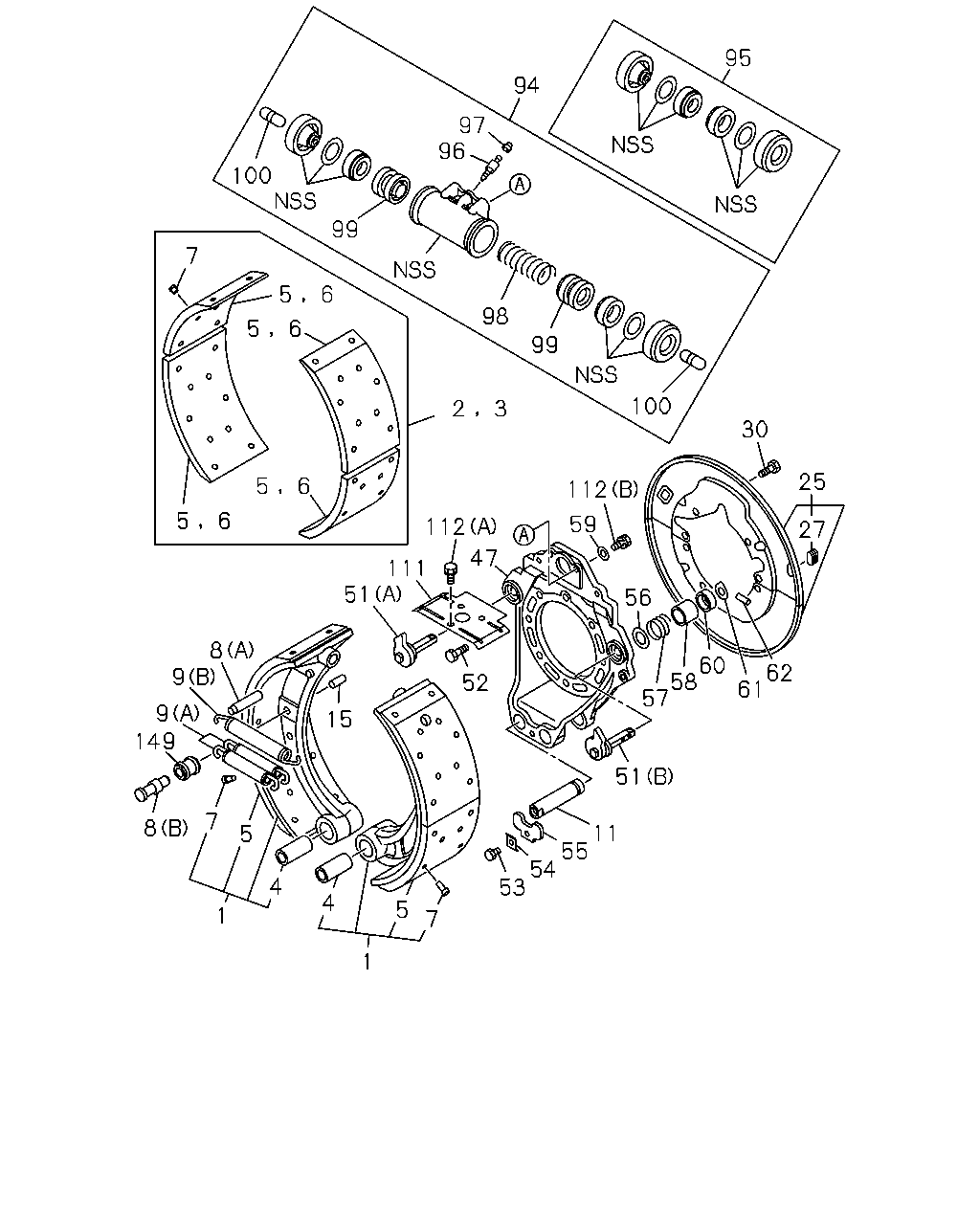

çizim 467611
1 7 5 4 4 1 5 7 8 149 9 9 8 15 53 54 55 11 51 52 51 111 112 47 59 112 56 57 58 60 61 62 27 25 30 100 2 3 5 6 5 6 5 6 5 6 7 100 99 98 99 96 97 94 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-708-0 04 1 1412- ●
1 SHOE; BRK,RR 1-47120-326-0 04 1 0504-0603 ●
1 SHOE; BRK,RR 1-47170-442-0 04 1 0604- ●
2 LINING SET; RR BRK,STANDARD
T=16 		1-88310-529-0 02 1 1412- ●
2 LINING SET; RR BRK,STANDARD
T=16 		1-88310-301-0 02 1 0504-0603 ●
2 LINING SET; RR BRK,STANDARD
T=16 		1-88311-359-1 02 1 0604- ●
2 LINING SET; RR BRK,STANDARD
BEST VALUE PARTS 		1-87610-129-0 01 1 1412- ●
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88310-530-1 02 1 1412- ●
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88310-302-0 02 1 0504-0603 ●
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88311-360-1 02 1 0604- ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0504-1411 ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 1412- ● ●
5 LINING; RR BRK SHOE,STANDARD
T=16 		1-47125-813-0 08 1 1412- ●
5 LINING; RR BRK SHOE,STANDARD
T=16 		1-47125-420-0 08 1 0504-0603 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-760-0 08 1 0604- ●
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47125-814-0 08 1 1412- ●
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47125-421-0 08 1 0504-0603 ●
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47126-761-0 08 1 0604- ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0504-1411 ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 1412- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 0504-1411 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 1412- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 0504-1411 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 1412- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0504-1411 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 1412- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-210-0 04 1 0504-1411 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-210-0 04 1 1412- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0504-1411 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 1412- ● ●
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 0504-1411 ●
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 1412- ● ●
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 0504-1411 ●
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 1412- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0504-1411 ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1412- ● ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0504-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1411 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 1412- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 0504-1411 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 1412- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 0504-1411 ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 1412- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 0504-1411 ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 1412- ● ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0504-1411 ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 1412- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0504-0512 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-1411 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1412- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0504-1411 ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1412- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0504-1411 ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 1412- ● ●
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 0504-1411 ●
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 1412- ● ●
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 0504-1411 ●
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 1412- ● ●
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 0504-1411 ●
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 1412- ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 0504-0603 ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 0604-1411 ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 1412- ● ●
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 0504-1411 ●
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 1412- ● ●
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 0504-1411 ●
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 1412- ● ●
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 0504-1411 ●
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 1412- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47600-682-0 02 1 0504-1411 ●
94 CYLINDER; WHEEL,RR BRK 1-47600-682-0 02 1 1412- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-528-0 02 1 0504-1411 ●
95 CUP SET; RR WHEEL CYL 1-87830-528-0 02 1 1412- ● ●
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 0504-1411 ●
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 1412- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0504-1411 ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1412- ● ●
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 0504-1411 ●
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 1412- ● ●
99 PISTON; RR WHEEL CYL 1-47624-303-0 04 1 0504-1411 ●
99 PISTON; RR WHEEL CYL 1-47624-303-0 04 1 1412- ● ●
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 0504-1411 ●
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 1412- ● ●
111 COVER; WHEEL CYL 1-47159-081-0 02 1 0504-1411 ●
111 COVER; WHEEL CYL 1-47159-081-0 02 1 1412- ● ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20801-435-0 04 1 0504-0512 ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20851-435-0 04 1 0601-1411 ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20851-435-0 04 1 1412- ● ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50040-816-0 06 1 0504-0512 ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50540-816-0 06 1 0601-1411 ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50540-816-0 06 1 1412- ● ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 0504-1411 ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
