Isuzu WW
▶
TRUCKS
▶
FVM
▶
10780 - FVM(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

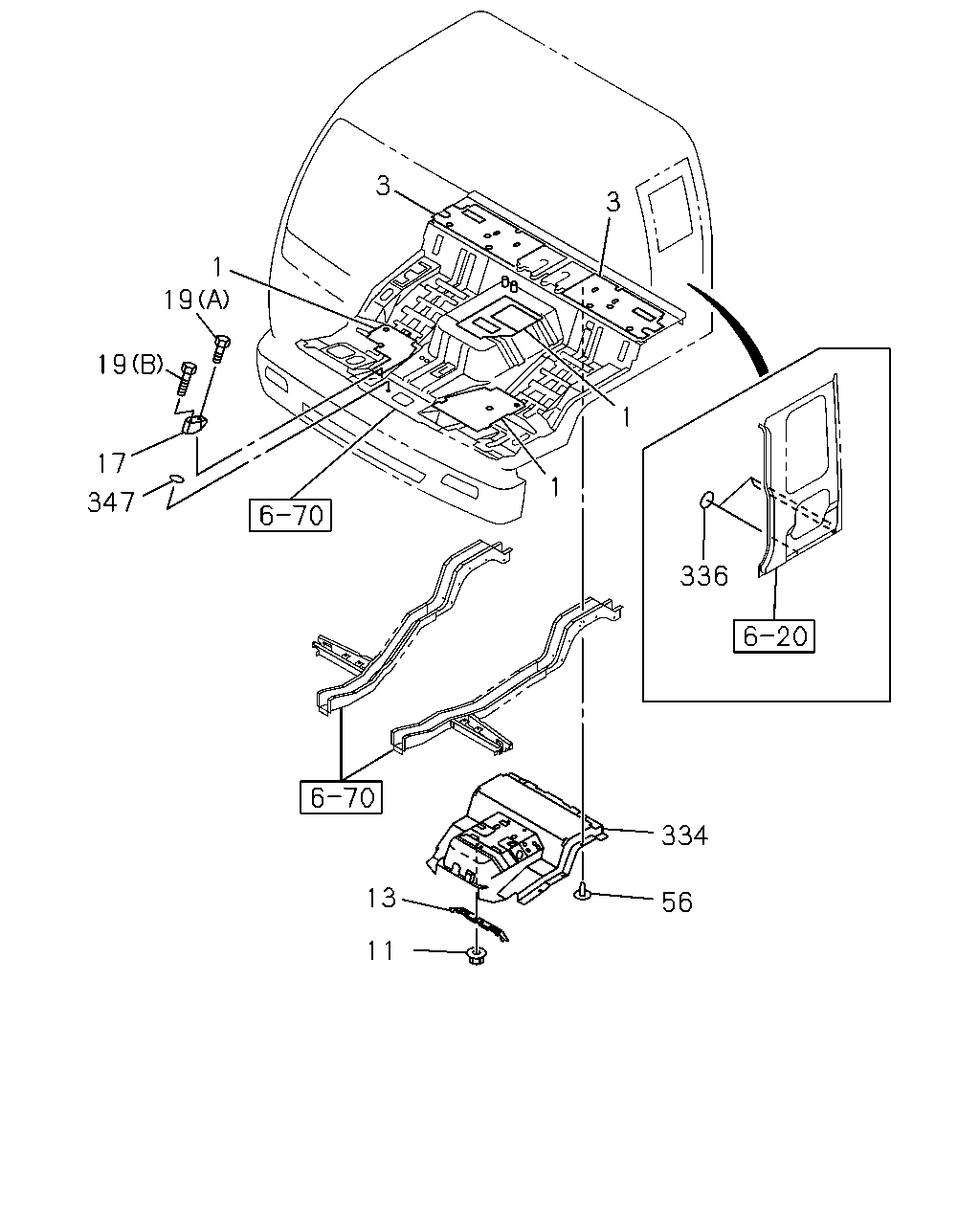

6-76 — FLOOR EQUIPMENT AND SEALING
(#6590) — 12 parça
3
3
1
19
19
1
17
347
1
336
334
13
56
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 THA
1-61970-039-0
AR
1
0101-
3
SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 THA
1-61970-039-0
AR
1
0101-
11
NUT; HEAT INSULATOR
M8 FLANGE THA
8-94279-518-0
02
1
0101-0401
11
NUT; HEAT INSULATOR
M8 FLANGE THA
1-75538-207-0
02
1
0402-
13
PLATE; HEAT INSULATOR
THA
1-71998-812-4
01
1
0101-
17
REST; FOOT,DRIVER
1-73907-176-0
01
1
0101-
19
BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
01
1
0101-
19
BOLT; FOOT REST
(B) M6X47
8-94407-876-1
01
1
0101-
56
CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4 THA
8-97808-623-0
17
1
0101-
334
INSULATOR; ENG HOOD
1-71998-811-9
01
1
0101-
336
SEAL; FLOOR SIDE
OD=25 BLACK THA
1-76798-019-0
04
1
0101-
347
SEAL; FOOT RESTR
OD=25 BLACK THA
1-76798-019-0
02
1
0101-
