Isuzu WW
▶
BUSES
▶
MT
▶
10969 - MT133/FTR(FRAME BUS) RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#65899) — 26 parça
Tümü
A - MTR5FB
B - FTR5VF
◀
[237A] LEAF SUSPENSION (12 parça)
[237A] BUS CHASSIS (14 parça)
▶

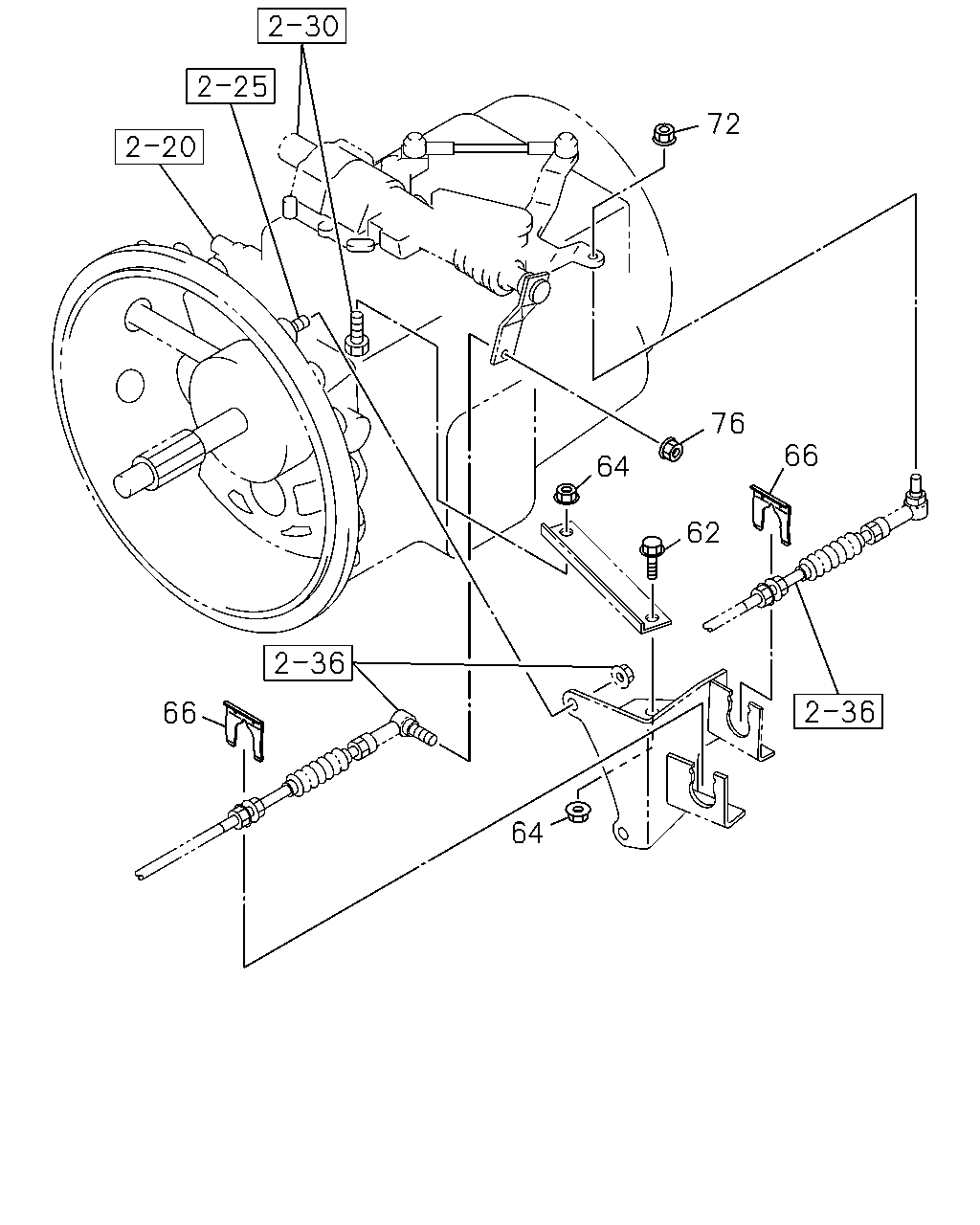

72
76
66
64
62
64
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
62
BOLT; STAY
M10X30 FLANGE
0-28681-030-0
01
1
0504-0512
●
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
01
1
0601-1411
●
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
01
1
1412-
●
●
64
NUT; STAY
M10 FLANGE
0-91150-210-0
02
1
0504-0602
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
0603-1411
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
1412-
●
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0504-1411
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1412-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
0504-1411
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1412-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE
1-09440-049-0
01
1
0504-1411
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE
1-09440-049-0
01
1
1412-
●
●

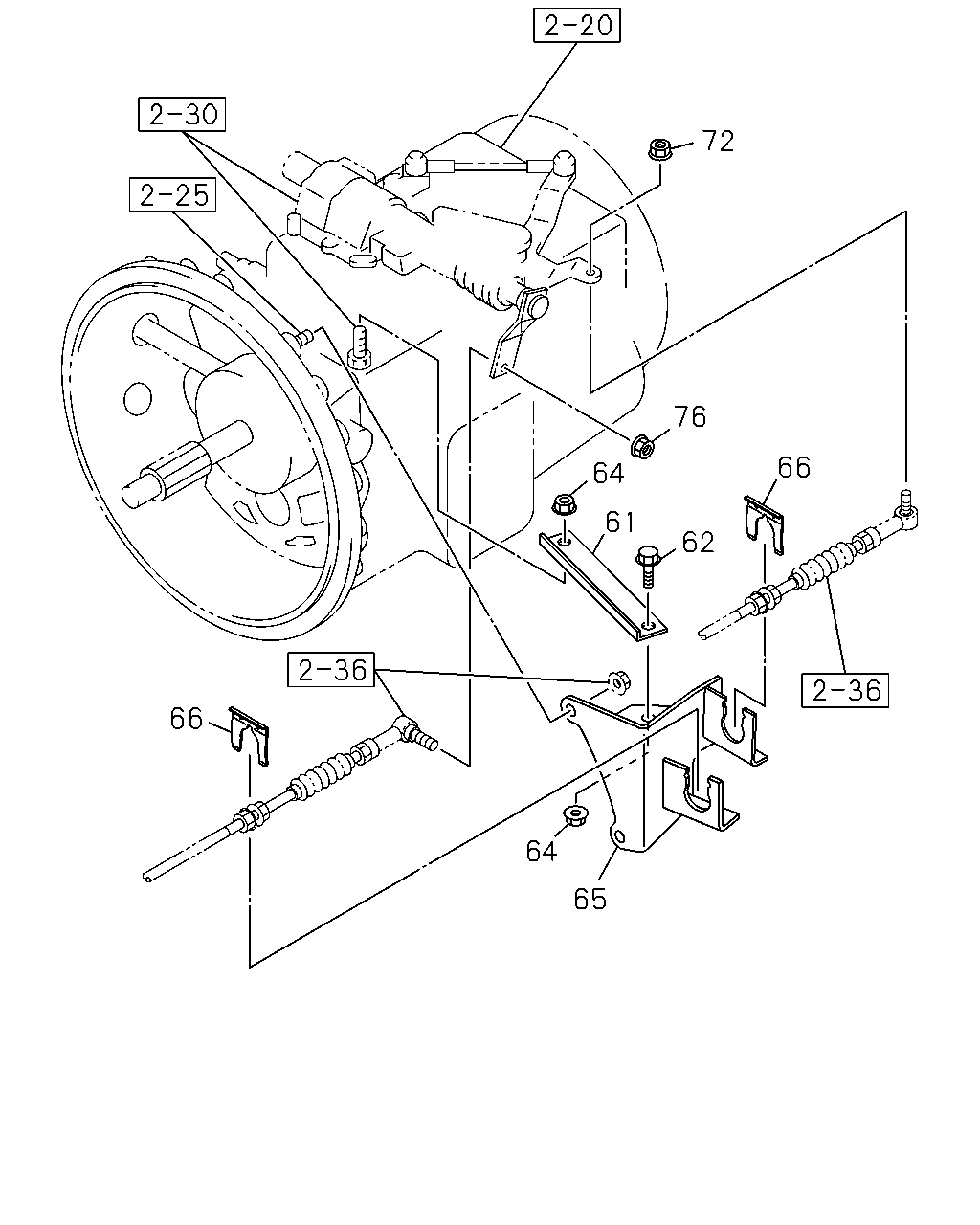

72
76
66
62
61
64
65
64
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
61
STAY; BRKT,TRANS CONT
1-33657-349-0
01
1
1412-
●
62
BOLT; STAY
M10X30 FLANGE
0-28681-030-0
01
1
0504-0512
●
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
01
1
0601-1411
●
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
01
1
1412-
●
●
64
NUT; STAY
M10 FLANGE
0-91150-210-0
02
1
0504-0602
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
0603-1411
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
1412-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
1-33657-534-2
01
1
1412-
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0504-1411
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1412-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
0504-1411
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1412-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE
1-09440-049-0
01
1
0504-1411
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE
1-09440-049-0
01
1
1412-
●
●
