2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#65897) — 44 parça

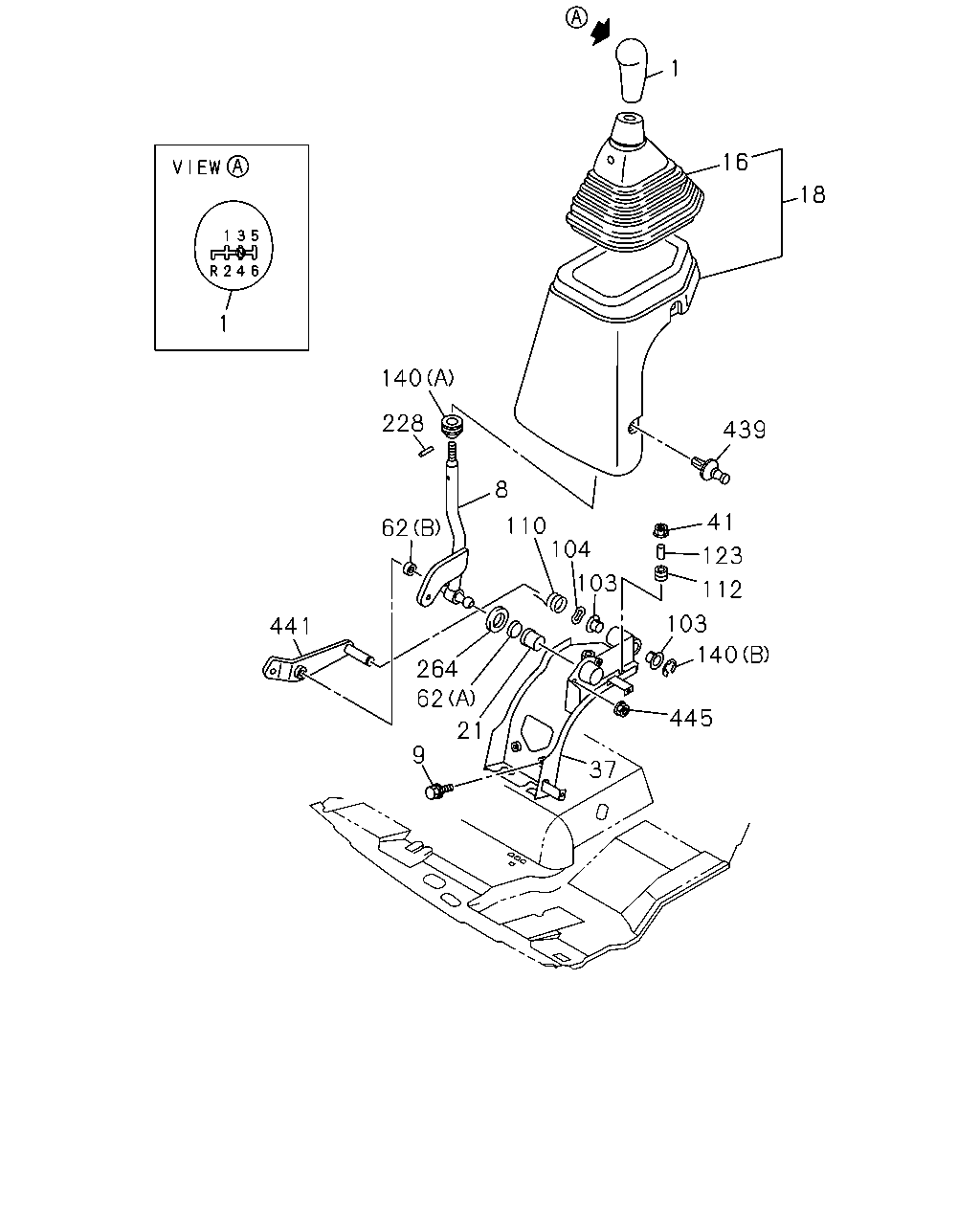

çizim 113848
1 16 18 439 41 123 112 103 140 445 103 104 110 8 140 228 62 264 62 21 9 37 441 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0504-1411 ●
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 1412- ● ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0504-1411 ●
8 LEVER; CHANGE 1-33619-553-0 01 1 1412- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0504-1411 ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1412- ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1412- ●
18 BOOT; CHANGE LEVER 1-79996-394-3 01 1 1412- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0504-1411 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1412- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 0504-1411 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 1412- ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0504-0805 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806-1411 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1412- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0504-1411 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1412- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0504-1411 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1412- ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0504-1411 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1412- ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0504-1411 ●
104 WASHER; WAVED 1-09550-009-0 01 1 1412- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0504-1411 ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1412- ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0504-1411 ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1412- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0504-1411 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1412- ● ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0504-1411 ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 1412- ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0504-0604 ●
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 0605-1411 ●
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 1412- ● ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0504-1411 ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 1412- ● ●
264 PLATE; COVER 1-33619-430-0 01 1 0504-1411 ●
264 PLATE; COVER 1-33619-430-0 01 1 1412- ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 1412- ●
441 LEVER; SELECT 1-33619-437-2 01 1 0504-1411 ●
441 LEVER; SELECT 1-33619-437-2 01 1 1412- ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0504-0602 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603-1411 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1412- ● ●
