2-26 — MANUAL TRANSMISSION GEAR (#65895) — 146 parça

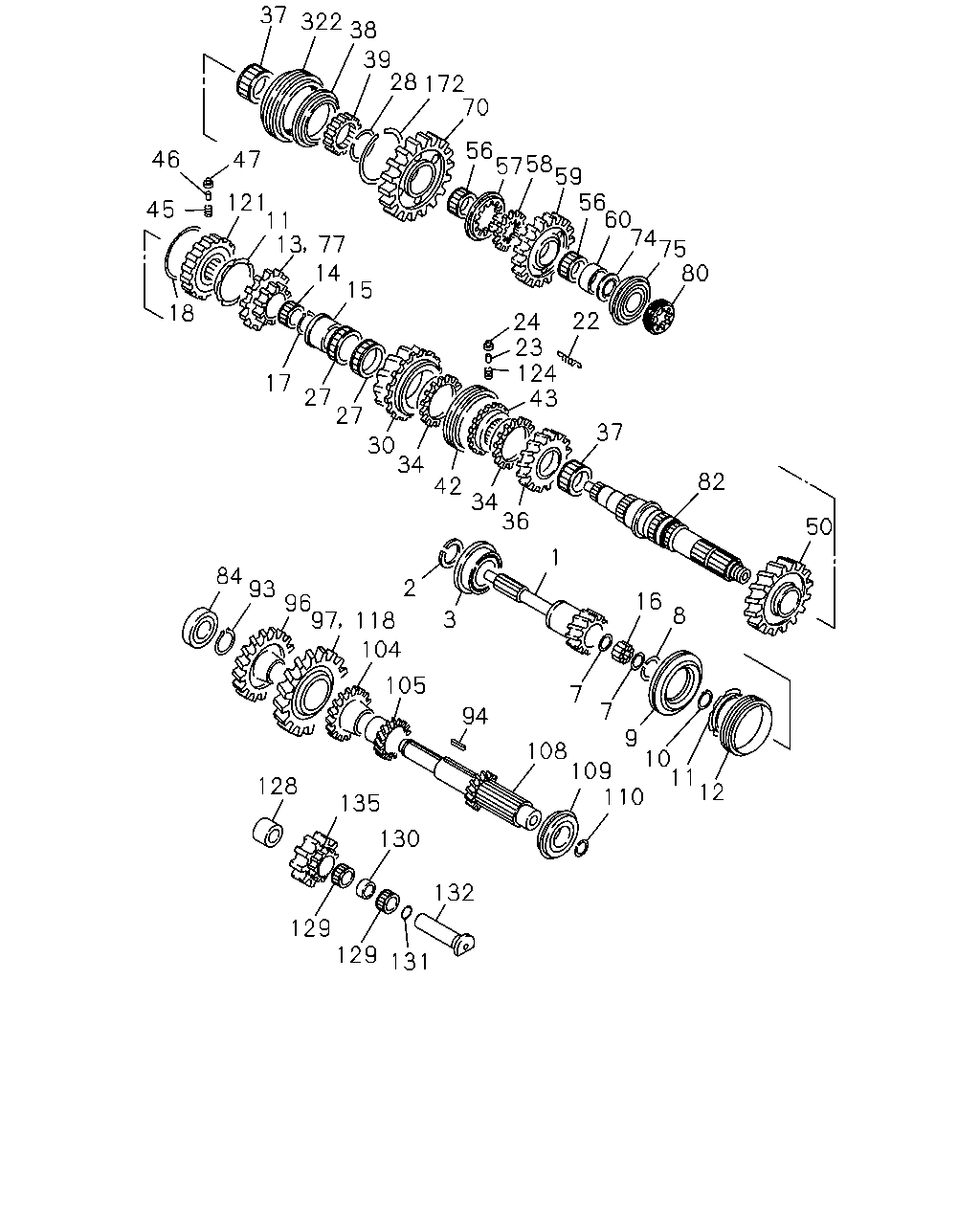

çizim 191820
37 322 38 39 28 172 70 56 57 58 59 56 60 74 75 80 46 47 45 121 11 13 77 15 14 18 22 24 43 23 124 37 82 50 16 8 1 36 34 42 34 30 27 27 17 7 7 9 10 11 12 110 109 108 94 105 104 2 3 118 97 96 93 84 128 135 130 132 131 129 129
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS
Z=25 		1-33211-989-0 01 1 1110- ●
1 SHAFT; TOP GEAR,TRANS
Z=19 		1-33211-984-0 01 1 0504- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 0504-1109 ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 1110- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 0504-1109 ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 1110- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 0504-1109 ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 1110- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 0504-1109 ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 1110- ● ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-050-2 01 1 0504-1109 ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-050-2 01 1 1110- ● ●
7 WASHER; THRUST,MAINSHAFT 1-33239-080-1 02 1 0504-1109 ●
7 WASHER; THRUST,MAINSHAFT 1-33239-080-1 02 1 1110- ● ●
8 CLIP; DOG CLU 1-33219-020-0 01 1 0504-1109 ●
8 CLIP; DOG CLU 1-33219-020-0 01 1 1110- ● ●
9 CLUTCH; DOG,TOP GEAR
Z=48 		1-33265-227-2 01 1 0504-1109 ●
9 CLUTCH; DOG,TOP GEAR
Z=48 		1-33265-227-2 01 1 1110- ● ●
10 RING; SNAP,PILOT BRG
OD=53.2 		1-09587-072-0 01 1 0504-1109 ●
10 RING; SNAP,PILOT BRG
OD=53.2 		1-09587-072-0 01 1 1110- ● ●
11 RING; BLOCK,5TH & 6TH
Z=36 		1-33265-281-1 02 1 0504-1109 ●
11 RING; BLOCK,5TH & 6TH
Z=36 		1-33265-281-1 02 1 1110- ● ●
12 SLEEVE; 5TH & 6TH
Z=42 		1-33262-136-0 01 1 0504-1109 ●
12 SLEEVE; 5TH & 6TH
Z=42 		1-33262-136-0 01 1 1110- ● ●
13 GEAR; 5TH,MAINSHAFT
Z=28 		1-33253-711-0 01 1 0504- ●
14 BEARING; NEEDLE,5TH
NSK 		1-09811-298-0 01 1 0504-1109 ●
14 BEARING; NEEDLE,5TH
NSK 		1-09811-298-0 01 1 1110- ● ●
15 COLLAR; 4TH GEAR 1-33234-048-1 01 1 0504-1109 ●
15 COLLAR; 4TH GEAR 1-33234-048-1 01 1 1110- ● ●
16 BEARING; PILOT,MAINSHAFT
JTEKT 		1-09844-015-0 13 1 0504-1109 ●
16 BEARING; PILOT,MAINSHAFT
JTEKT 		1-09844-015-0 13 1 1110- ● ●
17 RING; SNAP,4TH GEAR 1-09588-151-1 01 1 0504-1109 ●
17 RING; SNAP,4TH GEAR 1-09588-151-1 01 1 1110- ● ●
18 RING; SNAP,CLU HUB
T=2.00 		1-09588-150-1 01 1 0504-1109 ●
18 RING; SNAP,CLU HUB
T=2.00 		1-09588-150-1 01 1 1110- ● ●
22 SPRING; BLOCK,INSERT 1-09583-228-1 03 1 0504-1109 ●
22 SPRING; BLOCK,INSERT 1-09583-228-1 03 1 1110- ● ●
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 0504-1109 ●
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 1110- ● ●
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 0504-1109 ●
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 1110- ● ●
27 BEARING; 4TH GEAR
NSK 		1-09811-300-0 02 1 0504-1109 ●
27 BEARING; 4TH GEAR
NSK 		1-09811-300-0 02 1 1110- ● ●
28 RING; SNAP,3RD GEAR 1-09588-124-1 01 1 0504-1109 ●
28 RING; SNAP,3RD GEAR 1-09588-124-1 01 1 1110- ● ●
30 GEAR; 4TH,MAINSHAFT
Z=33-54 		1-33253-723-0 01 1 1110- ●
30 GEAR; 4TH,MAINSHAFT
Z=36 		1-33253-502-0 01 1 0504- ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-619-0 02 1 0504-1109 ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-619-0 02 1 1110- ● ●
36 GEAR; 3RD,MAINSHAFT
Z=43 		1-33252-373-1 01 1 1110- ●
36 GEAR; 3RD,MAINSHAFT
Z=44 		1-33252-374-1 01 1 0504- ●
37 BEARING; NEEDLE,2ND & 3RD
JTEKT 		1-09811-277-0 02 1 0504-1109 ●
37 BEARING; NEEDLE,2ND & 3RD
JTEKT 		1-09811-277-0 02 1 1110- ● ●
37 BEARING; NEEDLE,2ND & 3RD
NSK 		1-09811-279-0 02 1 0504-1109 ●
37 BEARING; NEEDLE,2ND & 3RD
NSK 		1-09811-279-0 02 1 1110- ● ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-619-0 01 1 0504-1109 ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-619-0 01 1 1110- ● ●
39 HUB; CLU,LOW & 2ND
Z=54 		1-33261-217-0 01 1 0504-1109 ●
39 HUB; CLU,LOW & 2ND
Z=54 		1-33261-217-0 01 1 1110- ● ●
42 SLEEVE
Z=54 		1-33262-154-0 01 1 0504-1109 ●
42 SLEEVE
Z=54 		1-33262-154-0 01 1 1110- ● ●
43 HUB; CLU,3RD & 4TH,MAIN
Z=54 		1-33261-218-0 01 1 0504-1109 ●
43 HUB; CLU,3RD & 4TH,MAIN
Z=54 		1-33261-218-0 01 1 1110- ● ●
45 SPRING; BLOCK INSERT
D=3.8 		1-09580-395-0 06 1 0504-1109 ●
45 SPRING; BLOCK INSERT
D=3.8 		1-09580-395-0 06 1 1110- ● ●
46 PLUNGER; DETENT,SYN 1-33269-037-1 06 1 0504-1109 ●
46 PLUNGER; DETENT,SYN 1-33269-037-1 06 1 1110- ● ●
47 BLOCK; INDEX,SYN 1-33269-035-1 06 1 0504-1109 ●
47 BLOCK; INDEX,SYN 1-33269-035-1 06 1 1110- ● ●
50 GEAR; 2ND,MAINSHAFT
Z=48 		1-33251-294-1 01 1 0504-1109 ●
50 GEAR; 2ND,MAINSHAFT
Z=48 		1-33251-294-1 01 1 1110- ● ●
56 BEARING; NEEDLE,1ST,REV
JTEKT 		1-09811-320-0 02 1 0504-1109 ●
56 BEARING; NEEDLE,1ST,REV
JTEKT 		1-09811-320-0 02 1 1110- ● ●
57 SLEEVE; REV
Z=40 		1-33262-110-0 01 1 0504-1109 ●
57 SLEEVE; REV
Z=40 		1-33262-110-0 01 1 1110- ● ●
58 HUB; CLU,REV
Z=26 		1-33261-132-2 01 1 0504-1109 ●
58 HUB; CLU,REV
Z=26 		1-33261-132-2 01 1 1110- ● ●
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-060-1 01 1 0504-1109 ●
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-060-1 01 1 1110- ● ●
60 COLLAR; REV MAIN 1-33234-095-0 01 1 0504-1109 ●
60 COLLAR; REV MAIN 1-33234-095-0 01 1 1110- ● ●
70 GEAR; 1ST,MAINSHAFT
Z=52 		1-33255-055-1 01 1 0504-1109 ●
70 GEAR; 1ST,MAINSHAFT
Z=52 		1-33255-055-1 01 1 1110- ● ●
74 WASHER; THRUST,REV GEAR 1-33239-035-2 01 1 0504-1109 ●
74 WASHER; THRUST,REV GEAR 1-33239-035-2 01 1 1110- ● ●
75 BEARING; MAINSHAFT
NSK 		1-09810-047-1 01 1 0504-1109 ●
75 BEARING; MAINSHAFT
NSK 		1-09810-047-1 01 1 1110- ● ●
75 BEARING; MAINSHAFT
NTN 		1-09810-154-0 01 1 0504-1109 ●
75 BEARING; MAINSHAFT
NTN 		1-09810-154-0 01 1 1110- ● ●
77 GEAR; 6TH,MAINSHAFT
Z=25 		1-33253-517-0 01 1 1110- ●
80 GEAR; SPD DRIVE
Z=5 		1-33371-041-2 01 1 0504-1109 ●
80 GEAR; SPD DRIVE
Z=5 		1-33371-041-2 01 1 1110- ● ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-249-0 01 1 0504-1109 ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-249-0 01 1 1110- ● ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-140-0 01 1 0504-1109 ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-140-0 01 1 1110- ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=55.8 		1-09588-125-0 01 1 0504-1109 ●
93 RING; SNAP,COUNTER FRT BRG
ID=55.8 		1-09588-125-0 01 1 1110- ● ●
94 KEY; FEATHER,COUNTER SHAFT
L=47 		1-09735-022-1 02 1 0504-1109 ●
94 KEY; FEATHER,COUNTER SHAFT
L=47 		1-09735-022-1 02 1 1110- ● ●
94 KEY; FEATHER,COUNTER SHAFT
L=55 		1-09735-025-0 02 1 0504-1109 ●
94 KEY; FEATHER,COUNTER SHAFT
L=55 		1-09735-025-0 02 1 1110- ● ●
96 GEAR; COUNTER DRIVE
Z=42 		1-33331-212-1 01 1 1110- ●
96 GEAR; COUNTER DRIVE
Z=46 		1-33331-213-1 01 1 0504- ●
97 GEAR; 5TH,COUNTER
Z=40 		1-33332-113-0 01 1 0504- ●
104 GEAR; 4TH,COUNTER
Z=36 		1-33332-133-0 01 1 1110-1311 ●
104 GEAR; 4TH,COUNTER
Z=36 		8-98256-811-0 01 1 1312- ●
104 GEAR; 4TH,COUNTER
Z=33 		1-33332-122-0 01 1 0504-1302 ●
104 GEAR; 4TH,COUNTER
Z=33 		8-98240-187-0 01 1 1303- ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-161-0 01 1 1110-1311 ●
105 GEAR; 3RD,COUNTER
Z=28 		8-98256-803-0 01 1 1312- ●
105 GEAR; 3RD,COUNTER
Z=27 		1-33333-160-0 01 1 0504-1311 ●
105 GEAR; 3RD,COUNTER
Z=27 		8-98256-802-0 01 1 1312- ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-235-1 01 1 0504-1109 ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-235-1 01 1 1110- ● ●
109 BEARING; COUNTER SHAFT,RR
JTEKT 		1-09810-039-1 01 1 0504-1109 ●
109 BEARING; COUNTER SHAFT,RR
JTEKT 		1-09810-039-1 01 1 1110- ● ●
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-041-1 01 1 0504-1109 ●
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-041-1 01 1 1110- ● ●
110 RING; SNAP,COUNTER BRG
ID=46.3 		1-09588-047-0 01 1 0504-1109 ●
110 RING; SNAP,COUNTER BRG
ID=46.3 		1-09588-047-0 01 1 1110- ● ●
118 GEAR; 6TH,COUNTER
Z=55 		1-33332-103-1 01 1 1110- ●
121 HUB; CLU,6TH 1-33261-270-0 01 1 0504-1109 ●
121 HUB; CLU,6TH 1-33261-270-0 01 1 1110- ● ●
124 SPRING; PLUNGER,CLU HUB
D=3.8 		1-09580-395-0 03 1 0504-1109 ●
124 SPRING; PLUNGER,CLU HUB
D=3.8 		1-09580-395-0 03 1 1110- ● ●
128 WASHER; THRUST,REV SHAFT
ID=38.5 T=42 		1-33239-079-1 01 1 0504-1109 ●
128 WASHER; THRUST,REV SHAFT
ID=38.5 T=42 		1-33239-079-1 01 1 1110- ● ●
128 WASHER; THRUST,REV SHAFT
ID=38.5 T=2 		1-33363-024-1 01 1 0504-1109 ●
128 WASHER; THRUST,REV SHAFT
ID=38.5 T=2 		1-33363-024-1 01 1 1110- ● ●
129 BEARING; NEEDLE,IDLER
JTEKT 		1-09811-102-0 02 1 0504-1109 ●
129 BEARING; NEEDLE,IDLER
JTEKT 		1-09811-102-0 02 1 1110- ● ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-103-0 02 1 0504-1109 ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-103-0 02 1 1110- ● ●
130 COLLAR; DIST,NEEDLE BRG 1-33363-023-0 01 1 0504-1109 ●
130 COLLAR; DIST,NEEDLE BRG 1-33363-023-0 01 1 1110- ● ●
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-384-0 01 1 0504-1109 ●
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-384-0 01 1 1110- ● ●
132 SHAFT; REV 1-33351-017-0 01 1 0504-1109 ●
132 SHAFT; REV 1-33351-017-0 01 1 1110- ● ●
135 GEAR; REV IDLER
Z=30-25 		1-33361-063-0 01 1 0504-1109 ●
135 GEAR; REV IDLER
Z=30-25 		1-33361-063-0 01 1 1110- ● ●
172 RING; SNAP,CLU HUB
ID=130 T=2.5 		1-09588-040-0 01 1 0504-1109 ●
172 RING; SNAP,CLU HUB
ID=130 T=2.5 		1-09588-040-0 01 1 1110- ● ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-153-1 01 1 0504-1109 ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-153-1 01 1 1110- ● ●
