◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#65894) — 31 parça

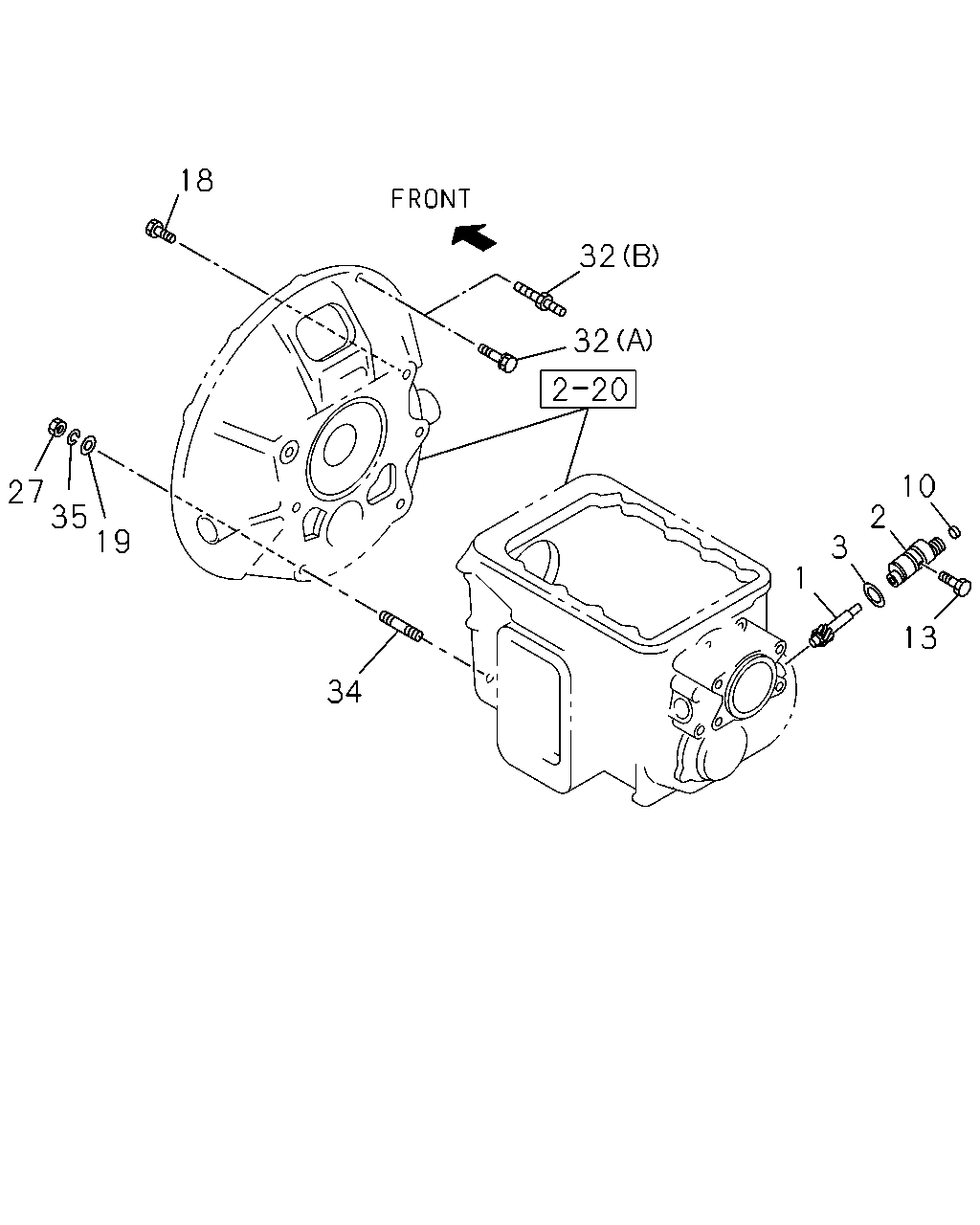

çizim 108051
18 27 35 19 34 32 32 10 2 3 1 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0504-1109 ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 1110- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 0504-1109 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 1110- ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 0504-1109 ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 1110- ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0504-1109 ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 1110- ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0504-0805 ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806-1109 ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 1110- ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 0504-0512 ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50651-640-0 06 1 0601-1109 ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50651-640-0 06 1 1110- ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 0504-0605 ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0606-1109 ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 1110- ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 0504-0512 ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0601-1109 ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 1110- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28781-030-0 10 1 0504-0512 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28751-030-0 10 1 0601-1109 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28751-030-0 10 1 1110- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0504-0805 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56 		8-98010-334-0 02 1 0806-1109 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56 		8-98010-334-0 02 1 1110- ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 0504-1109 ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 1110- ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 0504-0603 ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0604-1109 ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 1110- ● ●
