◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#65893) — 63 parça

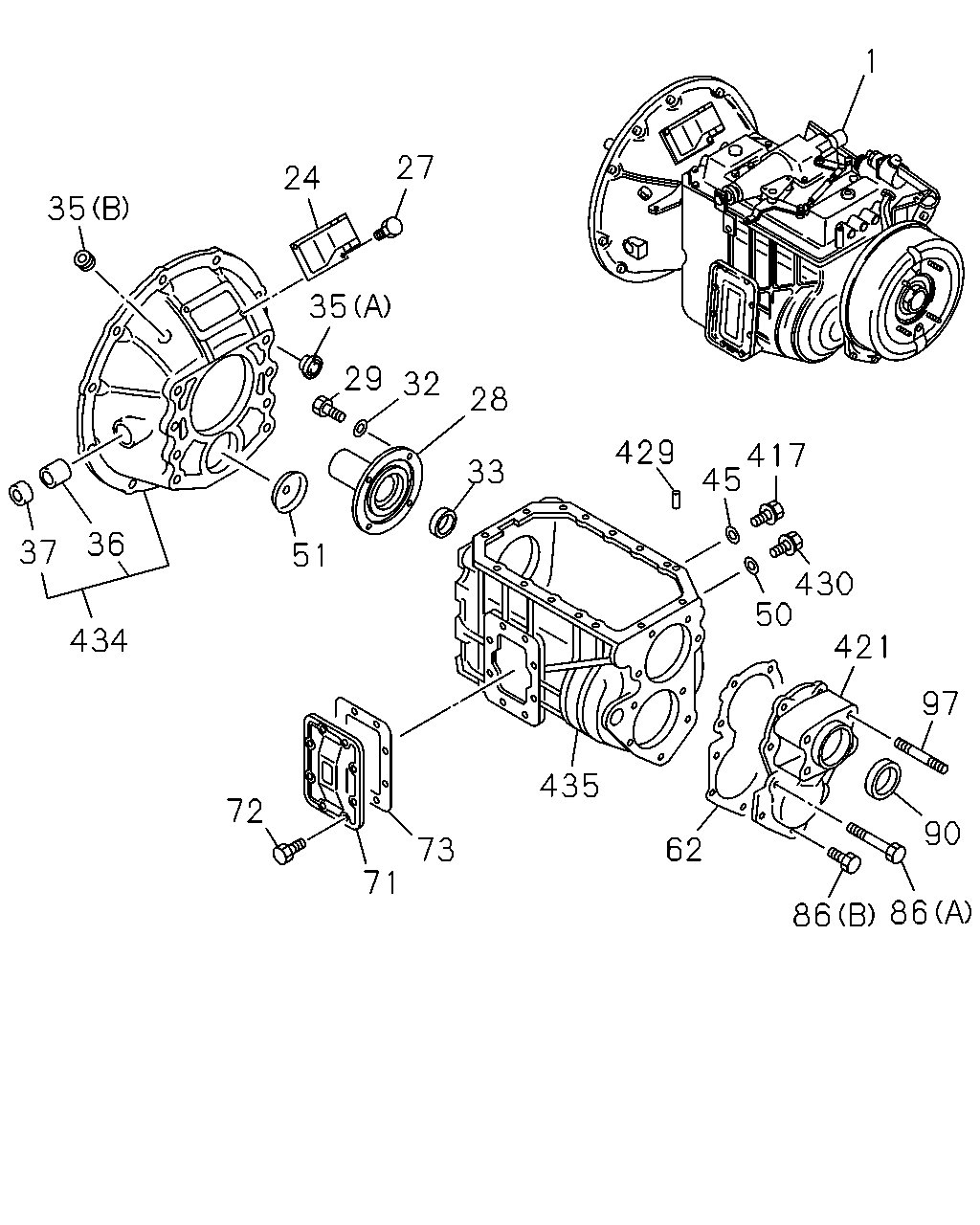

çizim 103377
1 429 417 45 430 421 50 97 90 86 86 62 435 73 71 72 434 36 37 35 24 27 35 29 51 33 28 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL 1-33043-918-0 01 1 1110- ●
1 TRANSMISSION ASM; MANUAL 1-33041-548-0 01 1 0504- ●
24 COVER; CHECK HOLE,DUST 1-31131-041-0 01 1 0504-1109 ●
24 COVER; CHECK HOLE,DUST 1-31131-041-0 01 1 1110-1410 ● ●
24 COVER; CHECK HOLE,DUST 8-98284-107-0 01 1 1411- ● ●
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28080-816-0 02 1 0504-0512 ●
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 02 1 0601-1109 ●
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 02 1 1110- ● ●
28 COVER; FRT,TRANS CASE 1-33121-105-0 01 1 0504-1109 ●
28 COVER; FRT,TRANS CASE 1-33121-105-0 01 1 1110- ● ●
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0504-0805 ●
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		8-97365-375-0 04 1 0806-1109 ●
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1110- ● ●
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 04 1 0504-1109 ●
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 04 1 1110- ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-498-0 01 1 0504-1109 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-498-0 01 1 1110- ● ●
35 GROMMET; CLU HSG
(A) OD=15 T=6.6 		8-97037-246-0 01 1 0504-1109 ●
35 GROMMET; CLU HSG
(A) OD=15 T=6.6 		8-97037-246-0 01 1 1110- ● ●
35 GROMMET; CLU HSG
(B) OD=31 		9-09575-796-0 01 1 0504-1109 ●
35 GROMMET; CLU HSG
(B) OD=31 		9-09575-796-0 01 1 1110- ● ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-002-1 02 1 0504-1109 ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-002-1 02 1 1110- ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 0504-1109 ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 1110- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0504-1109 ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 1110- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0504-1109 ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 1110- ● ●
51 COVER; SEAL,COUNTER,FRT 1-33319-107-1 01 1 0504-1109 ●
51 COVER; SEAL,COUNTER,FRT 1-33319-107-1 01 1 1110- ● ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33132-045-2 01 1 0504-1109 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33132-045-2 01 1 1110- ● ●
71 COVER; SIDE,TRANS CASE 1-33141-033-0 01 1 0504-1109 ●
71 COVER; SIDE,TRANS CASE 1-33141-033-0 01 1 1110- ● ●
72 BOLT; SIDE COVER
M10X16 FLANGE 		0-28181-016-0 08 1 0504-0512 ●
72 BOLT; SIDE COVER
M10X16 FLANGE 		0-28151-016-0 08 1 0601-1109 ●
72 BOLT; SIDE COVER
M10X16 FLANGE 		0-28151-016-0 08 1 1110- ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-036-0 01 1 0504-1109 ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-036-0 01 1 1110- ● ●
86 BOLT; RR COVER
(B) M17X35 		1-09044-076-0 08 1 0504-1109 ●
86 BOLT; RR COVER
(B) M17X35 		1-09044-076-0 08 1 1110- ● ●
86 BOLT; RR COVER
(A) M12X60 		1-09044-084-0 01 1 0504-1109 ●
86 BOLT; RR COVER
(A) M12X60 		1-09044-084-0 01 1 1110- ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-513-0 01 1 0504-1109 ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-513-0 01 1 1110- ● ●
97 STUD; PARKING BRK
M14X27 L=49 		1-09302-099-1 03 1 0504-1109 ●
97 STUD; PARKING BRK
M14X27 L=49 		1-09302-099-1 03 1 1110- ● ●
97 STUD; PARKING BRK
M14X27 L=49 		1-09302-099-1 01 1 0504-1109 ●
97 STUD; PARKING BRK
M14X27 L=49 		1-09302-099-1 01 1 1110- ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 0504-1109 ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 1110- ● ●
421 COVER; RR,TRANS 1-33131-177-1 01 1 0504-1109 ●
421 COVER; RR,TRANS 1-33131-177-1 01 1 1110- ● ●
429 PIN; STRAIGHT
OD=10 L=18 		9-08151-018-0 02 1 0504-1109 ●
429 PIN; STRAIGHT
OD=10 L=18 		9-08151-018-0 02 1 1110- ● ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 0504-1109 ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 1110- ● ●
434 HOUSING; CLU 1-31110-169-0 01 1 0504-1109 ●
434 HOUSING; CLU 1-31110-169-0 01 1 1110- ● ●
435 CASE; TRANS 8-97381-568-0 01 1 0504-0802 ●
435 CASE; TRANS 1-33111-355-0 01 1 0803-1109 ●
435 CASE; TRANS 1-33111-355-0 01 1 1110- ● ●
