◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#65891) — 13 parça

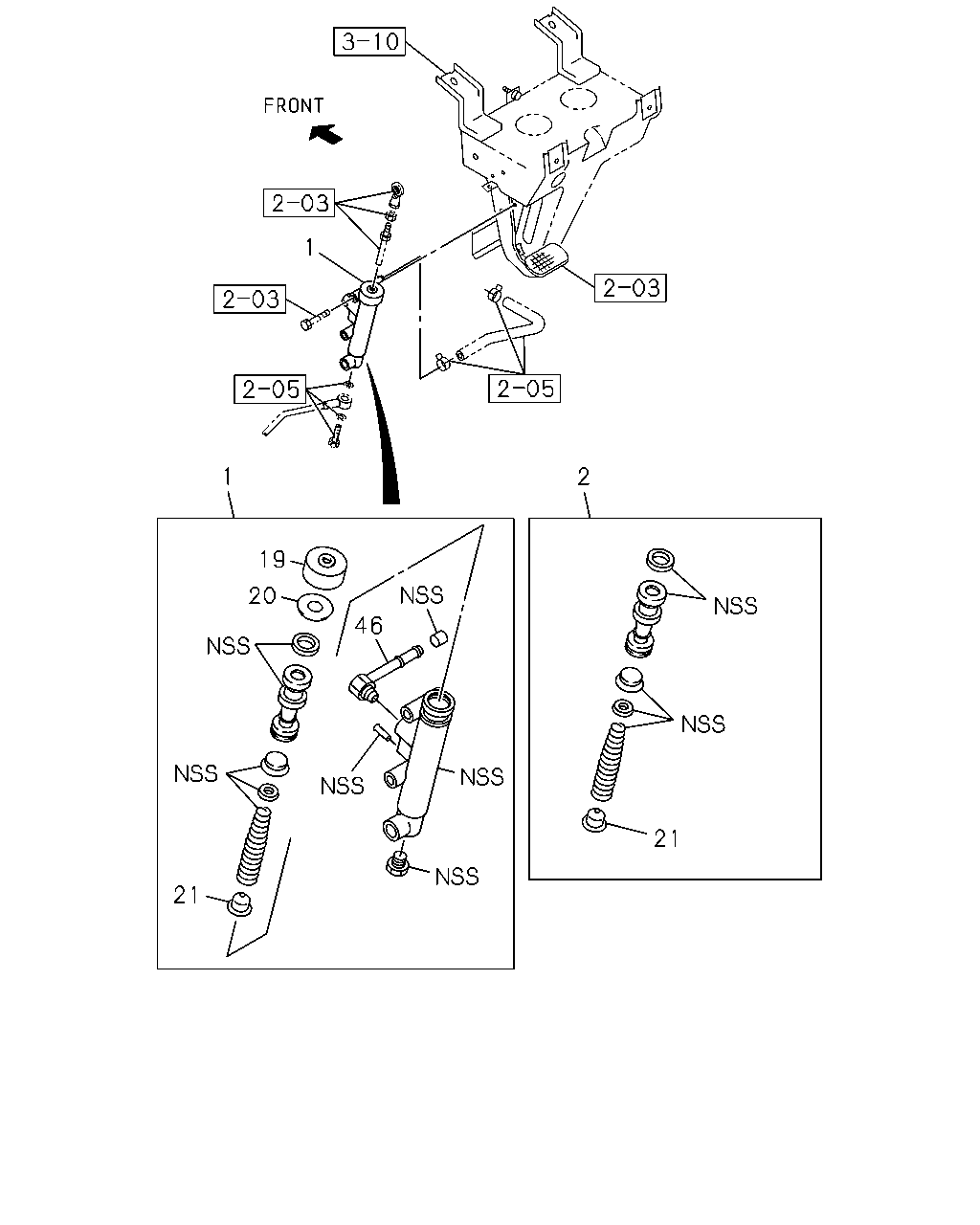

çizim 191819
21 46 2 21 20 19 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0504-0512 ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-255-0 01 1 0601-1411 ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-255-0 01 1 1412- ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0504-0512 ●
2 REPAIR KIT; CLU M/CYL 1-85576-418-0 01 1 0601-1411 ●
2 REPAIR KIT; CLU M/CYL 1-85576-418-0 01 1 1412- ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0504-1411 ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 1412- ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0504-1411 ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 1412- ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 0504-0512 ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0504-1411 ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 1412- ● ●
