◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#65890) — 22 parça

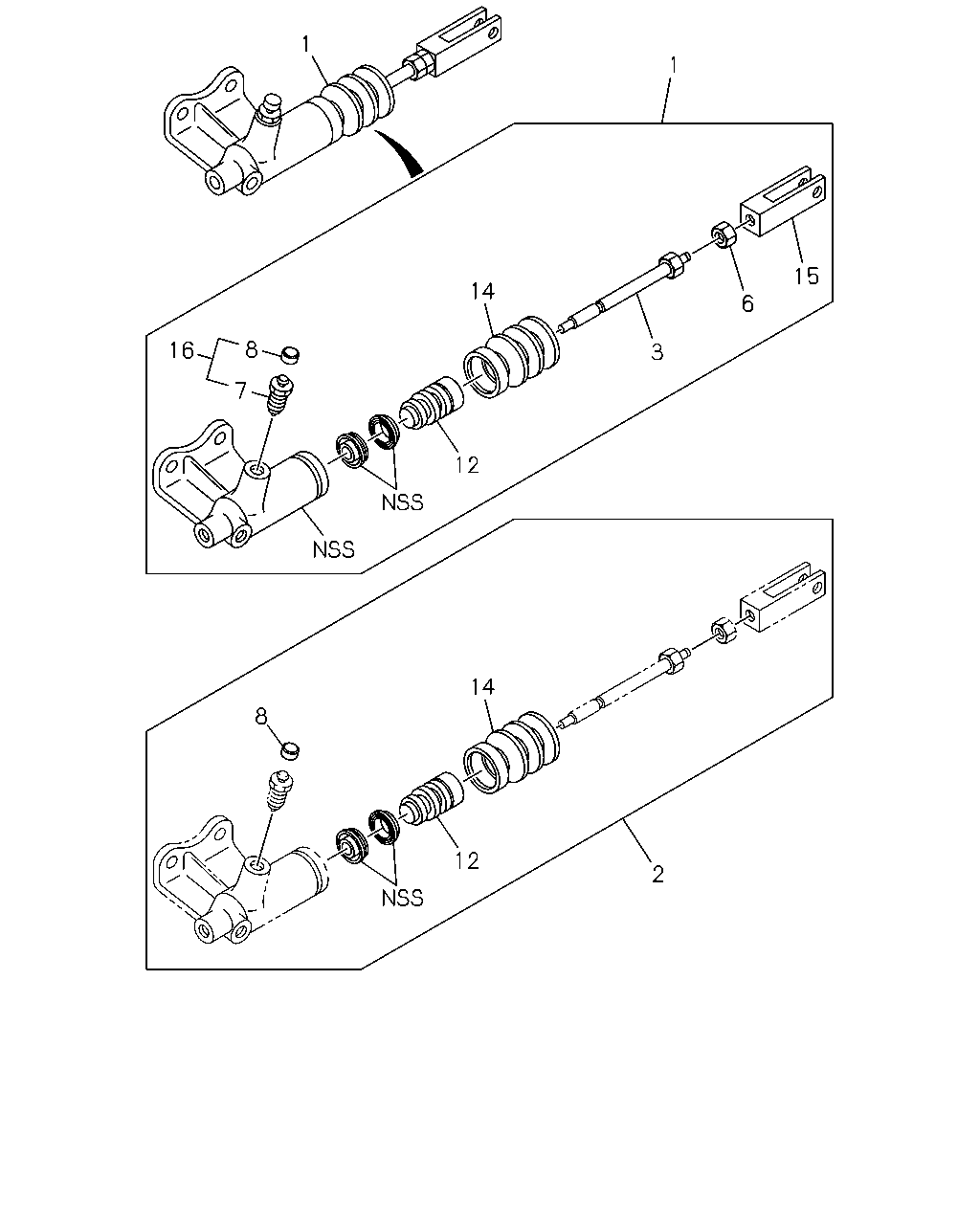

çizim 101708
1 1 15 6 3 14 8 7 16 12 14 12 2 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; SLAVE,CLU 1-47570-050-2 01 1 0504-1109 ●
1 CYLINDER; SLAVE,CLU 1-47570-050-3 01 1 1110- ● ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-0 01 1 0504-1109 ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-1 01 1 1110- ● ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 0504-1109 ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 1110- ● ●
6 NUT; LK,ROD END
M10 		9-09111-410-0 01 1 0504-0512 ●
6 NUT; LK,ROD END
M10 		0-91111-510-0 01 1 0601-1109 ●
6 NUT; LK,ROD END
M10 		0-91111-510-0 01 1 1110- ● ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 0504-1109 ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 1110- ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 0504-1109 ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 1110-1209 ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1210- ● ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 0504-1109 ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 1110- ● ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 0504-1109 ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 1110- ● ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 0504-1109 ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 1110- ● ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 0504-1109 ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 1110- ● ●
