2-05 — CLUTCH PIPING (#65889) — 198 parça

101 180 184 50 50 50 133 94 185 17 27 66 67 67 58 57 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0504-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-1411	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0504-1411	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1412-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0504-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-1411	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0504-1411	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1412-	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0504-1411	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	1412-	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0504-0512	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-1411	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	1412-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0504-1411	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	1412-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0504-1411	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1412-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0504-0805	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-1411	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1412-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0504-1312	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1411	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1412-	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0504-0605	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-1411	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	1412-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0504-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-1411	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	1412-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0504-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-1411	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	1412-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0504-	●
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	1412-		●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0504-	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0504-1411	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	1412-	●	●

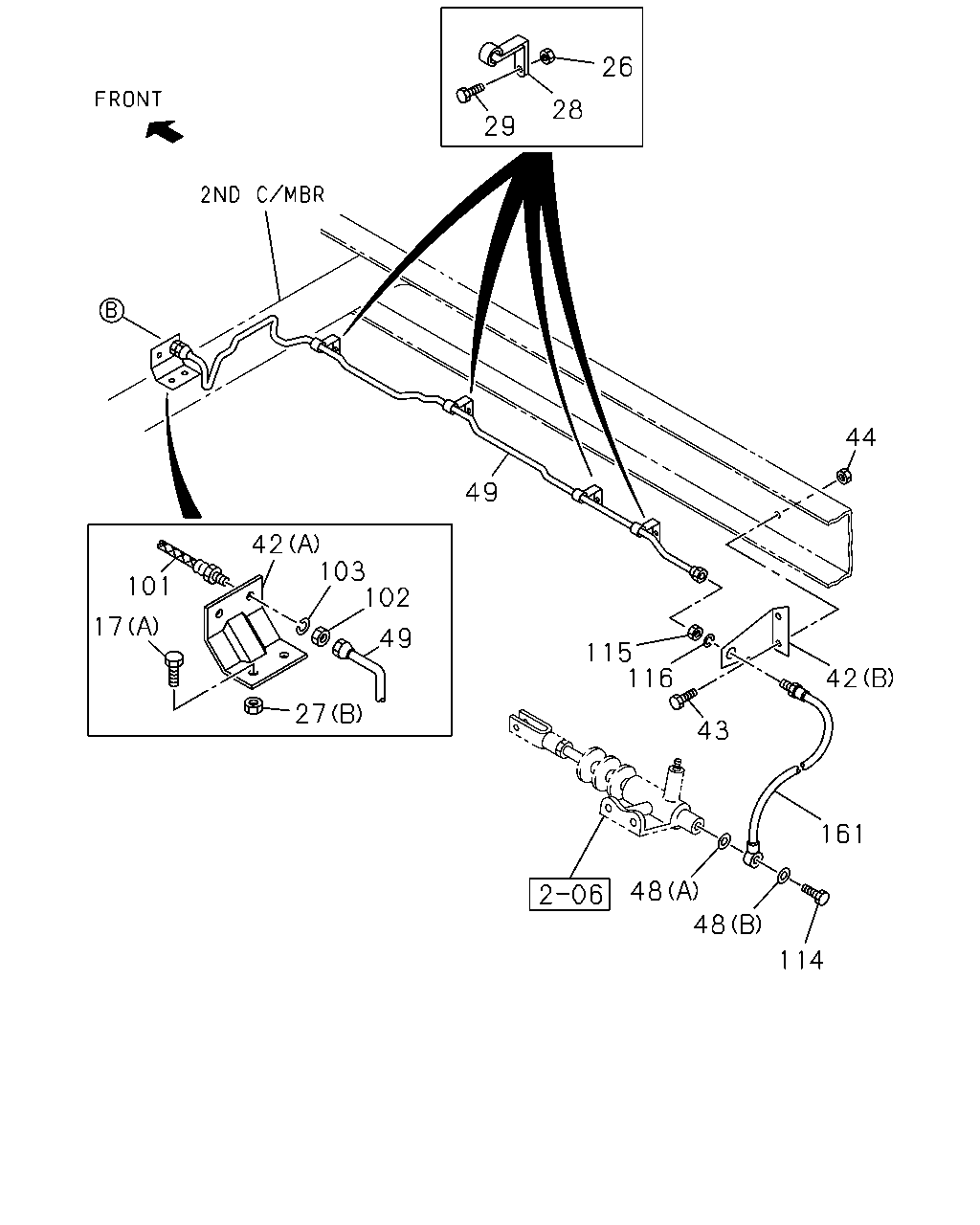

26 28 29 49 44 115 116 43 161 114 48 48 27 102 49 103 42 101 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0504-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-1411	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0504-1411	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1412-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	1412-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0504-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0504-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0504-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-1411	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0504-1411	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1412-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	1412-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0504-	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0504-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0504-0512	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-1411	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1412-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0504-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-1411	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1412-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	1412-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0504-1411	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	1412-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0504-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-1411	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1412-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0504-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-1411	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	0504-1411	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	1412-	●	●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0504-1411	●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	1412-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	0504-1411	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	1412-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0504-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-1411	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	1412-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0504-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-1411	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1412-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0504-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-1411	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1412-	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	0504-1411	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	1412-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0504-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-1411	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1412-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0504-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-1411	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1412-	●	●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	0504-1411	●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	1412-	●	●

101 184 50 167 94 50 133 187 50 167 13 36 27 27 36 67 67 66 17 185 58 57 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	1412-		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0504-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-1411	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0504-1411	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1412-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0504-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-1411	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0504-1411	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1412-	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	1412-		●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0504-1411	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	1412-	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0504-0512	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-1411	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	1412-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0504-1411	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	1412-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0504-1411	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1412-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0504-0805	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-1411	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1412-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0504-1312	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1411	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1412-	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0504-0605	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-1411	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	1412-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0504-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-1411	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	1412-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0504-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-1411	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	1412-	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	1412-		●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	1412-		●
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	1412-		●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0504-	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0504-1411	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	1412-	●	●
187	SEAL; BRKT	1-79738-190-0	01	1	1412-		●

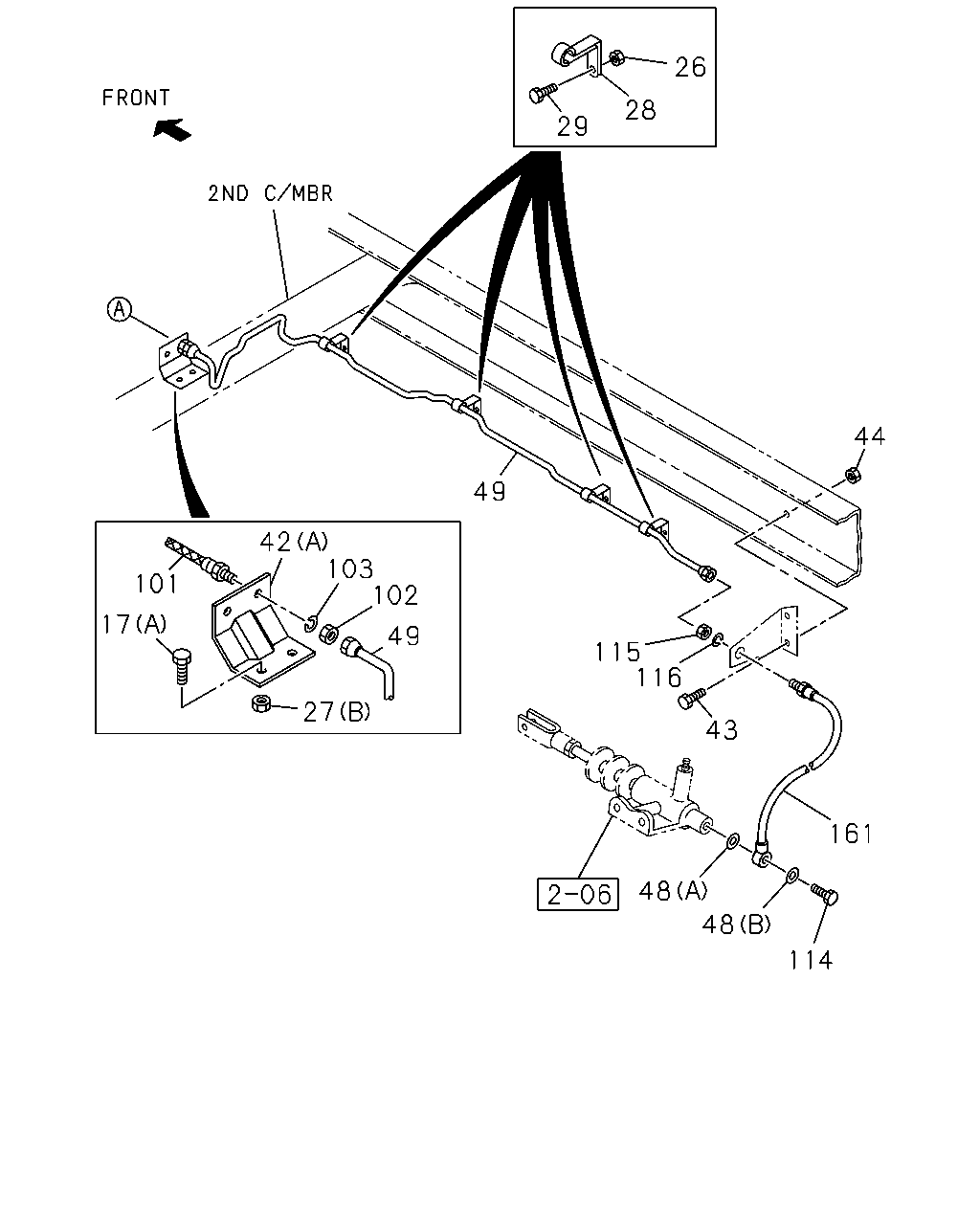

29 28 26 49 44 115 116 43 161 42 114 48 48 27 49 102 103 42 101 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0504-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-1411	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0504-1411	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1412-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	1412-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0504-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0504-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0504-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-1411	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0504-1411	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1412-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	1412-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0504-	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0504-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0504-0512	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-1411	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1412-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0504-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-1411	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1412-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	1412-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0504-1411	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	1412-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0504-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-1411	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1412-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0504-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-1411	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	0504-1411	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	1412-	●	●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0504-1411	●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	1412-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	0504-1411	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	1412-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0504-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-1411	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	1412-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0504-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-1411	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1412-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0504-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-1411	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1412-	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	0504-1411	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	1412-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0504-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-1411	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1412-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0504-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-1411	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1412-	●	●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	0504-1411	●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	1412-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
