2-03 — CLUTCH PEDAL AND CONTROL (#65888) — 55 parça

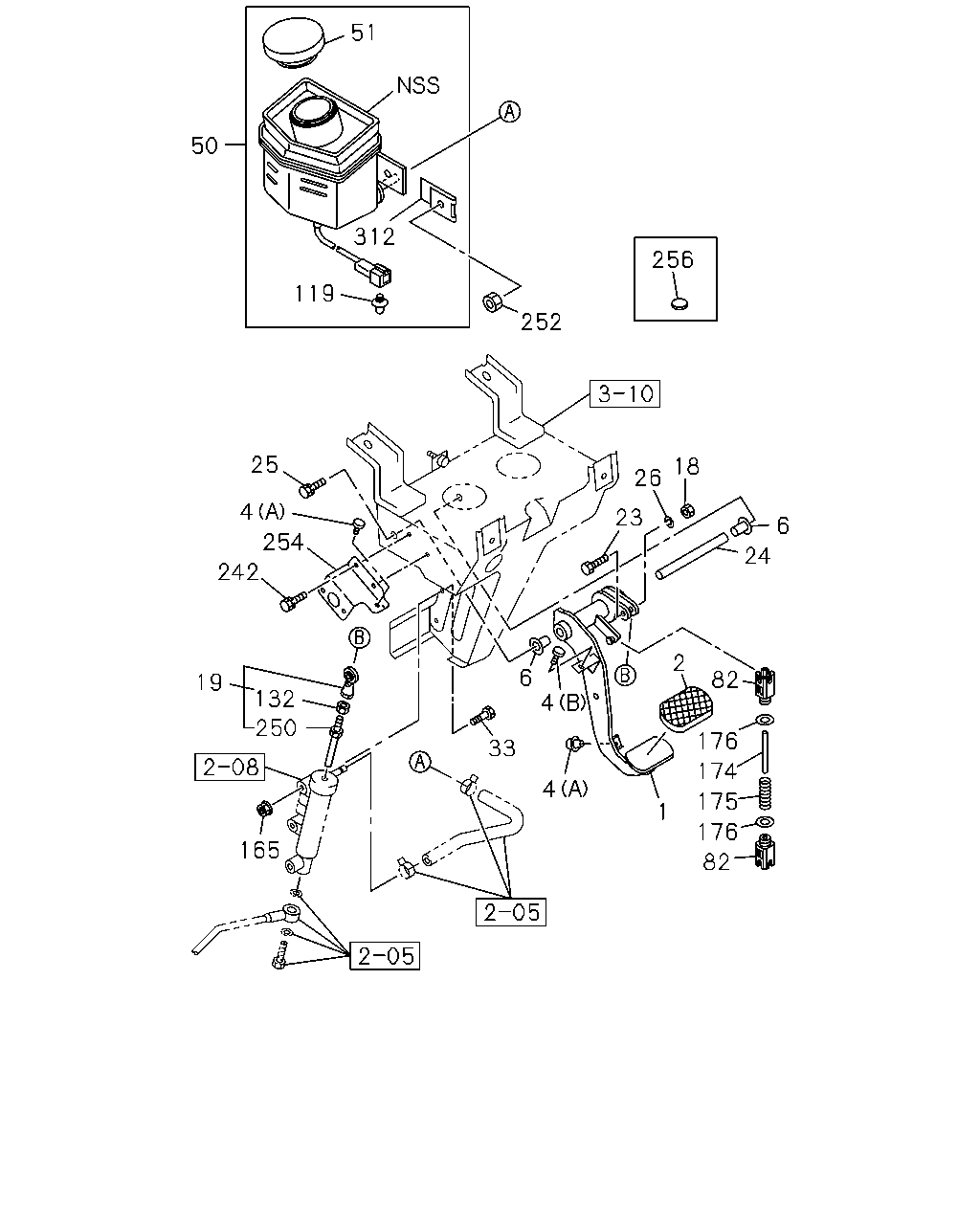

çizim 97641
33 4 1 82 176 175 174 176 82 2 4 6 250 19 132 242 254 25 4 23 24 26 18 6 252 119 50 312 51 165 256
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-73908-331-2 01 1 0504-1411 ●
1 PEDAL; CLU 1-73908-331-2 01 1 1412- ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0504-1411 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1412- ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 0504-1411 ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 1412- ● ●
4 STOPPER; CLU PEDAL
(B) 		1-73908-088-1 01 1 0504-1411 ●
4 STOPPER; CLU PEDAL
(B) 		1-73908-088-1 01 1 1412- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0504-1411 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1412- ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0504-1411 ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 1412- ● ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 0504-1411 ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 1412- ● ●
23 BOLT; PUSH ROD
M8X43.7 		1-73908-333-0 01 1 0504-1411 ●
23 BOLT; PUSH ROD
M8X43.7 		1-73908-333-0 01 1 1412- ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0504-1411 ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 1412- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0504-1411 ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 1412- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0504-1411 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 1412- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 0504-1411 ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 1412- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0504-1411 ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 1412- ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0504-1411 ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 1412- ● ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 0504-1411 ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 1412- ● ●
119 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 0504-1411 ●
119 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 1412- ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0504-1411 ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 1412- ● ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91150-210-0 02 1 0504-0602 ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91180-210-0 02 1 0603-1411 ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91180-210-0 02 1 1412- ● ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 0504-1411 ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 1412- ● ●
175 SPRING; HELPER 1-73908-052-0 01 1 0504-1411 ●
175 SPRING; HELPER 1-73908-052-0 01 1 1412- ● ●
176 SEAT; SPRING 1-09503-114-0 02 1 0504-1411 ●
176 SEAT; SPRING 1-09503-114-0 02 1 1412- ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 0504-1411 ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 1412- ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0504-1411 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1412- ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0504-1411 ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1412- ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 0504-1411 ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 1412- ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0504-1411 ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1412- ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0504-1411 ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 1412- ● ●
