2-01 — CLUTCH (#65887) — 101 parça

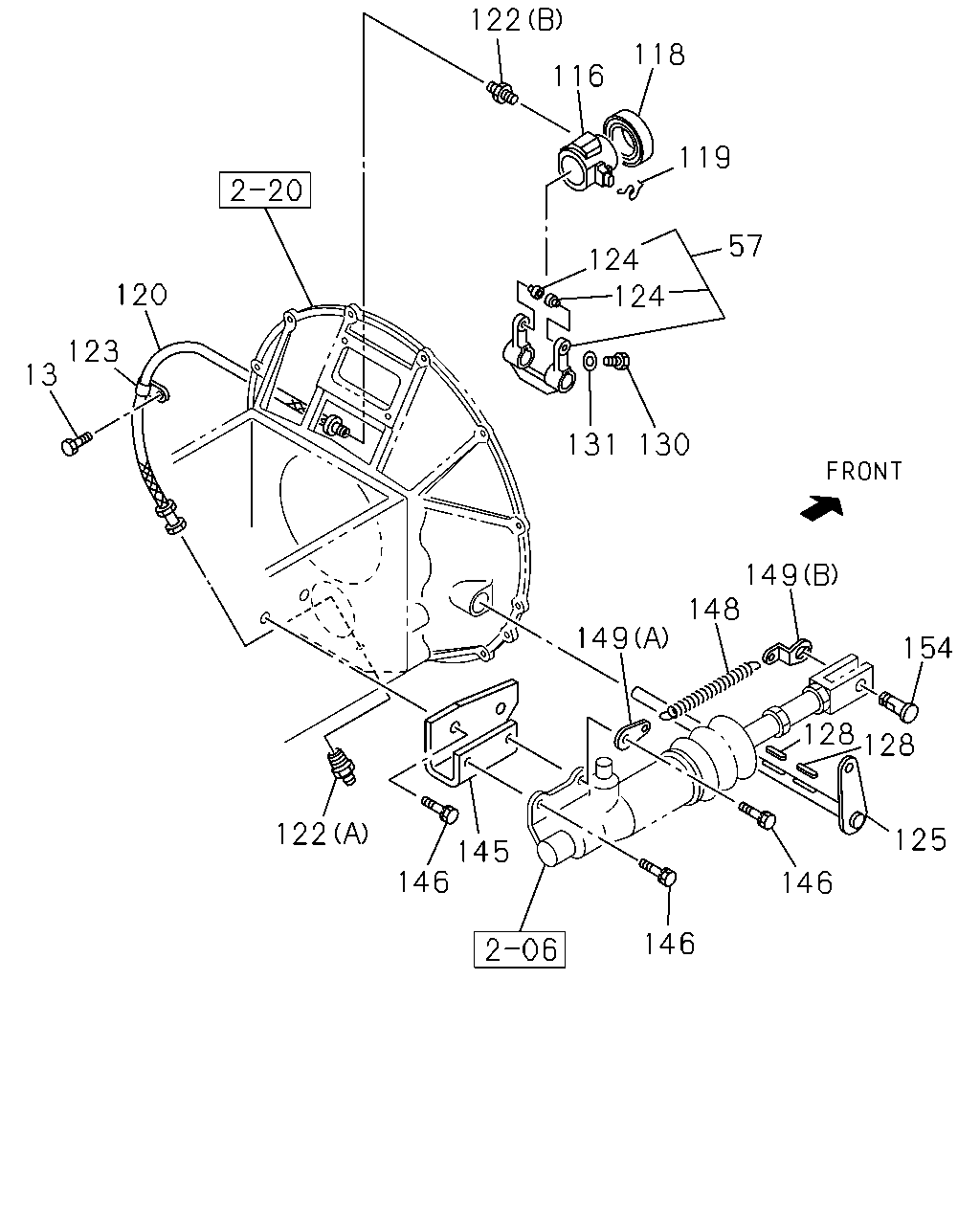

146 146 125 128 128 146 122 145 149 148 130 131 149 154 124 124 57 119 118 116 122 120 123 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0504-0512	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-1109	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1110-	●	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	0504-1109	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	1110-	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	0504-1109	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	1110-	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0504-1109	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	1110-	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	1110-	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0504-1109	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	1110-	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0504-1109	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	1110-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0504-1109	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	1110-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0504-1109	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	1110-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0504-0512	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-1109	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	1110-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0504-0606	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-1109	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	1110-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0504-1109	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	1110-	●	●
125	SHAFT; CLU	1-31342-298-1	01	1	0504-1109	●
125	SHAFT; CLU	1-31342-298-1	01	1	1110-	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0504-1109	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1110-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0504-0512	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-1109	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1110-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0504-0603	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-1109	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1110-	●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-058-0	01	1	0504-1109	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-058-0	01	1	1110-	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	0504-0512	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28151-025-0	04	1	0601-1109	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28151-025-0	04	1	1110-	●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	0504-1109	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	1110-	●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	0504-1109	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	1110-	●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	0504-1109	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	1110-	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0504-1109	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1110-	●	●

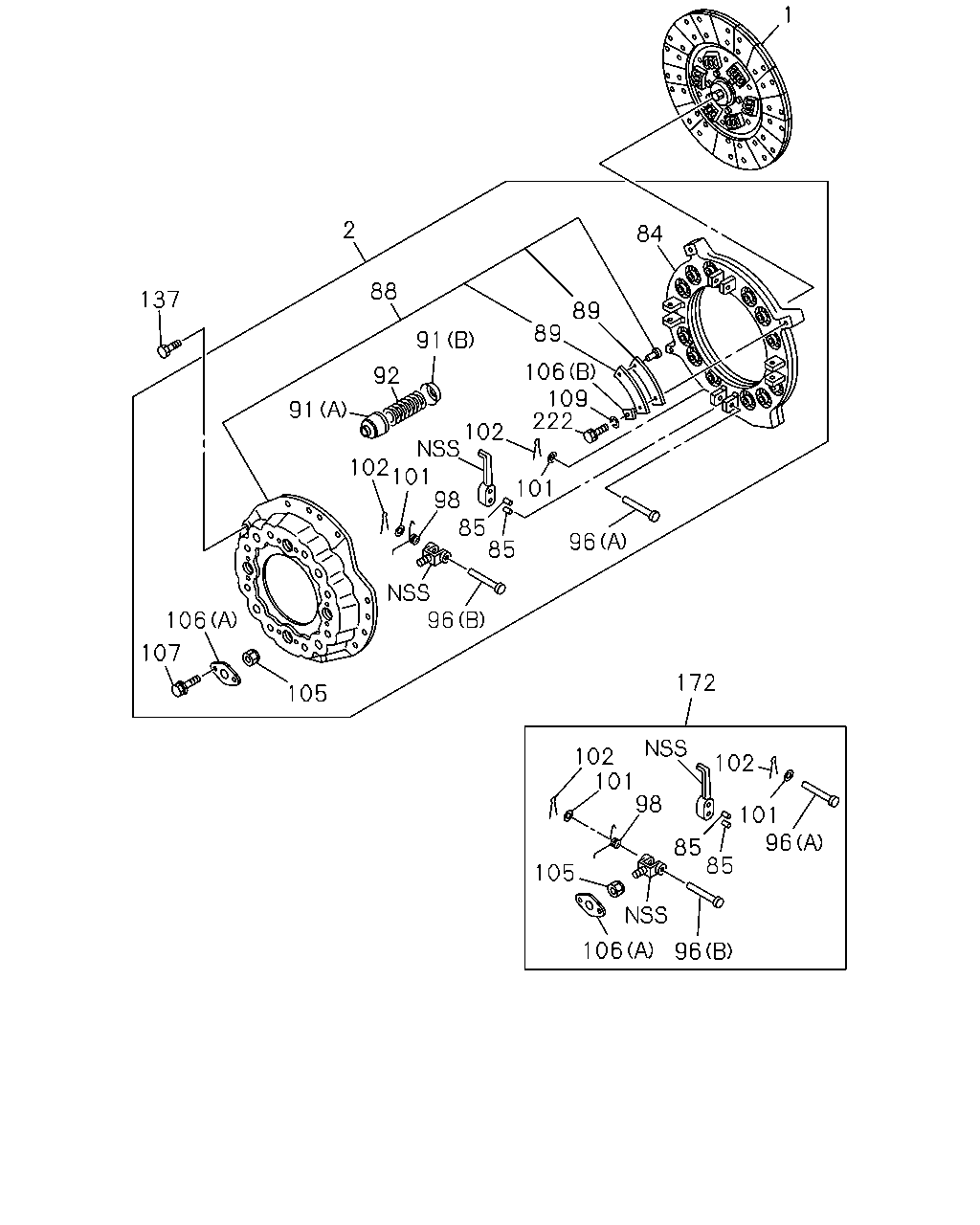

96 85 106 105 102 101 98 85 96 101 102 172 96 85 96 105 107 106 102 85 101 98 101 102 222 109 106 89 89 91 92 91 137 2 88 84 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0504-1109	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	1110-	●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	1110-	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-2	01	1	0504-1005	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1006-1109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1110-	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-144-0	01	1	1110-	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	0504-1109	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	1110-	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0504-1109	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1110-	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	0504-1109	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	1110-	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	0504-1109	●
89	PLATE; STRAP	1-31229-001-0	08	1	1110-	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0504-1005	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-1109	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1110-	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0504-1005	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-1109	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1110-	●	●
92	SPRING; CLU	1-31214-088-0	12	1	0504-1005	●
92	SPRING; CLU	1-31214-060-0	08	1	1006-1109	●
92	SPRING; CLU	1-31214-060-0	08	1	1110-	●	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	0504-1109	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	1110-	●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	0504-1109	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	1110-	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0504-1109	●
98	SPRING; RETURN	1-31233-003-0	04	1	1110-	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0504-1109	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	1110-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0504-1109	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	1110-	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0504-1109	●
105	NUT; SUPPORT	1-31235-014-0	04	1	1110-	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0504-1109	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	1110-	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0504-1109	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1110-	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0504-1109	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	1110-	●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	0504-0603	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0604-1109	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	1110-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0504-0512	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-1109	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1110-	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0504-1109	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	1110-	●	●
222	BOLT; STRAP	1-31239-059-0	04	1	0504-1109	●
222	BOLT; STRAP	1-31239-059-0	04	1	1110-	●	●
