◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#65884) — 100 parça
çizim 96445
36 107 107 94 75 75 121 97 34 81 81 105
BalonParca AdiParca NoAdetTipApplied Date A B
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0504-1411 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1412- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0504-1411 ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 1412- ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 1412- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0504- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0504- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 0504-1411 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 1412- ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 1412- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 02 1 1412- ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0504-0602 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 0504-0602 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 06 1 1412- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0504-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0504-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 06 1 1412- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0504- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0504- ●
105 NUT; CLAMP
M10 		0-91110-510-0 06 1 1412- ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0504-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 0504-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601- ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0504-0512 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0504-0512 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-1411 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-1411 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1412- ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1412- ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 02 1 0504-0512 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-1411 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1412- ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 1412- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0504-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0504-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●

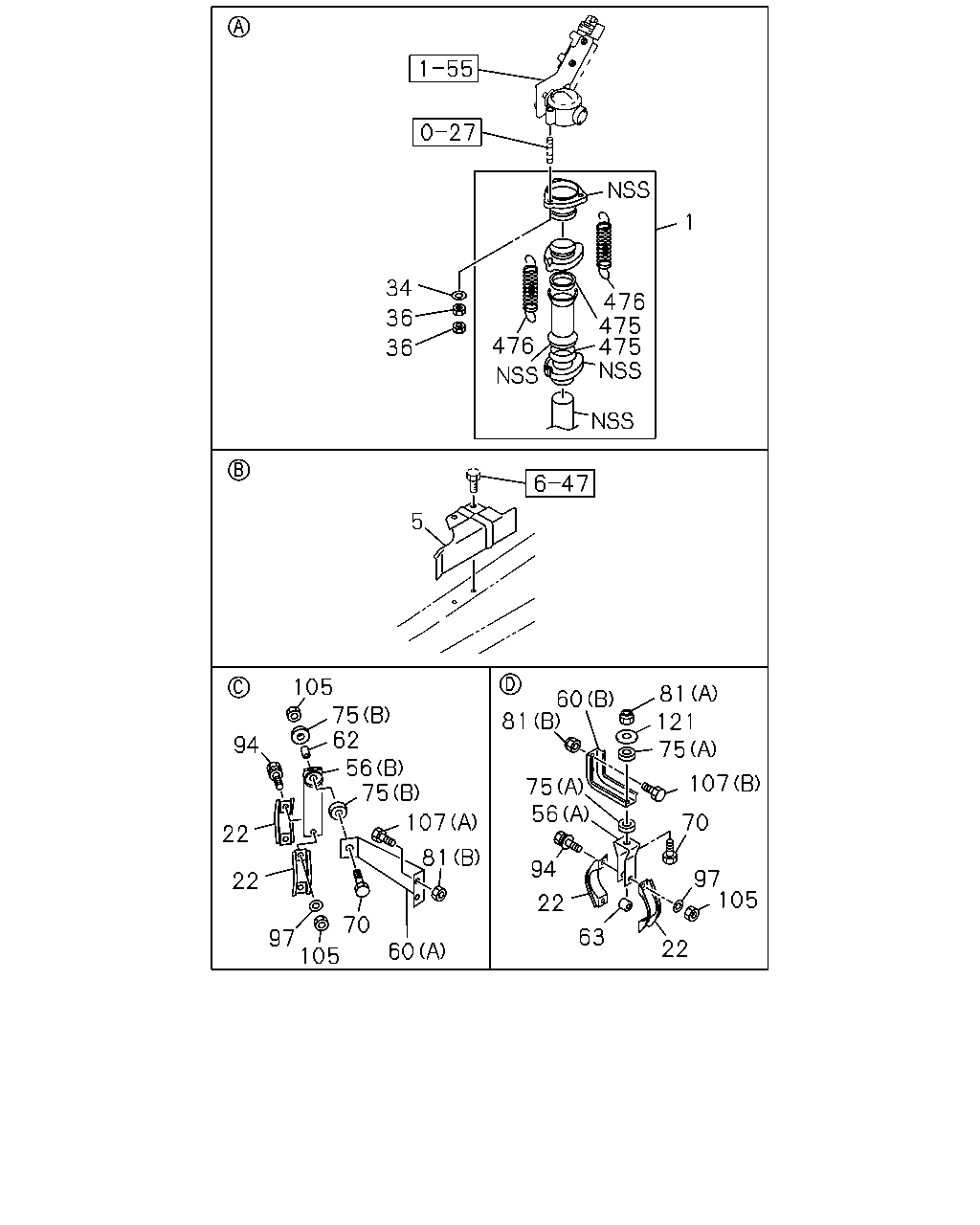

çizim 467446
63 22 22 105 97 70 94 56 75 107 75 121 81 60 81 81 60 70 105 97 22 22 94 105 75 62 56 75 107 5 36 36 34 476 475 475 476 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22122-402-1 01 1 1412- ●
5 PROTECTOR; HEAT 1-33659-182-1 01 1 1412- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 06 1 1412- ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0504-1411 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1412- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0504-1411 ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 1412- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) L=254 		1-22131-527-1 01 1 1412- ●
56 BRACKET; CLAMP,EXH PIPE
(A) H=112 		1-22139-043-0 01 1 1412- ●
56 BRACKET; CLAMP,EXH PIPE
(A) H=119 		1-22139-060-0 01 1 1412- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-514-0 01 1 1412- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-512-3 02 1 1412- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 1412- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 02 1 1412- ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 03 1 1412- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 1412- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0504- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0504- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 0504-1411 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 1412- ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 1412- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 02 1 1412- ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0504-0602 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 0504-0602 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 06 1 1412- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0504-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0504-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 06 1 1412- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0504- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0504- ●
105 NUT; CLAMP
M10 		0-91110-510-0 06 1 1412- ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0504-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 0504-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601- ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0504-0512 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0504-0512 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-1411 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-1411 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1412- ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1412- ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 02 1 0504-0512 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-1411 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1412- ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 1412- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0504-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0504-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 1412- ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 1412- ●

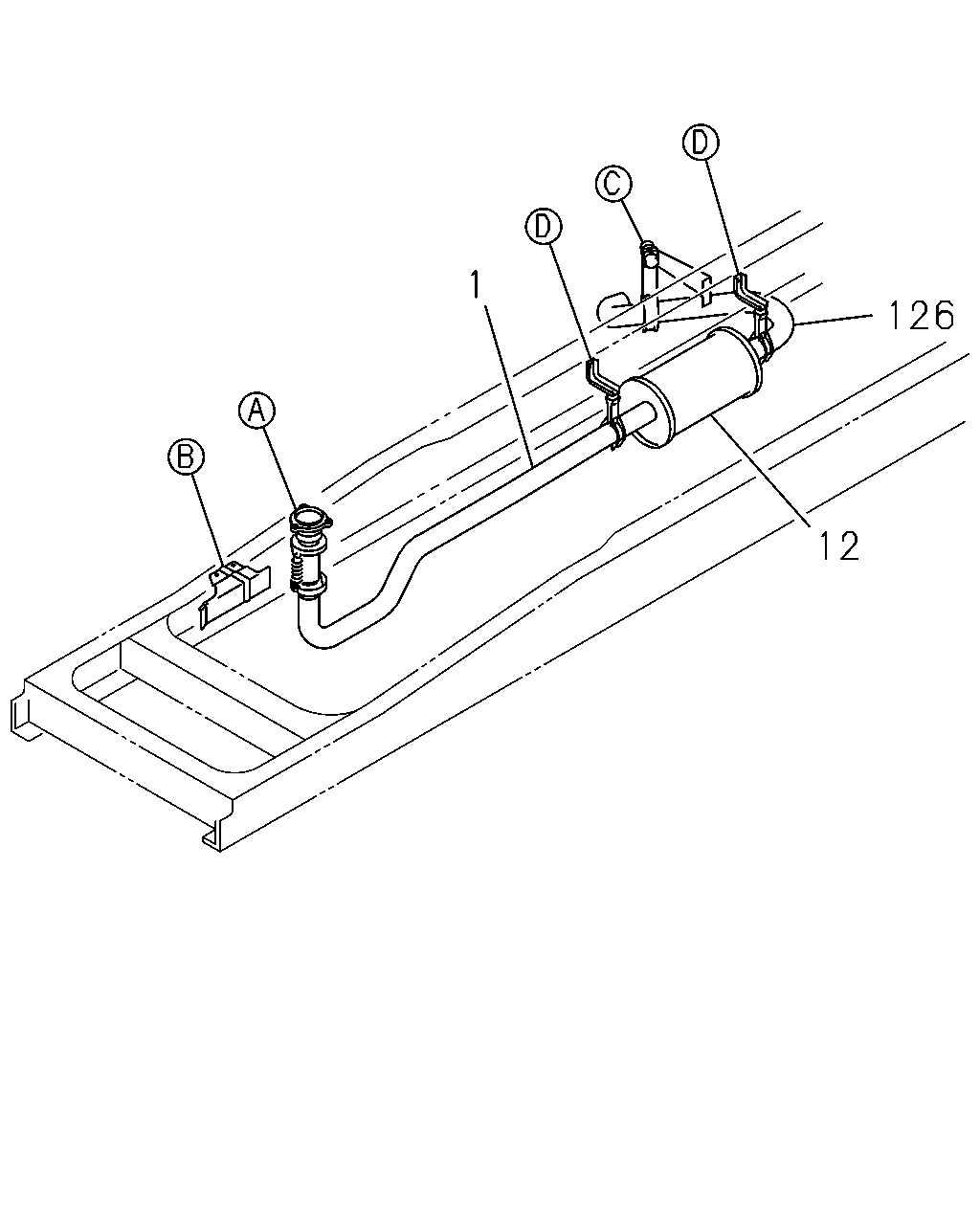

çizim 467460
1 126 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22122-402-1 01 1 1412- ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 1412- ●
126 PIPE; EXH,RR 1-22126-030-1 01 1 1412- ●
