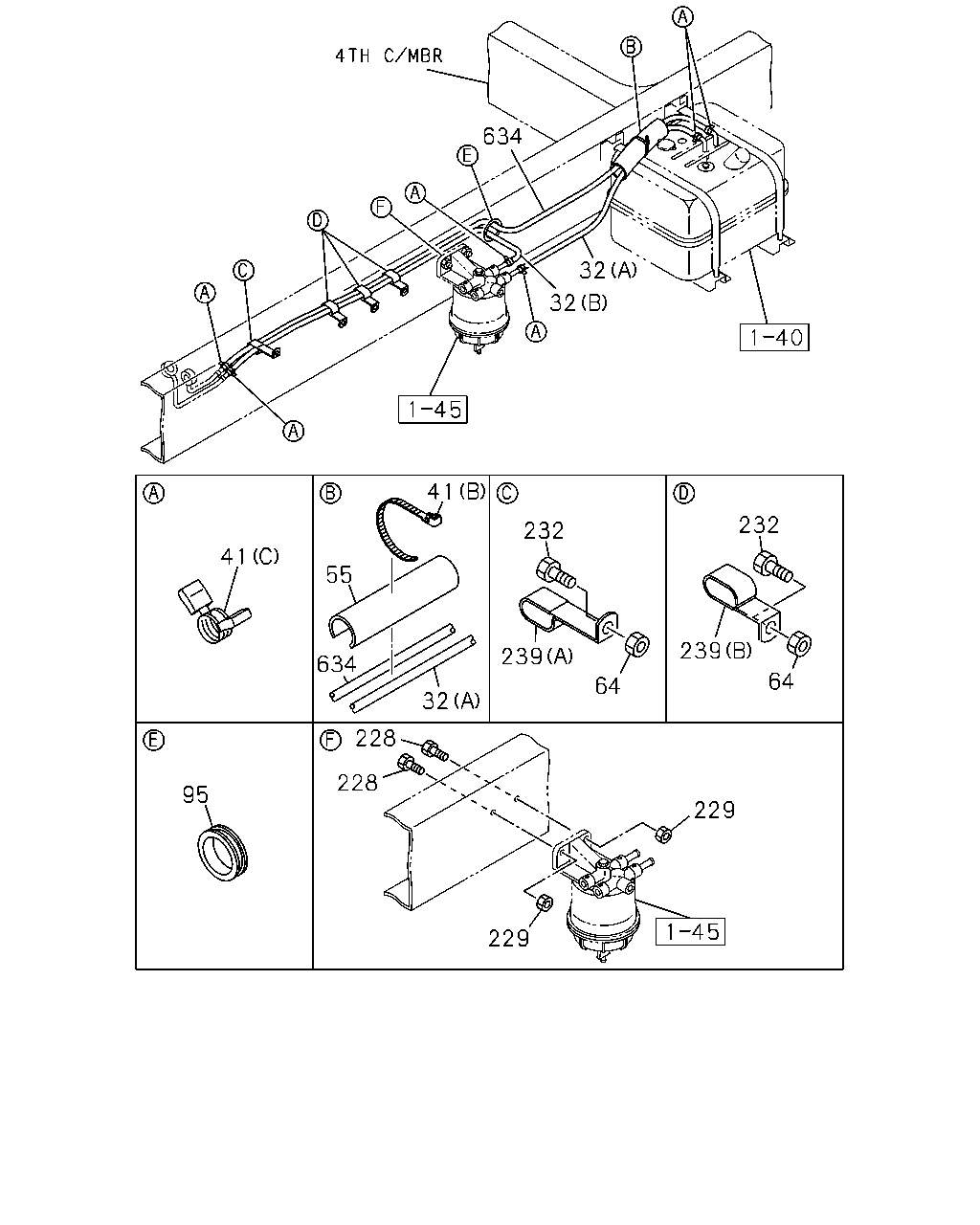

32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=980
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1508- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=2200
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1508- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1412- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1412- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(C)
SERVICED BY L=10000
|
0-01260-000-0 |
01 |
1 |
0504-0601 |
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(C)
L=400
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0504- |
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
SERVICED BY L=10000
|
0-01260-000-0 |
01 |
1 |
0504-0601 |
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
L=400
SERVICED BY L=10000
|
1-09366-161-0 |
01 |
1 |
0504- |
|
● |
| |
37 |
HOSE; RUBBER DELIVERY
SERVICED BY L=10000
|
0-01260-000-0 |
01 |
1 |
0602- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
1412- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0504-1411 |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
1412- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=15
|
9-09715-098-0 |
08 |
1 |
0504- |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0504-1411 |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
1412- |
● |
● |
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0504-0602 |
|
● |
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603-1411 |
|
● |
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1412- |
● |
● |
| |
64 |
NUT; CLIP
M8
|
9-09110-408-0 |
01 |
1 |
0504-0512 |
|
● |
| |
64 |
NUT; CLIP
M8
|
0-91110-508-0 |
01 |
1 |
0601- |
|
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0504-1411 |
|
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
1412- |
● |
● |
| |
100 |
CLIP; FUEL PIPE
DIN15X2
|
9-09917-171-0 |
11 |
1 |
0504- |
|
● |
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X25 W/LK WASHER
|
0-50040-825-0 |
20 |
1 |
0504-0512 |
|
● |
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X25 W/LK WASHER
|
0-50540-825-0 |
20 |
1 |
0601- |
|
● |
| |
102 |
NUT; CLIP,FUEL PIPE
M8
|
9-09110-408-0 |
11 |
1 |
0504-0512 |
|
● |
| |
102 |
NUT; CLIP,FUEL PIPE
M8
|
0-91110-508-0 |
11 |
1 |
0601- |
|
● |
| |
140 |
CLIP; FUEL PIPE,C/MBR
ID=20 L=70
|
1-09701-033-0 |
05 |
1 |
0504- |
|
● |
| |
144 |
BOLT; CLIP,FUEL PIPE,C/MBR
M8X25 W/LK WASHER
|
0-50040-825-0 |
05 |
1 |
0504-0512 |
|
● |
| |
144 |
BOLT; CLIP,FUEL PIPE,C/MBR
M8X25 W/LK WASHER
|
0-50540-825-0 |
05 |
1 |
0601- |
|
● |
| |
154 |
NUT; CLIP,FUEL PIPE,C/MBR
M8
|
9-09110-408-0 |
05 |
1 |
0504-0512 |
|
● |
| |
154 |
NUT; CLIP,FUEL PIPE,C/MBR
M8
|
0-91110-508-0 |
05 |
1 |
0601- |
|
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0504-0512 |
|
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
0601-1411 |
|
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1412- |
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0504-0602 |
|
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603-1411 |
|
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1412- |
● |
● |
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
0504-0512 |
|
● |
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0601-1411 |
|
● |
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
1412- |
● |
● |
| |
232 |
BOLT; CLIP,PIPE
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
0504-0906 |
|
● |
| |
232 |
BOLT; CLIP,PIPE
M8X20 W/LK WASHER
|
0-50540-820-0 |
01 |
1 |
0907- |
|
● |
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
1412- |
● |
|
| |
239 |
CLIP; FUEL PIPE
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
1412-1507 |
● |
|
| |
239 |
CLIP; FUEL PIPE
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
07 |
1 |
1508- |
● |
|
| |
239 |
CLIP; FUEL PIPE
(C)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
01 |
1 |
0504- |
|
● |
| |
303 |
BOLT; BRKT
M8X30 W/LK WASHER
|
0-50040-830-0 |
01 |
1 |
0504-0512 |
|
● |
| |
303 |
BOLT; BRKT
M8X30 W/LK WASHER
|
0-50540-830-0 |
01 |
1 |
0601- |
|
● |
| |
634 |
HOSE; RUBBER RETURN
L=4000
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
1508- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1412- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
SERVICED BY L=10000
|
0-01260-000-0 |
01 |
1 |
0602- |
|
● |
