Isuzu WW
▶
BUSES
▶
MT
▶
10969 - MT133/FTR(FRAME BUS) RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#65880) — 56 parça
◀
[131A] LEAF SUSPENSION (26 parça)
[131A] BUS CHASSIS (30 parça)
▶
400
56
57
5
5
48
210
211
210
296
210
211
291
354
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=87-113
1-09707-199-0
01
1
0504-0811
5
CLIP; AIR DUCT
(A) ID=90-110
8-98133-365-0
01
1
0812-
5
CLIP; AIR DUCT
(B) ID=104-139
1-09707-200-0
01
1
0504-0812
5
CLIP; AIR DUCT
(B) ID=110-130
8-98133-359-0
01
1
0901-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
0504-
56
WASHER; LK,AIR INT DUCT
M10
1-09500-046-0
01
1
0504-
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0504-
210
BOLT; ACL BRKT
(B) M10X30 FLANGE
0-28051-030-0
04
1
0602-1411
210
BOLT; ACL BRKT
LEAF SUSPENSION(MTA0AA) (B) M10X30 FLANGE
0-28051-030-0
04
1
1412-
210
BOLT; ACL BRKT
(A) M12X35 FLANGE
0-28681-235-0
02
1
0504-0512
210
BOLT; ACL BRKT
(A) M12X35 FLANGE
0-28651-235-0
02
1
0601-
211
NUT; BRKT
(B) M10
0-91110-510-0
03
1
0602-1411
211
NUT; BRKT
LEAF SUSPENSION(MTA0AA) (B) M10
0-91110-510-0
03
1
1412-
211
NUT; BRKT
(A) M12 FLANGE
0-91150-212-0
03
1
0504-0602
211
NUT; BRKT
(A) M12 FLANGE
0-91180-212-0
03
1
0603-
291
BOLT; ACL
M10X25 W/LK WASHER
0-50541-025-0
04
1
0602-1411
291
BOLT; ACL
LEAF SUSPENSION(MTA0AA) M10X25 W/LK WASHER
0-50541-025-0
04
1
1412-
291
BOLT; ACL
M8X25
1-09030-030-2
04
1
0602-1411
291
BOLT; ACL
LEAF SUSPENSION(MTA0AA) M8X25
1-09030-030-2
04
1
1412-
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0504-0602
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0603-
354
BOLT; BRKT,AIR INT HOSE
M10X30 FLANGE
0-28051-030-0
11
1
0602-1411
354
BOLT; BRKT,AIR INT HOSE
LEAF SUSPENSION(MTA0AA) M10X30 FLANGE
0-28051-030-0
11
1
1412-
354
BOLT; BRKT,AIR INT HOSE
M12X30 W/LK WASHER
0-50541-230-0
04
1
0602-1411
354
BOLT; BRKT,AIR INT HOSE
LEAF SUSPENSION(MTA0AA) M12X30 W/LK WASHER
0-50541-230-0
04
1
1412-
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0504-

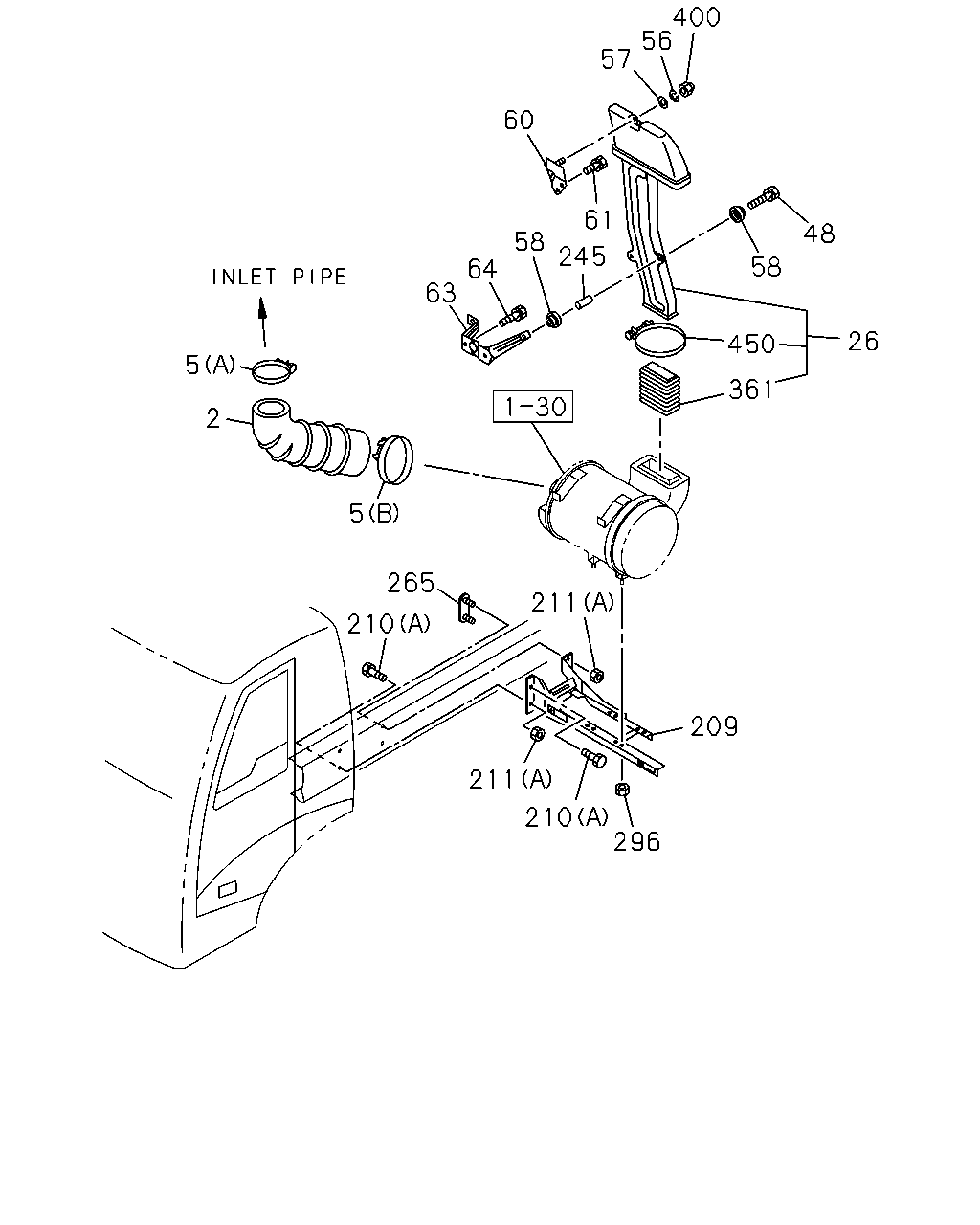

400
56
48
26
58
450
361
211
209
211
210
296
210
5
265
2
5
63
64
58
61
60
57
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
BUS CHASSIS(FTA0AA)
1-14231-908-2
01
1
1412-
5
CLIP; AIR DUCT
(A) ID=87-113
1-09707-199-0
01
1
0504-0811
5
CLIP; AIR DUCT
(A) ID=90-110
8-98133-365-0
01
1
0812-
5
CLIP; AIR DUCT
(B) ID=104-139
1-09707-200-0
01
1
0504-0812
5
CLIP; AIR DUCT
(B) ID=110-130
8-98133-359-0
01
1
0901-
26
DUCT; AIR INT
BUS CHASSIS(FTA0AA)
1-14230-176-2
01
1
1412-1507
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
0504-
56
WASHER; LK,AIR INT DUCT
M10
1-09500-046-0
01
1
0504-
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0504-
58
SUPPORT; AIR INL DUCT
BUS CHASSIS(FTA0AA) OD=40 T=18.5
1-14119-267-0
04
1
1412-1507
60
BRACKET; AIR DUCT,UPR
BUS CHASSIS(FTA0AA)
1-79998-748-2
01
1
1412-
61
BOLT; BRKT,AIR DUCT
BUS CHASSIS(FTA0AA) M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
1412-
63
BRACKET; AIR DUCT,LWR
BUS CHASSIS(FTA0AA)
1-79998-749-3
01
1
1412-1507
64
BOLT; BRKT,AIR DUCT
BUS CHASSIS(FTA0AA) M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
1412-
209
BRACKET; ACL
BUS CHASSIS(FTA0AA)
1-53497-480-2
01
1
1412-
210
BOLT; ACL BRKT
(B) M10X30 FLANGE
0-28051-030-0
04
1
0602-1411
210
BOLT; ACL BRKT
LEAF SUSPENSION(MTA0AA) (B) M10X30 FLANGE
0-28051-030-0
04
1
1412-
210
BOLT; ACL BRKT
(A) M12X35 FLANGE
0-28681-235-0
02
1
0504-0512
210
BOLT; ACL BRKT
(A) M12X35 FLANGE
0-28651-235-0
02
1
0601-
211
NUT; BRKT
(B) M10
0-91110-510-0
03
1
0602-1411
211
NUT; BRKT
LEAF SUSPENSION(MTA0AA) (B) M10
0-91110-510-0
03
1
1412-
211
NUT; BRKT
(A) M12 FLANGE
0-91150-212-0
03
1
0504-0602
211
NUT; BRKT
(A) M12 FLANGE
0-91180-212-0
03
1
0603-
245
PIECE; DIST,AIR DUCT
BUS CHASSIS(FTA0AA)
1-79998-228-0
02
1
1412-1507
265
BRACKET; STUD,ACL
BUS CHASSIS(FTA0AA)
1-53497-454-1
01
1
1412-
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0504-0602
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0603-
361
RUBBER; CUSHION,AIR DUCT
BUS CHASSIS(FTA0AA)
1-14231-973-1
01
1
1412-1507
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0504-
450
CLAMP; HOSE
BUS CHASSIS(FTA0AA)
9-09915-504-1
01
1
1412-1507
