Isuzu WW
▶
TRUCKS
▶
FVM
▶
10780 - FVM(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

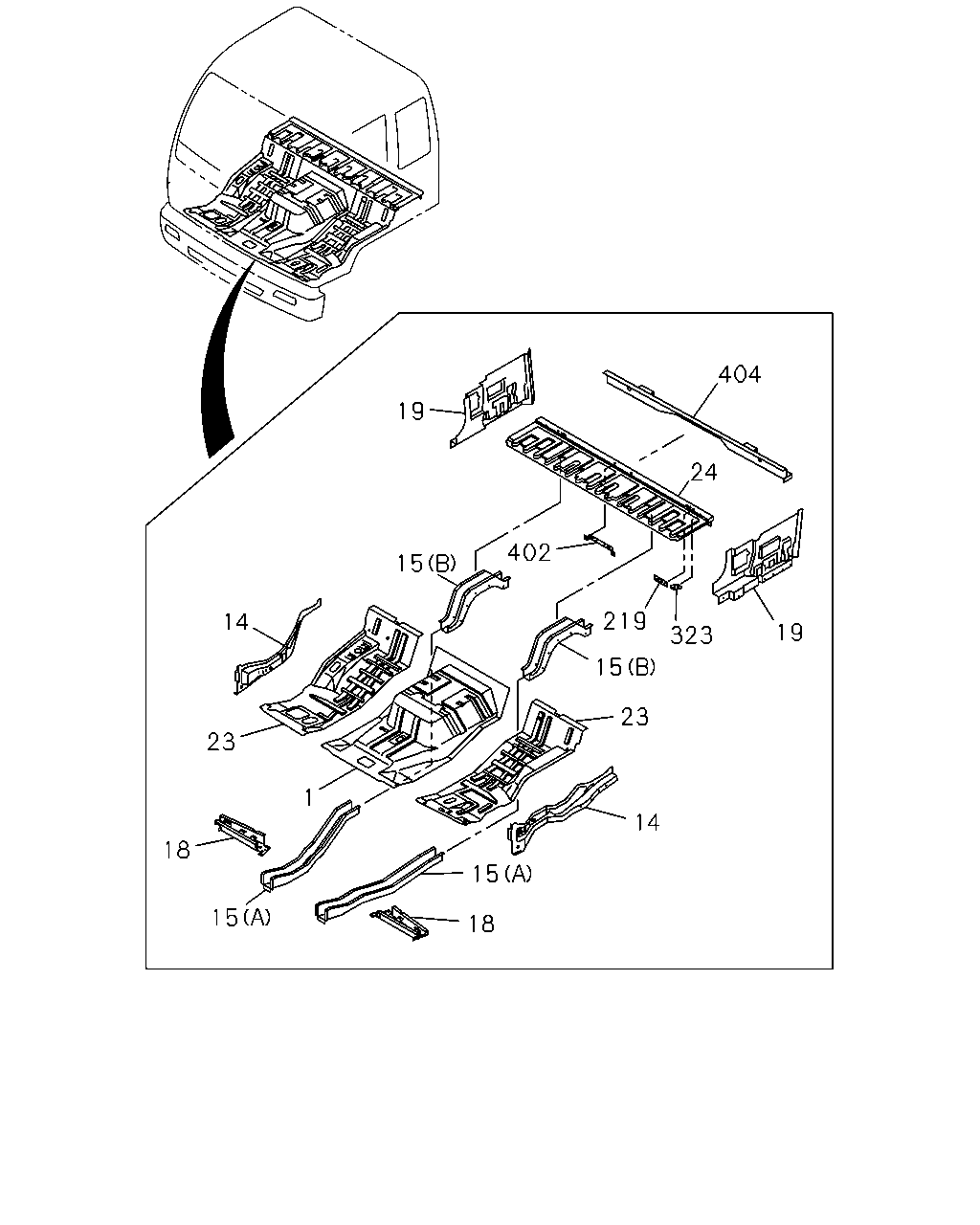

6-70 — FLOOR PANEL
(#6588) — 20 parça
404
19
24
402
15
219
14
19
323
15
23
23
1
14
18
15
15
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; FLOOR
THA
1-62183-334-4
01
1
0101-
14
PANEL; FLOOR SIDE,FRT
THA
1-62482-918-6
01
1
0101-
14
PANEL; FLOOR SIDE,FRT
THA
1-62482-917-6
01
1
0101-
15
FRAME; UNDER
(A) THA
1-62482-931-9
01
1
0101-0401
15
FRAME; UNDER
8-97583-580-0
01
1
0402-
15
FRAME; UNDER
(B) THA
1-62483-154-3
01
1
0101-
15
FRAME; UNDER
(A) THA
1-62482-930-9
01
1
0101-0103
15
FRAME; UNDER
(A) THA
1-62482-930-9
01
1
0101-0310
15
FRAME; UNDER
(A)
1-62483-333-1
01
1
0311-
18
FRAME; FLOOR,CENTER SIDE
1-62482-958-5
01
1
0101-
18
FRAME; FLOOR,CENTER SIDE
1-62482-957-5
01
1
0101-
19
PANEL; FLOOR SIDE,REAR
THA
1-62482-924-6
01
1
0101-
19
PANEL; FLOOR SIDE,REAR
THA
1-62482-923-5
01
1
0101-
23
PANEL; FLOOR,SIDE
THA
8-97917-767-0
01
1
0101-
23
PANEL; FLOOR,SIDE
THA
8-97917-766-0
01
1
0101-
24
PANEL; BED PAN
1-62182-940-9
01
1
0101-
219
PATCH; AIR DUCT LWR
1-62182-941-0
01
1
0101-
323
PATCH; HAND LEVER
1-62182-961-0
01
1
0101-
402
PATCH; CAB LOCK
1-62182-947-2
01
1
0101-
404
RAIL ASM; MTG,RR
THA
1-62483-123-1
01
1
0101-
