◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10969 - MT133/FTR(FRAME BUS) RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#65879) — 21 parça
çizim 191813
68
BalonParca AdiParca NoAdetTipApplied Date
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0504-

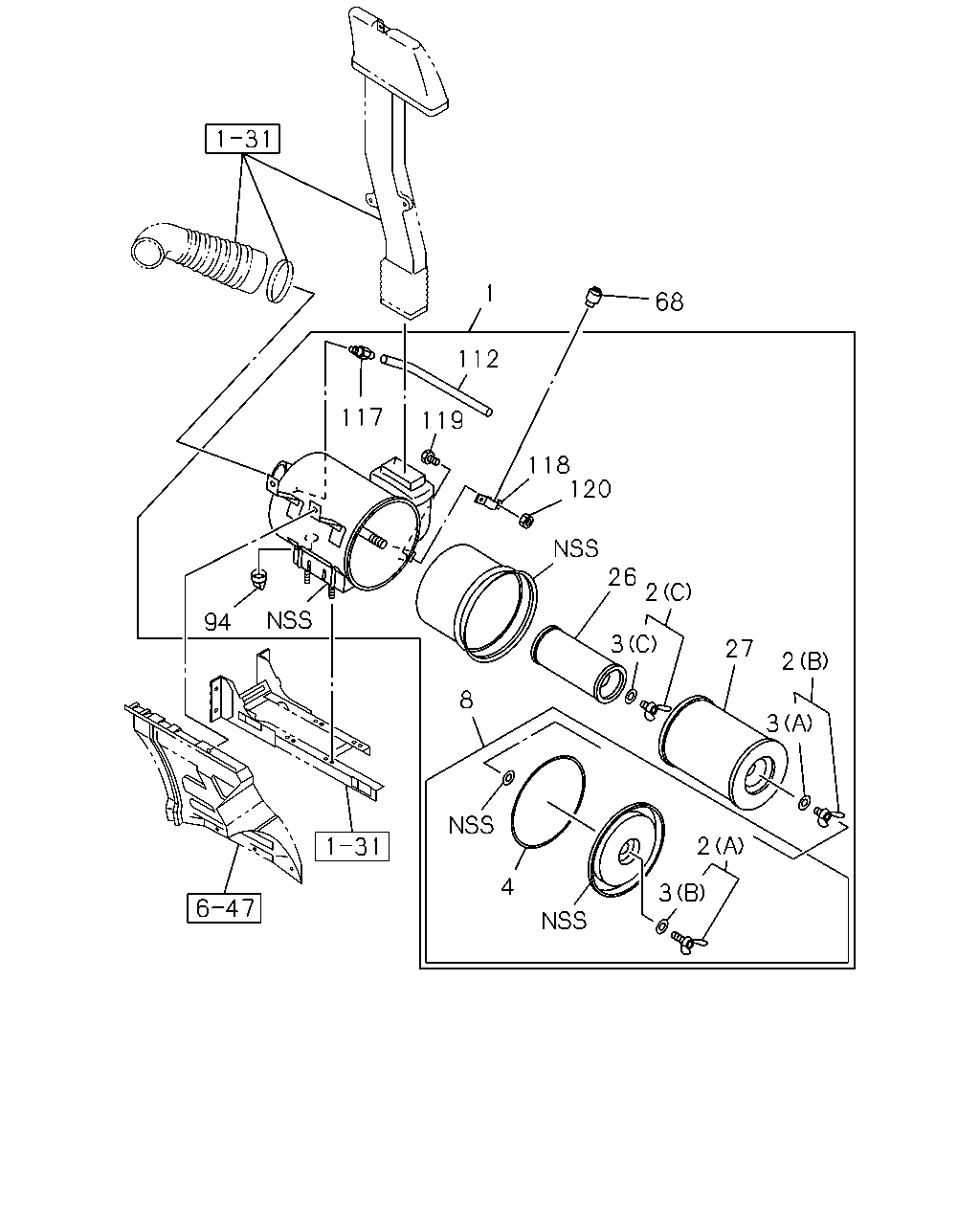

çizim 467087
1 68 112 117 119 118 120 26 2 27 2 3 3 2 3 4 8 94
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
BUS CHASSIS(FTA0AA) 		1-14210-777-4 01 1 1412-
2 NUT; WING,ELEMENT
BUS CHASSIS(FTA0AA) (C) 		1-14217-036-0 01 1 1412-
2 NUT; WING,ELEMENT
BUS CHASSIS(FTA0AA) (A) 		1-14217-049-0 01 1 1412-
2 NUT; WING,ELEMENT
BUS CHASSIS(FTA0AA) (B) 		1-14217-050-0 01 1 1412-
3 WASHER; SEAL,WING NUT
BUS CHASSIS(FTA0AA) (A) 		1-14219-118-0 01 1 1412-
3 WASHER; SEAL,WING NUT
BUS CHASSIS(FTA0AA) (B) 		1-14219-156-0 01 1 1412-
3 WASHER; SEAL,WING NUT
BUS CHASSIS(FTA0AA) (C) 		9-14219-177-0 01 1 1412-
4 GASKET; COVER TO BODY
BUS CHASSIS(FTA0AA) 		1-14219-141-0 01 1 1412-
8 COVER ASM; ACL
BUS CHASSIS(FTA0AA) 		1-14212-084-0 01 1 1412-
26 FILTER; ACL,INNER
BUS CHASSIS(FTA0AA) 		1-14215-111-0 01 1 1412-
26 FILTER; ACL,INNER
BUS CHASSIS(FTA0AA) BEST VALUE PARTS 		1-87610-118-0 01 1 1412-
27 FILTER; ACL,OUTER
BUS CHASSIS(FTA0AA) 		1-14215-172-0 01 1 1412-
27 FILTER; ACL,OUTER
BUS CHASSIS(FTA0AA) BEST VALUE PARTS 		1-87610-117-0 01 1 1412-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0504-
94 VALVE; VACUATOR
BUS CHASSIS(FTA0AA) 		1-14219-192-0 01 1 1412-
112 HOSE; INDICATOR
BUS CHASSIS(FTA0AA) 		1-14219-260-0 01 1 1412-
117 JOINT; INDICATOR HOSE
BUS CHASSIS(FTA0AA) 		1-14210-040-0 01 1 1412-
118 BRACKET; INDICATOR
BUS CHASSIS(FTA0AA) 		1-14219-187-0 01 1 1412-
119 BOLT; INDICATOR BRKT
BUS CHASSIS(FTA0AA) M6X16 		9-02040-616-0 02 1 1412-
120 NUT; INDICATOR BRKT
BUS CHASSIS(FTA0AA) M6 		9-09111-406-0 02 1 1412-
