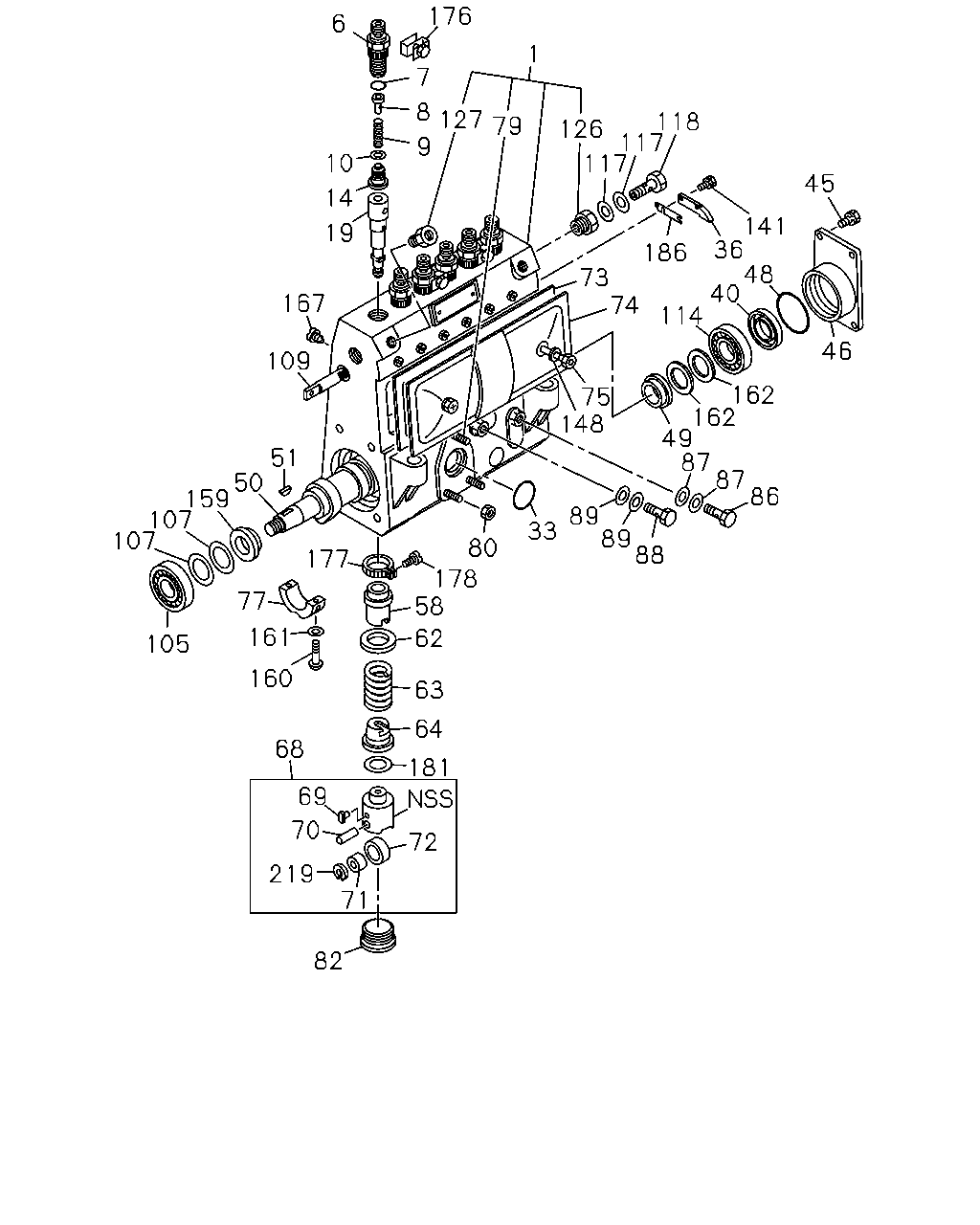

0-80 — INJECTION PUMP (#65870) — 107 parça

6 176 7 8 9 127 79 1 126 117 117 118 45 141 36 48 40 46 114 186 74 73 162 162 49 87 87 86 88 89 89 33 148 75 80 178 58 62 63 64 181 72 82 71 219 70 69 68 160 161 77 105 177 107 107 159 50 51 109 167 19 14 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15611-181-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	8-97084-986-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15643-010-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81245-018-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15619-406-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15632-030-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-058-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15619-402-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15629-034-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-059-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-004-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15621-109-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15639-022-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15634-007-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-125-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15622-011-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-018-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-123-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-122-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-121-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15619-264-0	03	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15619-160-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15619-091-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15719-093-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-003-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-003-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-09630-085-0	02	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15759-011-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15619-190-0	01	1	-
141	BOLT; POINTER ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15729-758-0	02	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-004-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-017-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-043-0	06	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15649-034-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	9-81235-045-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15639-096-0	AR	1	-
219	RING; SNAP,ROLLER ASM PART: A = 8-94390-081-1, B = 8-97600-180-0	1-15629-124-0	06	1	-
