1 |

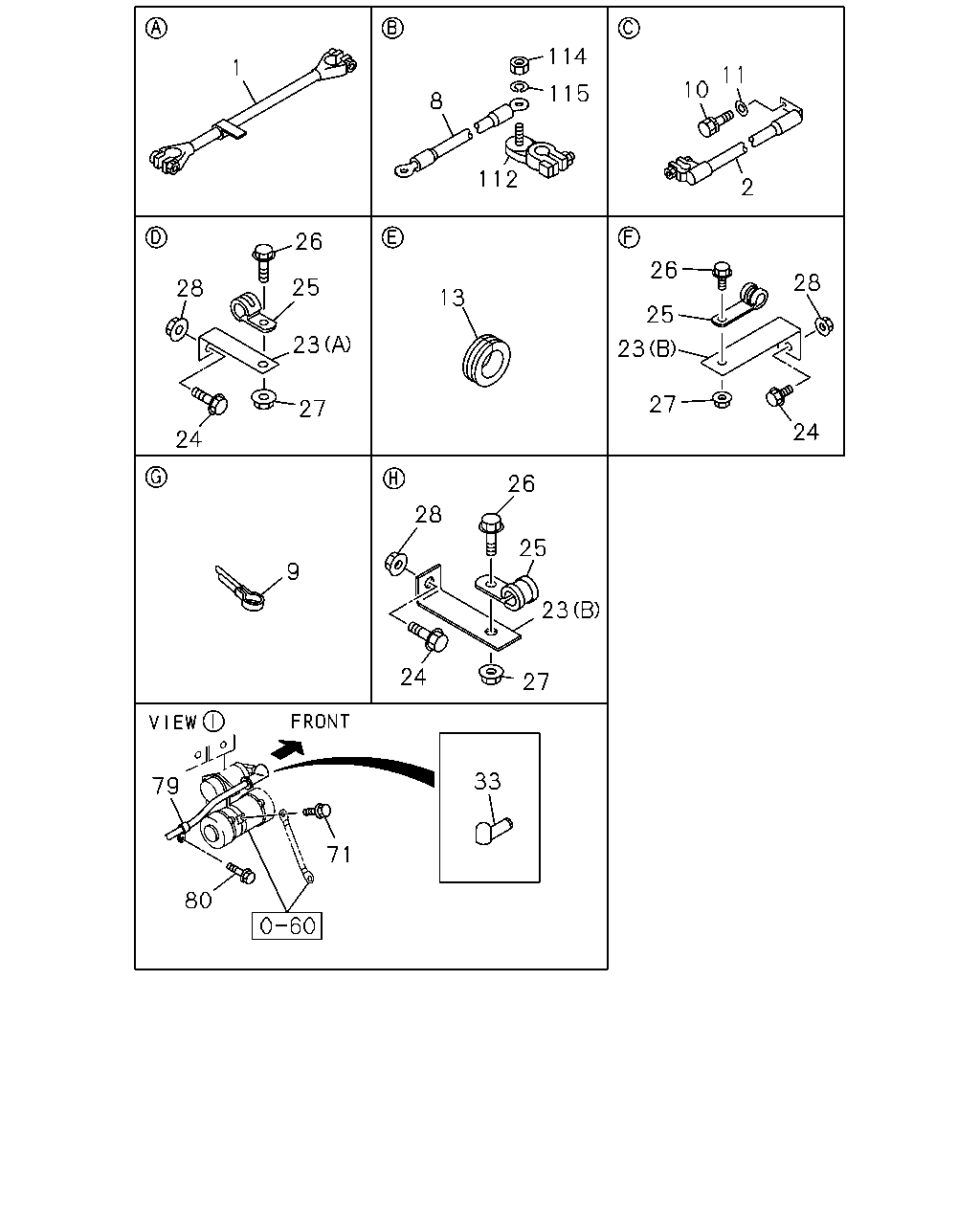

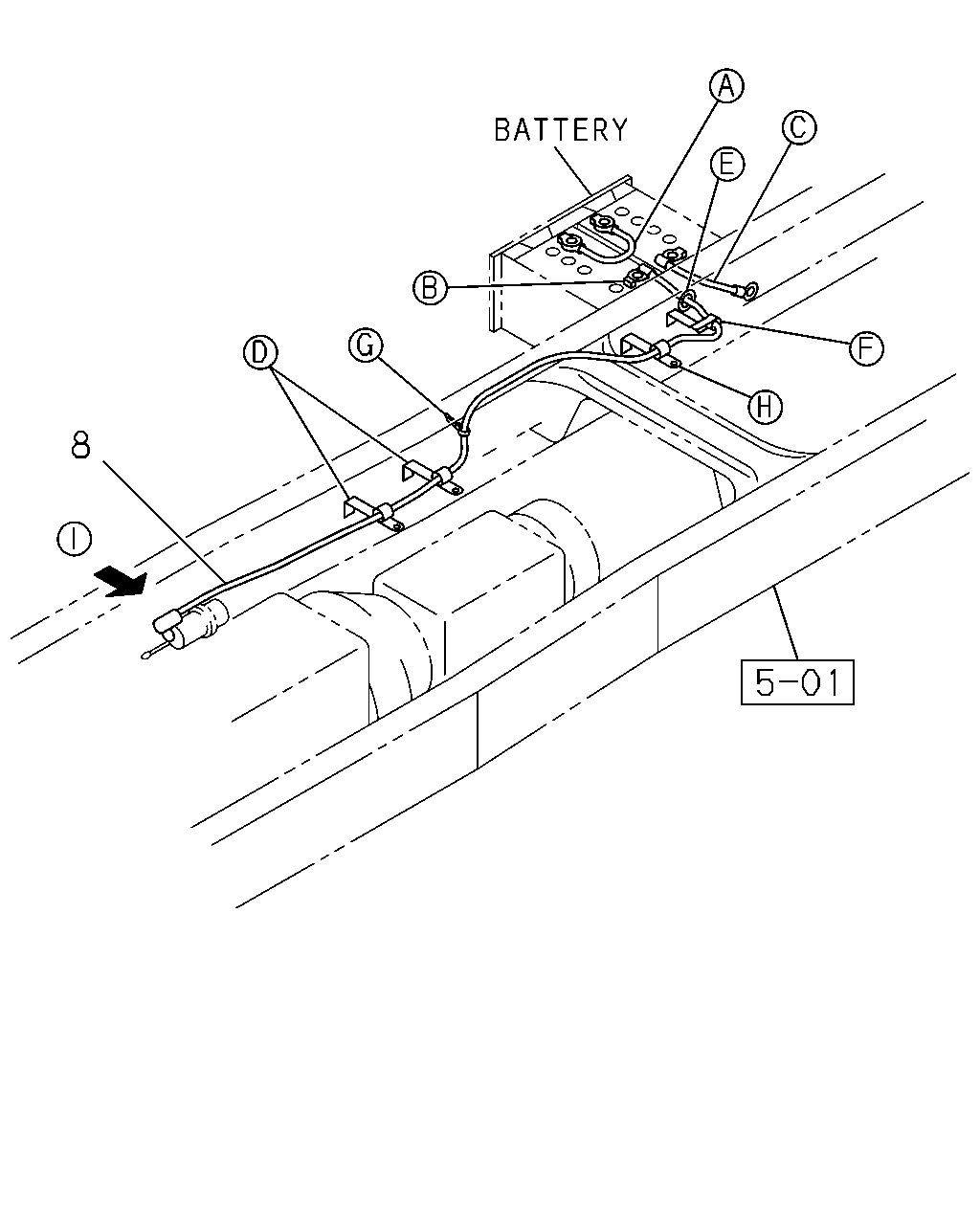

CABLE; BATTERY
<+> TO <->
L=280
|
8-97230-719-2 |
01 |
1 |
1412- |
|
● |
| |
2 |
CABLE; BATTERY
<-> TO FRAME
L=185
|
8-97623-075-0 |
01 |
1 |
1412-1507 |
|
● |
| |
2 |
CABLE; BATTERY
L=1400
|
1-82650-408-0 |
01 |
1 |
1508- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
L=2300
|
1-82650-212-1 |
01 |
1 |
1412- |
|
● |
| |
9 |
CLIP; BATTERY CABLE
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0504-1411 |
● |
|
| |
9 |
CLIP; BATTERY CABLE
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
1412- |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
|
8-97087-205-0 |
01 |
1 |
1412- |
|
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
|
8-97087-205-0 |
01 |
1 |
0504-1201 |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X20 W/PL WASHER
|
8-98164-838-0 |
01 |
1 |
1202- |
● |
|
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
|
1-09503-265-0 |
01 |
1 |
0504-1411 |
● |
|
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
|
1-09503-265-0 |
01 |
1 |
1412- |
● |
● |
| |
13 |
GROMMET; BATTERY CABLE
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0504-1411 |
● |
|
| |
13 |
GROMMET; BATTERY CABLE
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
1412- |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(B)
L=145
|
1-47475-655-0 |
02 |
1 |
1412- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(A)
L=95
|
1-82699-085-0 |
03 |
1 |
1412- |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
0504-0512 |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28650-830-0 |
05 |
1 |
0601-1411 |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28650-830-0 |
05 |
1 |
1412- |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
|
1-09701-216-0 |
05 |
1 |
0504-1411 |
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
|
1-09701-216-0 |
05 |
1 |
1412- |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0504-0512 |
● |
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
|
0-28650-825-0 |
05 |
1 |
0601-1411 |
● |
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
|
0-28650-825-0 |
05 |
1 |
1412- |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0504-0602 |
● |
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603-1411 |
● |
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
1412- |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0504-0602 |
● |
|
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603-1411 |
● |
|
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
1412- |
● |
● |
| |
33 |
CAP; INSULATOR
|
1-82699-431-0 |
01 |
1 |
0504-1411 |
● |
|
| |
33 |
CAP; INSULATOR
|
1-82699-431-0 |
01 |
1 |
1412- |
● |
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
0504-0512 |
● |
|
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28051-020-0 |
01 |
1 |
0601-1411 |
● |
|
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28051-020-0 |
01 |
1 |
1412- |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0504-1411 |
● |
|
| |
79 |
CLIP; BATTERY CABLE
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
1412- |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0504-0512 |
● |
|
| |
80 |
BOLT; BATTERY CABLE CLIP
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601-1411 |
● |
|
| |
80 |
BOLT; BATTERY CABLE CLIP
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
1412- |
● |
● |
| |
112 |
TERMINAL; BATTERY
<+>
|
1-82695-175-0 |
01 |
1 |
1412- |
|
● |
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
9-09110-510-0 |
01 |
1 |
0504-0512 |
● |
|
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
0-91110-510-0 |
01 |
1 |
0601-1411 |
● |
|
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
0-91110-510-0 |
01 |
1 |
1412- |
● |
● |
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
9-09150-510-0 |
01 |
1 |
0504-0603 |
● |
|
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
0-91510-510-0 |
01 |
1 |
0604-1411 |
● |
|
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
0-91510-510-0 |
01 |
1 |
1412- |
● |
● |
