0-60 — ENGINE ELECTRICAL CONTROL PARTS (#65866) — 63 parça

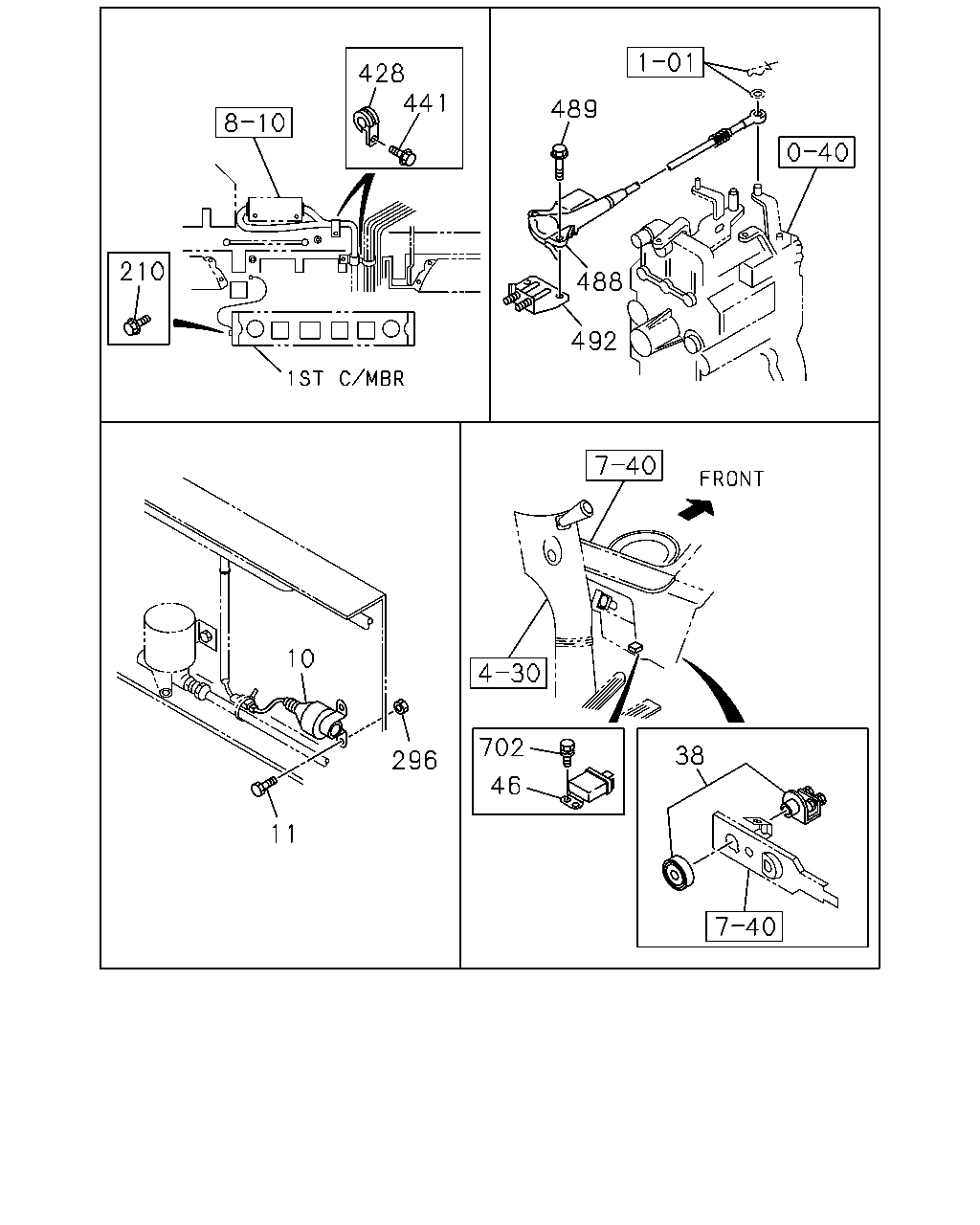

çizim 72538
441 428 210 489 488 492 702 46 38 296 10 11
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 0504-1411 ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 1412- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0504-0512 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0601-1411 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 1412- ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0803-1507 ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 1508- ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0504-1411 ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 1412- ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0504-1201 ●
210 BOLT; CABLE FIX
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-1411 ●
210 BOLT; CABLE FIX
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1412- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0504-0602 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603-1411 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 1412- ● ●
428 CLIP; HARNESS
ID=35 L=50 		1-09701-214-0 02 1 0504-1411 ●
428 CLIP; HARNESS
ID=35 L=50 		1-09701-214-0 02 1 1412- ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0504-0512 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601-1411 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1412- ● ●
488 STOPPER; ENG 1-82840-128-3 01 1 0504-1411 ●
488 STOPPER; ENG 1-82840-128-3 01 1 1412- ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0504-0512 ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601-1411 ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 1412- ● ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 1412- ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0504-1411 ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1412- ● ●

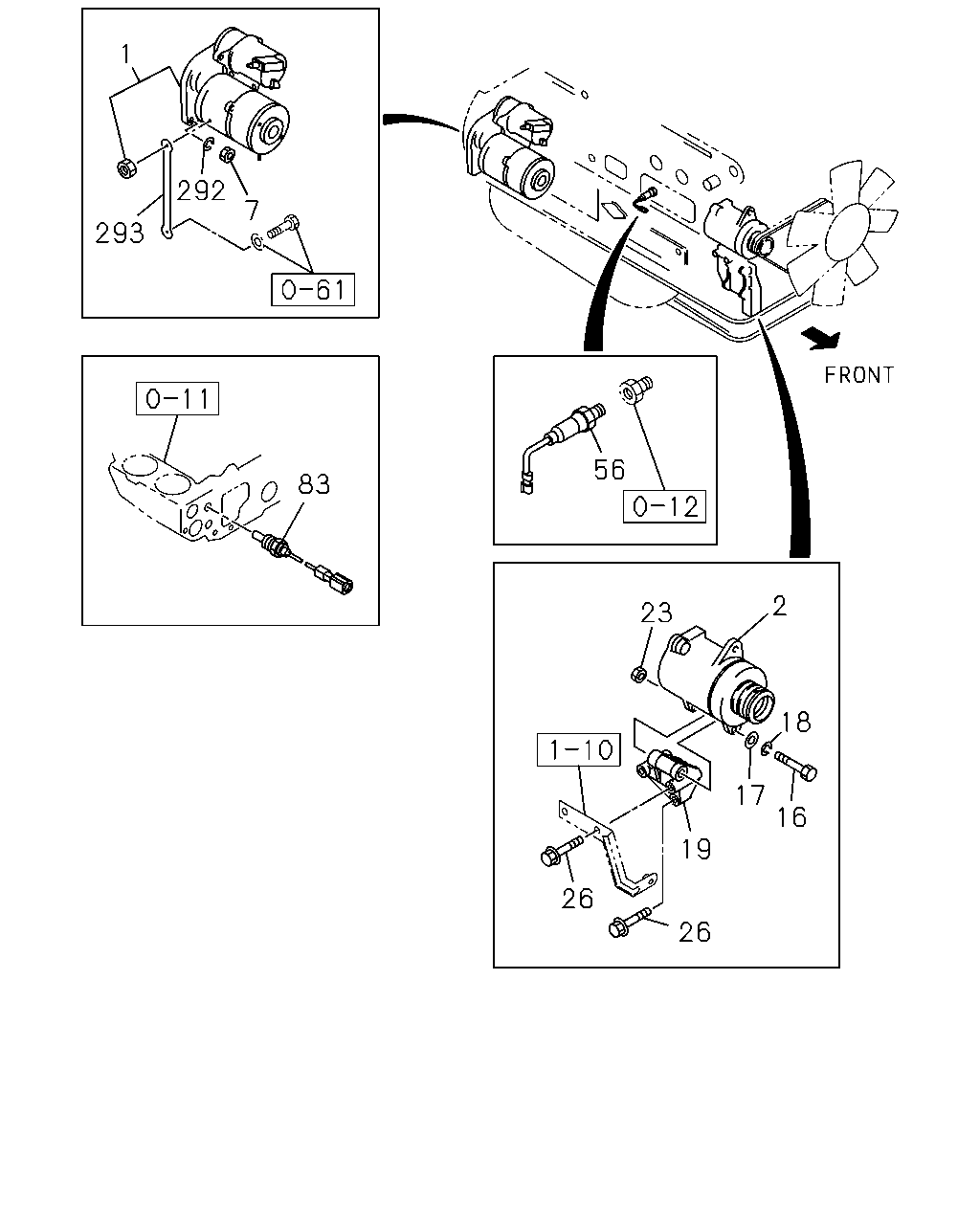

çizim 72917
1 292 293 7 83 56 2 23 18 17 16 19 26 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0504-1411 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 1412- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0504-1411 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 1412- ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0504-0512 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601-1411 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 1412- ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0504-1411 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 1412- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0504-0605 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606-1411 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1412- ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0504-0603 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604-1411 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 1412- ● ●
19 BRACKET; GEN 8-97602-318-0 01 1 0504-1411 ●
19 BRACKET; GEN 8-97602-318-0 01 1 1412- ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0504-0512 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601-1411 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 1412- ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0504-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 0601-1411 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 1412- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0504-0512 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601-1411 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 1412- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0504-1411 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1412- ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0504-1411 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 1412- ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0504-0603 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604-1411 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 1412- ● ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0504-1411 ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 1412- ● ●
