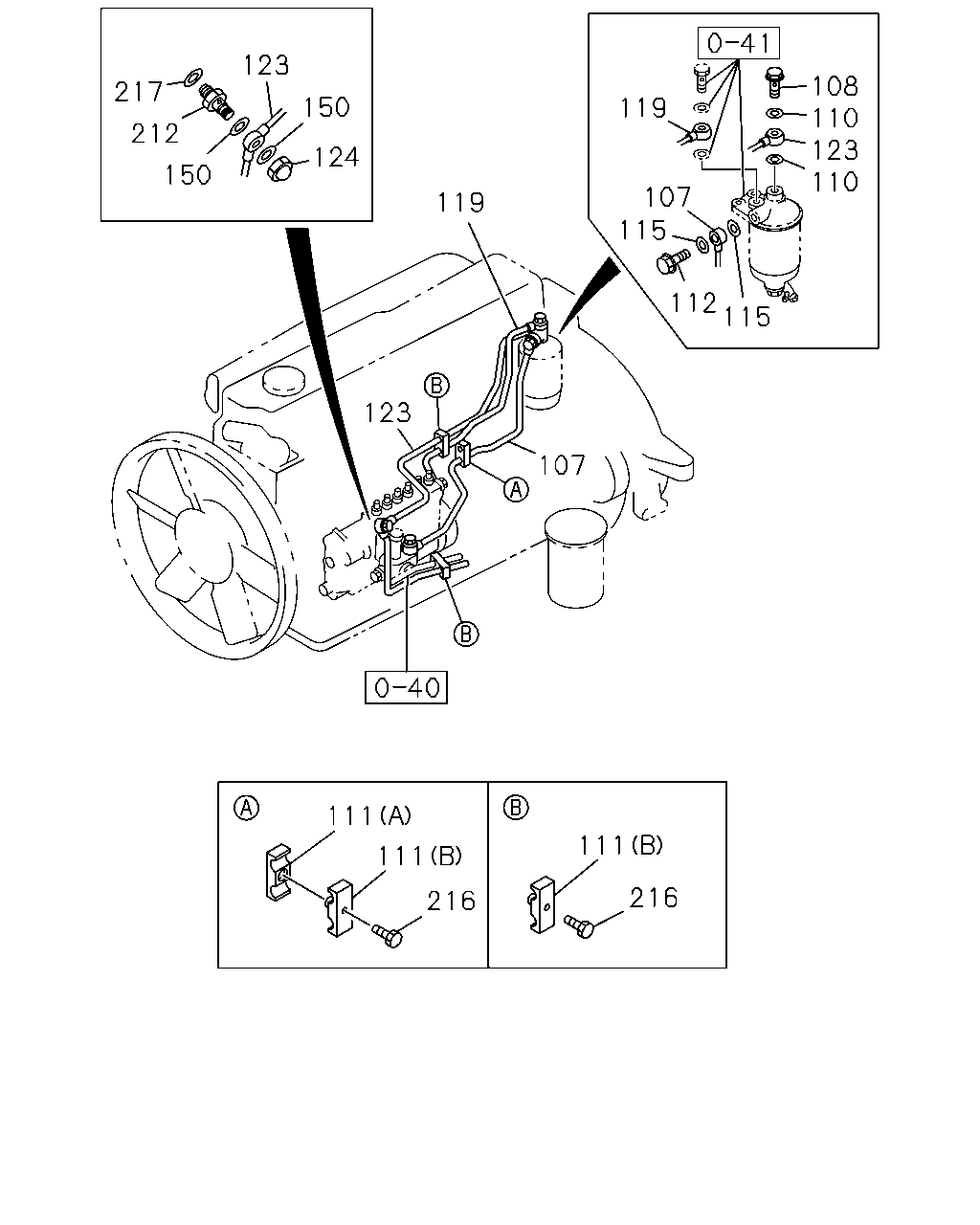

0-42 — FUEL PUMP AND PIPE (#65862) — 19 parça

217 212 150 123 150 124 119 119 107 115 112 115 110 123 110 108 107 123 111 111 216 111 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	0504-
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0504-
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0504-1312
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0504-
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	0504-
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0504-
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0504-1312
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	0504-
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	0504-
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0504-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0504-1312
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0504-
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0504-0512
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0504-1312
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-
