◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#65855) — 27 parça

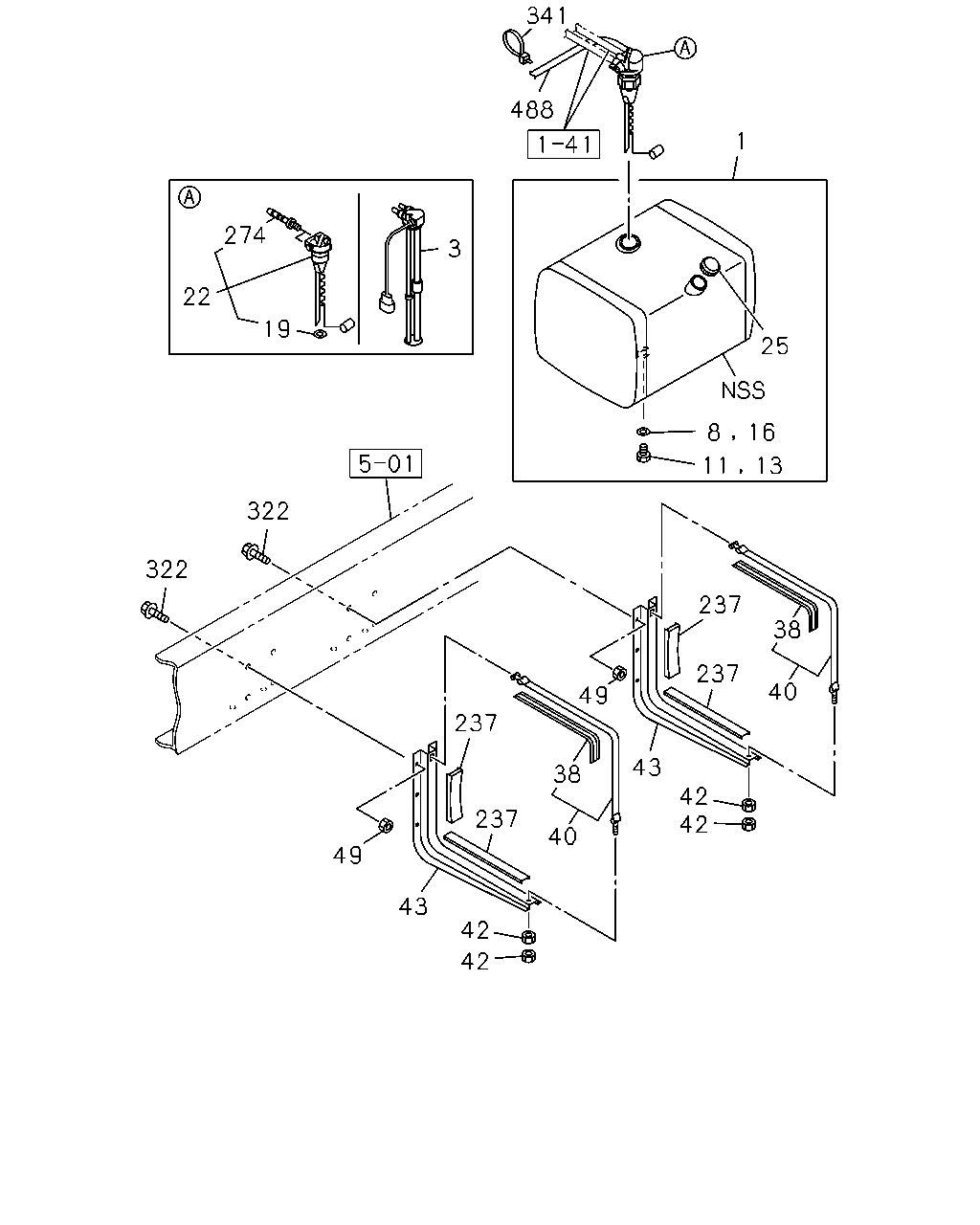

çizim 93022
341 488 1 25 8 16 11 13 237 38 40 237 49 43 42 42 40 38 237 237 49 43 42 42 322 322 19 274 22 3
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
1050X680X625 400L 		1-87411-173-1 01 1 0710-0810
1 TANK; FUEL
1050X680X625 400L 		1-87411-699-1 01 1 0811-1109
1 TANK; FUEL
1050X680X625 400L 		1-87411-788-3 01 1 1110-
3 UNIT; FUEL TANK,SUB 8-98217-749-0 01 1 1211-
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1211-
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1211-
13 PLUG; SCREW,SUB TANK JOINT
M18X12 		0-92002-418-0 01 1 0710-1210
16 GASKET; PLUG
ID=18.2 T=1.6 		8-98030-453-0 01 1 0710-1210
19 GASKET; FUEL TANK UNIT
ID=58 		1-83149-005-0 01 1 0710-1210
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1211-
22 UNIT; FUEL TANK 1-83141-132-0 01 1 0710-1210
25 CAP; FILLER,FUEL TANK 1-22440-063-1 01 1 0710-0810
25 CAP; FILLER,FUEL TANK 8-98115-780-0 01 1 0811-1109
25 CAP; FILLER,FUEL TANK 8-98182-306-0 02 1 1110-1210
25 CAP; FILLER,FUEL TANK 8-98182-306-0 01 1 1211-
38 INSULATION; SUPPORT BELT
L=1156 		1-22553-039-1 02 1 0710-
40 BELT; SUPPORT,FUEL TANK
L=1210 		1-22550-261-0 02 1 0710-1110
40 BELT; SUPPORT,FUEL TANK
L=1210 		8-98202-448-0 02 1 1111-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 0710-
43 BRACKET; FUEL TANK 1-53461-525-1 02 1 0710-
49 NUT; BRKT
M12 		0-91110-512-0 12 1 0710-
237 GASKET; BRKT TO FUEL TANK 1-22553-037-1 04 1 0710-
274 CONNECTOR; ELBOW,FUEL TANK PIPE 1-83149-006-0 02 1 0710-1210
322 BOLT; BRKT FIX
M12X45 FLANGE 		0-28051-245-0 12 1 0710-
341 CLIP; BAND,RUBBER HOSE
FUEL TANK 400L<SDH> L=350 		1-09707-183-0 02 1 0812-
488 HOSE; RUBBER
6WF1 TC-C(1B8) FUEL TANK 400L<SDH> 		8-98134-938-0 01 1 0812-
488 HOSE; RUBBER
6WG1 TC-C(72L),6WG1 TC-S(97L) FUEL TANK 400L<SDH> 		8-98134-936-0 01 1 0812-
