◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10780 - FVM(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#6585) — 59 parça

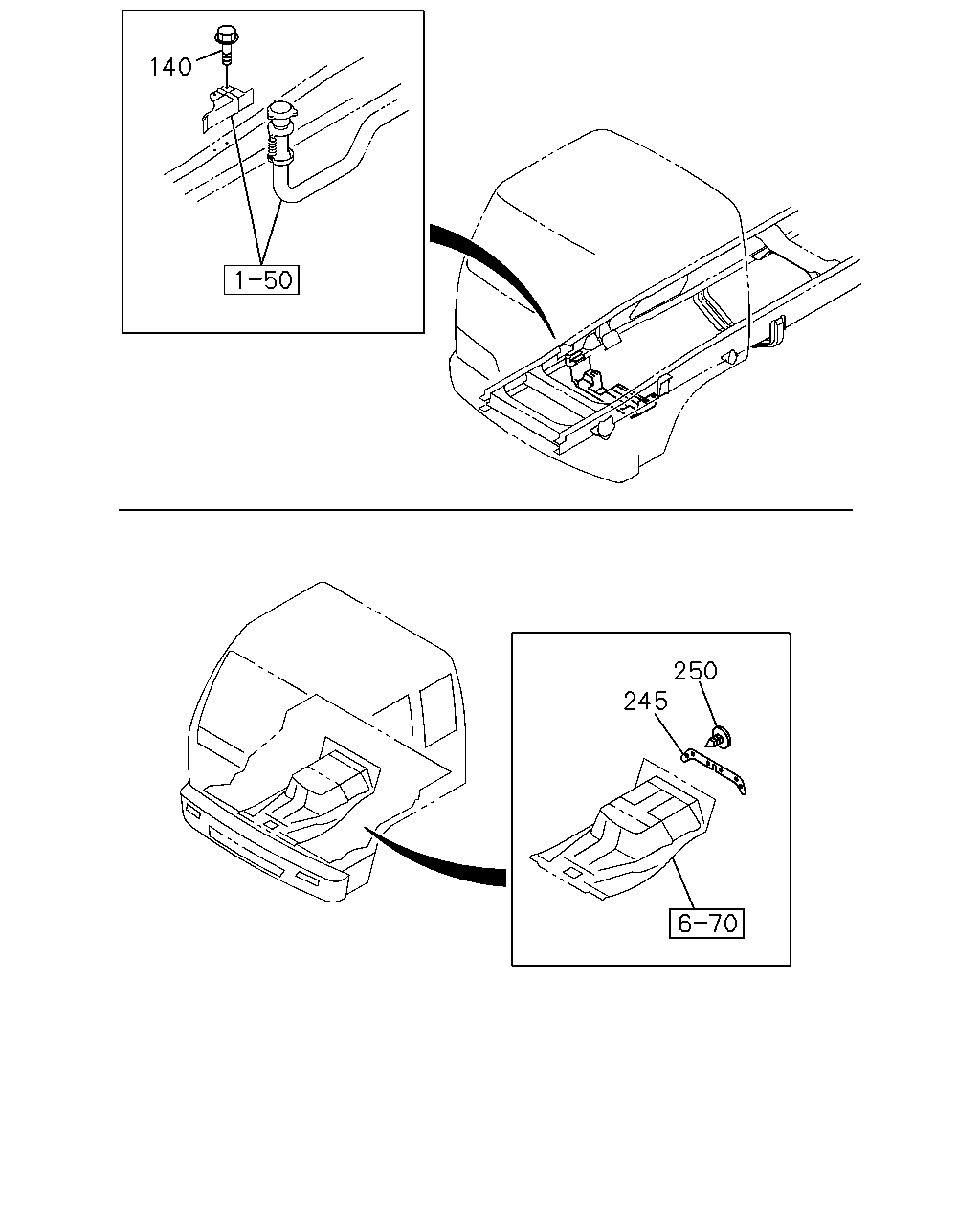

çizim 6884
140 250 245
BalonParca AdiParca NoAdetTipApplied Date
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28680-830-0 02 1 0101-
245 RUBBER; SHUTTER,RAD 1-79938-927-0 01 1 0101-
250 FASTENER; SHUTTER 1-09987-189-0 06 1 0101-
306 BRACKET; MUD GUARD
6HE1 TC ENG<57L> THA 		8-97912-890-1 01 1 0304-

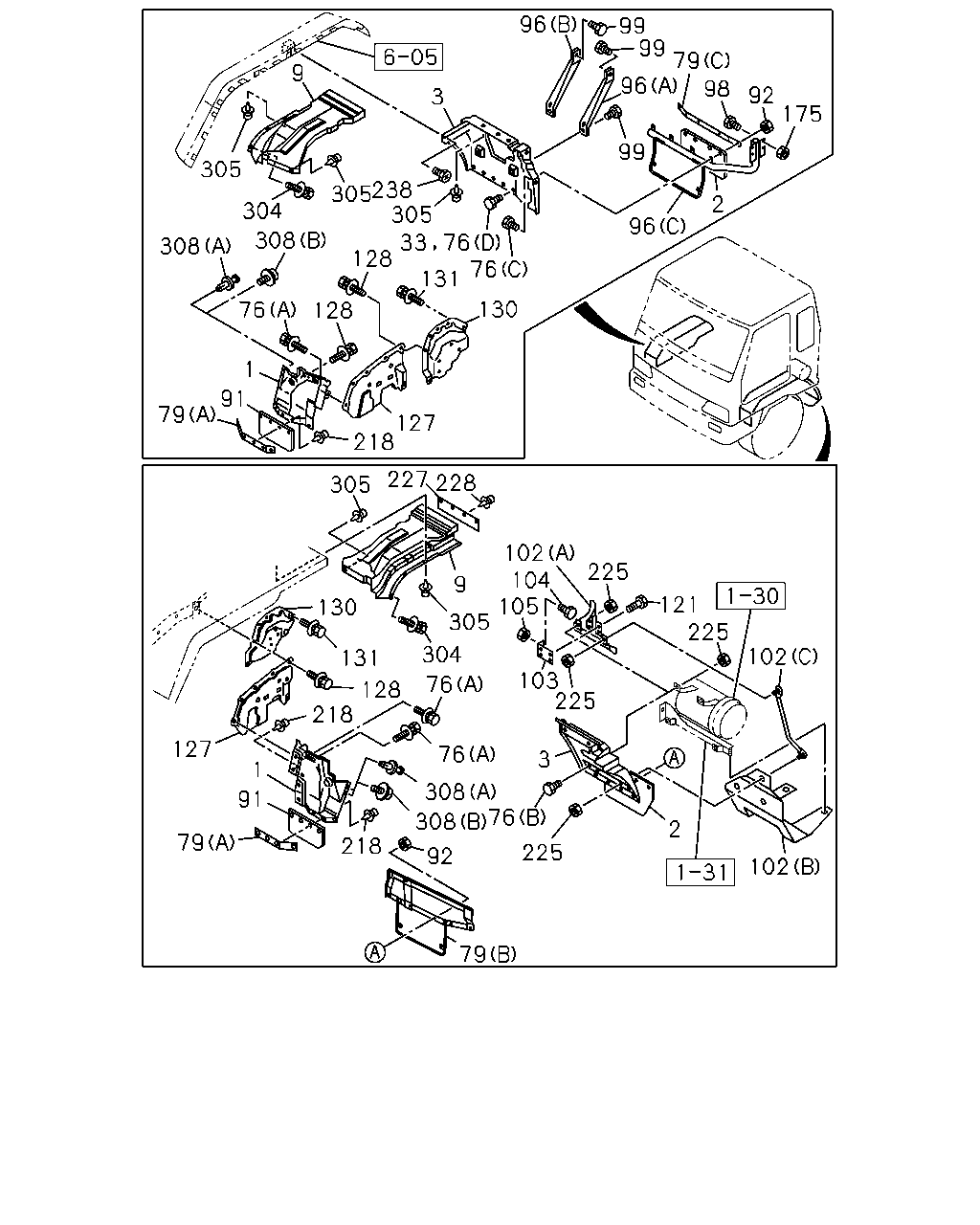

çizim 6885
96 99 99 79 96 98 9 92 175 3 305 238 305 128 76 131 99 305 2 304 308 96 308 76 130 128 1 91 79 127 218 227 228 9 305 102 225 104 105 305 304 76 103 225 121 225 130 102 131 128 218 91 127 76 3 308 308 76 218 2 79 225 92 102 79 33 76 1
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT
THA 		1-79938-812-8 01 1 0101-
1 GUARD; MUD,FRT
THA 		1-79938-810-8 01 1 0101-
2 COVER; MUD,TIRE RR
THA 		1-79938-972-1 01 1 0101-
2 COVER; MUD,TIRE RR 1-79931-270-0 01 1 0101-
3 GUARD; MUD,RR
THA 		1-79938-971-1 01 1 0101-
3 GUARD; MUD,RR
6HE1 TC ENG<57L> THA 		1-79938-962-2 01 1 0101-
3 GUARD; MUD,RR
6HH1 STD ENG<65L> THA 		1-79938-999-0 01 1 0101-
9 GUARD; SPLASH,WHEEL HOUSE 1-79936-007-1 01 1 0101-
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-955-2 01 1 0101-
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 13 1 0101-
76 BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0101-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER THA 		8-94331-747-1 08 1 0101-
76 BOLT; MUD GUARD
6HE1 TC ENG<57L> (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 0101-
76 BOLT; MUD GUARD
6HH1 STD ENG<65L> (D) M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 0101-
76 BOLT; MUD GUARD
6HH1 STD ENG<65L> (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 0101-
79 RETAINER; MUD COVER
(A) THA 		1-79931-044-0 02 1 0101-
79 RETAINER; MUD COVER
(C) 		1-79931-269-0 01 1 0101-
79 RETAINER; MUD COVER
6HE1 TC ENG<57L> (B) 		1-79931-288-0 01 1 0101-
79 RETAINER; MUD COVER
6HH1 STD ENG<65L> (B) THA 		1-79931-304-0 01 1 0101-
91 COVER; MUD,FRT
THA 		1-79931-214-1 02 1 0101-
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 04 1 0101-
92 NUT; MUD COVER
6HE1 TC ENG<57L> M6 FLANGE 		0-91150-106-0 03 1 0101-
92 NUT; MUD COVER
6HH1 STD ENG<65L> M6 FLANGE 		0-91150-106-0 05 1 0101-
96 STAY; MUD GUARD
(C) 		1-53497-577-2 01 1 0101-
96 STAY; MUD GUARD
(A) 		1-79938-737-0 01 1 0101-
96 STAY; MUD GUARD
(B) 		1-79938-738-0 01 1 0101-
96 STAY; MUD GUARD
6HE1 TC ENG<57L> THA 		8-97913-963-2 01 1 0304-
98 BOLT; STAY TO BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0101-
99 BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0101-
102 STAY; LWR,MUD GUARD
6HE1 TC ENG<57L> (B) THA 		8-97912-890-1 01 1 0101-0303
102 STAY; LWR,MUD GUARD
6HE1 TC ENG<57L> (C) THA 		8-97913-963-2 01 1 0101-0303
102 STAY; LWR,MUD GUARD
6HE1 TC ENG<57L> (A) 		1-53497-535-0 01 1 0101-
102 STAY; LWR,MUD GUARD
6HE1 TC ENG<57L> THA 		1-53497-618-0 01 1 0303-0303
103 BRACKET ASM; RR MUD FLAP
6HE1 TC ENG<57L> 		1-53497-486-2 01 1 0101-
104 BOLT; BRKT
6HE1 TC ENG<57L> M8X25 FLANGE 		0-28680-825-0 01 1 0101-
105 NUT; BRKT
6HE1 TC ENG<57L> M8 FLANGE 		0-91150-108-0 01 1 0101-
121 BOLT
6HE1 TC ENG<57L> M10X30 FLANGE 		0-28681-030-0 04 1 0101-
127 APRON; FRT
THA 		1-53193-223-1 01 1 0101-
127 APRON; FRT
THA 		1-53192-301-3 01 1 0101-
128 BOLT; APRON,FRT
M8X25 W/LK&PL WASHER THA 		8-94331-747-1 10 1 0101-
130 PANEL; SHUTTER NOISE
THA 		1-53192-308-3 01 1 0101-
130 PANEL; SHUTTER NOISE
THA 		1-53192-305-2 01 1 0101-
131 BOLT; PANEL
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0101-
175 NUT; STAY FIX
M8 FLANGE 		0-91150-108-0 04 1 0101-
218 FASTENER; RUBBER
THA 		1-09470-001-0 08 1 0101-
225 NUT; MUD GUARD
6HE1 TC ENG<57L> M8 FLANGE 		0-91150-108-0 03 1 0101-
225 NUT; MUD GUARD
6HH1 STD ENG<65L> M8 FLANGE 		0-91150-108-0 02 1 0101-
227 SEAL; MUD GUARD
THA 		8-97913-540-1 01 1 0101-
228 FASTENER; MUD GUARD SEAL
D8X13.5 		1-09987-248-1 04 1 0101-
238 SCREW; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0101-
304 BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0101-
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 05 1 0101-
306 BRACKET; MUD GUARD
6HE1 TC ENG<57L> THA 		8-97912-890-1 01 1 0304-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 02 1 0101-
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 02 1 0101-
