Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#65845) — 200 parça

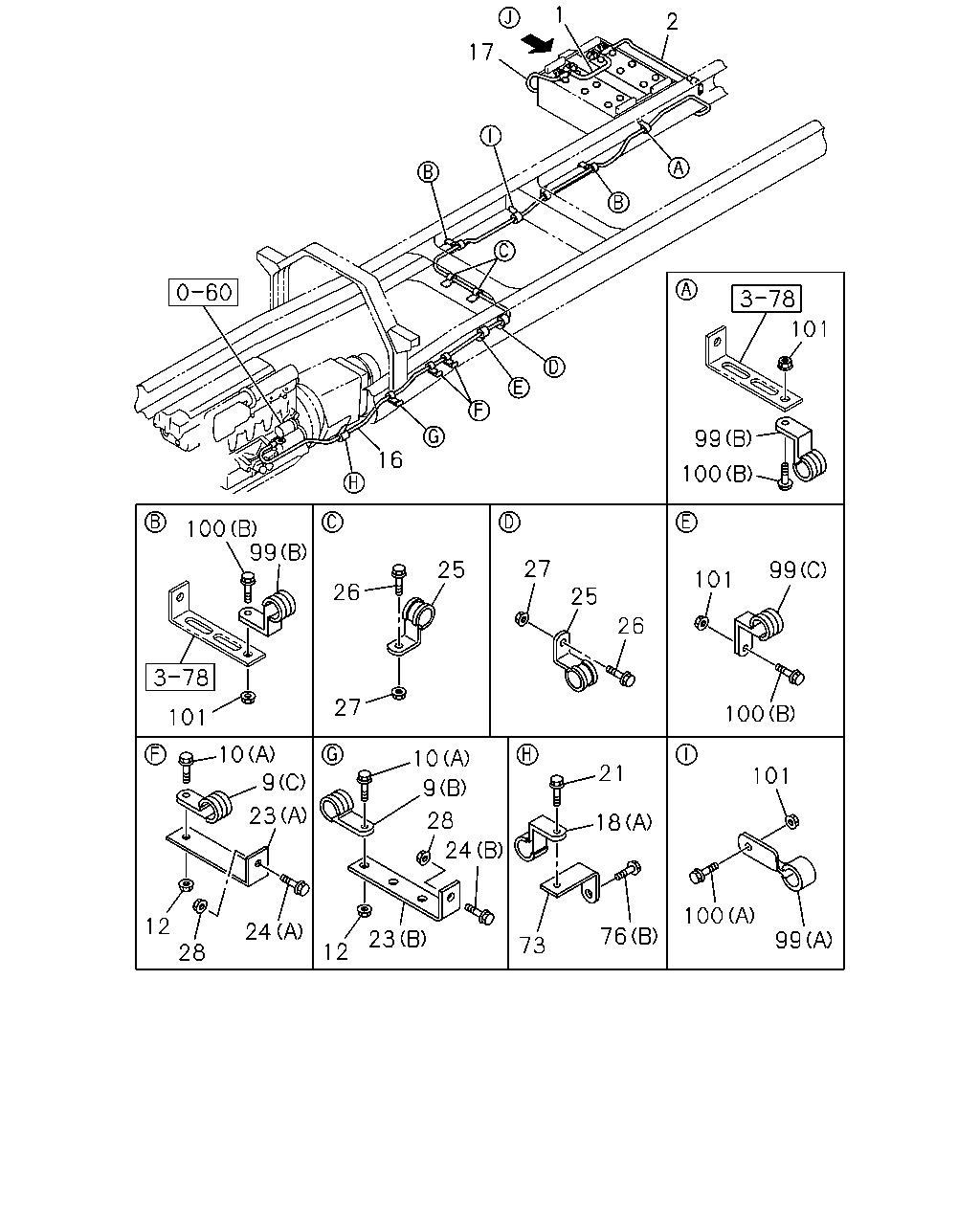

1 2 17 101 99 16 100 100 99 27 25 99 101 26 25 26 27 100 101 10 9 10 21 101 9 23 28 18 24 100 12 28 24 76 23 99 73 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145F51 NS150<PN1>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0710-
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=28	0-95235-856-0	01	1	0710-
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0710-
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) ID=19 L=20	0-95235-836-0	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=18 L=28 H=30	1-09701-110-0	02	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350	1-09707-183-0	03	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=21 L=24	8-94176-807-1	02	1	0710-
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28650-820-0	06	1	0710-
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-
12	NUT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0710-
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	08	1	0710-
16	CABLE; STARTER TO RELAY 6WF1 TC-C(1B8) FULLER M/T<X9B> L=5860	1-82652-931-1	01	1	0710-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0710-
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) MJX M/T<Y9N> (B) ID=21 L=24	8-94176-807-1	01	1	0710-
18	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=21 L=24	8-94176-807-1	01	1	0710-
21	BOLT; CLIP CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> M8X16 FLANGE	0-28050-816-0	01	1	0710-
21	BOLT; CLIP CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> M8X20 FLANGE	0-28650-820-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> (H)	1-47479-779-0	01	1	0712-
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) L=120 H=35	1-82698-088-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) L=95	1-82699-085-0	02	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=40	1-47478-410-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) L=95	1-82698-557-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (F)	1-82698-574-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-82698-575-1	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (G)	1-82698-589-0	01	1	0710-
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	01	1	0712-
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> (B) M8X30 FLANGE	0-28650-830-0	01	1	0712-
24	BOLT; BRKT TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-
25	CLIP; BATTERY CABLE TO BRKT ID=18 H=23 L=28	1-09701-070-0	03	1	0710-
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28650-820-0	03	1	0710-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	03	1	0710-
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0712-
28	NUT; BRKT TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0710-
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	03	1	0710-
73	BRACKET; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B>	1-82699-104-0	01	1	0710-
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	05	1	0710-
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M10 FLANGE	0-91180-210-0	01	1	0710-
76	NUT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8 FLANGE	0-91180-108-0	03	1	0710-
99	CLIP; BATTERY CABLE (A) ID=18 L=54	1-09701-068-0	01	1	0710-
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	03	1	0710-
99	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	01	1	0710-
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0710-

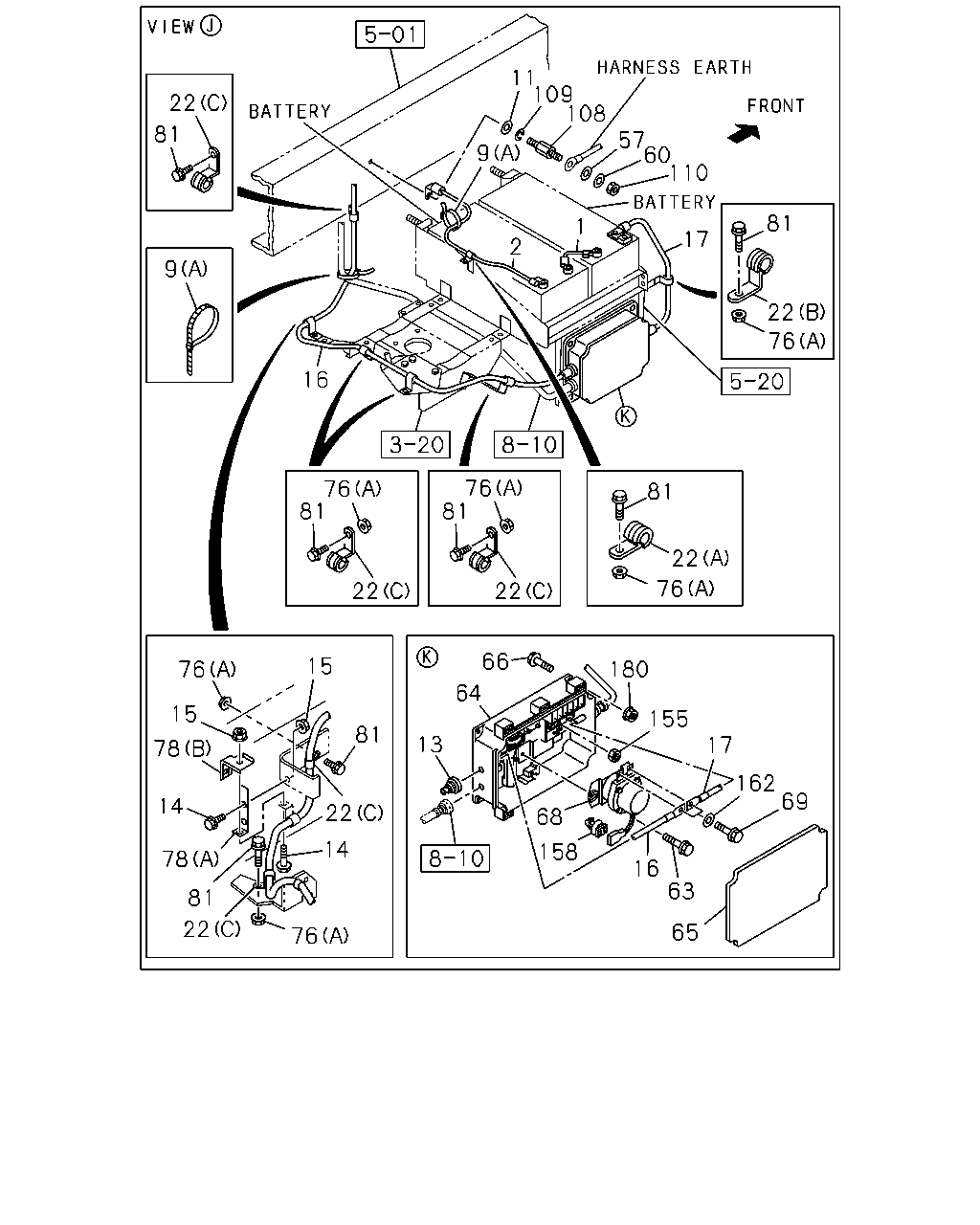

76 81 81 57 60 110 22 109 22 108 11 76 17 1 81 2 22 167 76 9 76 81 9 22 66 180 64 155 13 68 17 162 69 158 167 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145F51 NS150<PN1>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0710-
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=28	0-95235-856-0	01	1	0710-
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0710-
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) ID=19 L=20	0-95235-836-0	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=18 L=28 H=30	1-09701-110-0	02	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350	1-09707-183-0	03	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=21 L=24	8-94176-807-1	02	1	0710-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0710-
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0710-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0710-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0710-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0710-
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0710-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0710-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0710-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0710-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0710-

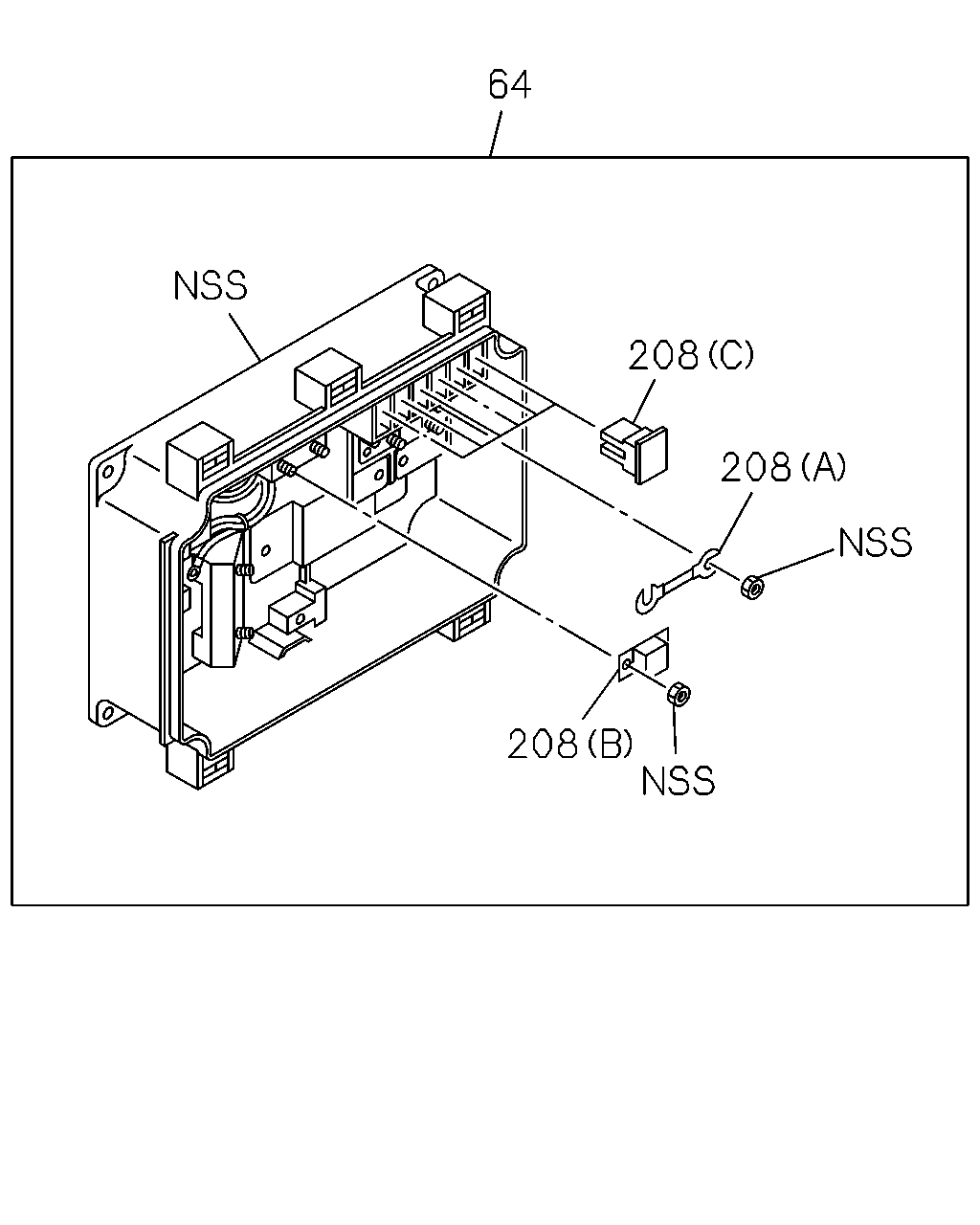

64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0710-
64	BOX; BATTERY RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	0710-
64	BOX; BATTERY RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W)	1-82510-650-0	01	1	0710-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0710-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0710-
68	RELAY; BATTERY	1-82550-313-0	01	1	0710-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0710-
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	05	1	0710-
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M10 FLANGE	0-91180-210-0	01	1	0710-
76	NUT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8 FLANGE	0-91180-108-0	03	1	0710-
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	07	1	0710-
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	03	1	0710-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0710-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0710-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0710-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0710-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0710-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0710-
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L),6WG1 TC-S(97L) L=5640	8-97624-330-0	01	1	0710-
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0710-

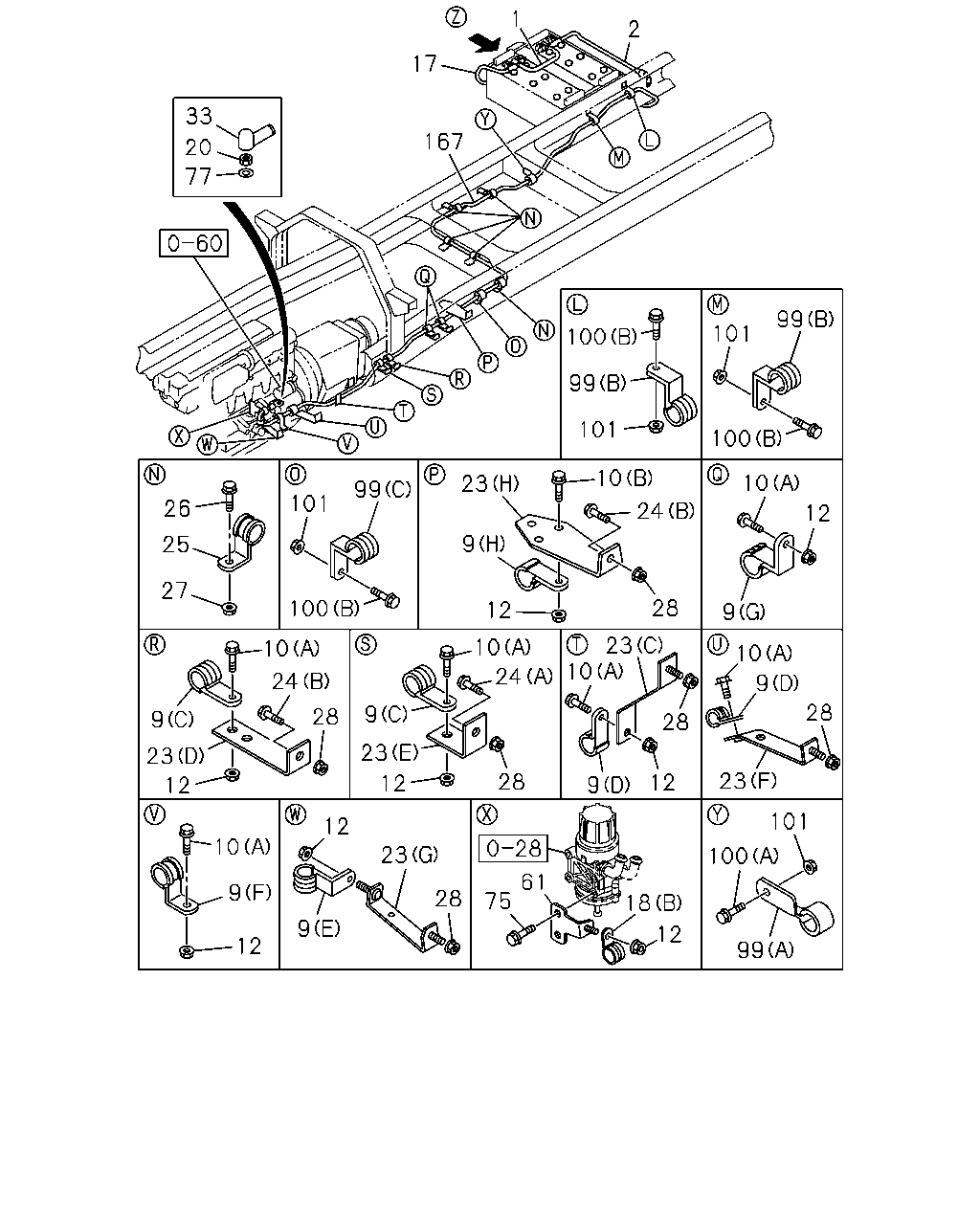

1 2 17 33 167 20 77 60 99 101 100 99 101 100 10 10 23 99 101 26 24 12 9 25 27 28 100 12 9 23 10 10 10 10 24 24 9 28 9 28 9 28 23 23 23 28 12 12 9 12 101 12 10 28 23 100 61 9 28 75 18 9 12 12 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145F51 NS150<PN1>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0710-
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=28	0-95235-856-0	01	1	0710-
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0710-
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) ID=19 L=20	0-95235-836-0	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=18 L=28 H=30	1-09701-110-0	02	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350	1-09707-183-0	03	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=21 L=24	8-94176-807-1	02	1	0710-
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28650-820-0	06	1	0710-
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-
12	NUT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0710-
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	08	1	0710-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0710-
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) MJX M/T<Y9N> (B) ID=21 L=24	8-94176-807-1	01	1	0710-
18	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=21 L=24	8-94176-807-1	01	1	0710-
20	NUT; STARTER CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M10	8-98011-328-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> (H)	1-47479-779-0	01	1	0712-
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) L=120 H=35	1-82698-088-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) L=95	1-82699-085-0	02	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=40	1-47478-410-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) L=95	1-82698-557-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (F)	1-82698-574-0	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-82698-575-1	01	1	0710-
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (G)	1-82698-589-0	01	1	0710-
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0711
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	01	1	0712-
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> (B) M8X30 FLANGE	0-28650-830-0	01	1	0712-
24	BOLT; BRKT TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-
25	CLIP; BATTERY CABLE TO BRKT ID=18 H=23 L=28	1-09701-070-0	03	1	0710-
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28650-820-0	03	1	0710-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	03	1	0710-
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0712-
28	NUT; BRKT TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0710-
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	03	1	0710-
33	CAP; INSULATOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-97181-965-0	01	1	0710-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0710-
61	BRACKET; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82698-587-0	01	1	0710-
75	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X16 FLANGE	0-28050-816-0	02	1	0710-
77	WASHER; LK,STARTER CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=10.2	0-91510-610-0	01	1	0710-
99	CLIP; BATTERY CABLE (A) ID=18 L=54	1-09701-068-0	01	1	0710-
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	03	1	0710-
99	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	01	1	0710-
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0710-
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L),6WG1 TC-S(97L) L=5640	8-97624-330-0	01	1	0710-

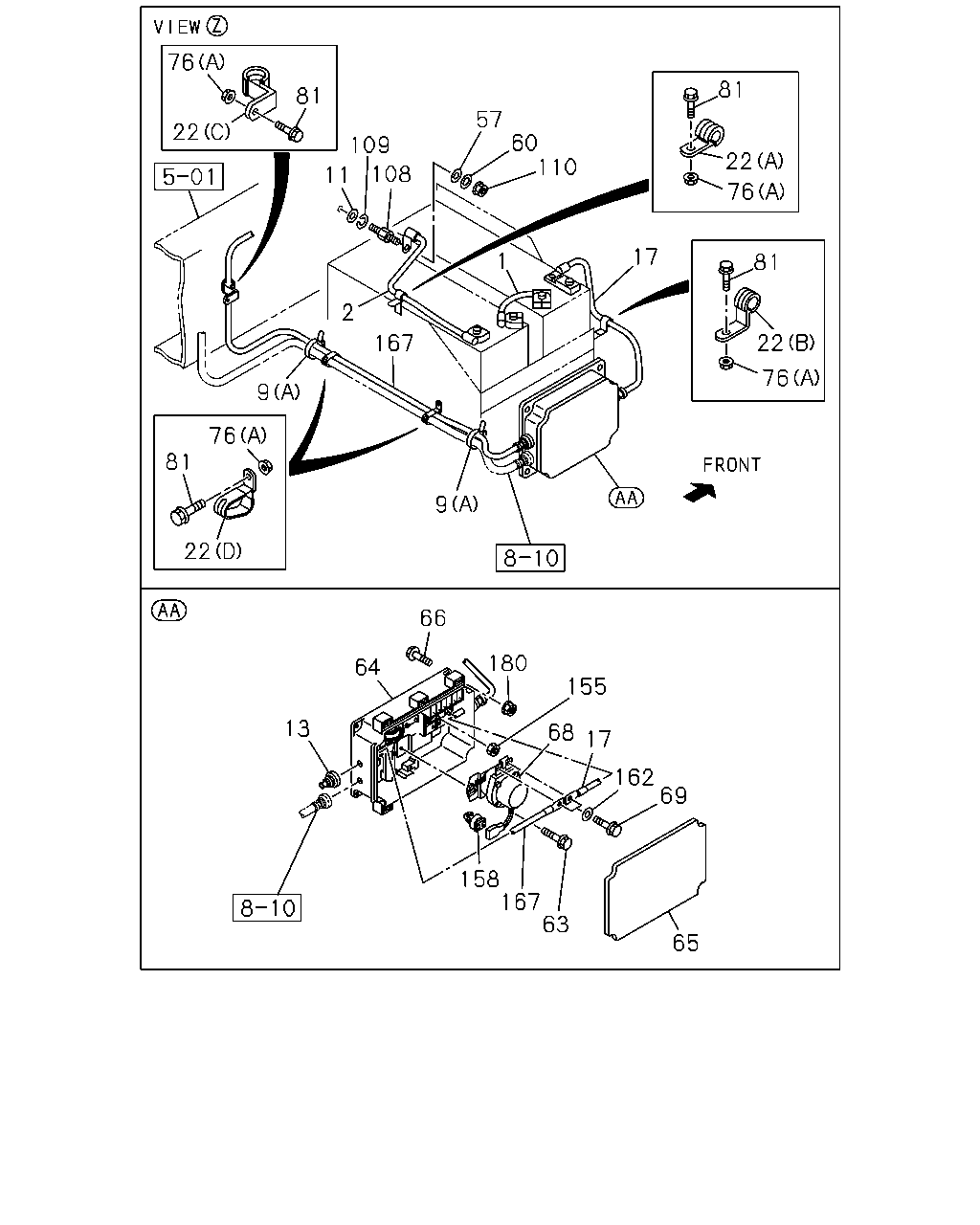

11 109 108 22 81 57 60 110 9 81 1 17 2 9 22 76 16 76 81 76 81 81 22 76 22 22 66 15 180 76 64 15 155 81 13 17 78 162 69 14 22 68 14 158 78 16 63 81 22 65 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145F51 NS150<PN1>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0710-
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=28	0-95235-856-0	01	1	0710-
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0710-
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) ID=19 L=20	0-95235-836-0	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=18 L=28 H=30	1-09701-110-0	02	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350	1-09707-183-0	03	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=21 L=24	8-94176-807-1	02	1	0710-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0710-
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0710-
14	BOLT; BRKT CLIP 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	0710-
15	NUT; BRKT CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0710-
16	CABLE; STARTER TO RELAY 6WF1 TC-C(1B8) FULLER M/T<X9B> L=5860	1-82652-931-1	01	1	0710-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0710-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0710-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0710-
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0710-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0710-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0710-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0710-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0710-
64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0710-
64	BOX; BATTERY RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	0710-
64	BOX; BATTERY RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W)	1-82510-650-0	01	1	0710-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0710-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0710-
68	RELAY; BATTERY	1-82550-313-0	01	1	0710-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0710-
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	05	1	0710-
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M10 FLANGE	0-91180-210-0	01	1	0710-
76	NUT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8 FLANGE	0-91180-108-0	03	1	0710-
78	BRACKET; CLIP BATTERY 6WF1 TC-C(1B8) (A) L=90 B=25	1-47476-630-0	01	1	0710-
78	BRACKET; CLIP BATTERY 6WF1 TC-C(1B8) (B)	8-97304-944-0	01	1	0710-
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	07	1	0710-
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	03	1	0710-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0710-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0710-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0710-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0710-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0710-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0710-
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0710-

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0710-
64	BOX; BATTERY RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	0710-
64	BOX; BATTERY RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W)	1-82510-650-0	01	1	0710-
208	FUSE (B) 80A	1-82516-031-0	01	1	0710-
208	FUSE (A) 100A	1-82516-032-0	01	1	0710-
208	FUSE 6WF1 TC-C(1B8) (C) 40A GREEN	8-94468-662-0	05	1	0710-
208	FUSE 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (C) 40A GREEN	8-94468-662-0	05	1	0710-
208	FUSE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) (C) 40A GREEN	8-94468-662-0	06	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
