0-30 — WATER PUMP AND CORROSION RESISTOR (#65829) — 47 parça

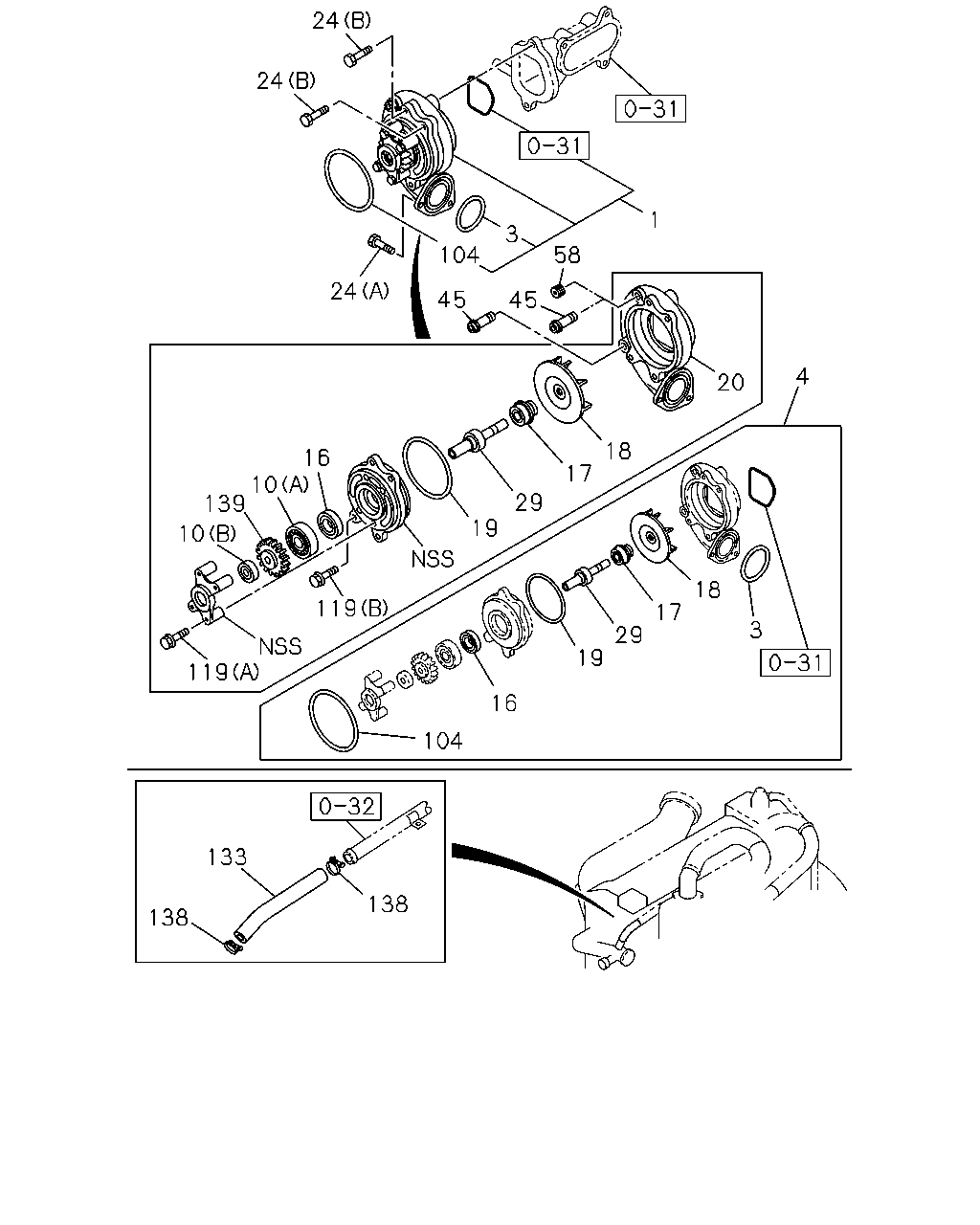

çizim 40941
24 24 1 3 58 104 24 45 45 4 20 18 16 17 10 139 29 19 10 18 119 17 3 29 19 119 16 104 133 138 138
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 8-97615-905-0 01 1 0710-0902 ●
1 PUMP ASM; WATER,W/GASKET 8-98146-073-0 01 1 0903-1207 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-865-0 01 1 1208-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-957-0 01 1 1401-1406 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-996-0 01 1 1407- ●
1 PUMP ASM; WATER,W/GASKET 8-97615-906-0 01 1 0710-0902 ● ●
1 PUMP ASM; WATER,W/GASKET 8-98146-074-0 01 1 0903-1207 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-866-0 01 1 1208-1312 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-958-0 01 1 1401-1406 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-993-0 01 1 1407- ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0710- ● ● ●
4 REPAIR KIT; WATER PUMP 1-87813-077-1 01 1 0710-1111 ●
4 REPAIR KIT; WATER PUMP 1-87813-813-0 01 1 1112-1207 ●
4 REPAIR KIT; WATER PUMP 1-87813-957-0 01 1 1208-1312 ●
4 REPAIR KIT; WATER PUMP 1-87813-813-0 01 1 1401-1406 ●
4 REPAIR KIT; WATER PUMP 1-87814-621-0 01 1 1407- ●
4 REPAIR KIT; WATER PUMP 1-87813-072-0 01 1 0710-0902 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-428-0 01 1 0903-1111 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-814-0 01 1 1112-1207 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-958-0 01 1 1208-1312 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-942-0 01 1 1401-1406 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-618-0 01 1 1407- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0710- ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0710- ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0710- ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0710-1207 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1208-1312 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1406 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1407- ● ● ●
18 IMPELLER; WATER PUMP 8-97608-969-0 01 1 0710- ●
18 IMPELLER; WATER PUMP 8-97608-970-0 01 1 0710- ● ●
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 0710- ● ● ●
20 COVER; WATER PUMP 8-97611-134-0 01 1 0710- ● ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 0710- ● ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 04 1 0710- ● ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0710-0902 ● ● ●
29 SHAFT; WATER PUMP 8-98141-463-0 01 1 0903- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
EURO2 SPECIFICATION<THN> PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 1111- ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 02 1 0710- ● ● ●
58 PLUG; HTR
EURO2 SPECIFICATION<THN> PT3/8 		5-09605-005-0 02 1 1111- ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 01 1 0710- ● ● ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 0710- ● ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 0710- ● ● ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0710- ● ● ●
133 HOSE; RUBBER,WATER PIPE
L=100 SERVICED BY L=3000 		0-03580-300-0 01 1 0710- ● ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 0710- ● ● ●
139 GEAR; WATER PUMP,DRIVE 8-97606-219-1 01 1 0710- ● ● ●
