◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#65819) — 83 parça

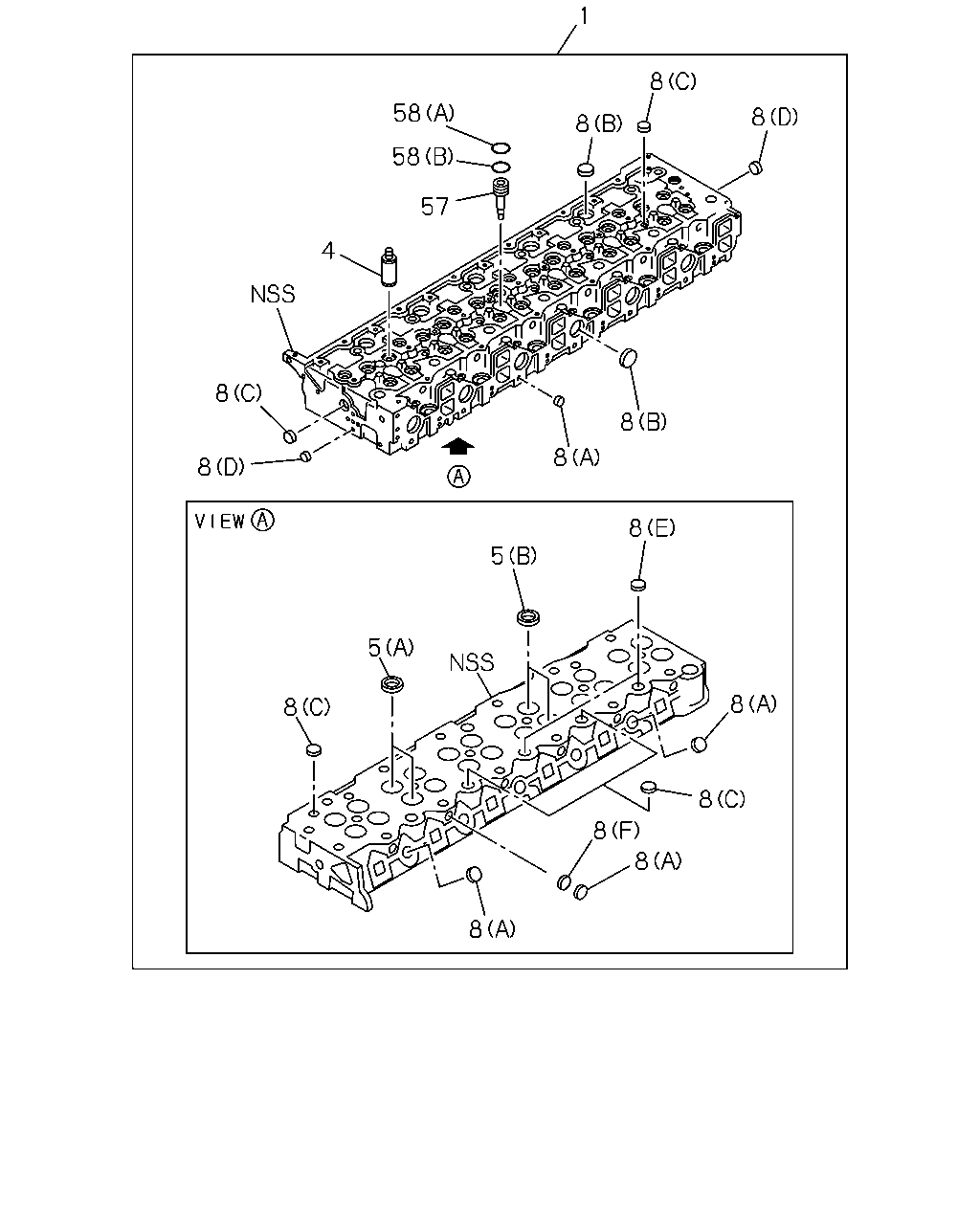

çizim 14874
1 8 58 8 8 58 57 4 8 8 8 8 8 5 5 8 8 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 1-11110-939-6 01 1 1001- ●
1 HEAD ASM; CYL 1-11110-939-4 01 1 0710-0910 ●
1 HEAD ASM; CYL 1-11110-941-5 01 1 0710- ● ●
4 GUIDE; VLV 1-11721-012-0 24 1 0710-0910 ● ● ●
4 GUIDE; VLV 1-11721-012-0 24 1 0911-0912 ● ●
4 GUIDE; VLV 1-11721-012-1 24 1 1001- ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-0 12 1 0710-0910 ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-1 12 1 0911-0912 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-1 12 1 1001- ● ● ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-0 12 1 0710-0910 ● ● ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-1 12 1 0911-0912 ● ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-1 12 1 1001- ● ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=32 		1-09600-012-2 02 1 0710-0910 ● ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=32 		1-09600-012-2 02 1 0911-0912 ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=32 		1-09600-012-2 02 1 1001- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 0710-0910 ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 0911-0912 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 1001- ● ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=12.3 		5-09600-013-0 02 1 0710-0910 ● ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=12.3 		5-09600-013-0 02 1 0911-0912 ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=12.3 		5-09600-013-0 02 1 1001- ● ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=16 		5-11129-006-0 06 1 0710-0910 ● ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=16 		5-11129-006-0 06 1 0911-0912 ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=16 		5-11129-006-0 06 1 1001- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=18 		5-11219-008-0 12 1 0710-0910 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=18 		5-11219-008-0 12 1 0911-0912 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=18 		5-11219-008-0 12 1 1001- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=40 		8-94241-637-0 18 1 0710-0910 ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=40 		8-94241-637-0 18 1 0911-0912 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=40 		8-94241-637-0 18 1 1001- ● ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-064-1 06 1 0710-0910 ● ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-064-1 06 1 0911-0912 ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-064-1 06 1 1001- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK 		8-97233-126-0 06 1 0710-0910 ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK 		8-97233-126-0 06 1 0911-0912 ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK 		8-97233-126-0 06 1 1001- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED 		8-97233-127-0 06 1 0710-0910 ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED 		8-97233-127-0 06 1 0911-0912 ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED 		8-97233-127-0 06 1 1001- ● ● ●

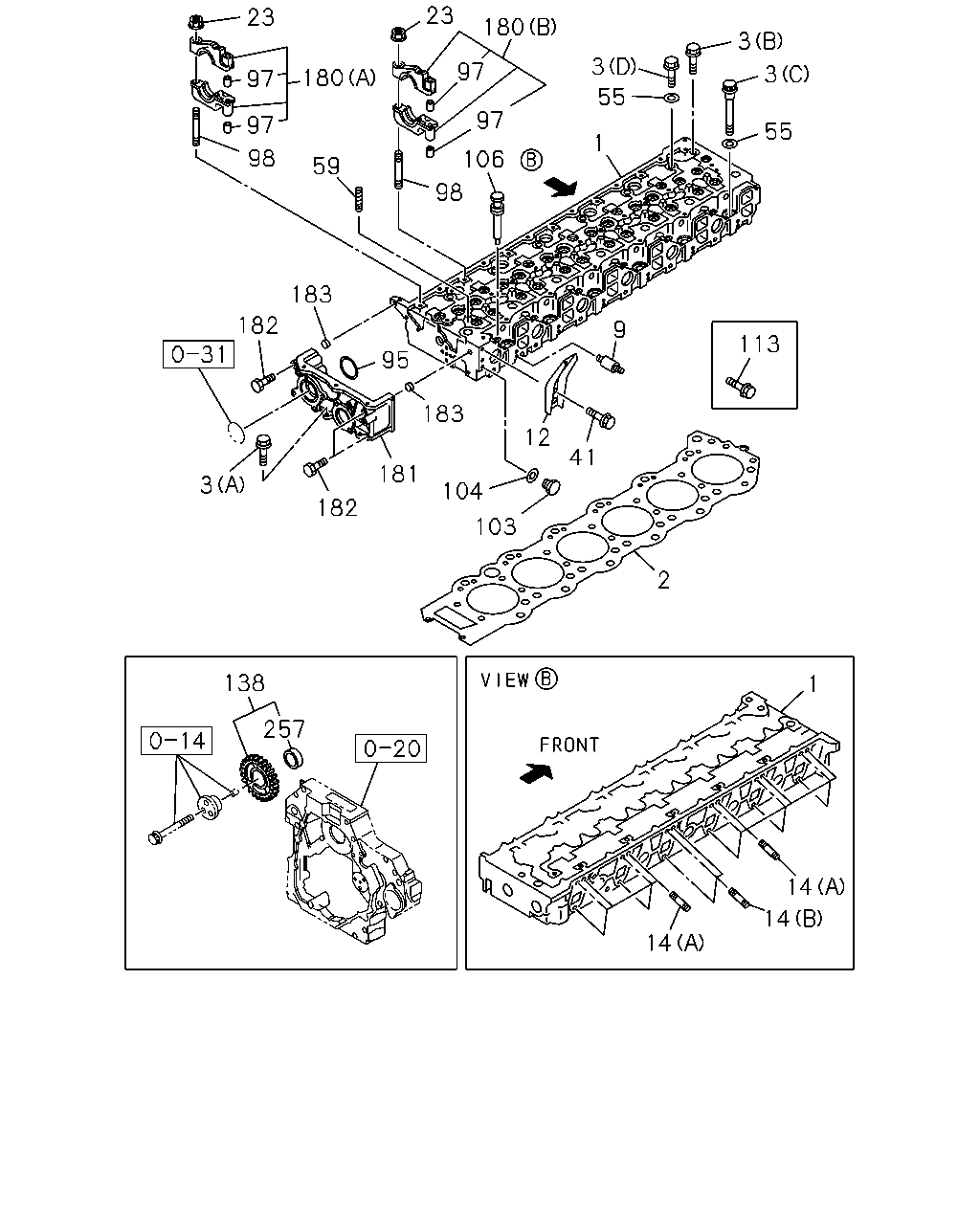

çizim 192621
138 257 1 14 14 14 2 103 104 182 181 183 95 183 182 3 9 113 41 12 55 3 3 3 1 55 97 97 180 106 98 59 23 180 23 97 97 98
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 1-11110-939-6 01 1 1001- ●
1 HEAD ASM; CYL 1-11110-939-4 01 1 0710-0910 ●
1 HEAD ASM; CYL 1-11110-941-5 01 1 0710- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-4 01 1 0710- ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28151-035-0 02 1 0710- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28156-212-0 01 1 0710- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 0710-1308 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		8-98245-540-0 06 1 1309- ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 0710-1308 ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 FLANGE 		8-98245-541-0 20 1 1309- ● ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 0710- ● ● ●
12 HANGER; ENG,RR 1-11777-217-1 01 1 0710- ● ● ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 02 1 0710- ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 0710- ●
14 STUD; EXH MANIF
(A) M10X77 L=92 		1-09302-176-0 13 1 0710- ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 04 1 0710- ● ●
14 STUD; EXH MANIF
(A) M10X77 L=92 		1-09302-176-0 14 1 0710- ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 0710- ● ● ●
41 BOLT; ENG HANGER
M12X25 FLANGE 		0-28161-225-0 02 1 0710- ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 0710- ● ● ●
59 GUIDE; BRIDGE 8-97378-021-1 12 1 0710- ● ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 0710-0910 ● ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 0911-0912 ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 1001- ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 0710-0907 ● ● ●
97 DOWEL; CAM BRKT SET
OD=16 		8-98143-037-0 28 1 0908- ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 0710- ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 0710- ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0710- ● ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 0710- ● ● ●
113 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ● ●
138 GEAR; IDLE
Z=45 		1-12523-371-1 01 1 0710- ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) 		8-97608-785-3 01 1 0710- ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) 		8-97608-791-3 06 1 0710- ● ● ●
181 CASE; HEAD GEAR 1-11310-055-0 01 1 0710-0910 ● ● ●
181 CASE; HEAD GEAR 1-11310-055-0 01 1 0911-0912 ● ●
181 CASE; HEAD GEAR 1-11310-055-1 01 1 1001- ● ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 0710-0910 ● ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 0911-0912 ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 1001- ● ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 0710-0910 ● ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 0911-0912 ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 1001- ● ● ●
257 BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT. 		8-98081-168-0 01 1 0710- ● ● ●
