◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#65803) — 831 parça

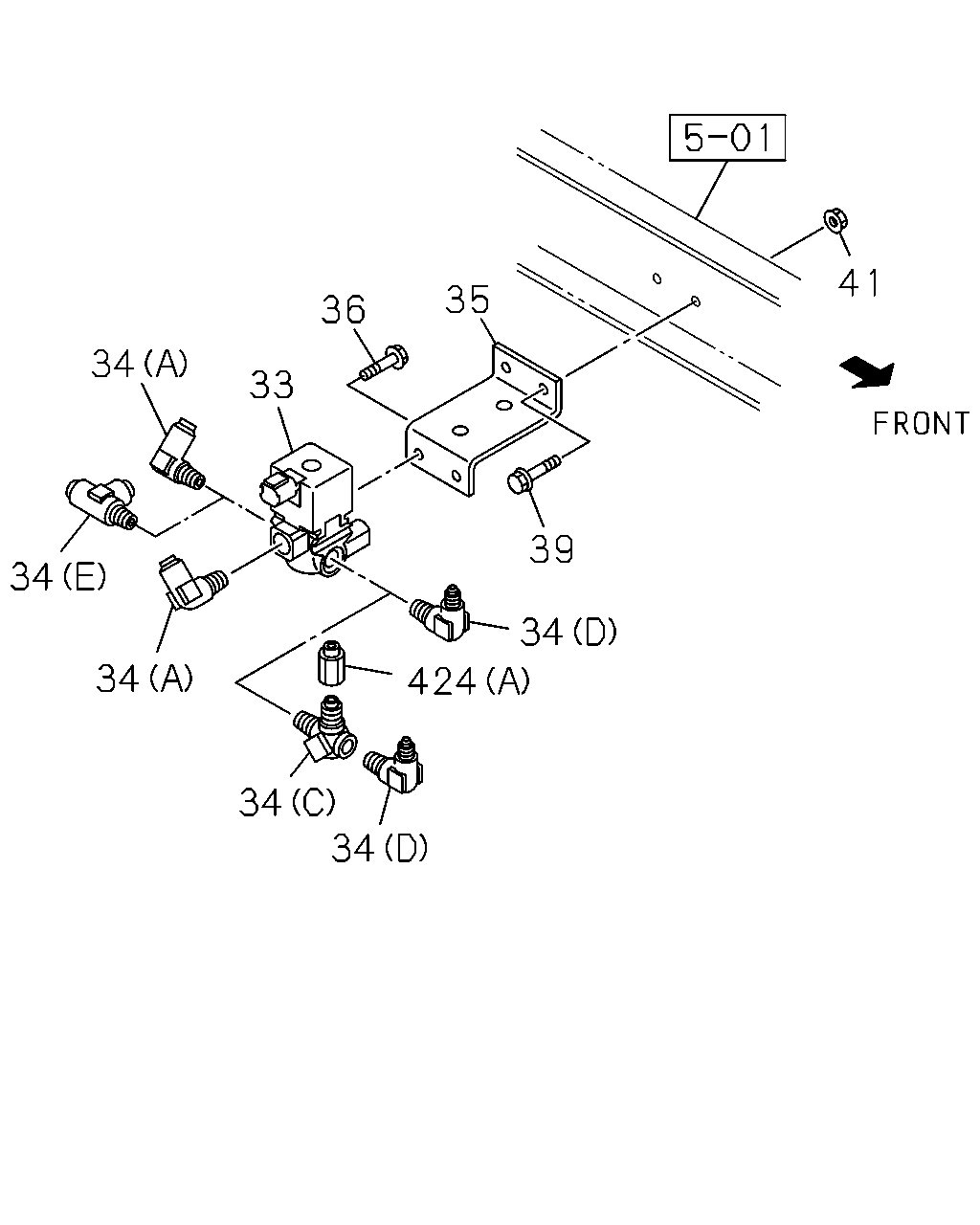

çizim 143709
41 35 36 34 33 39 34 34 34 424 34 34
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> 		1-82563-871-2 01 1 0809- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0903- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0711-0902 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-0710 ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0711-0808 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-0902 ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-0902 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0903- ●
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0710 ● ●
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0711- ●
35 BRACKET; MAG VLV,PTO CONT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> 		1-47471-374-1 01 1 0809-1004 ●
35 BRACKET; MAG VLV,PTO CONT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> 		8-98154-633-0 01 1 1005- ●
36 BOLT; MAG VLV,PTO CONT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
39 BOLT; BRKT,MAG VLV
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809 ●
39 BOLT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0710-0710 ● ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0711-0809 ● ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0810- ●
39 BOLT; BRKT,MAG VLV
EURO4 SPECIFICATION<NT4> M8X35 FLANGE 		0-28650-835-0 02 1 0810- ●
39 BOLT; BRKT,MAG VLV
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0810- ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ● ●
41 NUT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0711-0808 ● ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0809-0809 ● ●
41 NUT; BRKT,MAG VLV
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0809-0809 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0810- ●
41 NUT; BRKT,MAG VLV
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 0810- ●
41 NUT; BRKT,MAG VLV
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0810- ●
424 ADAPTER
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0801 ●
424 ADAPTER
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ALLISON MD3560P A/T(Y3B) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-0804 ● ●
424 ADAPTER
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-0804 ●
424 ADAPTER
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0805-0808 ●
424 ADAPTER
EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-1111 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
424 ADAPTER
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●

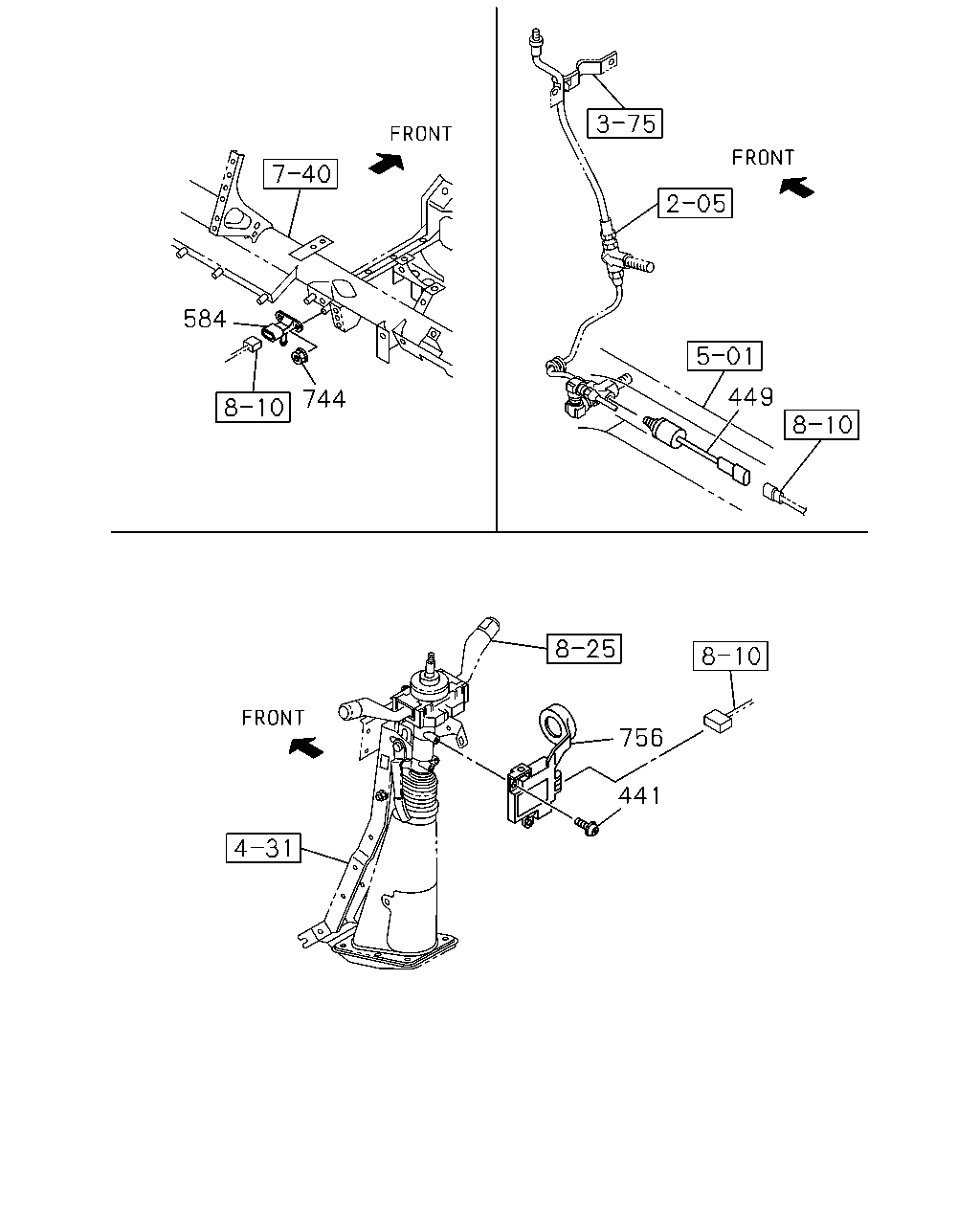

çizim 143730
584 449 744 756 441
BalonParca AdiParca NoAdetTipApplied Date A B
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0710-0711 ● ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0712- ●
441 SCREW; CONT UNIT
IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0712- ●
449 SWITCH; OIL PRESS,CLUTCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 0710- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0710- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0710-0711 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0712-0712 ●
756 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> 		8-98073-883-0 01 1 0712-0712 ●
756 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0712-1005 ●
756 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> 		8-98097-554-0 01 1 0712-1005 ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006- ●
756 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> 		8-98158-127-0 01 1 1006- ●

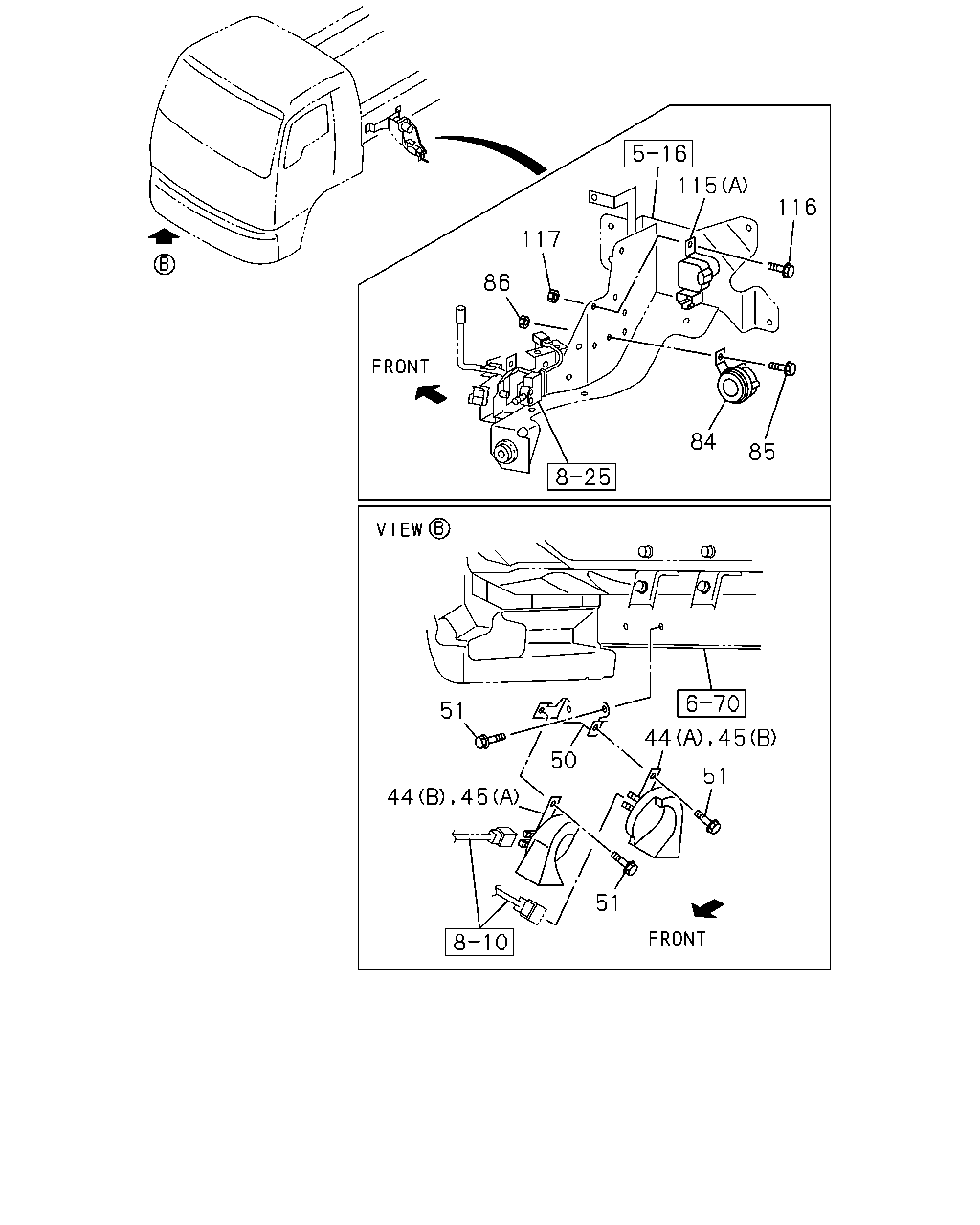

çizim 143931
115 116 117 86 84 85 51 45 44 50 51 51 44 45
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE
(A) 		8-97611-677-2 01 1 0710-0711 ● ●
44 HORN; HIGH NOTE
(A) 		8-97611-677-2 01 1 0712- ●
44 HORN; HIGH NOTE
ELECTRICAL HORN<WB7> (A) 		8-97611-677-2 01 1 0712- ●
44 HORN; HIGH NOTE
EXC. ELECTRICAL HORN<WB7> (B) 		8-98022-022-0 01 1 0712-1001 ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> (B) 		8-98022-022-0 01 1 1002- ●
45 HORN; LOW NOTE
(A) 		8-97611-676-2 01 1 0710-0711 ● ●
45 HORN; LOW NOTE
(A) 		8-97611-676-2 01 1 0712- ●
45 HORN; LOW NOTE
ELECTRICAL HORN<WB7> (A) 		8-97611-676-2 01 1 0712- ●
45 HORN; LOW NOTE
EXC. ELECTRICAL HORN<WB7> (B) 		8-98022-023-0 01 1 0712- ●
50 BRACKET; HORN 8-97613-300-2 01 1 0710- ● ●
51 BOLT; HORN TO BRKT
EXC. ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1002- ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 0710-1001 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ●
51 BOLT; HORN TO BRKT
ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0710-0711 ● ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0712- ●
84 BUZZER; POWER CAB TILT
AUTO CAB TILT<WV2> METRO DENSO 		8-98069-860-0 01 1 0712- ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
86 NUT; BUZZER
AUTO CAB TILT<WV2> M8 FLANGE 		0-91180-108-0 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-0 01 1 0710-0711 ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (A) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
116 BOLT; RELAY FIX
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
117 NUT; RELAY FIX
AUTO CAB TILT<WV2> M8 FLANGE 		0-91180-108-0 02 1 0712- ●
çizim 143936
89 34 90 261 261 34 34 34
BalonParca AdiParca NoAdetTipApplied Date A B
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0903- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0711-0902 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-0710 ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0711-0808 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-0902 ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-0902 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0903- ●
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0710 ● ●
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0711- ●
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 0710-0710 ● ●
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 0711-1205 ● ●
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1206- ● ●
90 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
261 PLUG; MAG VLV 0-92004-813-0 01 1 1206-1206 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0710-0710 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0711-0801 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0802-0802 ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0802-0802 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0802-0802 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> PT1/4 		9-99204-513-0 01 1 0802-0802 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0803-0808 ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0803-0808 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0803-0808 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0809-1111 ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0809-1111 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0809-1111 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1112-1205 ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112-1205 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1206-1206 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1207- ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1207- ●

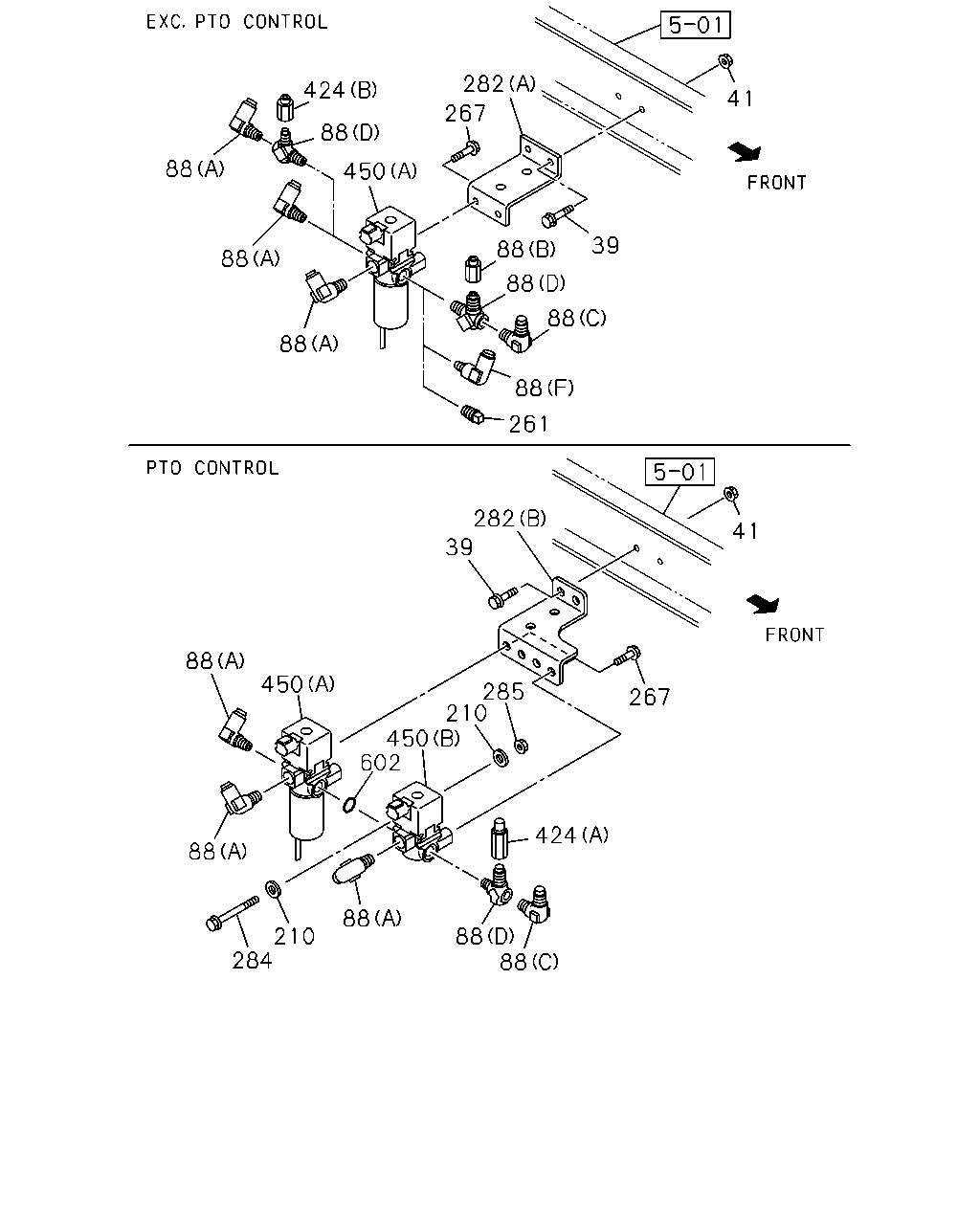

çizim 143943
282 424 41 267 88 88 450 39 88 88 88 88 88 88 261 282 41 39 88 450 285 210 450 602 267 424 88 88 210 284 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809 ●
39 BOLT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0710-0710 ● ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0711-0809 ● ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0810- ●
39 BOLT; BRKT,MAG VLV
EURO4 SPECIFICATION<NT4> M8X35 FLANGE 		0-28650-835-0 02 1 0810- ●
39 BOLT; BRKT,MAG VLV
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0810- ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ● ●
41 NUT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0711-0808 ● ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0809-0809 ● ●
41 NUT; BRKT,MAG VLV
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0809-0809 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0810- ●
41 NUT; BRKT,MAG VLV
EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 0810- ●
41 NUT; BRKT,MAG VLV
EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0810- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0712-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0808-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1012- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1012- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0805-0808 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0805-0808 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0805-0808 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-0710 ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0711-0711 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-0807 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0808-0808 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0801 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0808 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710-0711 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-0711 ● ●

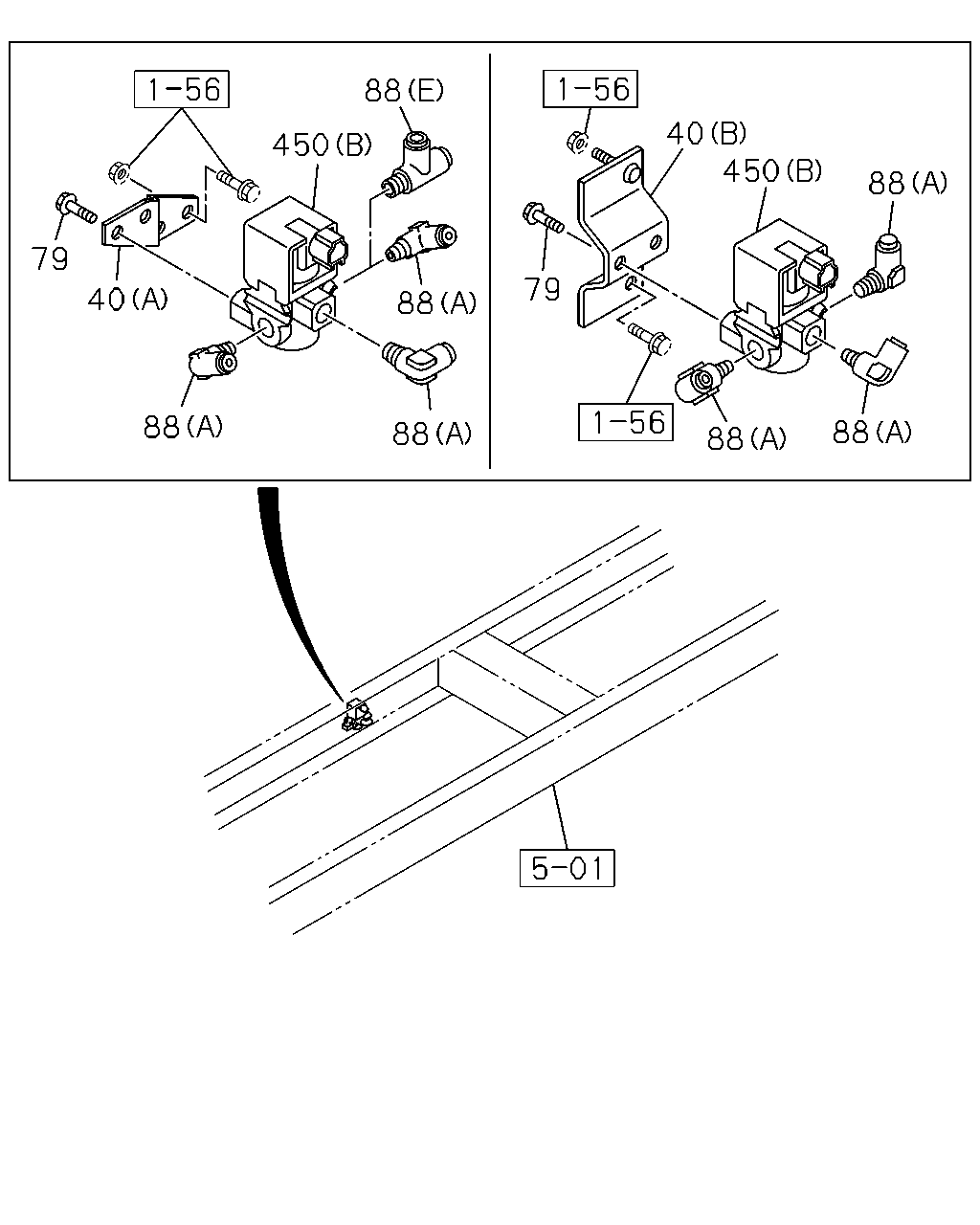

88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0711 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803-0804 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0805-0808 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0805-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> 		1-82569-266-0 02 1 0802-0802 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> 		1-82569-266-0 02 1 0802-0802 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> 		1-82569-266-0 02 1 0802-0802 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0803-0808 ● ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> 		1-82569-266-0 02 1 0803-0808 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0809-1111 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> 		1-82569-266-0 02 1 0809-1111 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> 		1-82569-266-0 02 1 0809-1111 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ● ●
261 PLUG; MAG VLV 0-92004-813-0 01 1 1206-1206 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0710-0710 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0711-0801 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0802-0802 ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0802-0802 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0802-0802 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> PT1/4 		9-99204-513-0 01 1 0802-0802 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0803-0808 ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0803-0808 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0803-0808 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0809-1111 ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0809-1111 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0809-1111 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1112-1205 ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112-1205 ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1206-1206 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1207- ● ●
261 PLUG; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1207- ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ●
267 BOLT; VLV TO BRKT
EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ●
267 BOLT; VLV TO BRKT
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ●
267 BOLT; VLV TO BRKT
ALLISON MD3560P A/T(Y3B) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ●
267 BOLT; VLV TO BRKT
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ● ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ● ●
267 BOLT; VLV TO BRKT
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ●
267 BOLT; VLV TO BRKT
ALLISON MD3560P A/T(Y3B) M8X20 FLANGE 		0-28650-820-0 02 1 0803-0804 ● ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0804 ● ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0803-0804 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0805-0808 ● ●
267 BOLT; VLV TO BRKT
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0805-0808 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0809-1111 ●
267 BOLT; VLV TO BRKT
EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0809-1111 ●
267 BOLT; VLV TO BRKT
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 0809-1111 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
267 BOLT; VLV TO BRKT
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		8-98101-296-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) 		8-98101-296-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98101-296-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0803-0808 ● ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		8-98101-296-0 01 1 0803-0808 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0809-1111 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		8-98101-296-0 01 1 0809-1111 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0809-1111 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 1112- ● ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0710-0711 ● ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0712-0801 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0712-0801 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0712-0801 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0712-0801 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0802-0802 ● ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0802-0802 ● ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47471-374-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47471-374-0 01 1 0802-0802 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0803-0804 ● ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) 		1-47471-374-0 01 1 0803-0804 ● ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) 		1-47471-374-0 01 1 0803-0804 ● ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0803-0804 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0805-0808 ● ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) 		1-47471-374-0 01 1 0805-0808 ● ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0805-0808 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0805-0808 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		1-47471-374-1 01 1 0809-1004 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) 		1-47471-374-1 01 1 0809-1004 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		1-47471-374-1 01 1 0809-1004 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		1-47471-374-1 01 1 0809-1004 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) 		1-47471-374-1 01 1 0809-1004 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) 		1-47471-374-1 01 1 0809-1004 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1112- ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) 		8-98154-633-0 01 1 1112- ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1112- ●
282 BRACKET; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) 		8-98154-633-0 01 1 1112- ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6X50 FLANGE 		0-28050-650-0 01 1 0802-0802 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> M6X50 FLANGE 		0-28050-650-0 01 1 0802-0802 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> M6X50 FLANGE 		0-28050-650-0 01 1 0802-0802 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0803-0808 ● ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M6X50 FLANGE 		0-28050-650-0 01 1 0803-0808 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0809-1111 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M6X50 FLANGE 		0-28050-650-0 01 1 0809-1111 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0809-1111 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 1112- ● ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 0802-0802 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 0802-0802 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> M6 FLANGE 		0-91180-106-0 01 1 0802-0802 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0803-0808 ● ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 0803-0808 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0809-1111 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 0809-1111 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0809-1111 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
424 ADAPTER
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0801 ●
424 ADAPTER
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ●
424 ADAPTER
ALLISON MD3560P A/T(Y3B) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-0804 ● ●
424 ADAPTER
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-0804 ●
424 ADAPTER
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0805-0808 ●
424 ADAPTER
EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-1111 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
424 ADAPTER
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
424 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
424 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0710-0711 ● ●
450 VALVE; MAG
EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0802-0802 ● ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) (A) 		8-97376-939-3 01 1 0803-0804 ● ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0803-0804 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0803-0804 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0805-0808 ● ●
450 VALVE; MAG
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0805-0808 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0809-0910 ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0809-0910 ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> (A) 		8-97376-939-3 01 1 0809-0910 ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911-1111 ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		8-97633-075-0 01 1 0911-1111 ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> (A) 		8-97633-075-0 01 1 0911-1111 ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 1112- ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> (A) 		8-97633-075-0 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0710-0710 ● ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0711-0711 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0712-0801 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0802-0802 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0803-0807 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803-0807 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0803-0807 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 0808-0808 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0808-0808 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0808-0808 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 0809-1008 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0809-1008 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0809-1008 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0809-1008 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1112- ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> ID=16.8 		9-09565-117-0 01 1 0802-0802 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> ID=16.8 		9-09565-117-0 01 1 0802-0802 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> ID=16.8 		9-09565-117-0 01 1 0802-0802 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0803-0808 ● ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> ID=16.8 		9-09565-117-0 01 1 0803-0808 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0809-1111 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> ID=16.8 		9-09565-117-0 01 1 0809-1111 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0809-1111 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ● ●
çizim 144007
88 40 450 450 88 79 79 40 88 88 88 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98174-365-0 01 1 1012- ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) (A) 		8-98057-863-0 01 1 0710-0710 ● ●
40 BRACKET; MAG VLV
(A) 		8-98057-863-0 01 1 0711-0711 ● ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) (A) 		8-98057-863-0 01 1 0712-0807 ● ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98057-863-0 01 1 0808-1008 ● ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98057-863-0 01 1 1009-1011 ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98057-863-0 01 1 1009-1011 ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98057-863-0 01 1 1012- ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98057-863-0 01 1 1012- ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98057-863-0 01 1 1012- ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ● ●
79 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0711-0711 ● ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0807 ● ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 0808-1008 ● ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 1009- ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 1009- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0712-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0808-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1012- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1012- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0805-0808 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0805-0808 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0805-0808 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-0710 ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0711-0711 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-0807 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0808-0808 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0801 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0808 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710-0711 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-0711 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-0804 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0805-0807 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0808-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1008 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1009-1011 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0711 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU), H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803-0804 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0805-0808 ● ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0805-0808 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0710-0711 ● ●
450 VALVE; MAG
EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0712-0801 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0802-0802 ● ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) RIGID SEAT WO/ARM REST<TAZ> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-97376-939-3 01 1 0802-0802 ●
450 VALVE; MAG
ALLISON MD3560P A/T(Y3B) (A) 		8-97376-939-3 01 1 0803-0804 ● ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0803-0804 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0803-0804 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0805-0808 ● ●
450 VALVE; MAG
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0805-0808 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0809-0910 ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0809-0910 ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> (A) 		8-97376-939-3 01 1 0809-0910 ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911-1111 ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) 		8-97633-075-0 01 1 0911-1111 ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> (A) 		8-97633-075-0 01 1 0911-1111 ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 1112- ●
450 VALVE; MAG
EURO4 SPECIFICATION<NT4> (A) 		8-97633-075-0 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0710-0710 ● ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0711-0711 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0712-0801 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0802-0802 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (B) 		1-82563-871-2 01 1 0802-0802 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (B) 		1-82563-871-2 01 1 0803-0807 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803-0807 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0803-0807 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 0808-0808 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0808-0808 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0808-0808 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 0809-1008 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0809-1008 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0809-1008 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0809-1008 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1009-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1112- ●
çizim 144055
540 711 762 761 711 779 762 265 779 385 422 352 676 265 1 4 2 573 2 265
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 0710- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0710-0711 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0712-1012 ●
265 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98048-459-1 02 1 0712-1012 ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ●
265 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98180-751-0 02 1 1101-1205 ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ●
265 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98218-236-0 02 1 1206- ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0710-0711 ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712- ●
352 SCREW; BRKT
REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712- ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710-0711 ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712- ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712- ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 0710-0711 ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 0712- ●
422 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 		8-98055-281-1 01 1 0712- ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0710-0711 ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0712-1308 ●
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 0712-1308 ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ●
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309- ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 0710- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 0710-0711 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 0712-1012 ●
676 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98017-258-1 01 1 0712-1012 ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ●
676 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98181-809-0 01 1 1101-1205 ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ●
676 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98218-231-0 01 1 1206- ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0710-0711 ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0712-1205 ●
711 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98078-067-0 02 1 0712-1205 ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ●
711 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98218-239-0 02 1 1206- ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 0710-0711 ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 0712-1012 ●
761 HOLDER; BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-063-0 02 1 0712-1012 ●
762 BATTERY 8-98078-061-0 02 1 0710-0711 ● ●
762 BATTERY 8-98078-061-0 02 1 0712- ●
762 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 0712- ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1206- ●
779 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> (A) 		8-98218-240-0 02 1 1206- ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1206- ●
779 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> (B) 		8-98218-243-0 02 1 1206- ●
çizim 192421
22 367 770 364 364
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710- ● ●
364 RELAY; AUTO CRUISE OFF
AUTO CRUISE<K30> A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1001-1001 ● ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1002-1104 ●
364 RELAY; AUTO CRUISE OFF
AUSTRALIA EQUIPMENT(B13) A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1002-1104 ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1105- ● ●
367 RELAY; NEUTRAL
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ●
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ● ●
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
770 RELAY; ENG BRK
ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
çizim 192546
531 115
BalonParca AdiParca NoAdetTipApplied Date A B
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0711 ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-0 01 1 0710-0711 ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (A) 24V NIKKO 		8-98005-631-1 01 1 0712- ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 0710-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
