2-05 — CLUTCH PIPING (#658) — 65 parça

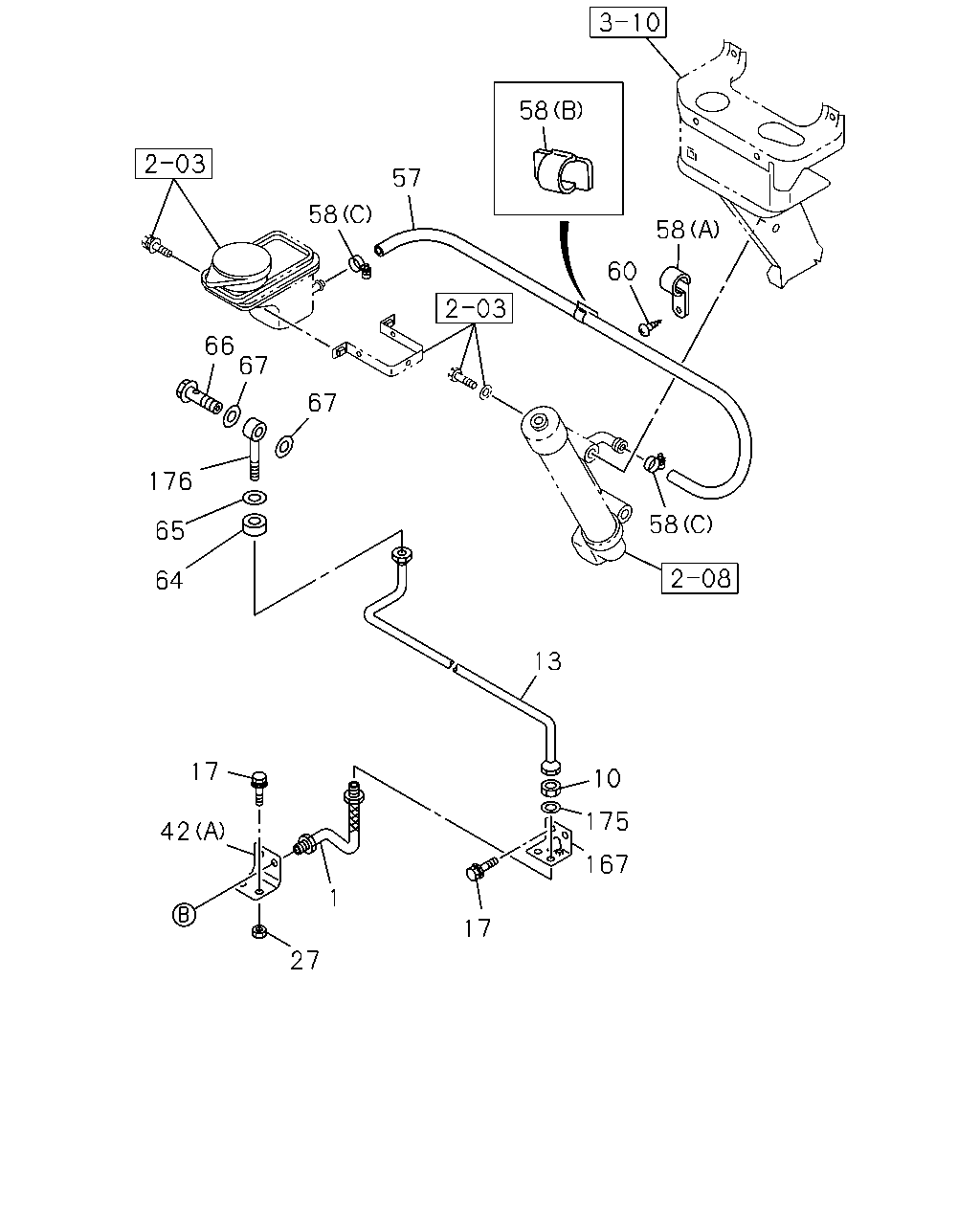

çizim 92925
58 57 58 58 60 66 67 67 176 58 65 64 13 17 10 175 42 167 1 17 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,CLU CONT
L=400 		1-09364-263-0 01 1 9202- ● ● ● ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9202- ● ● ● ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
L=717 		1-47418-810-0 01 1 9202-9212 ● ● ● ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
L=717 		1-47425-601-0 01 1 9301-9307 ● ● ● ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=717 		1-47425-601-0 01 1 9308- ● ● ● ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
STD CAB(FS**M*) HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=708 		1-47427-624-0 01 1 9308- ● ● ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28010-820-0 02 1 9202-9204 ● ● ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ● ● ● ●
17 BOLT; BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ● ● ● ●
27 NUT; BRKT
M8 		9-09110-408-0 02 1 9202- ● ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9202- ● ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9307-9307 ● ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-371-0 01 1 9308- ● ● ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK
L=1800 		1-09360-320-0 01 1 9202- ● ● ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(C) ID=16 		1-09707-171-0 02 1 9202- ● ● ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(B) ID=15 		1-09987-115-0 01 1 9202- ● ● ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(A) 		9-09525-232-0 01 1 9202- ● ● ● ● ●
60 SCREW; RUBBER HOSE CLIP,CLU CONT
M6X16 W/LK&PL WASHER 		1-09981-439-0 01 1 9202- ● ● ● ● ●
64 SEAL; EYE JOINT,CLU M/CYL 1-73998-453-0 01 1 9202- ● ● ● ● ●
65 WASHER; PL,SEAL,CLU M/CYL
ID=15 OD=30 		9-09160-614-0 01 1 9202- ● ● ● ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9202- ● ● ● ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=20.0 		9-09571-414-0 02 1 9202- ● ● ● ● ●
167 BRACKET; UNION 1-79738-097-3 01 1 9202- ● ● ● ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9202- ● ● ● ● ●
176 JOINT; EYE,CLU M/CYL FLUID 1-09674-088-0 01 1 9202- ● ● ● ● ●

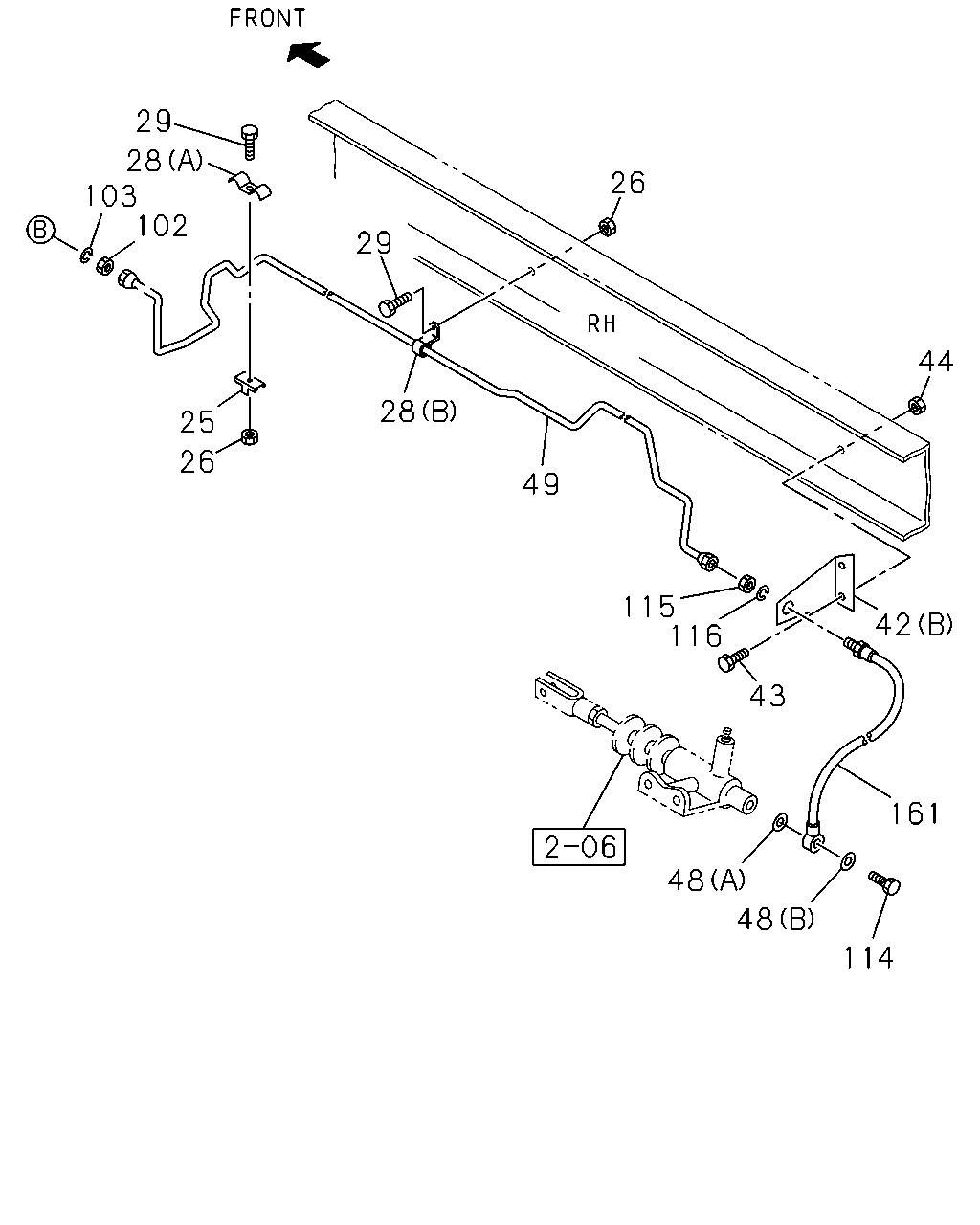

çizim 94906
29 28 103 102 26 29 44 28 25 26 49 115 116 42 43 161 48 48 114
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 BRACKET; OIL PIPE 1-47475-427-1 01 1 9202- ● ● ● ● ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 9202-9207 ● ● ● ● ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 9208- ● ● ● ● ●
26 NUT; CLIP,OIL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 		9-09110-408-0 01 1 9208- ● ● ● ● ●
28 CLIP; OIL PIPE
(A) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 9202- ● ● ● ● ●
28 CLIP; OIL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 9208-9210 ● ● ● ● ●
28 CLIP; OIL PIPE
STD CAB(FS**M*) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 9211- ● ● ● ● ●
28 CLIP; OIL PIPE
DOUBLE CAB(FS**W*) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 9211- ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X35 FLANGE 		0-28010-835-0 01 1 9202-9204 ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X35 FLANGE 		0-28080-835-0 01 1 9205- ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE 		0-28080-825-0 01 1 9208-9210 ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
STD CAB(FS**M*) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE 		0-28080-825-0 01 1 9211- ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
DOUBLE CAB(FS**W*) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE 		0-28080-825-0 01 1 9211- ● ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9202- ● ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9307-9307 ● ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-371-0 01 1 9308- ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-408-0 02 1 9202- ● ● ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
(A) ID=10.5 		1-09630-074-1 01 1 9202- ● ● ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
(B) ID=14.2 		9-09851-004-0 01 1 9202- ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2407 SERVICED BY L=2700 		1-47434-415-0 01 1 9202-9204 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2407 SERVICED BY L=2700 		1-47434-415-0 01 1 9205-9212 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2407 SERVICED BY L=2700 		1-47426-396-0 01 1 9301- ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2440 SERVICED BY L=2500 		1-47434-398-0 01 1 9205-9212 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2440 SERVICED BY L=2700 		1-47426-396-0 01 1 9301- ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2426 SERVICED BY L=2700 		1-47434-415-0 01 1 9202-9204 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
DOUBLE CAB(FS**W*) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2426 SERVICED BY L=2700 		1-47434-415-0 01 1 9205-9212 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
DOUBLE CAB(FS**W*) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2426 SERVICED BY L=2700 		1-47426-396-0 01 1 9301- ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
STD CAB(FS**M*) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2428 SERVICED BY L=2600 		1-47437-973-0 01 1 9205-9212 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
DOUBLE CAB(FS**W*) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2428 SERVICED BY L=2600 		1-47437-973-0 01 1 9205-9212 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
STD CAB(FS**M*) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2428 SERVICED BY L=2600 		1-47426-424-0 01 1 9301- ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
DOUBLE CAB(FS**W*) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2428 SERVICED BY L=2600 		1-47426-424-0 01 1 9301- ● ● ● ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99110-414-0 01 1 9202- ● ● ● ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9202-9312 ● ● ● ● ●
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 9202- ● ● ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9202- ● ● ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9202-9312 ● ● ● ● ●
161 HOSE; FLEX,SLAVE CYL
L=310 		1-09364-331-0 01 1 9202-9208 ● ● ● ● ●
161 HOSE; FLEX,SLAVE CYL
L=310 		0-05567-310-0 01 1 9209- ● ● ● ● ●
