◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#65799) — 65 parça

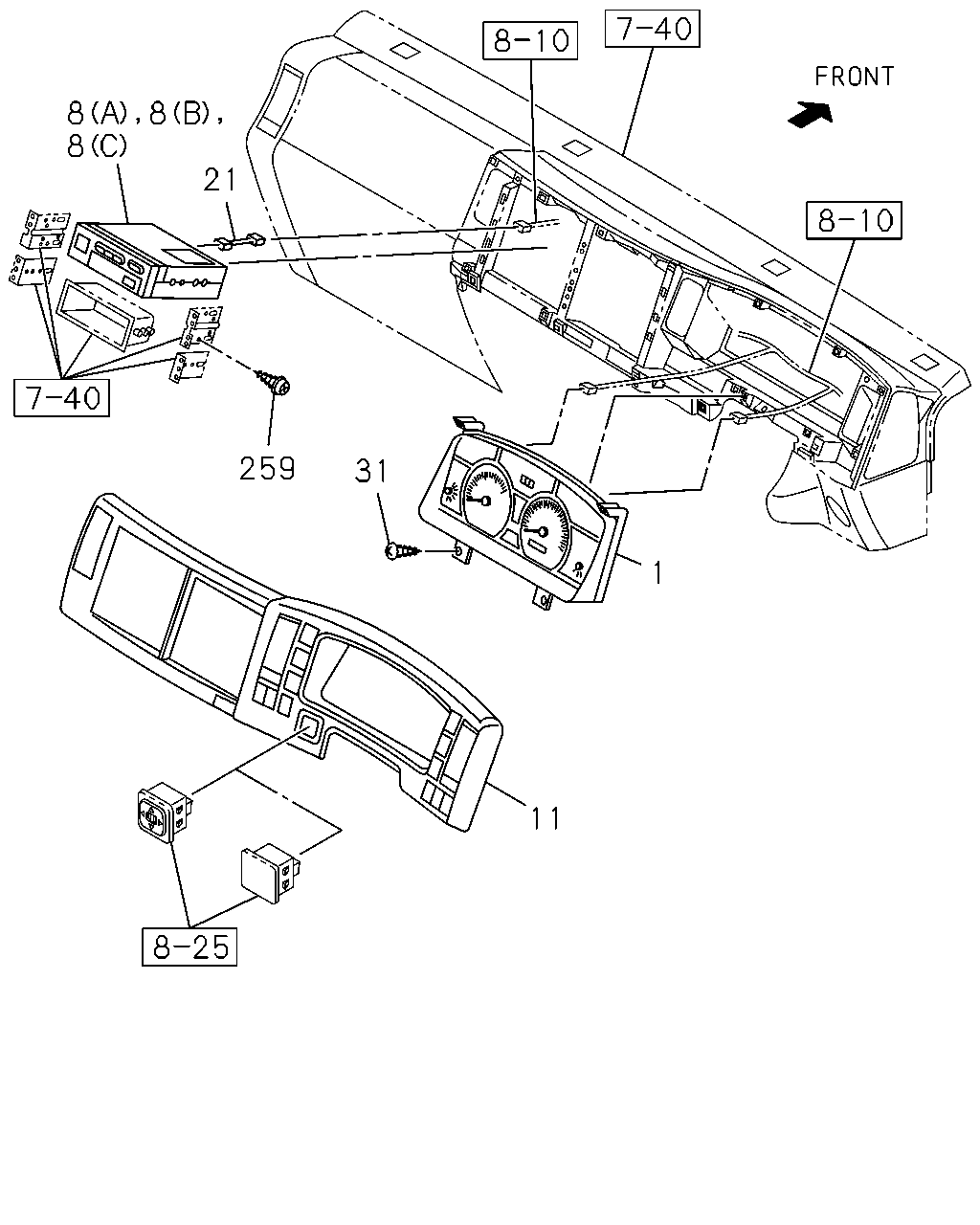

çizim 137899
8 21 259 31 1 11 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98070-126-6 01 1 0712-0907 ●
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98070-126-6 01 1 0908- ●
1 METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> EXC. AUSTRALIA EQUIPMENT(B13),MULTI INFORMATION DISPLAY<7NY> 		8-98064-912-3 01 1 0712-0907 ●
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98064-911-5 01 1 0712-0907 ●
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),MULTI INFORMATION DISPLAY<7NY> 		8-98064-911-5 01 1 0908-1010 ●
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CRUISE<K30>, MULTI INFORMATION DISPLAY<7NY> 		8-98064-911-6 01 1 1011- ●
1 METER COMPL; CLUSTER 8-98064-930-3 01 1 0710-0711 ● ●
1 METER COMPL; CLUSTER 8-98064-930-5 01 1 0712-0907 ●
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98064-930-5 01 1 0712-0907 ●
1 METER COMPL; CLUSTER 8-98064-930-5 01 1 0908- ●
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> 		8-98064-930-5 01 1 0908- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) 		8-98035-623-0 01 1 0801-0803 ●
8 TACHOGRAPH; CLUSTER METER
ZF9S1110 M/T(Y5E) TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) 		8-98113-386-0 01 1 0804-0805 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> (A) 		8-97387-082-2 01 1 0710- ● ●
11 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97414-681-0 01 1 0801-0805 ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-3 01 1 0710-0712 ● ●
11 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97405-350-6 01 1 0801-0805 ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0806- ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 		8-98078-839-0 01 1 0710-0802 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 0710- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0710- ● ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0710- ● ●

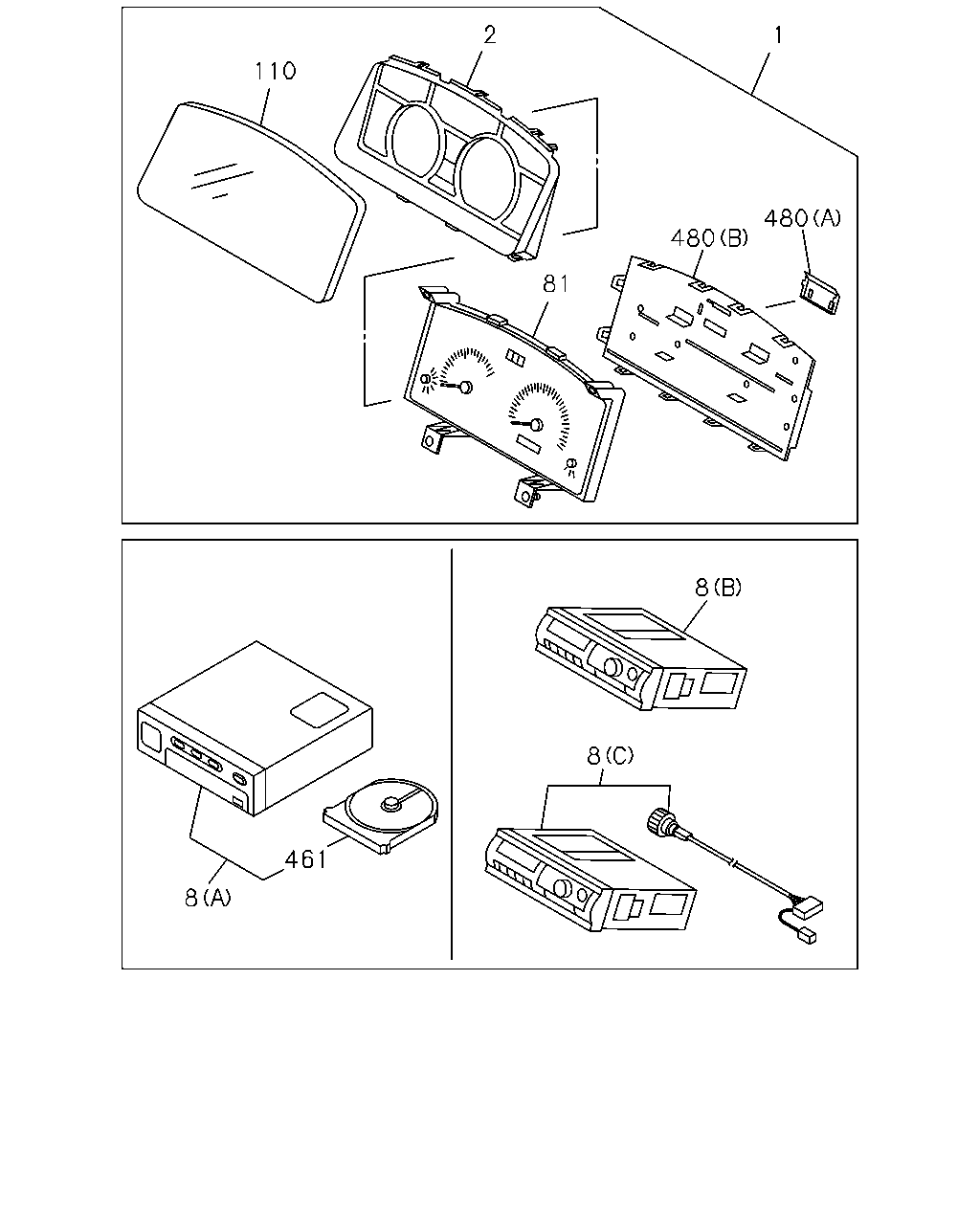

çizim 138002
2 1 110 480 480 81 8 8 461 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98070-126-6 01 1 0712-0907 ●
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98070-126-6 01 1 0908- ●
1 METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> EXC. AUSTRALIA EQUIPMENT(B13),MULTI INFORMATION DISPLAY<7NY> 		8-98064-912-3 01 1 0712-0907 ●
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98064-911-5 01 1 0712-0907 ●
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),MULTI INFORMATION DISPLAY<7NY> 		8-98064-911-5 01 1 0908-1010 ●
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CRUISE<K30>, MULTI INFORMATION DISPLAY<7NY> 		8-98064-911-6 01 1 1011- ●
1 METER COMPL; CLUSTER 8-98064-930-3 01 1 0710-0711 ● ●
1 METER COMPL; CLUSTER 8-98064-930-5 01 1 0712-0907 ●
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98064-930-5 01 1 0712-0907 ●
1 METER COMPL; CLUSTER 8-98064-930-5 01 1 0908- ●
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> 		8-98064-930-5 01 1 0908- ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0710- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) 		8-98035-623-0 01 1 0801-0803 ●
8 TACHOGRAPH; CLUSTER METER
ZF9S1110 M/T(Y5E) TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) 		8-98113-386-0 01 1 0804-0805 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> (A) 		8-97387-082-2 01 1 0710- ● ●
81 METER SUB ASM
AUSTRALIA EQUIPMENT(B13) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98079-681-0 01 1 0712-0907 ●
81 METER SUB ASM
AUSTRALIA EQUIPMENT(B13) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98079-681-0 01 1 0908- ●
81 METER SUB ASM
ENGINE OVERRUN BUZZER<SK4> EXC. AUSTRALIA EQUIPMENT(B13),MULTI INFORMATION DISPLAY<7NY> 		8-98079-682-0 01 1 0712-0907 ●
81 METER SUB ASM
EXC. AUSTRALIA EQUIPMENT(B13),ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98079-680-0 01 1 0712-0907 ●
81 METER SUB ASM
EXC. AUSTRALIA EQUIPMENT(B13),MULTI INFORMATION DISPLAY<7NY> 		8-98079-680-0 01 1 0908-1010 ●
81 METER SUB ASM
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CRUISE<K30>, MULTI INFORMATION DISPLAY<7NY> 		8-98079-680-0 01 1 1011- ●
81 METER SUB ASM 8-98079-689-0 01 1 0710-0711 ● ●
81 METER SUB ASM 8-98079-689-0 01 1 0712-0907 ●
81 METER SUB ASM
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98079-689-0 01 1 0712-0907 ●
81 METER SUB ASM 8-98079-689-0 01 1 0908- ●
81 METER SUB ASM
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> 		8-98079-689-0 01 1 0908- ●
110 GLASS; CLUSTER METER
ENGINE OVERRUN BUZZER<SK4> EXC. AUSTRALIA EQUIPMENT(B13),MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 0712-0907 ●
110 GLASS; CLUSTER METER
EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 0712-0907 ●
110 GLASS; CLUSTER METER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 0908-1010 ●
110 GLASS; CLUSTER METER
AUSTRALIA EQUIPMENT(B13) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1011- ●
110 GLASS; CLUSTER METER
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CRUISE<K30>, MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1011- ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 0710-0711 ● ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 0712-0907 ●
110 GLASS; CLUSTER METER
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98054-642-0 01 1 0712-0907 ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 0908- ●
110 GLASS; CLUSTER METER
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 0908- ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 0710- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0710- ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0710-0711 ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0712-0907 ●
480 COVER; METER
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0712-0907 ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0908- ●
480 COVER; METER
AUSTRALIA EQUIPMENT(B13) MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0908- ●
